JST RTZ Series Connector

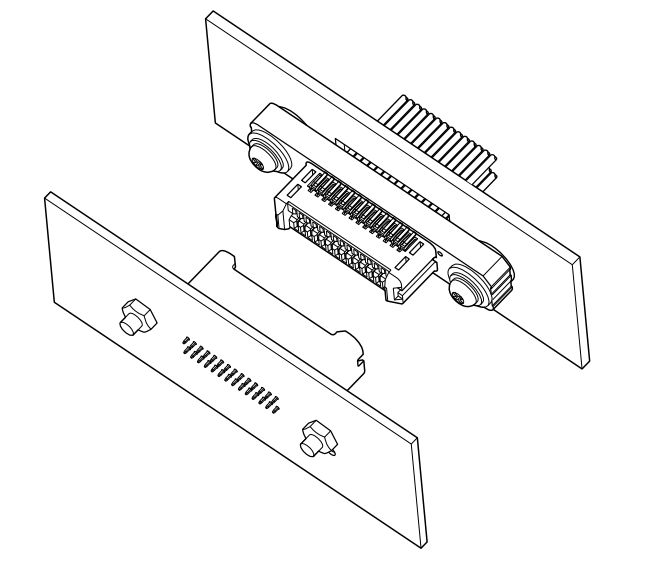

The JST RTZ Connector is a compact and versatile drawer connector designed to simplify equipment assembly with its unique floating mechanism. This mechanism allows for ±1.1 mm movement, accommodating alignment deviations during installation and ensuring a secure, stable connection. With a 1.5 mm pitch and a minimal board-to-panel distance of just 19.9 mm, the RTZ Connector supports the trend toward miniaturization and space-saving designs in modern electronic devices. Its robust, high-reliability contacts deliver consistent electrical performance, while the use of a standard M3 screw enhances installation versatility and stability. This combination of features makes the RTZ Connector an ideal choice for compact, high-precision applications.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector Pitch: 1.5mm
- Current rating: 2 A AC/DC (AWG #24)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 30 mΩ max, After environmental tests/ 50 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #28 to #24, Insulation O.D./ 0.8 to1.2 mm
- Applicable PC board thickness: 1.6 mm

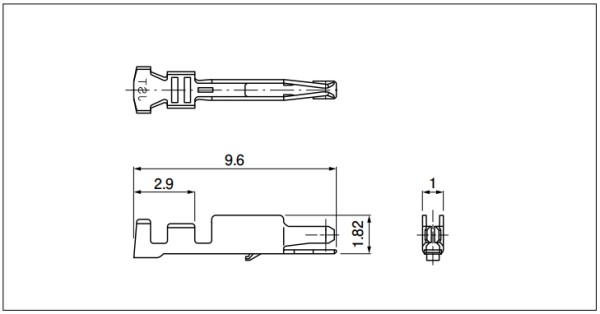

Receptacle contact
Notes:
- Model Number: SRTZ-002GSA-P0.3
- Suitable Wire Gauge: 0.08 - 0.21mm² (28 - 24AWG)
- Insulation O.D. (mm): 0.8 - 1.2
- Qty/Reel: 15000pcs
- Material and Finish:
- Copper alloy, nickel-undercoated, Mating part: gold-plated
- Crimping part: tin-plated (reflow treatment)
- RoHS2 compliance

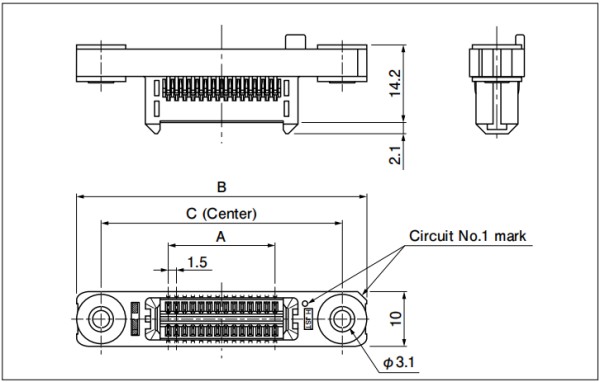

Receptacle
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | ||
| A | B | C | |||
| 4 | RTZR-04V-K-FB | - | 35.0 | 26.0 | 1512 |
| 16 | RTZR-16V-K-FB | 10.5 | 44.0 | 35.0 | 1296 |
| 20 | RTZR-20V-K-FB | 13.5 | 47.0 | 38.0 | 1080 |
| 22 | RTZR-22V-K-FB | 15.0 | 48.5 | 39.5 | 1080 |
| 28 | RTZR-28V-K-FB | 19.5 | 53.0 | 44.0 | 1080 |
| 36 | RTZR-36V-K-FB | 25.5 | 59.0 | 50.0 | 864 |
Material and Finish
- Washer, Floating rivet: Copper alloy, nickel-plated
- Housing: Glass-filled PBT, UL94V-0, black
Plug

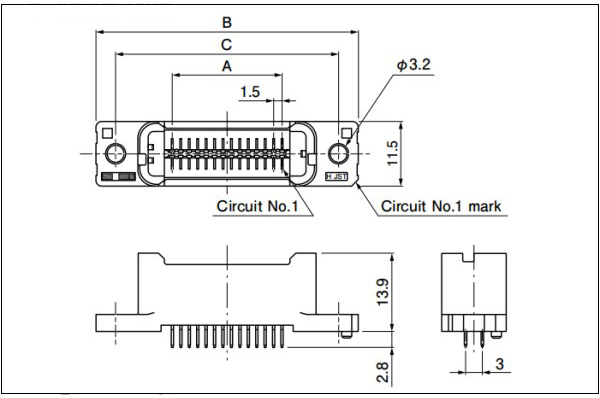

In-line type

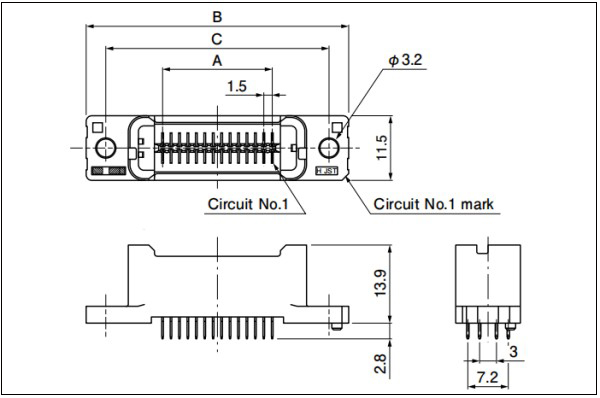

Staggered type
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | |||
| In-line type | Staggered type | A | B | C | ||
| 4 | RTZP-04V-K1GSA | - | - | 28.7 | 21.7 | 2016 |
| 16 | RTZP-16V-K1GSA | - | 10.5 | 37.7 | 30.7 | 1568 |
| 20 | RTZP-20V-K1GSA | - | 13.5 | 40.7 | 33.7 | 1344 |
| 22 | RTZP-22V-K1GSA | RTZP-22V-K1GSA-B | 15.0 | 42.2 | 35.2 | 1344 |
| 28 | RTZP-28V-K1GSA | - | 19.5 | 46.7 | 39.7 | 1344 |
| 36 | RTZP-36V-K1GSA | - | 25.5 | 52.7 | 45.7 | 1120 |
Material and Finish
- Contact: Copper alloy, nickel-undercoated, Mating part: gold-plated, Solder tail: tin-plated (reflow treatment)
- Housing: Glass-filled PBT, UL94V-0, black

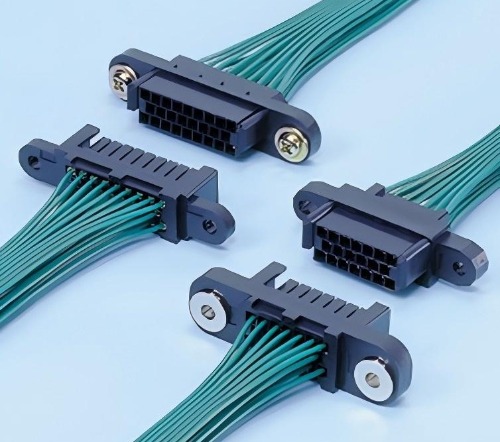

Support Custom Wiring Harness Assembly
- Connector: 4 - 36pin
- Wire gauge: 24 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
