JST RWM Connector, Wire to Wire, Custom Wire Assembly

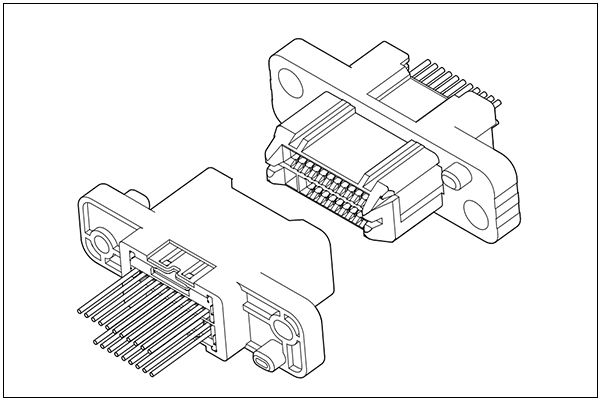

JST RWM Connector, Wire to Wire
The JST RWM Connector is a dual-row, signal drawer connector designed for secure and reliable unit connections. It incorporates a unique mechanism that effectively absorbs misalignment between mating units, ensuring stable electrical contact even in less-than-perfect alignment conditions. This feature makes the RWM connector particularly well-suited for applications in environments with limited insertion and withdrawal cycles, where precision and durability are crucial. Its compact design and robust performance make it an excellent choice for applications requiring dependable signal transmission without frequent handling or disconnections.
Specifications
- Connector type: Wire-to-Wire connectors
- Current rating: Signal circuit: 1.0 A AC/DC (AWG #26)
- Voltage rating: Signal circuit: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Signal circuit Initial value/40 mΩ max, After environmental tests/60 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: Signal circuit/500 VAC
- Applicable wire range:
- Plug signal circuit Conductor size/AWG #28 to #26, Insulation O.D./ φ 0.78 mm to φ 1.1 mm
- Receptacle signal circuit Applicable socket/CZ, CZH connectors
- Guaranteed 100 mating cycles

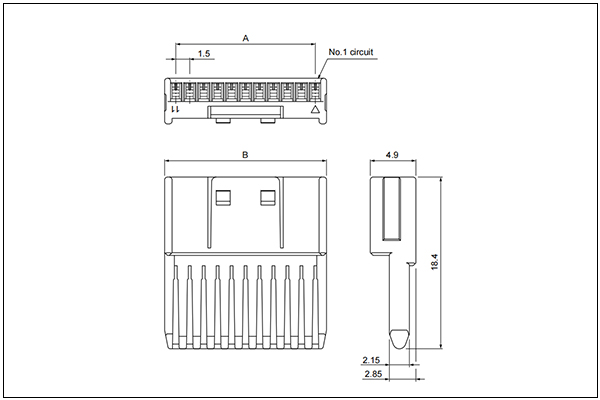

Plug signal unit
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||
| 9 | RWMYP-09-K | 12 | 14.4 | 1000 |
| 11 | RWMYP-11-K | 15 | 17.4 | 1000 |

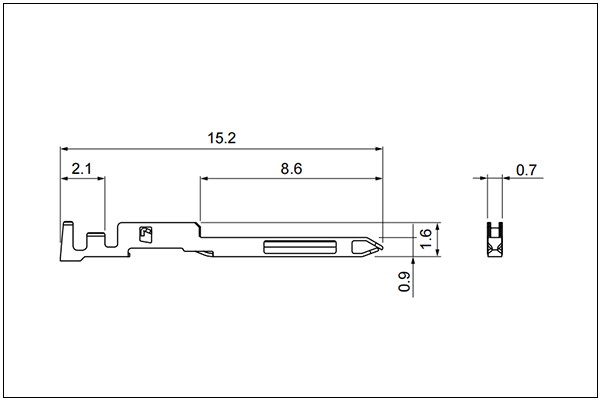

Plug contact for signal circuit
Specs:
- Model No.: SRWMP-002T-M0.9
- Applicable Wire: 28 to 26AWG（0.08 to 0.13mm²）
- Insolations O.D. (mm): 0.78 to 1.1mm
- Q'ty/reel: 18000pcs
- Materials and Finish: Copper alloy, nickel-undercoated, overall tin-plated
- RoHS2 compliance

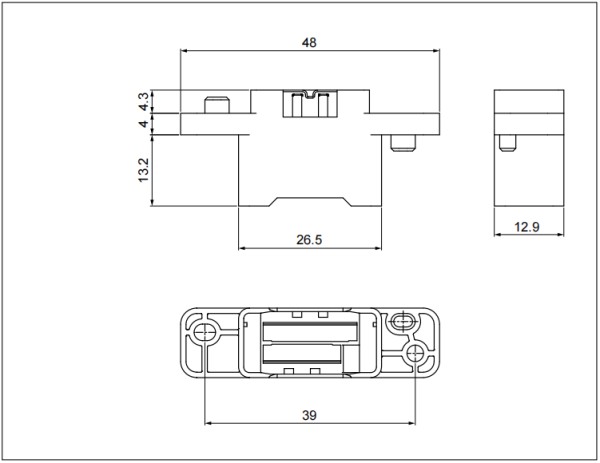

Plug - Signal 20-circuit
Specs:
- No. of Circuits: 20
- Model Number: RWMP-20S0-K
- Q'ty/reel: 600pcs
- Materials and Finish: Thermoplastic resin, black
- RoHS2 compliance

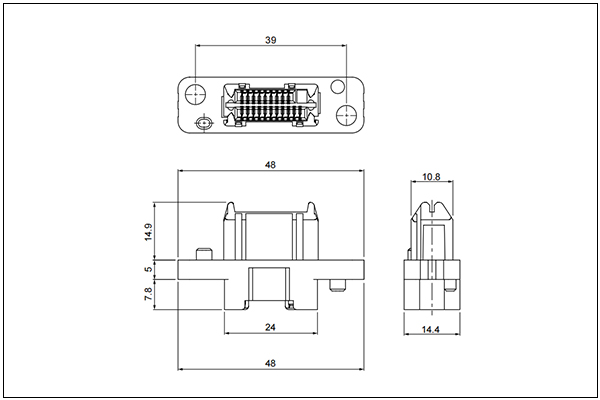

Receptacle - Signal 20-circuit
Specs:
- No. of Circuits: 20
- Model Number: 20S0R-RWM-KT
- Q'ty/reel: 250pcs
- Materials and Finish:
- Contact: Copper alloy, nickel-undercoated, overall tin-plated
- Housing: Thermoplastic resin, black
- RoHS2 compliance

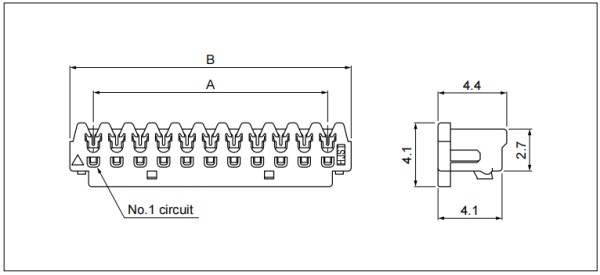

CZ Connector Socket
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||
| 9 | 09CZ-6H | 12 | 15 | 1000 |
| 11 | 11CZ-6H | 15 | 18 | 1000 |

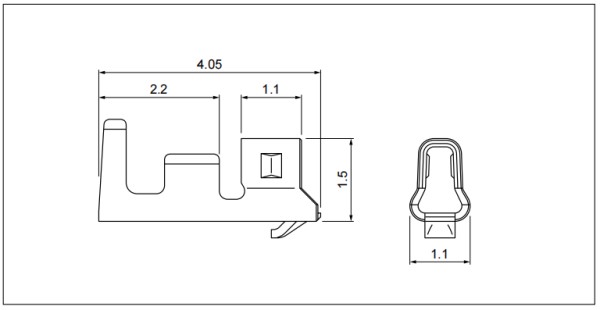

CZH Connector Socket
Specs:
- Model No.: SCZH-002T-P0.5
- Applicable Wire: 28 to 26AWG（0.08 to 0.13mm²）
- Insolations O.D. (mm): 0.8 to 1.1mm
- Q'ty/reel: 13000pcs
- Materials and Finish: Copper alloy, tin-plated
- RoHS2 compliance

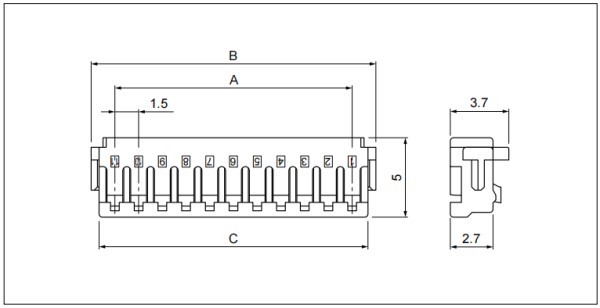

CZ connector Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | ||
| A | B | C | |||
| 9 | CZHR-09V-S | 12 | 15 | 14 | 1000 |
| 11 | CZHR-11V-S | 15 | 18 | 17 | 1000 |

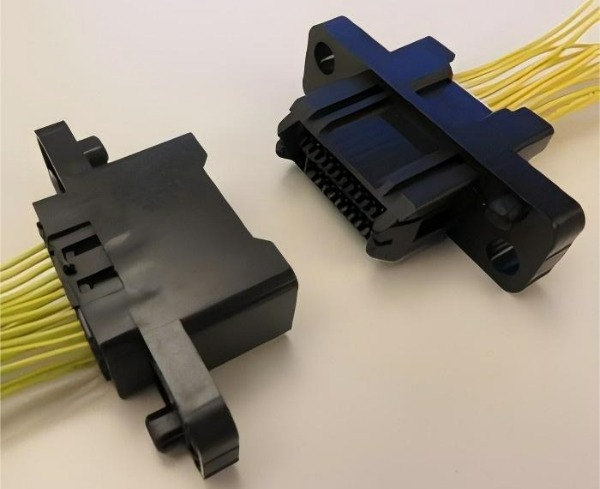

Support Custom Wiring Harness Assembly
- Connector: 9, 10, 20pin
- Wire gauge: 28 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
