JST SAN Connector, Custom Wire Harness Assembly
Introduction

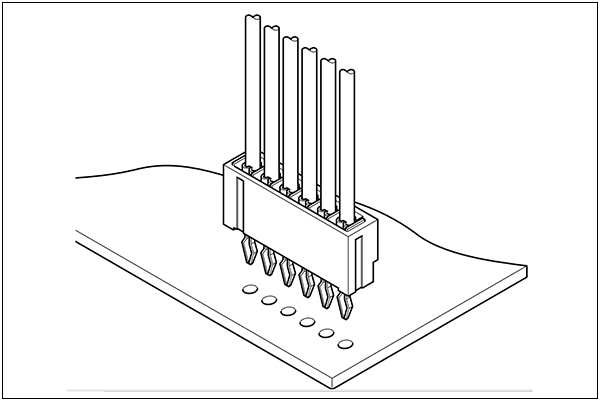

The JST SAN series is a compact 2.0 mm-pitch wire-to-board, board-in crimp connector system designed for high-density PCB mounting and streamlined harness assembly. With a low mounting height of 6.0 mm and narrow width of 3.25 mm, it minimizes footprint while supporting 2 to 15 circuits. Rated at 2 A AC/DC (AWG #24) and 250 V AC/DC, it operates from –25 °C to +85 °C and withstands 800 VAC for one minute. Two contact types—A (for 1.2/1.6 mm PCBs) and K (for 1.6 mm PCBs)—use tin-plated copper alloy and accept AWG #30–#24 conductors with 0.9–1.3 mm insulation OD. Contacts are crimped via AP-K2N machines with MKS-L applicators (die set APLMK SAN002-08). Yellow PA housings come in 2P–15P sizes with pitch-based length increments. Key advantages include easy contact insertion, secure board retention, simplified harness processing, and RoHS2 compliance, making it ideal for space-constrained electronics needing reliable, repeatable wire-to-board connections.
Specifications
- Connector Pitch: 2.0mm
- Type: Wire-to-Board connectors/Board-in Crimp style
- Current rating: 2 A AC/DC (AWG #24)
- Voltage rating: 250 V AC/DC
- Temperature range: -25°C to +85℃C (including temperature rise in applying electrical current)
- Insulation resistance: 1000 MΩ min.
- Withstanding voltage: There shall be no breakdown or flashover while applying 8oo VAC for one minute.
- Conductor size: AWG #30 to AWG #24
- Insulation O.D: Φ0.9 mm to Φ1.3 mm
- Applicable PC board thickness:
- Type A contact: 1.2 mm, 1.6 mm
- Type K contact: 1.6 mm
Terminal Size

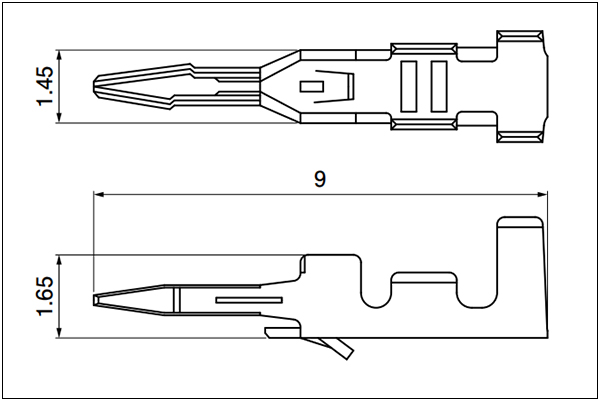

Terminal - Type A (SAN-002T-0.8A)

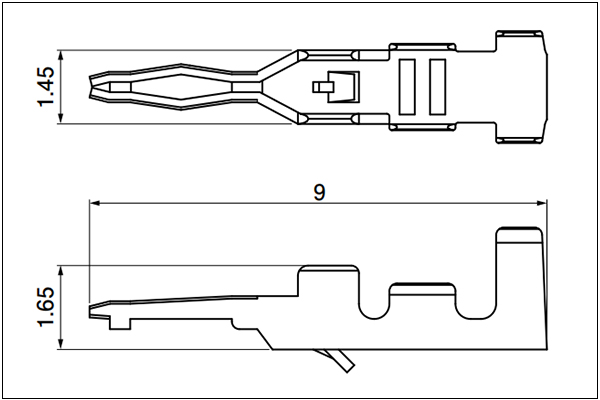

Terminal - Type K (SAN-002T-0.8K)
Specs:
- Conductor size AWG (mm²): #30 to #24(0.05 to 0.22)
- Insulation O.D.(mm): 0.9- 1.3 mm
- Material and Surface finish: Copper alloy, tin-plated

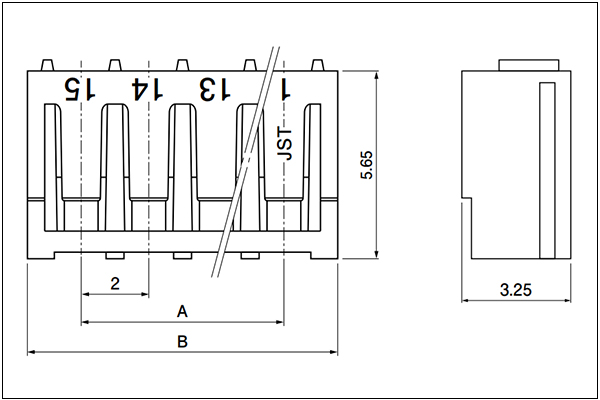

Housing
| No.of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 2 | 2P-SAN | 2.0 | 5.2 | 1000 |
| 3 | 3P-SAN | 4.0 | 7.2 | 1000 |
| 4 | 4P-SAN | 6.0 | 9.2 | 1000 |
| 5 | 5P-SAN | 8.0 | 11.2 | 1000 |
| 6 | 6P-SAN | 10.0 | 13.2 | 1000 |
| 7 | 7P-SAN | 12.0 | 15.2 | 1000 |
| 8 | 8P-SAN | 14.0 | 17.2 | 1000 |
| 9 | 9P-SAN | 16.0 | 19.2 | 1000 |
| 10 | 10P-SAN | 18.0 | 21.2 | 1000 |
| 11 | 11P-SAN | 20.0 | 23.2 | 1000 |
| 12 | 12P-SAN | 22.0 | 25.2 | 1000 |
| 13 | 13P-SAN | 24.0 | 27.2 | 1000 |
| 14 | 14P-SAN | 26.0 | 29.2 | 1000 |
| 15 | 15P-SAN | 28.0 | 31.2 | 1000 |
SAN Connector Wire Harnesses Cases

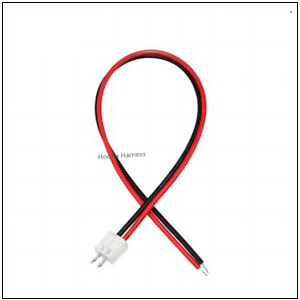

2P-SAN

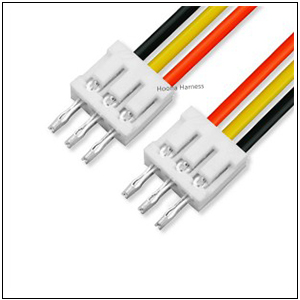

3P-SAN

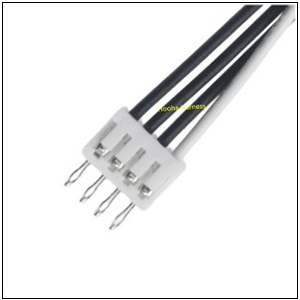

4P-SAN

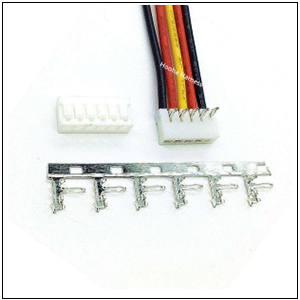

5P-SAN

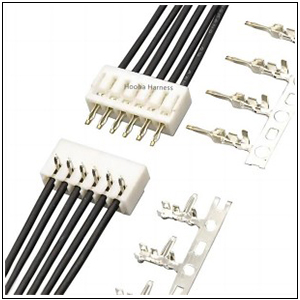

6P-SAN

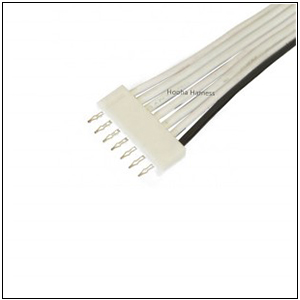

7P-SAN

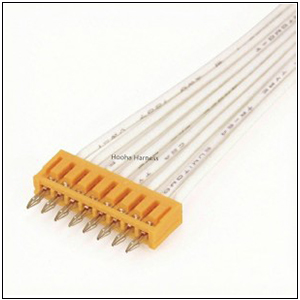

8P-SAN

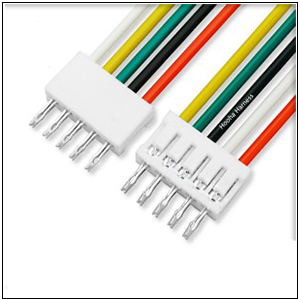

JST SAN 5P Wire

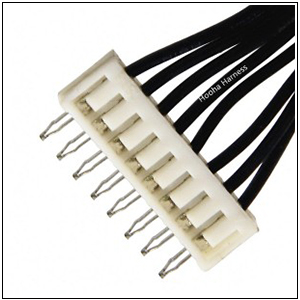

JST SAN 8-Pin Wire

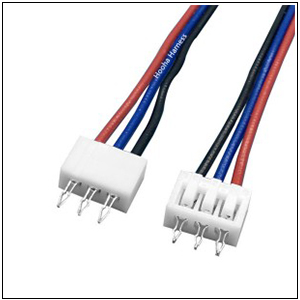

JST SAN 3P Wire

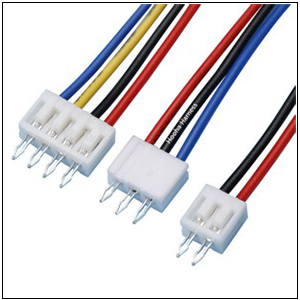

SAN 2P 3P 4P Wire

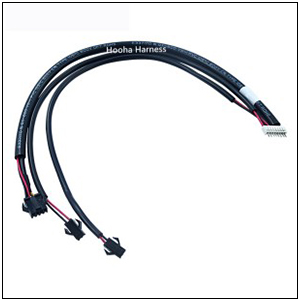

SAN 8P to SM 2P + 4P wire assembly
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if need(7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
