JST SFG Connector

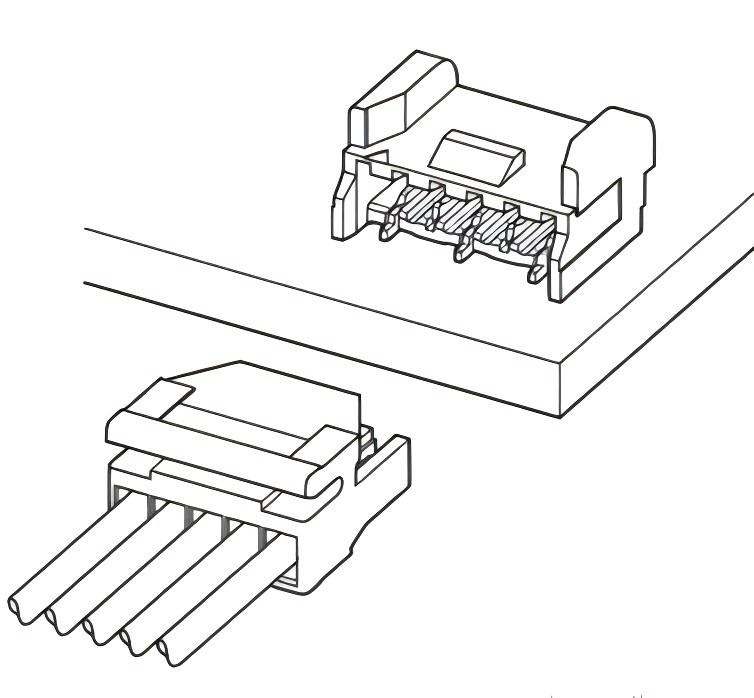

The JST SFG Connector is a compact wire-to-board connector specifically designed to optimize space efficiency, making it ideal for applications with limited room. It is widely utilized in powering the LED backlight systems of Liquid Crystal Display (LCD) televisions, ensuring reliable and efficient energy transfer. This connector boasts key features such as high voltage resistance, ensuring safe operation in demanding electrical environments. Its secure locking mechanism provides robust connection stability, reducing the risk of accidental disconnection. Additionally, the SFG Connector adheres to eco-friendly standards with its halogen-free construction, aligning with modern environmental safety requirements.
SFG Connector Specifications
- Connector type: Wire to Board, disconnectable Crimp style
- Connector Pitch: 1.1mm
- Current rating: 1.0 A AC, DC (AWG #28)
- Voltage rating: 200 V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20 mΩ max. After environmental tests/ 40 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 600 VAC/minute
- Applicable wire: Conductor size/ AWG #30 to #28, Insulation O.D./ 0.72 to 0.9 mm

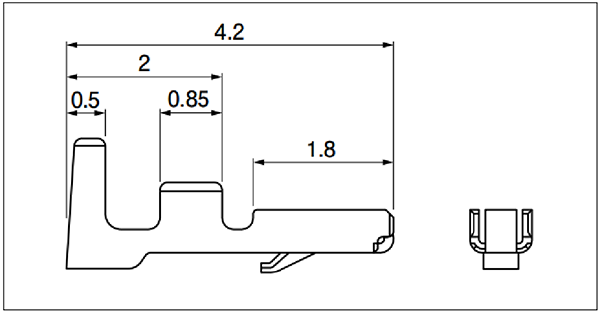

SFG Connector Terminal Size
- Model Number: SSFG-003T-P0.2
- Suitable Wire Gauge: 0.05 - 0.08mm² (30 - 28AWG)
- Insulation O.D. (mm): 0.72 - 0.9
- Qty/Reel: 25000pcs
- Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS compliance

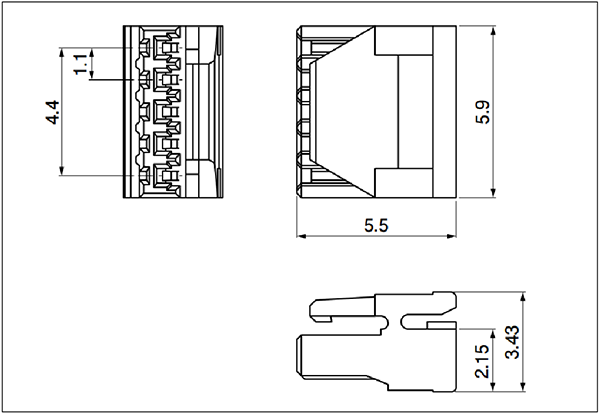

SFG Connector Housing Size
- No. of circuits: 5
- Model Number: SFGR-05V-S
- Q'ty/bag: 1000pcs
- Material: PA66, UL94V-0, natural (white)
- RoHS Compliance

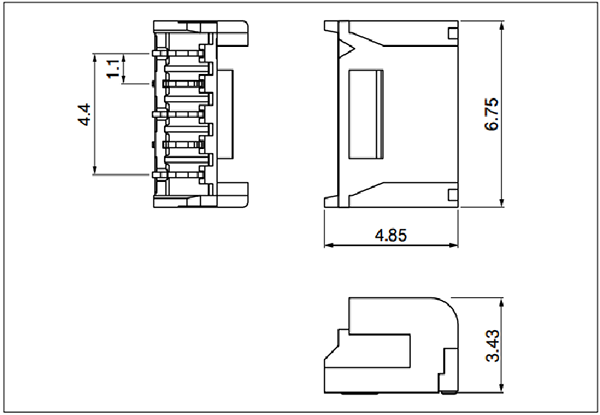

SFG Connector Header Size
- No. of circuits: 5
- Model Number: SM05B-SFGH-TF(HF)
- Q'ty/bag: 3000pcs
- Material and Finish:
- Contact A, B: Phosphor bronze, copper-undercoated, tin-plated (reflow treatment)
- Base housing: Modified PA 6T, UL94V-0, gray
- RoHS Compliance
- The product listed above is supplied on embossed-tape.

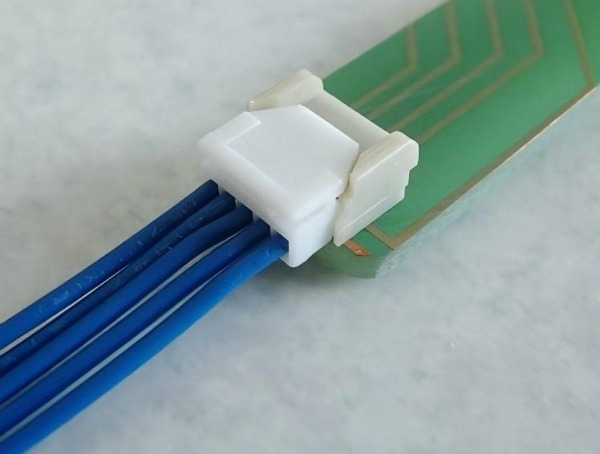

Support Custom Wiring Harness Assembly
- Connector: 5pin
- Wire gauge: 28 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
