JST SFH Connector

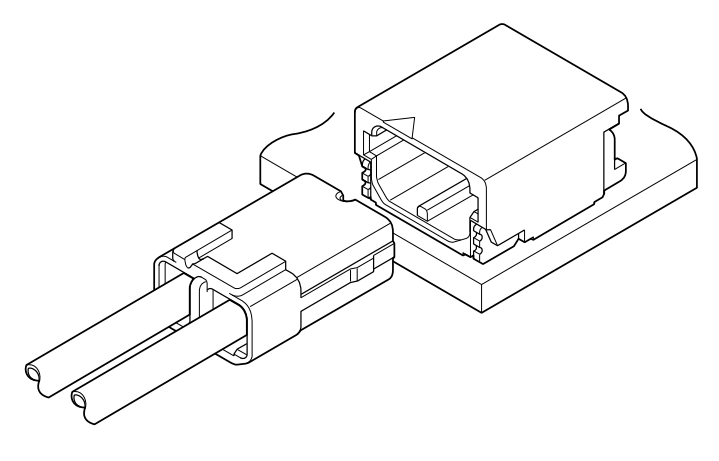

The JST SFH Connector is a compact, low-profile solution designed to support space-saving connections for stroboscope flash applications. With a height of just 3.0mm, it offers an efficient, streamlined design ideal for devices with limited internal space. Key features of the SFH Connector include a contact lance, which ensures a secure electrical connection, and a built-in locking mechanism that prevents accidental disconnection. Additionally, it incorporates a countermeasure against reverse insertion, enhancing assembly reliability and reducing the risk of improper installation. These design elements make the SFH Connector a dependable, high-performance option for compact electronic systems.
Specifications
- Connector type: wire to board, disconnectable crimp style
- Connector pitch: 1.8mm
- Current rating: 4 A AC/DC(AWG #22)
- Voltage rating: 350 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10 mΩ max, After environmental testing/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,700 VAC/minute
- Applicable wire: Conductor size/ AWG #30 to #22, Insulation O.D./ 0.7 to 1.3mm

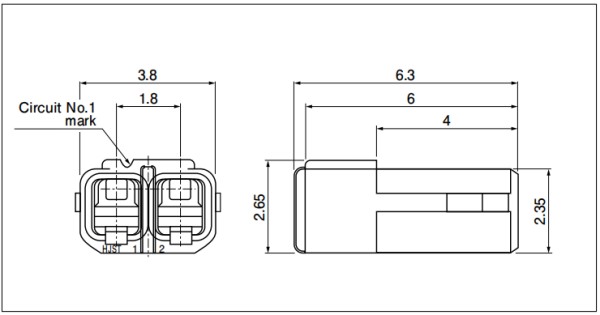

Housing
Notes:
- No. of circuits: 2
- Model Number: SFHR-02V-R
- Q'ty/bag: 1000pcs
- Material: Thermoplastic resin, UL94V-0
- RoHS Compliance

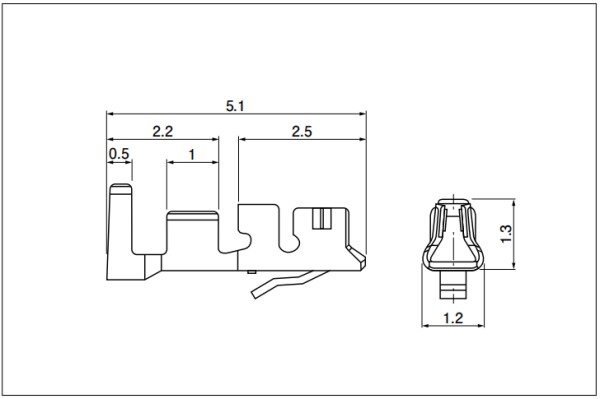

Terminal
| Model No. | Applicable wire | Q'ty/reel | ||
| mm² | AWG# | Insulation 0.D. (mm) | ||
| SSFH-001T-P0.5 | 0.13 to 0.33 | 26 to 22 | 0.95 to 1.3 | 15000 |
| SSFH-002T-P0.5 | 0.05 to 0.13 | 30 to 26 | 0.7 to 1.25 | 15000 |
Material and Finish: Copper alloy, tin-plated(reflow treatment)

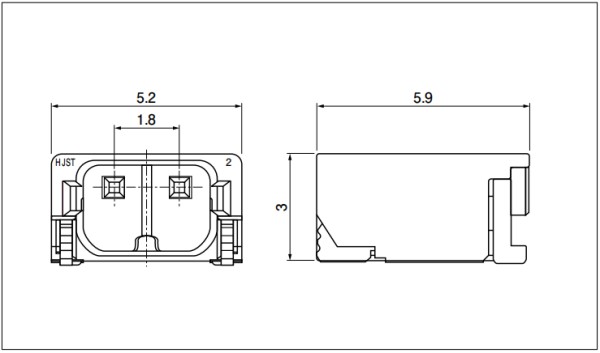

Header
Notes:
- No. of circuits: 2
- Model Number: SM02B-SFHRS-TF
- Q'ty/bag: 2000pcs
- Material and Finish:
- Press pin: Copper alloy, copper-undercoated, tin-plated(reflow treatment)
- Wafer: Heat resisting resin, UL94V-0
- Solder tab: Copper alloy, copper-undercoated, tin-plated(reflow treatment)
- RoHS Compliance
- This product displays (LF)(SN) on a label.

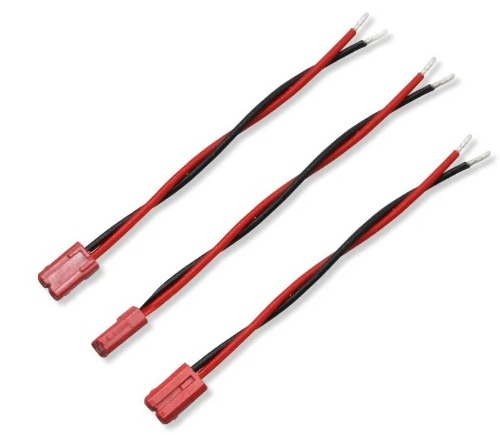

Support Custom Wiring Harness Assembly
- Connector: 2pin
- Wire gauge: 22 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
