JST SGN Connectors, Support Custom Wiring Harness Assembly Services

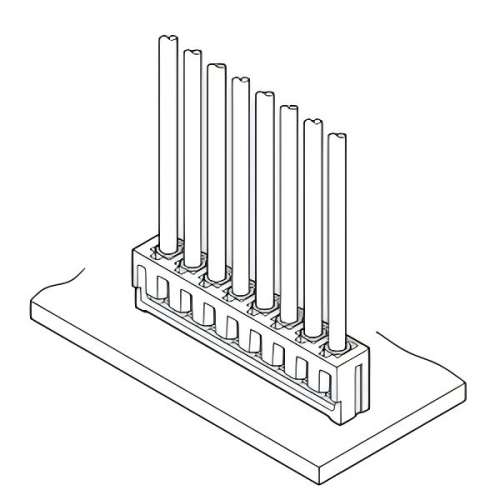

JST SGN Connector Introduction
The JST SGN Series connectors, with a dimension of 2.0mm pitch, 4.0mm mounting height, and 2.9mm depth, offer numerous advantages for various applications. These board-in-type connectors not only enhance the mounting density of PC boards but also contribute to rationalization and cost reduction in production processes.
With their compact design and low profile, these connectors are particularly suitable for use as internal connectors in low-profile equipment such as audio devices (including car audio) and set-top boxes (STBs). By incorporating the JST SGN Series connectors into these devices, manufacturers can achieve higher levels of integration without compromising on performance or reliability.
The 2.0mm pitch ensures secure connections while allowing for efficient signal transmission between components on the PCBs. The 4.0mm mounting height enables easy installation even in space-constrained environments, making it ideal for compact electronic devices where every millimeter counts.
Furthermore, the 2.9mm depth of these connectors adds to their versatility by accommodating different PCB thicknesses without sacrificing stability or durability.
By utilizing the JST SGN Series connectors in their designs, manufacturers can optimize space utilization within their products while maintaining high-quality electrical connections. This ultimately leads to improved overall product performance and customer satisfaction.
Features
Low profile design
Surface usage on the PC board is reduced
Reliable mounting
One touch connection
Specifications
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: 250V AC, DC
- Temperature range:-25℃ to +85℃℃ (including temperature rise in applying electrical current)
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage 650V AC/minute
- Applicable wire: AWG #28 to #24
- Applicable PC board thickness: 1.2 to1.6mm
- Compliant with RoHS.

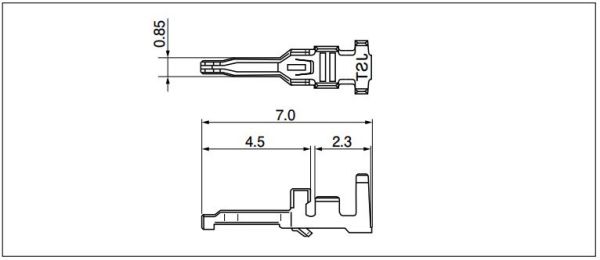

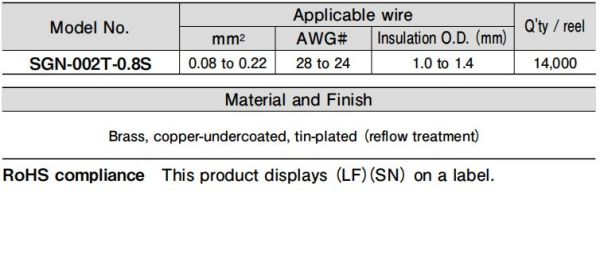

Contact

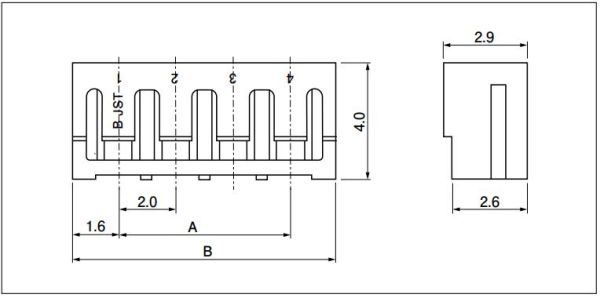

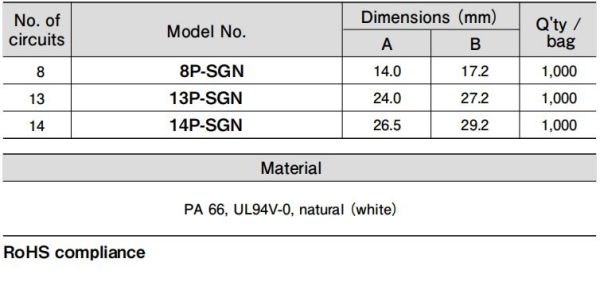

Housing
JST SGN Connectors Applications
1. Consumer Electronics:
- Used in devices like televisions, gaming consoles, home audio systems, and other personal electronics.
- Provides secure connections for internal wiring and components.
2. Automotive:
- Employed in automotive electronics for systems like lighting, infotainment, and control modules.
- Offers vibration-resistant connections that are critical in automotive environments.
3. Industrial Equipment:
- Used in control systems, automation equipment, and machinery.
- Ensures reliable performance in environments with potential electrical noise and mechanical stress.
4. Home Appliances:
- Found in refrigerators, washing machines, air conditioners, and other household appliances.
- Facilitates connections between control boards and various components within these appliances.
5. Telecommunications:
- Utilized in network equipment, routers, modems, and other communication devices.
- Ensures consistent signal transmission and reliable power connections.
6. Medical Devices:
- Applied in medical equipment where small form factor and reliability are critical.
- Used in devices like monitors, diagnostic tools, and other electronic medical equipment.
7. Lighting:
- Used in LED lighting systems, both in residential and commercial settings.
- Provides connections between power sources and LED boards.
These connectors are valued for their compact size, ease of assembly, and reliable connection properties, making them versatile across a wide range of applications.

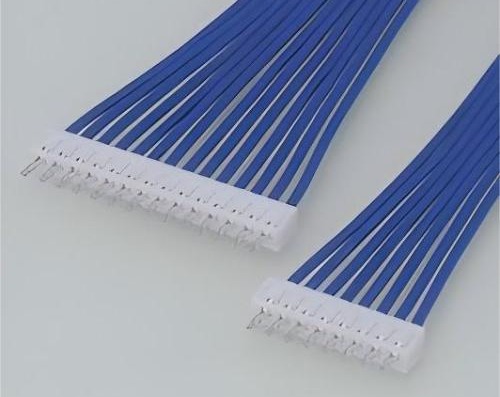

Support Custom Wiring Harness Assembly Services
We specialize in custom JST SGN connector wiring harness assemblies tailored to your specific requirements.
Our services include:
- Wire Gauge Options: We support a range of wire gauges from 28 AWG to 24 AWG.
- Wire Color Choices: Available in a variety of colors, including red, black, white, yellow, green, blue, orange, and purple.
- Custom Lengths: We can produce wiring harnesses in any length you need.
- Custom wire another side Terminations:
- Open-end wires
- Tinned-end wires
- Connectors in the same direction or opposite directions
- Addition of any suitable connectors on the other end
Our flexible services ensure that you get the exact wiring harness assembly you need for your project, contact us to start a free quote.
