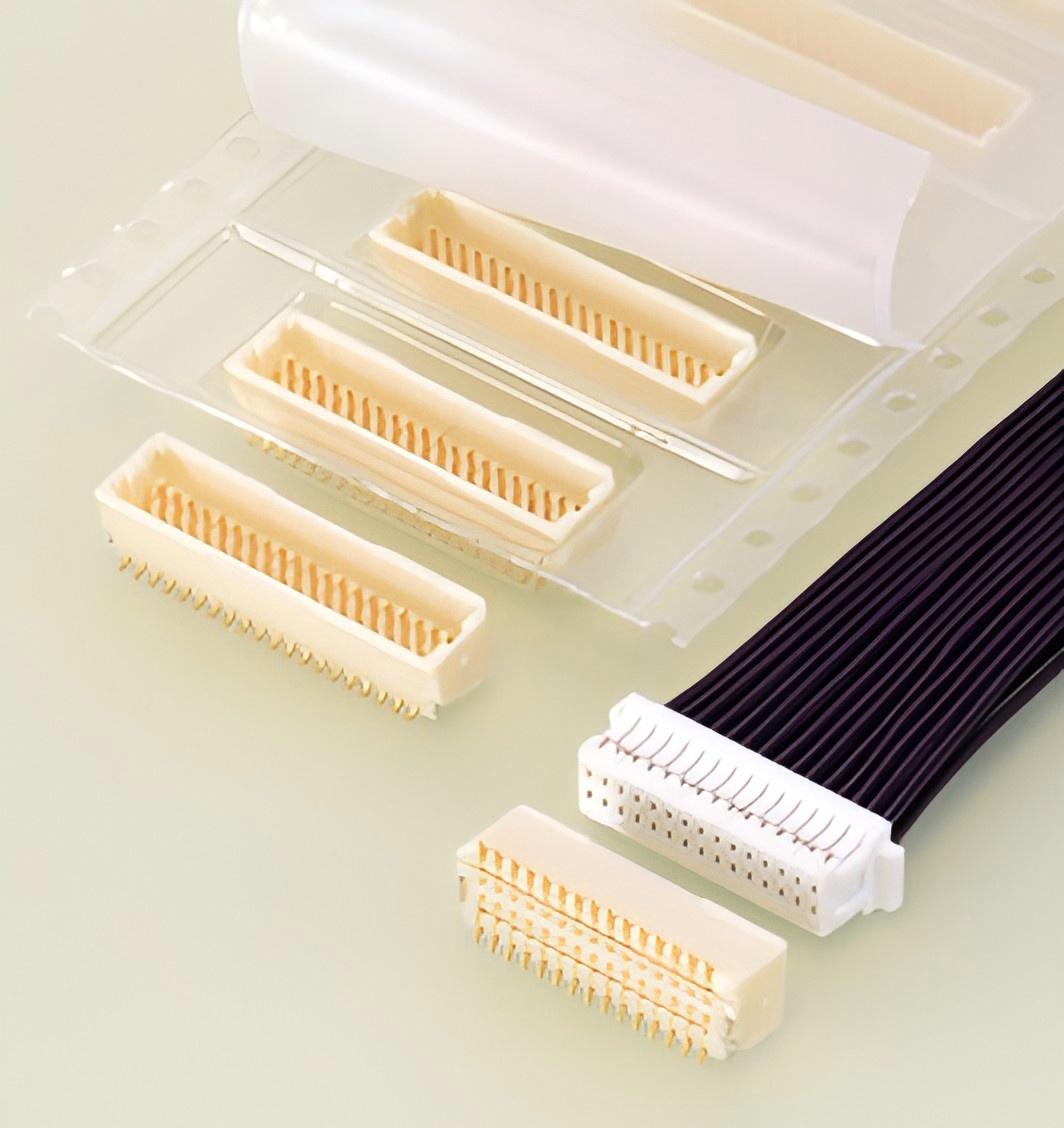

JST SHD Connector
The JST SHD Connector is an innovative and compact solution designed to meet the needs of modern electronic applications where space-saving and reliability are critical. With a mounting height of just 6.3 mm for the top entry type and 5.5 mm for the side entry type, it offers versatility for varied design constraints. The connector's width measures 5.0 mm for the top entry type and 5.1 mm for the side entry type, emphasizing its compact profile for applications requiring a small footprint. Among its standout features is its low-profile design, which minimizes spatial requirements without sacrificing performance. The connector incorporates an anti-misinsertion feature, ensuring secure and accurate connections by preventing improper mating. Additionally, the receptacles are equipped with protrusions for enhanced mechanical stability during use, providing a reliable interface even in dynamic or high-vibration environments. The header is specifically designed to support vacuum pick-and-place robotics, facilitating efficient automated assembly processes. These thoughtful features make the SHD connector an ideal choice for industries such as consumer electronics, automotive, and telecommunications, where precision, compactness, and dependability are paramount.
SHD Connector Specifications
- Connector Type: Wire to Board
- Connector Pitch: 1.0mm
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20 mΩ max, After environmental tests/ 40 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #32 to #28, Insulation O.D./ 0.4 to 0.8 mm

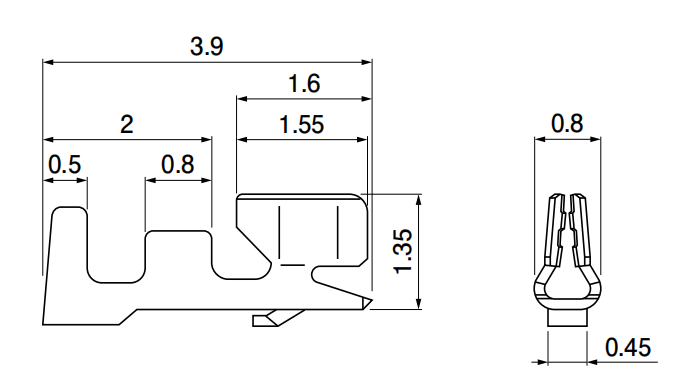

SHD Connector Terminal Size
Notes:
- Model Number: SSH-003GA-P0.2
- Suitable Wire Gauge: 0.032 - 0.08mm² (32 - 28AWG)
- Insulation O.D. (mm): 0.4 - 0.8
- Qty/Reel: 23000
- Material and Finish: Phosphor bronze, nickel-undercoated, Mating part; gold-plated
- RoHS2 compliance

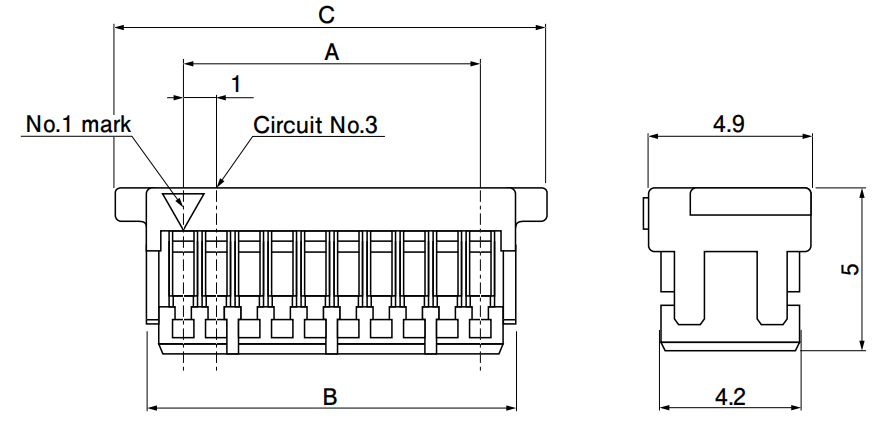

SHD Connector Housing Size and P/N
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | ||
| A | B | C | |||
| 20 | SHDR-20V-S-B | 9 | 11.2 | 13 | 4000 |
| 30 | SHDR-30V-S-B | 14 | 16.2 | 18 | 4000 |
| 40 | SHDR-40V-S-B | 19 | 21.2 | 23 | 2000 |
| 50 | SHDR-50V-S-B | 24 | 26.2 | 28 | 2000 |
Note:
- Material and Finish: PBT, UL94V-0, natural (white)
- RoHS2 compliance
SHD Connector Header

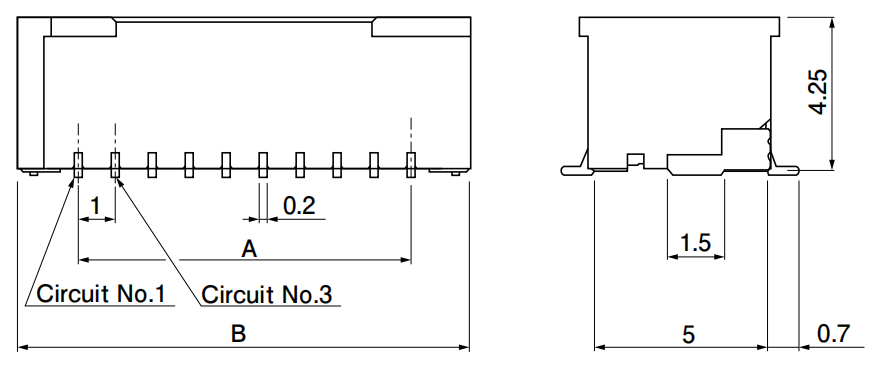

Top entry type size and P/N
No. of circuits |
Model No. | Dimensions (mm) | Q'ty/reel | |
| Top entry type | A | B | ||
| 20 | BM20B-SRDS-G-TF | 9 | 12.3 | 1500 |
| 30 | BM30B-SRDS-G-TF | 14 | 17.3 | 1500 |
| 40 | BM40B-SRDS-G-TF | 19 | 22.3 | 1500 |
| 50 | BM50B-SRDS-G-TF | 24 | 27.3 | 1500 |

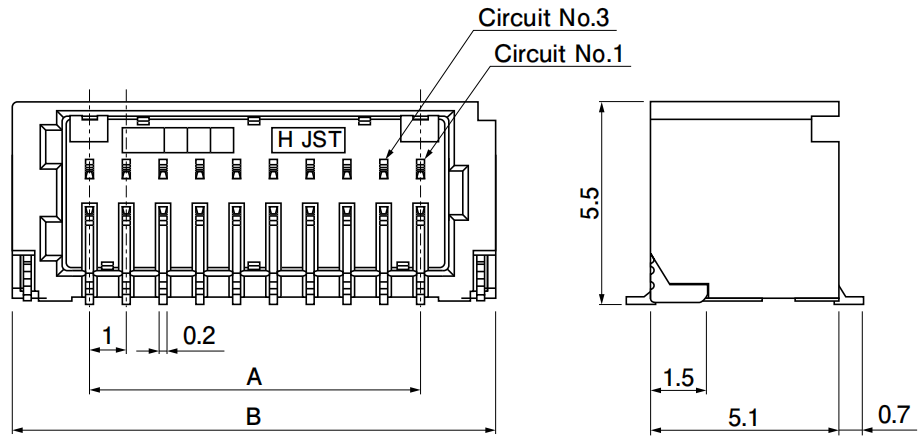

Side entry type size and P/N
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| Side entry type | A | B | ||
| 20 | SM20B-SRDS-G-TF | 9 | 13.1 | 1250 |
| 30 | SM30B-SRDS-G-TF | 14 | 18.1 | 1250 |
| 40 | SM40B-SRDS-G-TF | 19 | 23.1 | 1250 |
| 50 | SM50B-SRDS-G-TF | 24 | 28.1 | 1250 |
Notes:
- The products listed above are supplied on embossed-tape.
- RoHS2 compliance
- Material and Finish:
- Header contact: Phosphor bronze, nickel-undercoated, gold-plated
- Wafer: PA, UL94V-0, natural (ivory)
- Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)

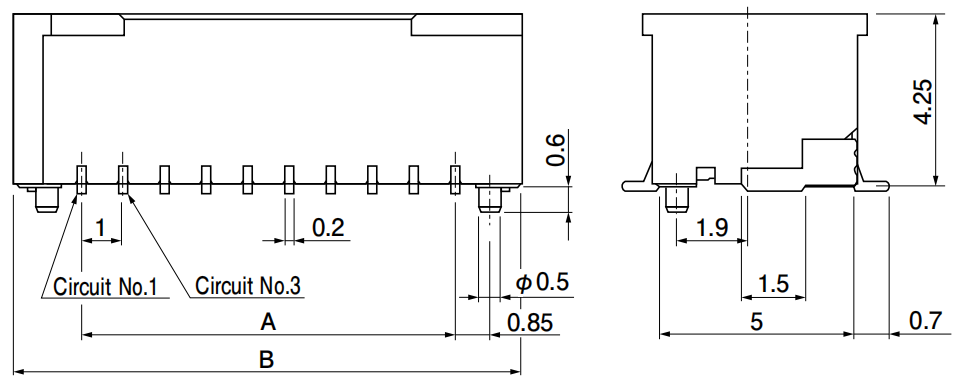

Top entry type with a boss
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | |||
| 20 | BM20B-SRDS-A-G-TF | 9 | 12.3 | 1250 |
| 30 | BM30B-SRDS-A-G-TF | 14 | 17.3 | 1250 |
| 40 | BM40B-SRDS-A-G-TF | 19 | 22.3 | 1250 |
| 50 | BM50B-SRDS-A-G-TF | 24 | 27.3 | 1250 |
Note:
- RoHS2 compliance.
- The products listed above are supplied on embossed-tape.
- Material and Finish:
- Header contact: Phosphor bronze, nickel-undercoated, gold-plated
- Wafer: PA, UL94V-0, natural (ivory)
- Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)

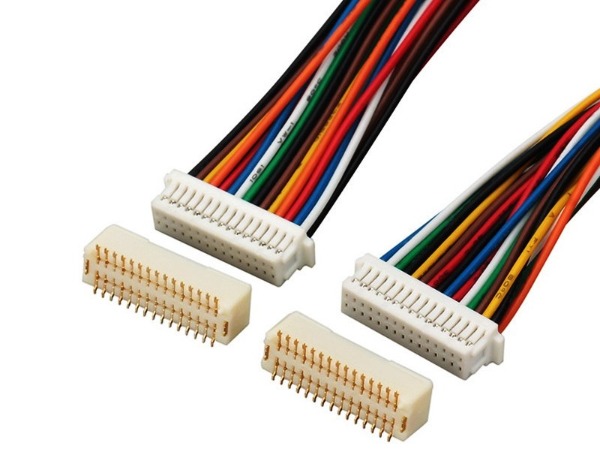

Support Custom Wiring Harness Assembly
- Connector: 20 - 50pin
- Wire gauge: 28 - 32AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
