JST SHL Connector

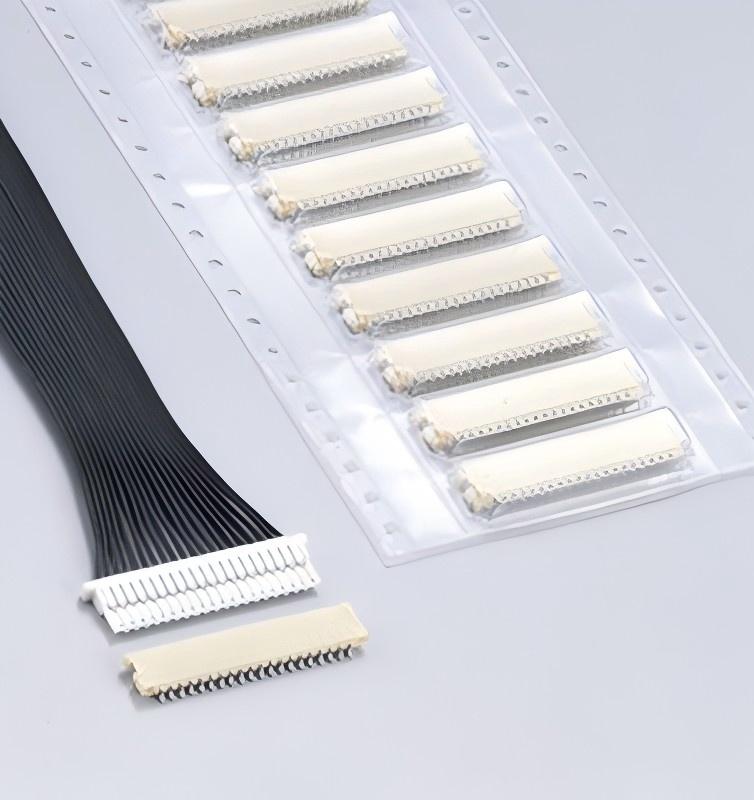

The JST SHL Connector is specifically designed to meet the growing demand for ultra-thin electronic equipment, offering a sleek solution with a remarkably low mounting height of just 1.8 mm. Developed as an extension of JST's 1.0 mm pitch connector family, this innovative component combines compactness with exceptional functionality. Key features include a streamlined, space-saving design that ensures seamless integration into slim-profile devices, a low insertion force for effortless assembly, and built-in safeguards to prevent terminal deformation, enhancing reliability and durability. This makes the SHL Connector an ideal choice for modern, high-density applications requiring precision and efficiency.
SHL Connector Specifications
- Connector Type: Wire to Board
- Connector Pitch: 1.0mm
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20 mΩ max, After environmental tests/ 40 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: AWG #32 to #28

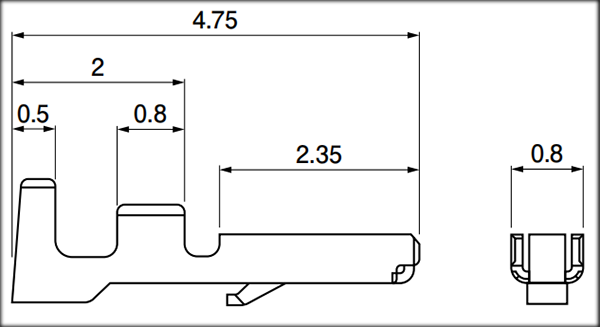

SHL Connector Terminal Size
- Model Number: SSHL-003T-P0.2
- Suitable Wire Gauge: 0.032 - 0.08mm² (32 - 28AWG)
- Insulation O.D. (mm): 0.4 - 0.8
- Qty/Reel: 41000pcs
- Material and Finish: Phosphor bronze, tin-plated
- RoHS2 compliance

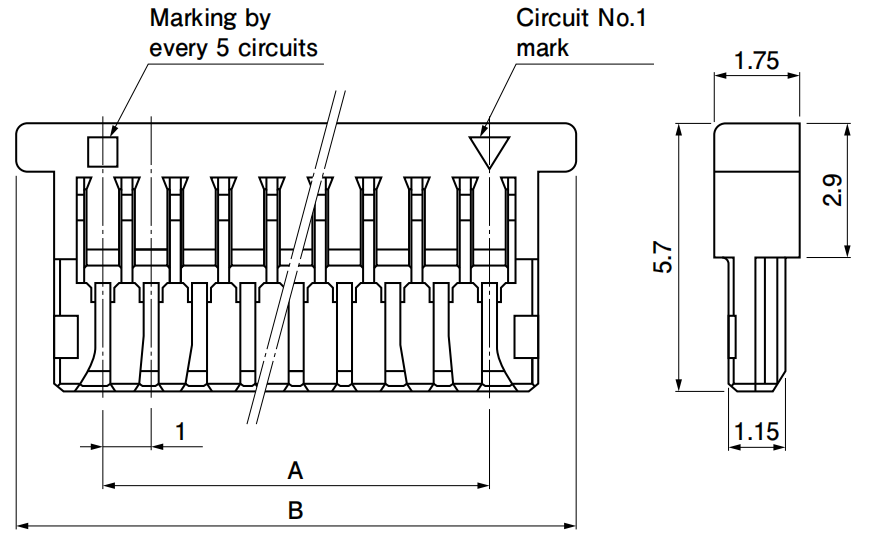

SHL Connector Housing Size and P/N
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | |
| A | B | |||
| 2 | SHLP-02V-S-B | 1 | 4.6 | 6000 |
| 5 | SHLP-05V-S-B | 4 | 7.6 | 3000 |
| 6 | SHLP-06V-S-B | 5 | 8.6 | 3000 |
| 7 | SHLP-07V-S-B | 6 | 9.6 | 3000 |
| 8 | SHLP-08V-S-B | 7 | 10.6 | 3000 |
| 10 | SHLP-10V-S-B | 9 | 12.6 | 2000 |
| 11 | SHLP-11V-S-B | 10 | 13.6 | 2000 |
| 12 | SHLP-12V-S-B | 11 | 14.6 | 2000 |
| 14 | SHLP-14V-S-B | 13 | 16.6 | 2000 |
| 16 | SHLP-16V-S-B | 15 | 18.6 | 1000 |
| 20 | SHLP-20V-S-B | 19 | 22.6 | 1000 |
| 22 | SHLP-22V-S-B | 21 | 24.6 | 1000 |
| 26 | SHLP-26V-S-B | 25 | 28.6 | 1000 |
| 30 | SHLP-30V-S-B | 29 | 32.6 | 1000 |
Material and Finish: PBT, UL94V-0, natural (white)
SHL Connector Header Size and P/N

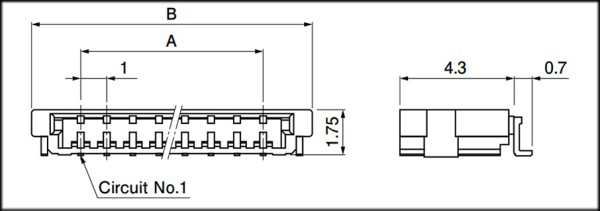

Header Normal type

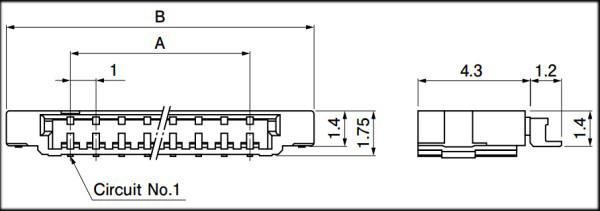

Header Offset type
| No. of circuits | Model No. | Insulation 0.D. (mm) | Q'ty/reel | ||||
| Normal type | Offset type | Normal type | Offset type | ||||
| A | B | A | B | ||||
| 2 | SM02B-SHLS-TF | - | 1.0 | 4.8 | - | - | 4500 |
| 5 | SM05B-SHLS-TF | - | 4.0 | 7.8 | - | - | 4500 |
| 6 | SM06B-SHLS-TF | - | 5.0 | 8.8 | - | - | 4500 |
| 7 | SM07B-SHLS-TF | - | 6.0 | 9.8 | - | - | 4500 |
| 8 | SM08B-SHLS-TF | SM08B-SHLS-1-TF | 7.0 | 10.8 | 7.0 | 12.0 | 4500 |
| 10 | SM10B-SHLS-TF | - | 9.0 | 12.8 | - | - | 4500 |
| 11 | SM11B-SHLS-TF | - | 10.0 | 13.8 | - | - | 4500 |
| 12 | SM12B-SHLS-TF | - | 11.0 | 14.8 | - | - | 4500 |
| 14 | SM14B-SHLS-TF | - | 13.0 | 16.8 | - | - | 4500 |
| 16 | SM16B-SHLS-TF | - | 15.0 | 18.8 | - | - | 4500 |
| 20 | SM20B-SHLS-TF | SM20B-SHLS-1-TF | 19.0 | 22.8 | 19.0 | 24.0 | 4500 |
| 22 | SM22B-SHLS-TF | - | 21.0 | 24.8 | - | - | 4500 |
| 26 | SM26B-SHLS-TF | - | 25.0 | 28.8 | - | - | 4500 |
| 30 | SM30B-SHLS-TF | - | 29.0 | 32.8 | - | - | 4500 |
Notes:
- RoHS2 compliance
- Material and Finish
- Contact: Phosphor bronze, copper-undercoated, tin-plated
- Housing: PA, UL94V-0, natural (ivory)
- Solder tab: Brass, copper-undercoated, tin-plated

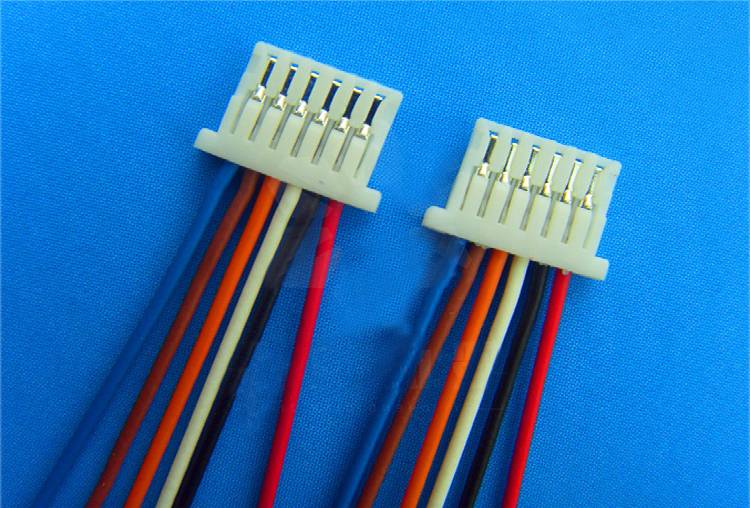

Support Custom Wiring Harness Assembly
- Connector: 2 - 30pin
- Wire gauge: 28 - 32AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
