JST SL Connector, Wire to Wire, Custom Wire Assembly
JST SL Connector, Wire to Wire
The JST SL Series is a versatile range of disconnectable crimp-style wire-to-wire connectors designed with a 3.96mm pitch. These connectors feature a low insertion force contact, ensuring ease of assembly and secure connections. The housing is equipped with a lance, providing enhanced mechanical retention, while the inner-housing lock mechanism offers additional stability, preventing accidental disconnection. With its reliable design, the JST SL Series is ideal for applications requiring durable and easy-to-use connectors, offering a secure and consistent performance in various industries.
Specifications
- Connector type: Disconnectable Crimp style Wire-to-wire connectors
- Connector pitch: 3.96mm
- Current rating: 7A AC, DC max.
- Voltage rating: 300V AC, DC max.
- Temperature range: -25˚C to +90˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/7m Ω max, After environmental testing/10m Ω max.
- Insulation resistance: 1,000M Ω min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #26 to #18, 0.13 to 0.75mm²
Current unit: A
| Circuits | Wire size (AWG) | ||||
| #18 | #20 | #22 | #24 | #26 | |
| 1 | 7 | 5 | 4 | 3 | 2 |
| 2 | 7 | 5 | 4 | 3 | 2 |
| 3 | 6 | 4 | 4 | 3 | 2 |
| 4 | 6 | 4 | 4 | 3 | 2 |
| 6 | 6 | 4 | 4 | 3 | 2 |
Note: The current rating varies depending on the number of circuits and the wire size used in each connector. The table above lists the current rating as a function of the number of circuits and the wire size.
Housing

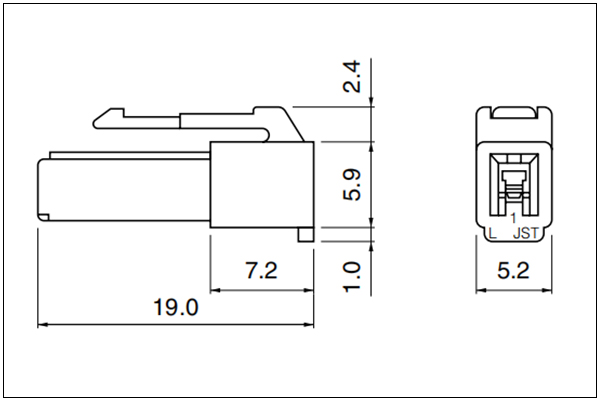

SLP-01V
SLR-01VF

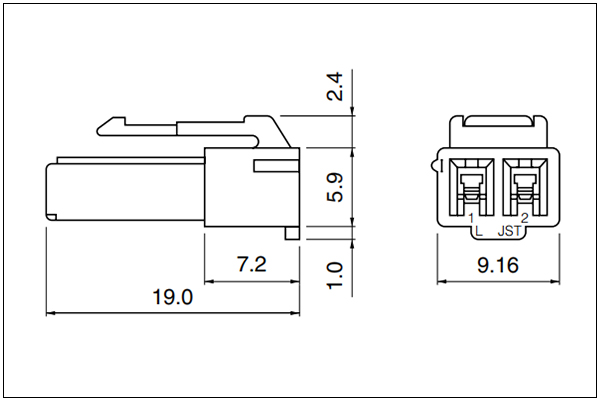

SLP-02V

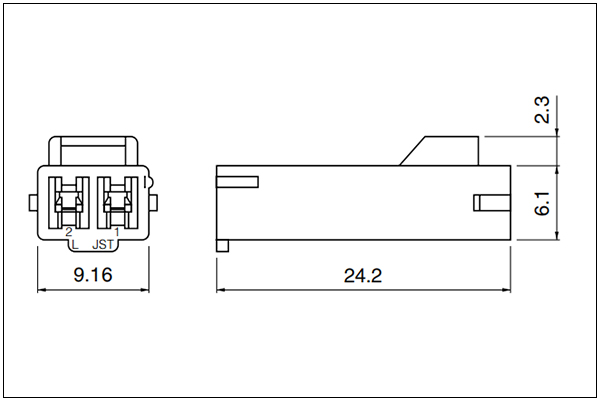

SLR-02VF

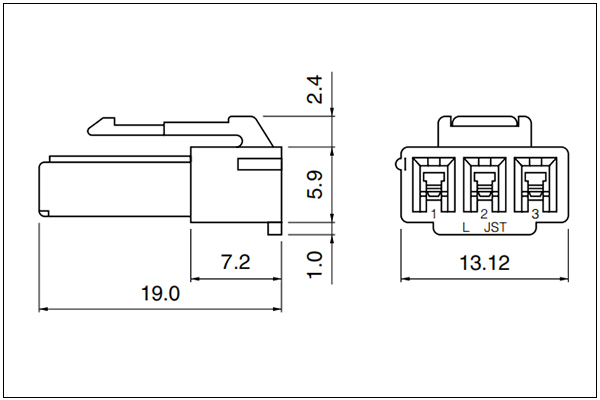

SLP-03V

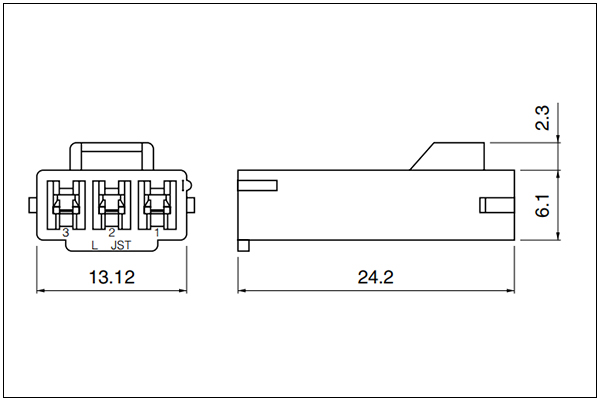

SLR-03VF

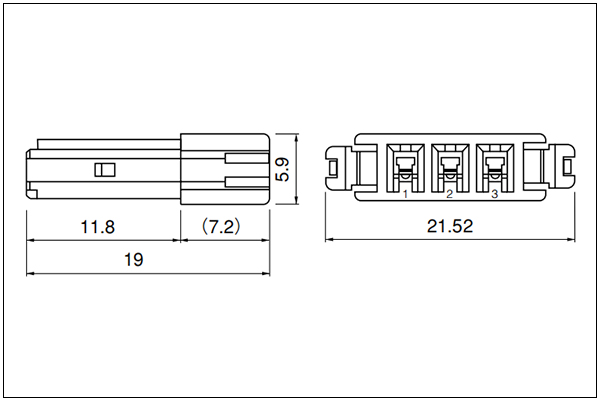

SLP-03V-MD (Both side lock product)

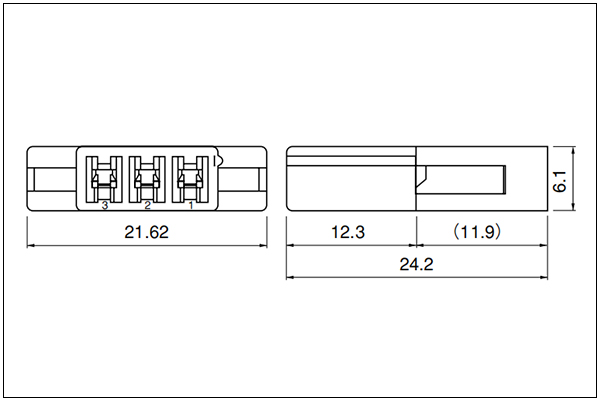

SLR-03VF-MD (Both side lock product)

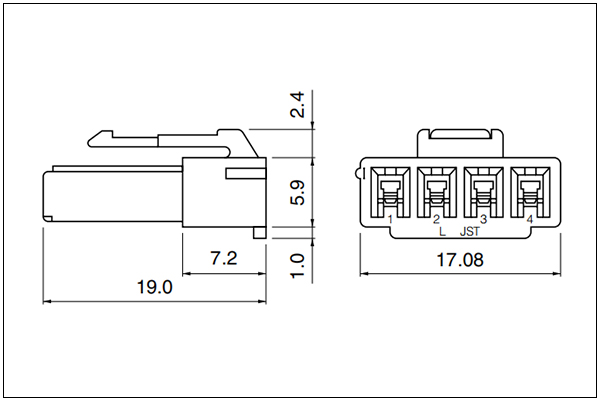

SLP-04V

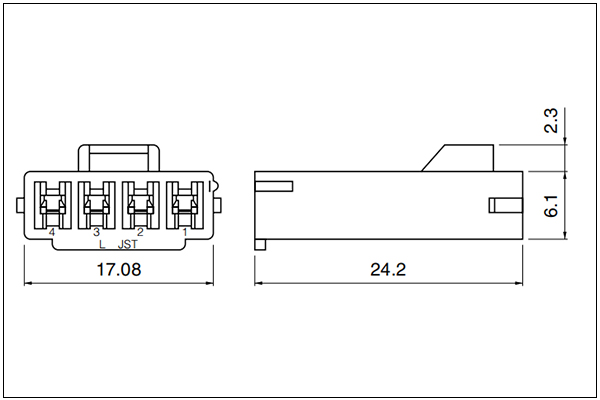

SLR-04VF

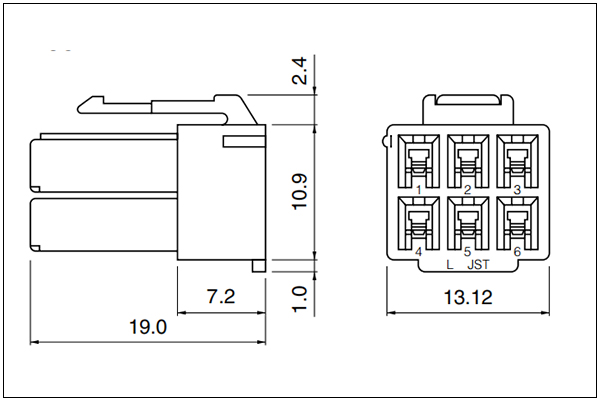

SLP-06V

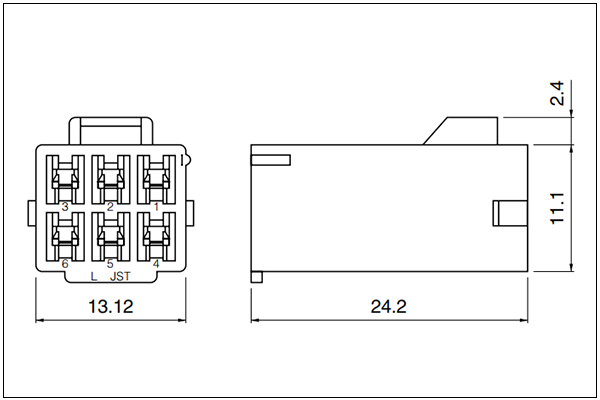

SLR-06VF
Terminal

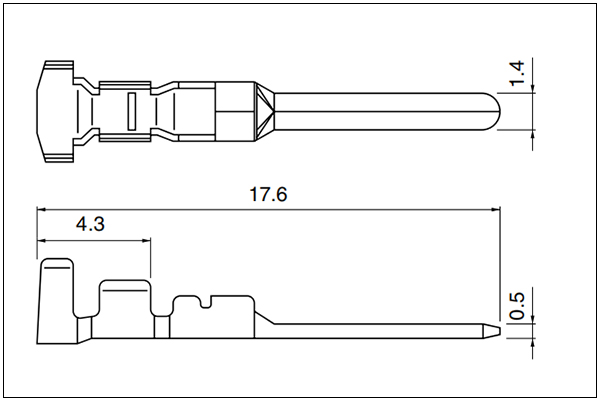

Pin Terminal

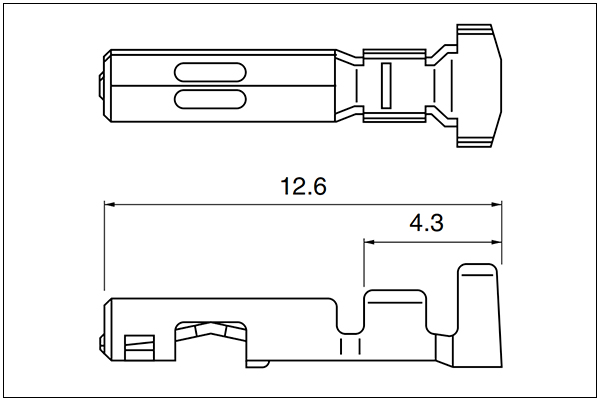

Socket Terminal
| Model No. | Applicable wire | Insulation O.D(mm) | Q'ty/reel | ||
| Pin contact | Socket contact | mm² | AWG# | ||
| SSM-01T-P1.4 | SSF-01T-P1.4 | 0.13～0.5 | 26~20 | 1.3～2.5 | 6000 |
| SSM-21T-P1.4 | SSF-21T-P1.4 | 0.3～0.75 | 22～18 | 1.5～2.5 | |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)

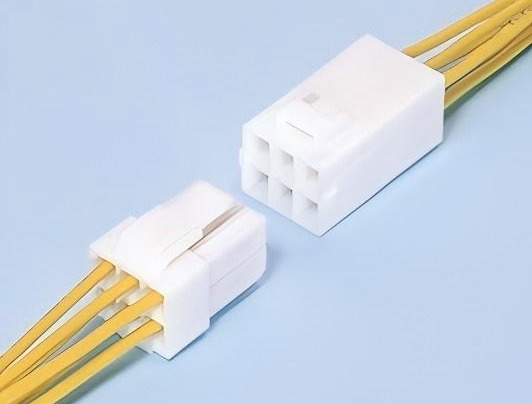

Support Custom Wiring Harness Assembly
- Connector: 1, 2, 3, 4, 6pin
- Wire gauge: 18 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
