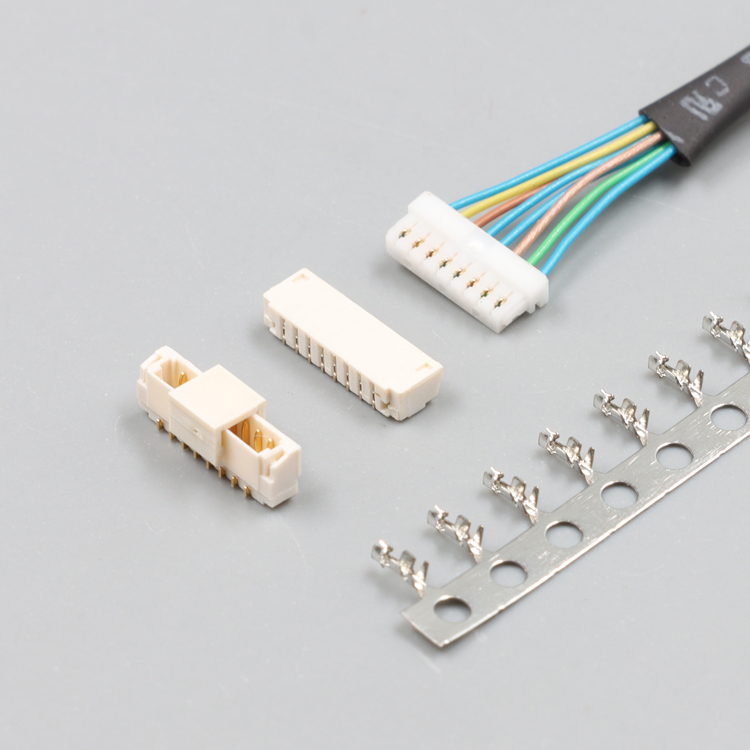

JST SUH Connector
The JST SUH connector is a groundbreaking innovation in the field of wire-to-board insulation displacement connectors, designed for a precise 0.8mm pitch. This connector is notable for being the first to implement a crimping method at such a minimal pitch, setting a new standard for compactness and reliability in electronic connections. The SUH connector's housing lance method enhances workability, making it easier to handle and assemble, while the constriction contact method ensures excellent contact reliability, providing a secure and stable connection. These features make the SUH connector ideal for applications where space is at a premium and reliable electrical connections are critical. With its advanced design, the SUH connector stands out as a leader in high-density wiring solutions
SUH Connector Specifications
- Current rating: 1.0 A AC, DC (AWG #28)
- Voltage rating: 30 V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 30 mΩ max. After environmental tests/ 50 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 200 VAC/minute
- Applicable wire: Conductor size/ AWG #32 to #28, Insulation O.D./ 0.5 to 0.6 mm

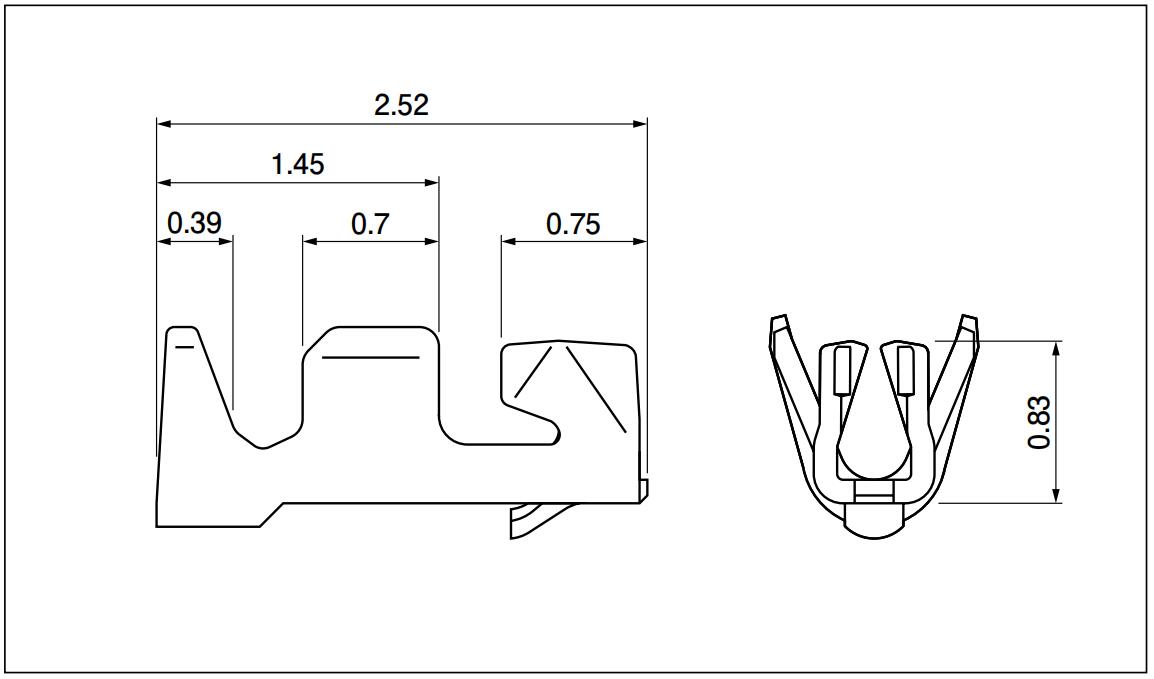

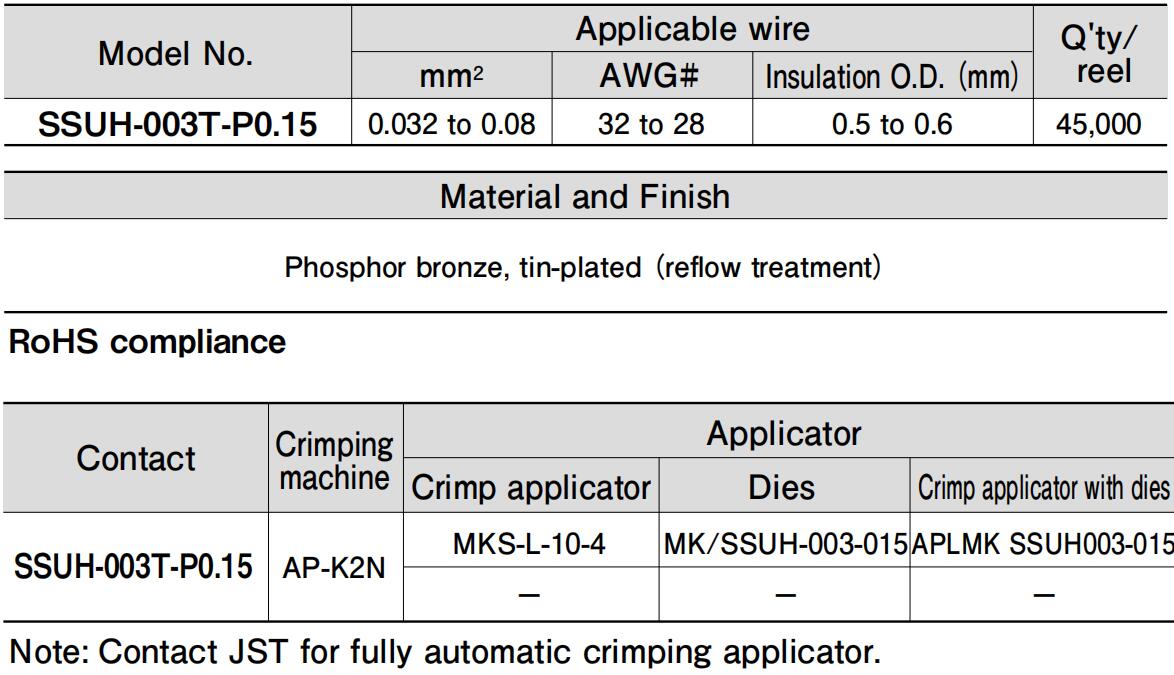

SUH Connector Terminal Size
SUH Connector Housing Size and Model Number

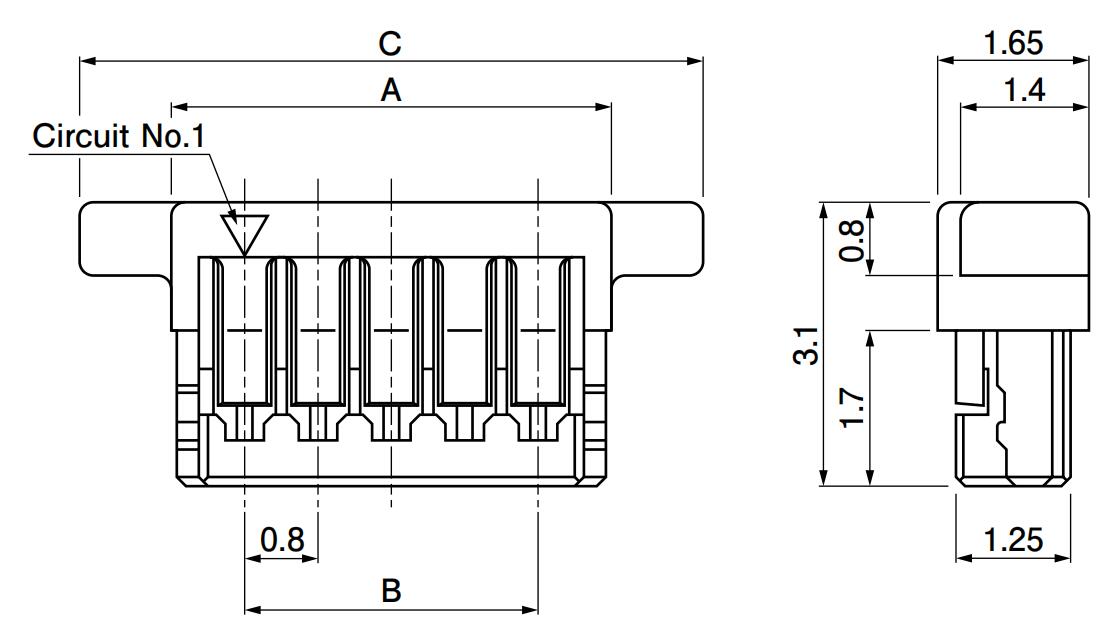

With protrusions

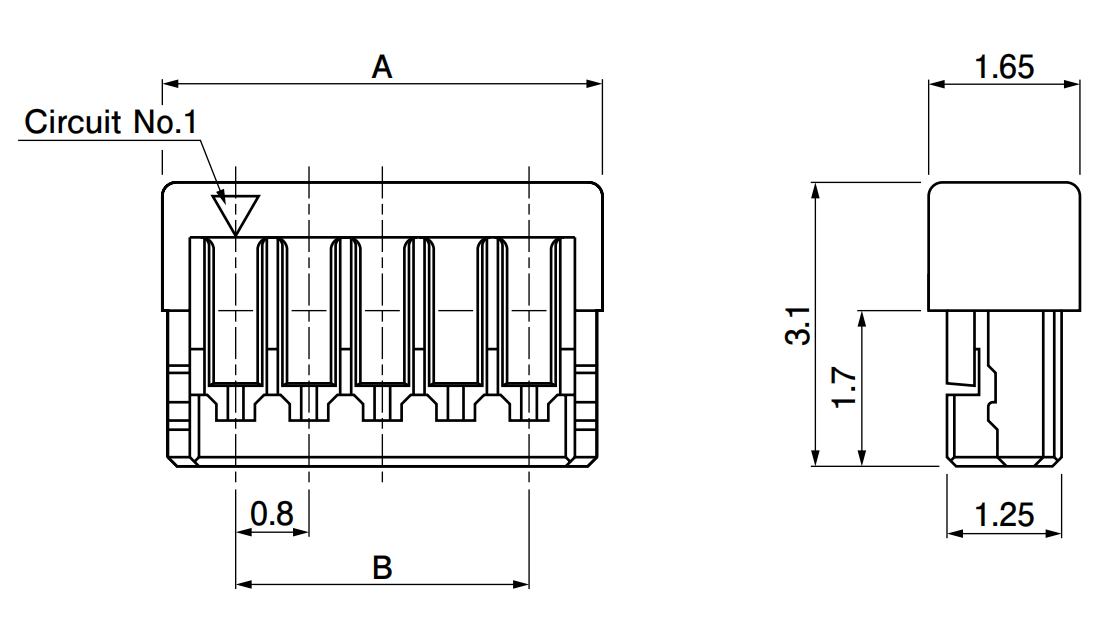

Without protrusions
| No.of circuits | Model No. | Dimensions(mm) | |||
| With protrusions | Without protrusions | A | B | C | |
| 2 | SUHR-02V-S-B | SUHR-02V-S | 2.4 | 0.8 | 4.4 |
| 3 | SUHR-03V-S-B | SUHR-03V-S | 3.2 | 1.6 | 5.2 |
| 4 | SUHR-04V-S-B | SUHR-04V-S | 4.0 | 2.4 | 6.0 |
| 5 | SUHR-05V-S-B | SUHR-05V-S | 4.8 | 3.2 | 6.8 |
| 6 | SUHR-06V-S-B | SUHR-06V-S | 5.6 | 4.0 | 7.6 |
| 8 | SUHR-08V-S-B | - | 7.2 | 5.6 | 9.2 |
| 10 | SUHR-10V-S-B | SUHR-10V-S | 8.8 | 7.2 | 10.8 |
| 12 | SUHR-12V-S-B | SUHR-12V-S | 10.4 | 8.8 | 12.4 |
| 14 | SUHR-14V-S-B | SUHR-14V-S | 12.0 | 10.4 | 14.0 |
| 16 | SUHR-16V-S-B | SUHR-16V-S | 13.6 | 12.0 | 15.6 |
| 17 | SUHR-17V-S-B | - | 14.4 | 12.8 | 16.4 |
| 20 | SUHR-20V-S-B | SUHR-20V-S | 16.8 | 15.2 | 18.8 |
SUH Connector Header Size and Model Number

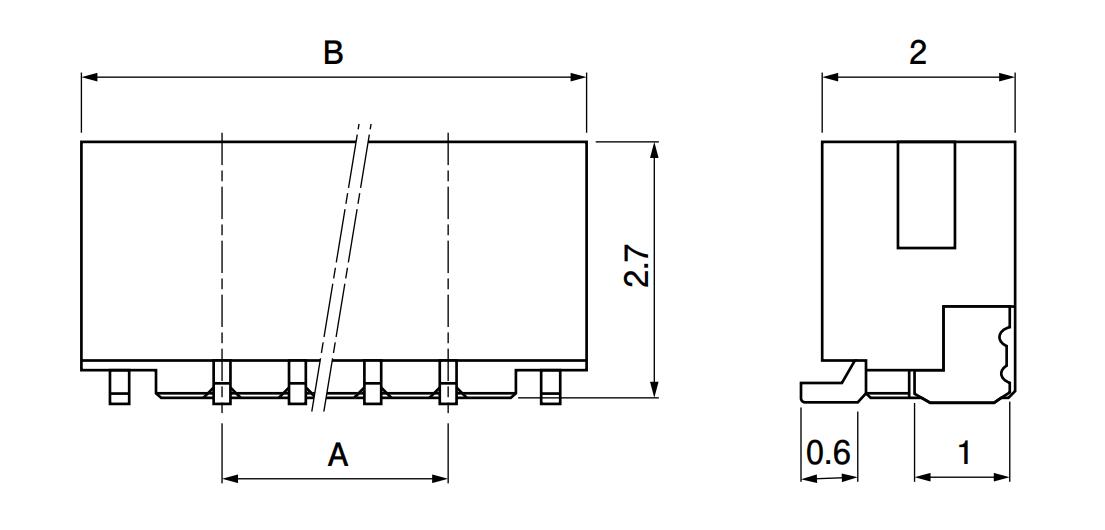

Header entry type

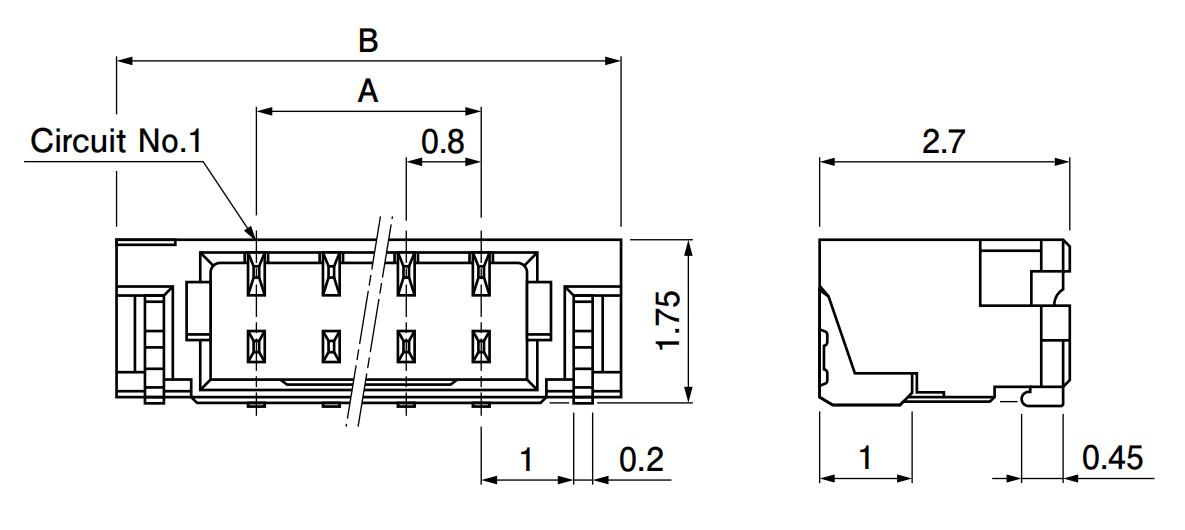

Header side entry type
| No.of circuits | Model No. | Dimensions (mm) | ||
| Top entry type | Side entry type | A | B | |
| 2 | BM02B-SURS-TF | SM02B-SURS-TF | 0.8 | 3.8 |
| 3 | BM03B-SURS-TF | SM03B-SURS-TF | 1.6 | 4.6 |
| 4 | BM04B-SURS-TF | SM04B-SURS-TF | 2.4 | 5.4 |
| 5 | BM05B-SURS-TF | SM05B-SURS-TF | 3.2 | 6.2 |
| 6 | BM06B-SURS-TF | SM06B-SURS-TF | 4.0 | 7.0 |
| 8 | BM08B-SURS-TF | SM08B-SURS-TF | 5.6 | 8.6 |
| 10 | BM10B-SURS-TF | SM10B-SURS-TF | 7.2 | 10.2 |
| 12 | BM12B-SURS-TF | SM12B-SURS-TF | 8.8 | 11.8 |
| 14 | BM14B-SURS-TF | SM14B-SURS-TF | 10.4 | 13.4 |
| 16 | BM16B-SURS-TF | SM16B-SURS-TF | 12.0 | 15.0 |
| 17 | BM17B-SURS-TF | SM17B-SURS-TF | 12.8 | 15.8 |
| 20 | BM20B-SURS-TF | SM20B-SURS-TF | 15.2 | 18.2 |

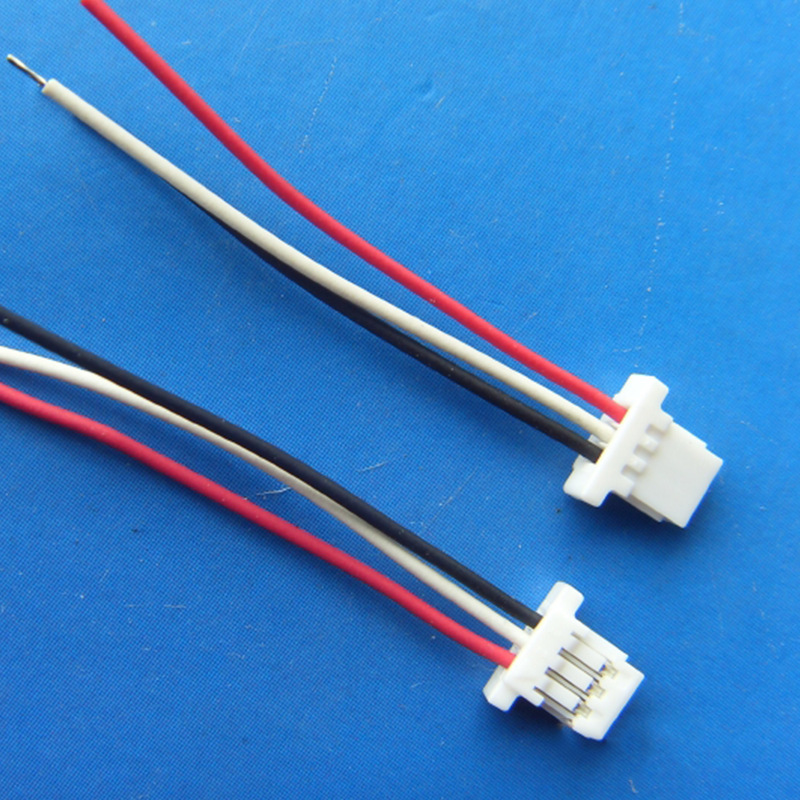

Support Custom Wiring Harness Assembly
- Connector: 2 - 20 pin
- Wire gauge: 32 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type: wire to wire, wire to tinned end, wire to open end, wire to any suitable connectors.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
