JST SV Connector, Wire to Board, Custom Wire Assembly
JST SV Connector, Wire to Board Type
The JST SV Connector is designed with a robust anti-misinsertion feature, ensuring proper assembly and preventing reverse contact insertion through the directional design of its housing. This minimizes the risk of errors during installation, enhancing reliability in various applications. Additionally, the connector incorporates a secure locking mechanism in its housings, available for configurations with two or four circuits. This locking feature not only ensures a strong and stable connection but also provides polarization, effectively preventing mismating between the housing and the header. These features make the JST SV Connector a dependable choice for precise and secure electrical connections.
Specifications
- Connector type: Wire to Board, disconnectable Crimp style
- Connector pitch: 5.0mm
- Current rating: 5A AC, DC (AWG #20)
- Voltage rating: 250V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10mΩ max, After environmental testing/15mΩ max.
- Insulation resistance: 1,000MΩ min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #24 to #20
- Applicable PC board thickness: 1.6mm
Housing
Shape A
Shape B
| No. of circuits | Model No. | Shape | Dimensions (mm) | Q'ty/bag | |
| A | B | ||||
| 2 | S2P-SVF | A | 5 | 10.6 | 1000 |
| 4 | S4P-SVF | A | 15 | 20.6 | 500 |
| 6 | S6P-SVF | B | 25 | 30.6 | 500 |
| 8 | S8P-SVF | B | 35 | 40.6 | 200 |
| 10 | S10P-SVF | B | 45 | 50.6 | 200 |
Material: PA 6, UL94V-2, natural (white)

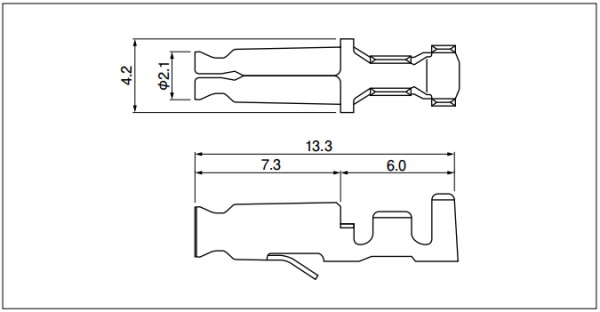

Terminal
Spcs:
- Model No.: SVF-01T-1.5N
- Applicable Wire: 0.2 - 0.5mm² (24 - 20AWG)
- Insolations O.D. (mm): 1.5 - 2.5
- Q'ty/reel: 4000pcs
- Materials and Finish: Brass, tin-plated (reflow treatment)
- RoHS compliance
Header
| No. of circuits | Model No. | Dimension A (mm) | Q'ty /box |
| 2 | RTB-1.5-02F | 10 | 1000 |
| 4 | RTB-1.5-04F | 20 | 500 |
| 6 | RTB-1.5-06F | 30 | 250 |
| 8 | RTB-1.5-08F | 40 | 200 |
| 10 | RTB-1.5-10F | 50 | 100 |
Material and Finish
- Post: Brass, nickel-undercoated, tin/copper alloy-plated
- Wafer: Glass filled PA 66, UL94V-0, natural (ivory)

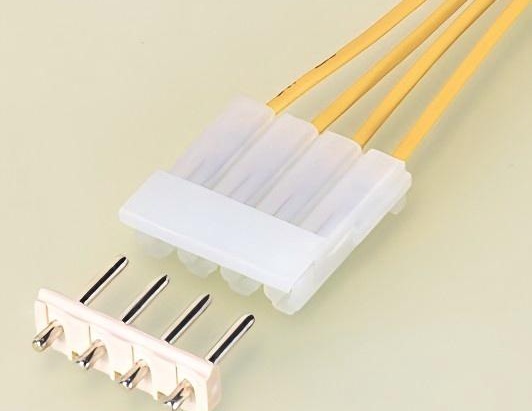

Support Custom Wiring Harness Assembly
- Connector: 2, 4, 6, 8, 10pin
- Wire gauge: 20 - 24AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
