JST THR Connector, Wire to Wire, Custom Wire Assembly

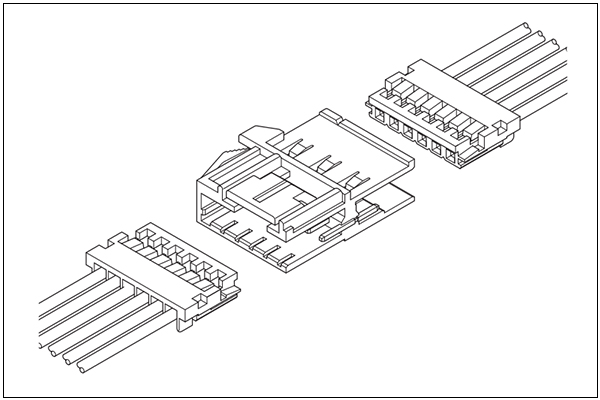

JST THR Connector, Wire to Wire Type
The JST THR Connector is a versatile 2.5 mm pitch wire-to-wire connector, engineered for seamless compatibility with HR connectors. It features both crimp-style and insulation displacement sockets, allowing flexible connectivity options. The connector is equipped with a robust arm lock mechanism that securely holds the socket in place once connected, while also enabling easy lock release for quick disconnection. Its innovative panel lock design allows for effortless installation on panels of varying thicknesses, without the need for additional tools. These features make the JST THR Connector ideal for applications requiring reliable, tool-free mounting and secure electrical connections.
Specifications
- Connector type: Wire-to-Wire
- Connector pitch: 2.5mm
- Current rating:
- Crimp style HR connectors type: 3 A AC/DC
- Insulation displacement HR connectors type: 2 A AC/DC
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 15 mΩ max, After environmental tests/ 25 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire range:
- Crimp style HR connector: AWG #26 to AWG #22, 0.13 mm² to 0.33 mm²
- IDC style HR connector: AWG #28, AWG #26, AWG #24
- Applicable panel thickness: 0.5 mm to 2.0 mm

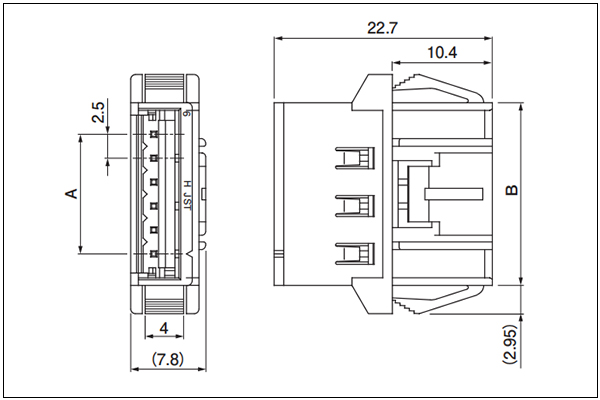

THR Connector
1-1 type
1-N type
| No.of circuits | Model No. | Dimensions(mm) | Q'ty/bag | ||
| 1-N type | 1-1 type | A | B | ||
| 3 | BU03P-THR | BU03P-THR-1-K | 5.0 | 11.6 | 200 |
| 6 | BU06P-THR | BU06P-THR-1-K | 12.5 | 19.1 | 100 |
| 12 | BU12P-THR | BU12P-THR-1-K | 27.5 | 34.1 | 50 |

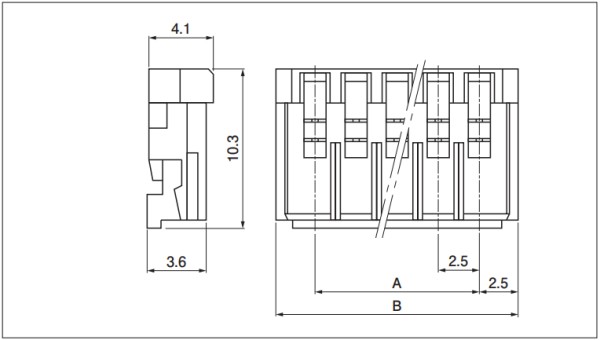

Socket / IDC style HR connector
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |||
| #28 | #26 | #24 | A | B | ||
| 3 | 03HR-8M-P-N | 03HR-6S-P-N | 03HR-4K-P-N | 5.0 | 10.0 | 1000 |
| 6 | 06HR-8M-P-N | 06HR-6S-P-N | 06HR-4K-P-N | 12.5 | 17.5 | 1000 |
| 12 | 12HR-8M-P-N | 12HR-6S-P-N | 12HR-4K-P-N | 27.5 | 32.5 | 500 |

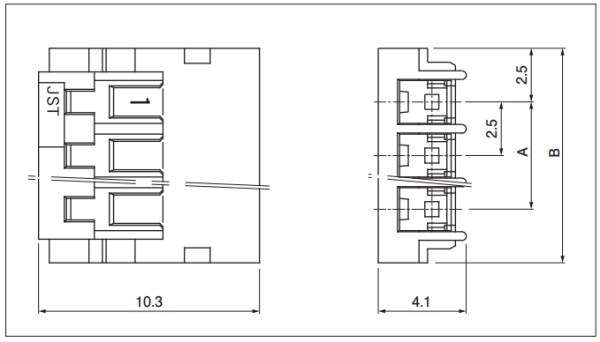

Socket / Crimp style HR connector
Housing
No. of circuits |
Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 3 | HRP-03-S | 5.0 | 10.0 | 2000 |
| 6 | HRP-06-S | 12.5 | 17.5 | 1000 |
| 12 | HRP-12-S | 27.5 | 32.5 | 500 |

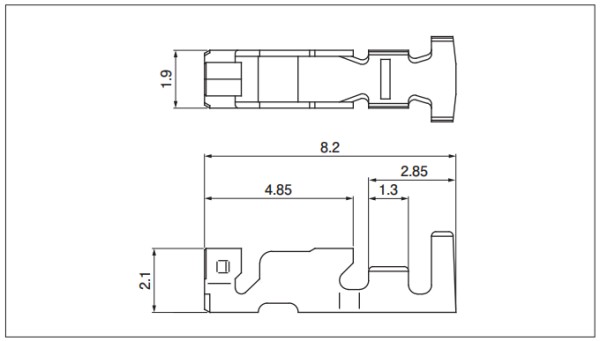

Terminal
Specs:
- Model No.: SHR-001T-P0.6
- Applicable Wire: 26 to 22AWG（0.13 to 0.33mm²）
- Insolations O.D. (mm): 1.3to 1.7mm
- Q'ty/reel: 9000pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS2 compliance

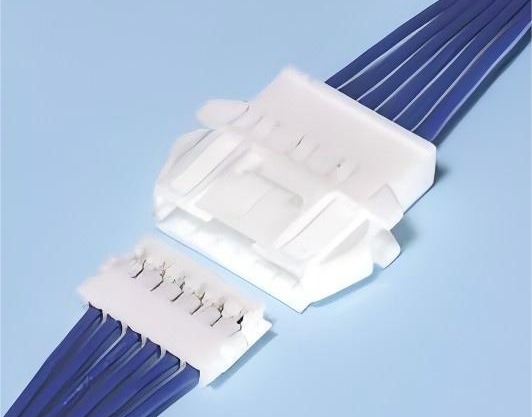

Support Custom Wiring Harness Assembly
- Connector: 3, 6, 12pin
- Wire gauge: 22 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
