JST TSD Connector, Wire to Wire, Custom Wire Assembly

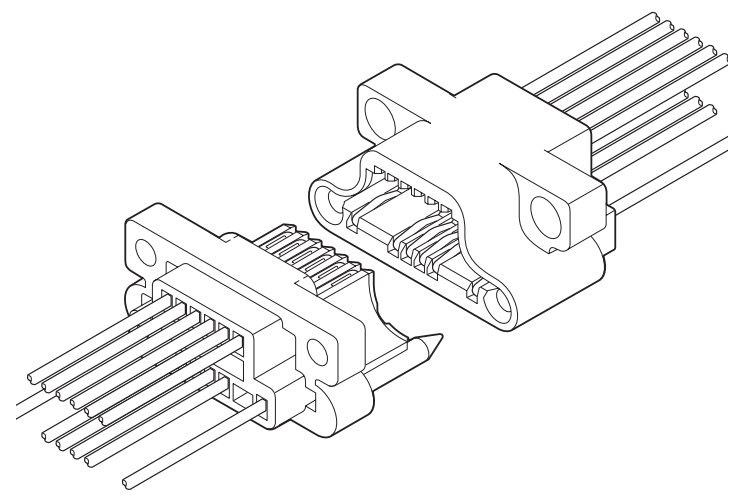

JST TSD Connector, Wire to Wire Type
The JST TSD Connector is a hybrid drawer connector that seamlessly integrates signal and power lines within a single contact design. This innovative connector features a unique floating function with stepped screws that compensate for any misalignment during installation, ensuring a secure and reliable connection. The contact is designed with a dimple structure that enhances its performance, providing consistent and stable electrical contact, even under challenging conditions. Its ability to handle both power and signal connections with one contact makes it a versatile and highly reliable solution for various applications, where durability and performance are critical.
Specifications
- Connector type: Disconnectable Crimp style Wire-to-wire
- Current rating: 2A AC, DC (AWG #24)
- Voltage rating: Signal circuit 30V AC, DC; Power supply circuit 300V AC, DC
- Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/30m Ω max, After environmental testing/50m Ω max.
- Insulation resistance: 1,000M Ω min.
- Withstanding voltage: Power-Signal 1,500V AC/minute; Signal-Signal 500V AC/minute
- Applicable wire: AWG #28 to #24
Plug Housing

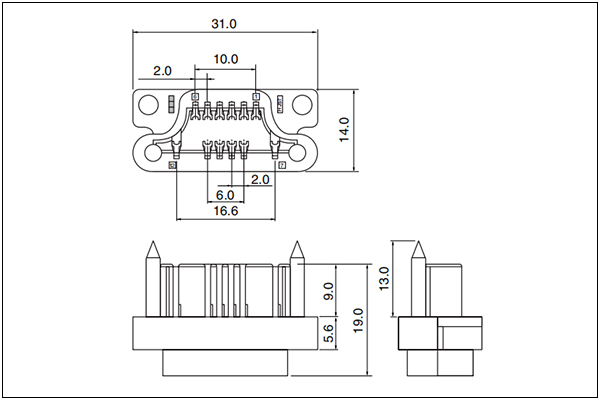

12 Circuits

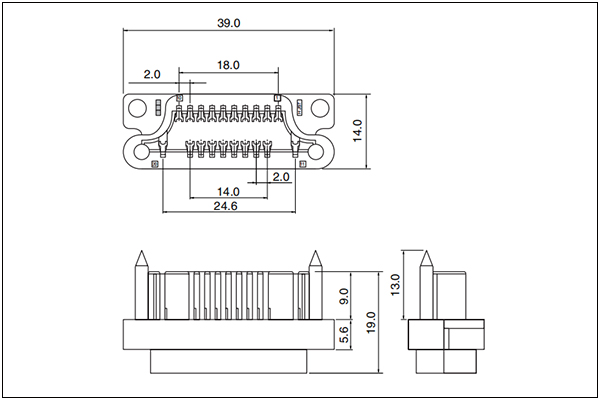

20 Circuits
| Circuits | Model No. | Qty/box |
| 12 | TSDP-12V-K | 100 |
| 20 | TSDP-20V-K | 50 |
Material: Glass-filled PBT, UL94V-0
Receptacle Housing

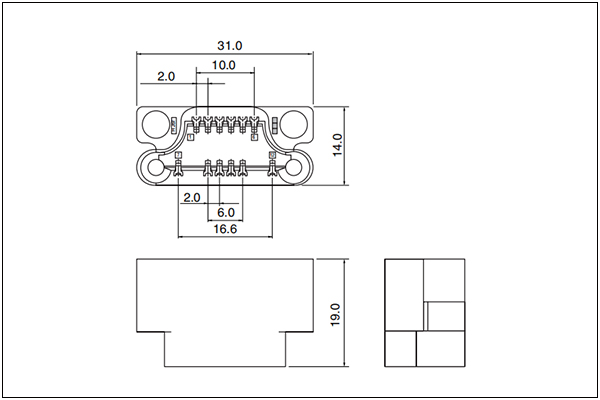

12 Circuits

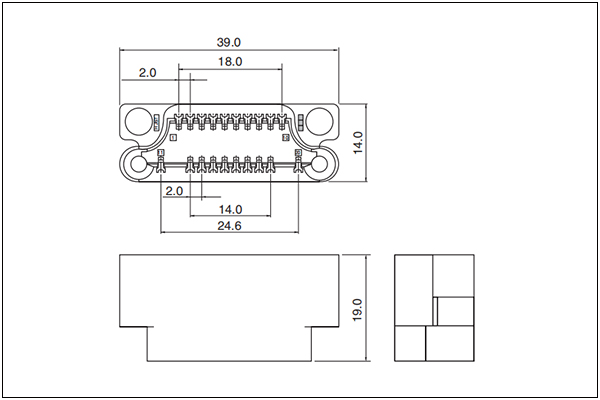

20 Circuits
| Circuits | Model No. | Q'ty/box |
| 12 | TSDR-12V-K | 100 |
| 20 | TSDR-20V-K | 50 |
Material: Glass-filled PBT, UL94V-0
Terminal

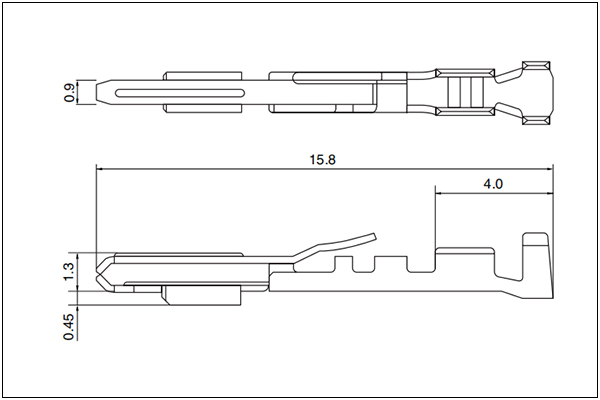

Plug terminal

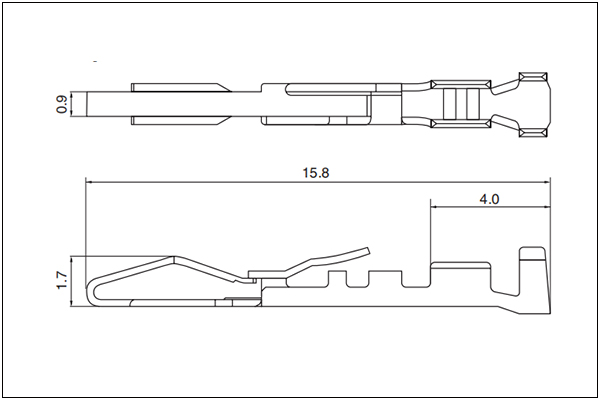

Receptacle Terminal
Specs:
- Model No.: STS-002GG-P0.6(Receptacle), STSD-002GG-P0.6(Plug)
- Applicable Wire: 28 to 24AWG（0.08 to 0.22mm²）
- Insolations O.D. (mm): 0.9 to 1.5mm
- Q'ty/reel: 10000pcs
- Materials and Finish: Copper alloy, nickel-undercoated, Mating part; gold-plated Crimping part; tin-plated (reflow treatment)
- RoHS compliance

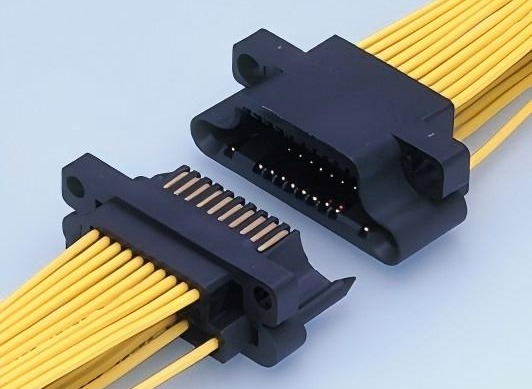

Support Custom Wiring Harness Assembly
- Connector: 12, 20pin
- Wire gauge: 28 - 24AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
