JST V Connector, Wire to Board, Custom Wire Assembly

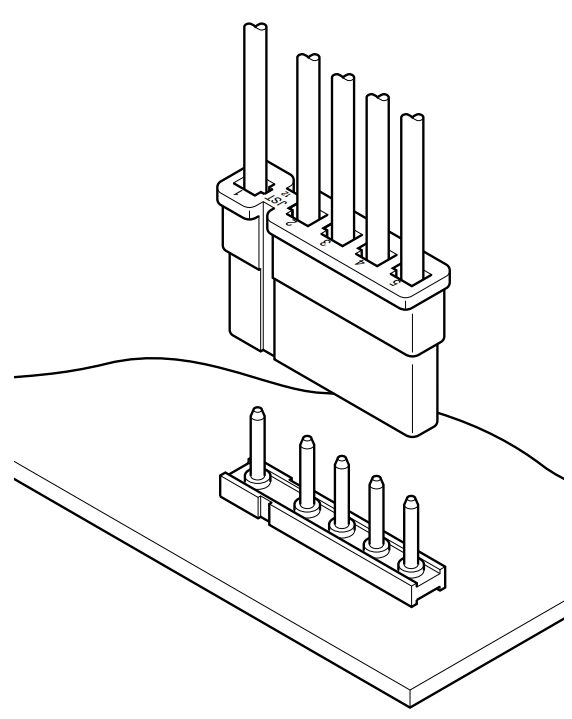

JST V Connector, Wire to Board Type
The JST V Connector is a versatile interconnect solution designed to accommodate 2 to 6 circuits, making it ideal for a range of applications. Its unique design includes a single contact position spaced 7.5 mm apart from adjacent positions, while the remaining positions have a standard 5.0 mm pitch. This variation serves as a built-in anti-misinsertion feature, ensuring correct polarization and preventing reverse connection between the receptacle and header. Additionally, the V Connector boasts a robust two-point contact mechanism, offering dual wiping areas per contact to ensure stable and reliable electrical connections. This design enhances performance and minimizes the risk of connection failures.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 5.0mm
- Current rating: 5 A AC, DC (AWG #20)
- Voltage rating: 250 V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental testing/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #26 to #20
- Applicable PC board thickness: 1.6 mm
Housing

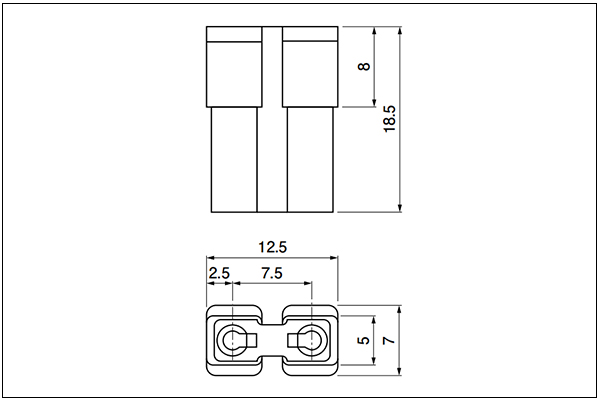

2 Circuits

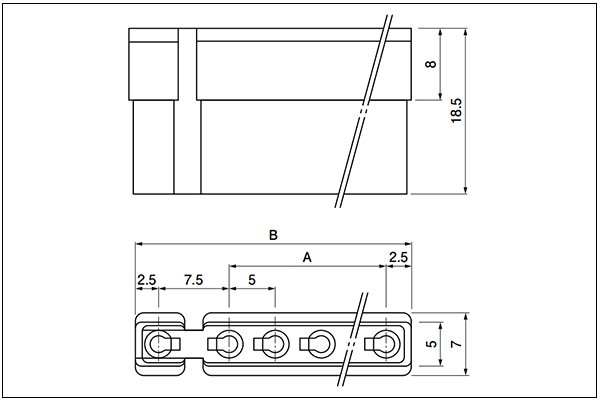

3 to 6 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | ||
| A | B | ||||
| 2 | 2P-SVF | 2P-SVF-V | 一 | 一 | 1000 |
| 3 | 3P-SVF | 3P-SVF-V | 5 | 17.5 | 1000 |
| 4 | 4P-SVF | 4P-SVF-V | 10 | 22.5 | 500 |
| 5 | 5P-SVF | 5P-SVF-V | 15 | 27.5 | 500 |
| 6 | 6P-SVF | 6P-SVF-V | 20 | 32.5 | 500 |
Material: PA 6, ( )P-SVF…UL94V-2, ( )P-SVF-V…UL94V-0, natural (white)
Terminal
Spcs:
- Model No.: SVF-01T-1.5A
- Applicable Wire: 0.13 - 0.5mm² (20 - 26AWG)
- Insolations O.D. (mm): 1.3 - 2.7
- Q'ty/reel: 15000pcs
- Materials and Finish: Brass, tin-plated (reflow treatment)
- RoHS compliance

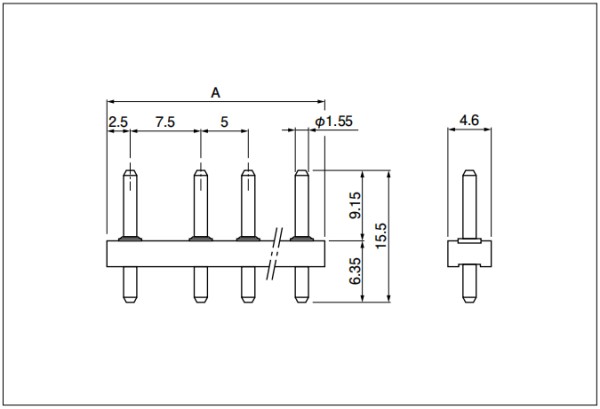

Header
| No. of circuits | Model No. | Dimension A (mm) | Q'ty/box |
| 2 | RTB-1.5-2P | 12.5 | 1000 |
| 3 | RTB-1.5-3P | 17.5 | 1000 |
| 4 | RTB-1.5-4P | 22.5 | 500 |
| 5 | RTB-1.5-5P | 27.5 | 500 |
| 6 | RTB-1.5-6P | 32.5 | 250 |
Material and Finish
- Pin: Brass, nickel-undercoated, tin/copper alloy-plated
- Wafer: Glass-filled PBT, UL94V-0, natural (white)

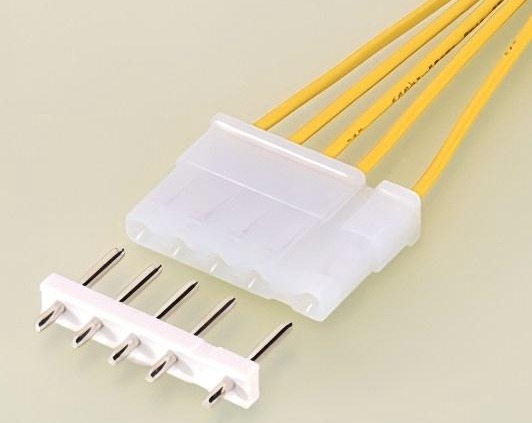

Support Custom Wiring Harness Assembly
- Connector: 2 - 6pin
- Wire gauge: 20 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
