JST VA Connector, Wire to Board, Custom Wire Assembly

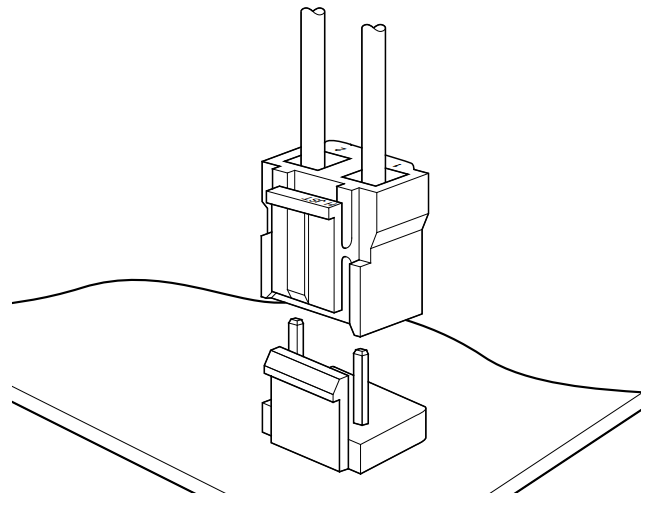

JST VA Connector, Wire to Board Type
The JST VA Connector is a robust solution designed for primary power supply circuits and other applications demanding high current capacity. With a 7.92 mm pitch, this connector is engineered to handle substantial electrical loads while maintaining a compact form factor. Its anti-misinsertion construction ensures proper alignment during installation, minimizing the risk of incorrect connections. The connector is equipped with a reliable locking mechanism, providing secure engagement and enhancing safety in critical applications. Featuring box contacts, it offers dependable electrical connectivity and stable mounting. This combination of compact design, high capacity, and safety features makes the JST VA Connector an ideal choice for demanding electrical systems.
Specifications
- Connector type: Wire to Board, Disconnectable crimp style
- Connector pitch: 7.92mm
- Current rating: 7 A AC/DC (AWG #18)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10m Ω max, After environmental tests/ 20m Ω max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,200 VAC/minute
- Applicable wire: AWG #20 to #18
- Applicable PC board thickness: 1.6 mm

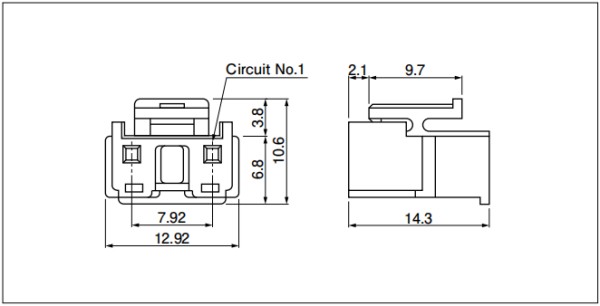

Housing
Specs:
- No. of Circuits: 2
- Model No.: VAR-2
- Q'ty/reel: 1000pcs
- Materials and Finish: PA 6, UL94V-0, natural (white)
- RoHS2 Compliance

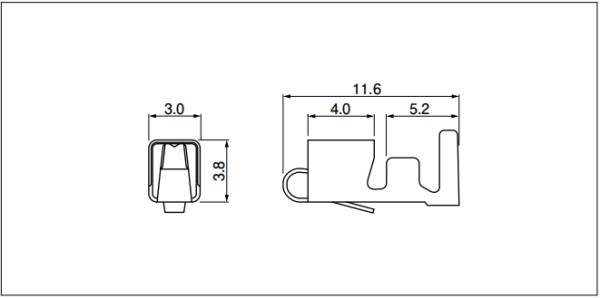

Terminal
Spcs:
- Model No.: SVA-41T-P1.1
- Applicable Wire: 0.5 - 0.83mm² (22 - 18AWG)
- Insolations O.D. (mm): 1.9 - 3.7
- Q'ty/reel: 3500pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS2 compliance
Header

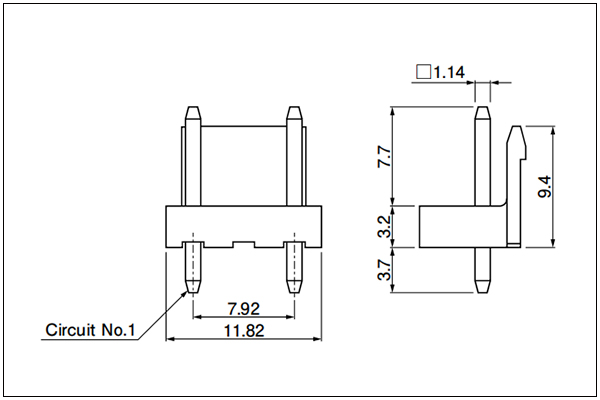

Top entry type

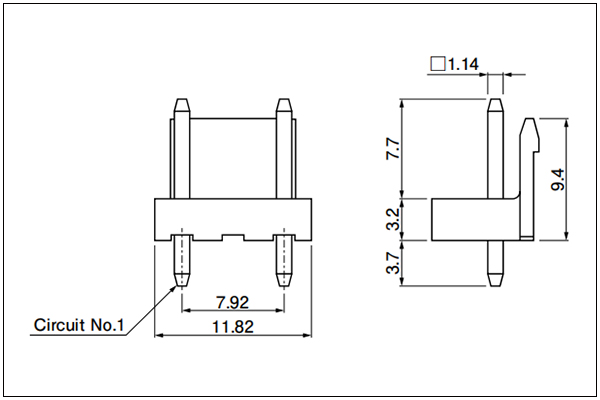

Plugged up hole Top entry type

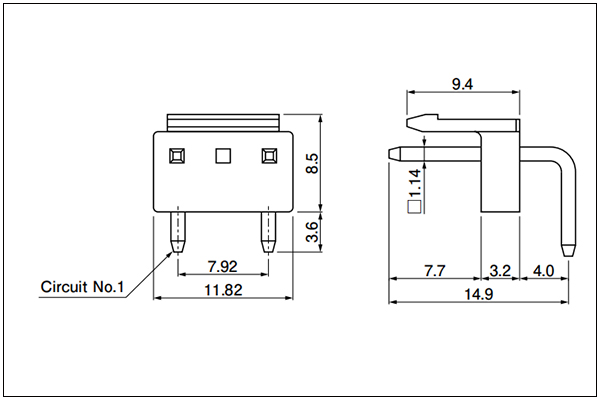

Side entry type

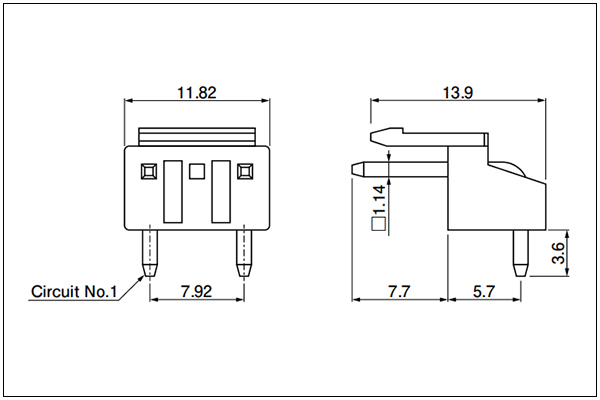

Side entry type with PCB stabilizer
| - | No.of circuits | Model No. | Q'ty/box |
| Top entry type | 2 | B2P3-VH | 1000 |
| Side entry type | 2 | B2P3S-VH | 500 |
| Side enty type with PCB stabilizer | 2 | S2P3-VH | 500 |
| Plugged up hole Top entry type | 2 | *B2P-VA | 1000 |
Note:
- Material and Finish
- Post: Brass, copper-undercoated, tin-plated (reflow treatment)
- Wafer: PA 66, UL94V-0, natural (white)
- RoHS2 compliance
- This product displays (LF)(SN) on a label.
- *Marked products unlisted in CSA/TÜV.

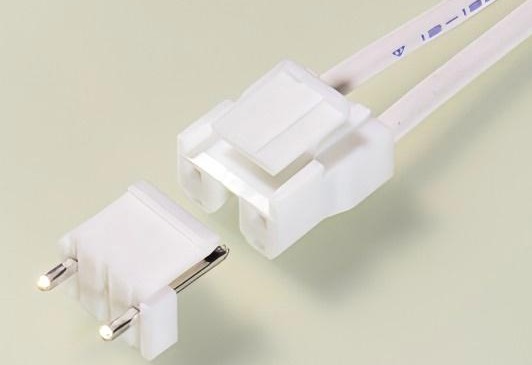

Support Custom Wiring Harness Assembly
- Connector: 2pin
- Wire gauge: 18 - 20AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
