JST VAJ Connector, Wire to Board, Custom Wire Assembly
JST VAJ Connector, Wire to Board Type
The JST VAJ Connector is a robust 7.92 mm pitch crimp-style connector designed to handle high current loads, making it an ideal choice for a wide range of power supply circuits. Engineered for reliability, it features box-shaped contacts that ensure a secure and stable connection. The inclusion of housing lances enhances durability and prevents accidental disengagement, while the box contact design provides consistent electrical performance. With secure contact and mounting mechanisms, this connector supports applications requiring up to 10 amps, offering a dependable solution for power-intensive requirements in industrial, automotive, and electronic systems.
Specifications
- Connector type: Wire to Board, disconnectable crimp style
- Connector pitch: 7.92mm
- Current rating: 10 A AC, DC (AWG #16)
- Voltage rating: 250 V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #20 to #16
- Applicable PC board thickness: 1.6 mm
Housing
Specs:
- No. of Circuits: 2
- Model No.: VAJR-02VS
- Q'ty/reel: 1000pcs
- Materials: PA 66, UL94V-0, natural (white)
- RoHS Compliance
Terminal
Spcs:
- Model No.: SVT-41T-P1.1
- Applicable Wire: 20 - 16AWG)
- Insolations O.D. (mm): 3.9 - 2.7
- Q'ty/reel: 2500pcs
- Materials and Finish: Alloy (phosphor bronze system), tin-plated (reflow treatment)
- RoHS compliance

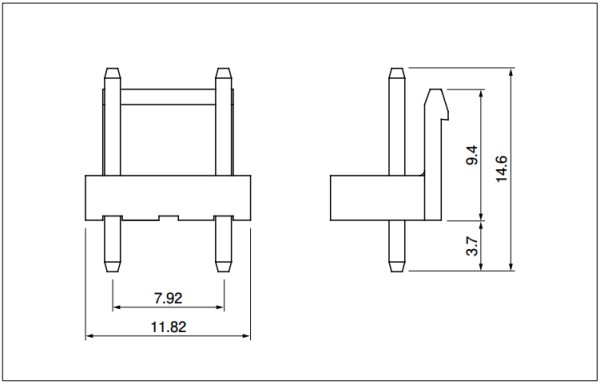

Header
Specs:
- No. of Circuits: 2
- Model No.: B2P3-VH
- Q'ty/reel: 1000pcs
- Materials and Finish:
- Post: Brass, copper-undercoated, tin-plated (reflow treatment)
- Wafer: PA 66, UL94V-0, natural (white)
- This product displays (LF)(SN) on a label.
- RoHS Compliance
Support Custom Wiring Harness Assembly
- Connector: 2pin
- Wire gauge: 16 - 20AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
