JST VB Connector, Wire to Board, Custom Wire Assembly
JST VB Connector, Wire to Board Type

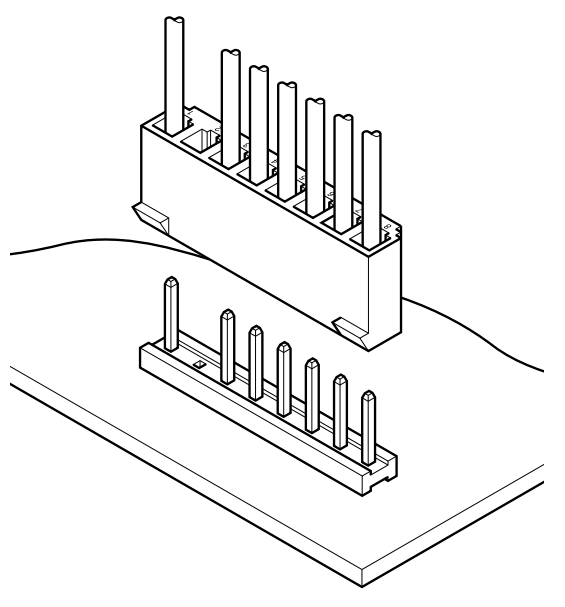

The JST VB Connector is a robust and reliable solution designed for printed circuit boards, offering a high current-carrying capacity ideal for primary power supply circuits in consumer electronics and other applications demanding substantial current flow. Engineered with a proven box-shaped contact design, the VB Connector ensures secure and consistent electrical connections. This design is inspired by the successful performance of contacts utilized in the VH Connector, delivering dependable functionality and durability in demanding environments. Its advanced engineering makes it a versatile choice for power supply systems and other circuits requiring enhanced current-handling capabilities.
Specifications
- Connector type: Wire to Board, disconnectable crimp style
- Connector pitch: 5.08
- Current rating: 7 A AC/DC (AWG #18)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #22 to #18
- Applicable PC board thickness: 1.6 mm

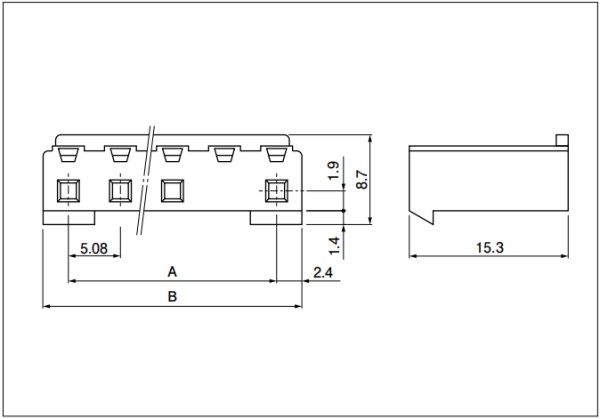

Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | VBR-2 | 5.08 | 9.88 | 1000 |
| 2 | VBR-2(3) | 10.16 | 14.96 | 1000 |
| 3 | VBR-3 | 10.16 | 14.96 | 1000 |
| 3 | VBR-3(4) | 15.24 | 20.04 | 1000 |
| 4 | VBR-4 | 15.24 | 20.04 | 1000 |
| 4 | VBR-4(5) | 20.32 | 25.12 | 1000 |
| 5 | VBR-5(6) | 25.4 | 30.2 | 500 |
| 6 | VBR-6(7) | 30.48 | 35.28 | 500 |
| 7 | VBR-7(8) | 35.56 | 40.36 | 500 |
| 8 | VBR-8(9) | 40.64 | 45.44 | 500 |
| 9 | VBR-9(10) | 45.72 | 50.52 | 500 |
| 12 | VBR-12(13) | 60.96 | 65.76 | 200 |
Material and Finish: PA 6, UL94V-0, natural (white)

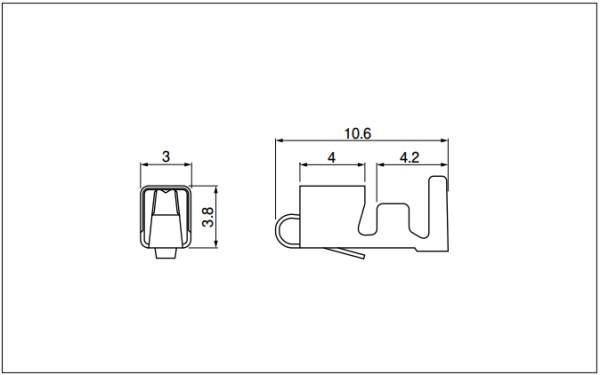

Terminal
Spcs:
- Model No.: SVH-21T-P1.1
- Applicable Wire: 0.33 - 0.83mm² (22 - 18AWG)
- Insolations O.D. (mm): 1.7 - 3.0
- Q'ty/reel: 4500pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS2 compliance

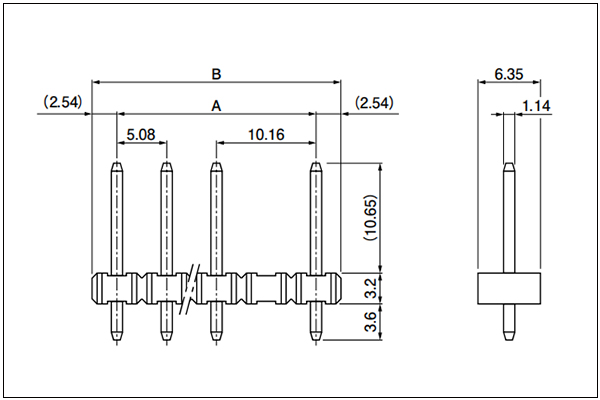

Header - Top entry type of PBT
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||
| 2 | B2P-VB-2 | 5.08 | 10.16 | 1000 |
| 2 | B2P3-VB-2 | 10.16 | 15.24 | 500 |
| 3 | B3P-VB-2 | 10.16 | 15.24 | 500 |
| 3 | B3P4-VB-2 | 15.24 | 20.32 | 500 |
| 4 | B4P-VB-2 | 15.24 | 20.32 | 500 |
| 4 | B4P5-VB-2 | 20.32 | 25.4 | 250 |
| 5 | B5P6-VB-2 | 25.4 | 30.48 | 250 |
| 6 | B6P7-VB-2 | 30.48 | 35.56 | 200 |
| 7 | B7P8-VB-2 | 35.56 | 40.64 | 200 |
| 8 | B8P9-VB-2 | 40.64 | 45.72 | 200 |
| 9 | B9P10-VB-2 | 45.72 | 50.8 | 100 |
| 12 | B12P13-VB-2 | 60.96 | 66.04 | 100 |
Material and Finish
- Post: Brass copper-undercoated, tin-plated (reflow treatment)
- Wafer: PBT, UL94V-0, natural (white)
Header

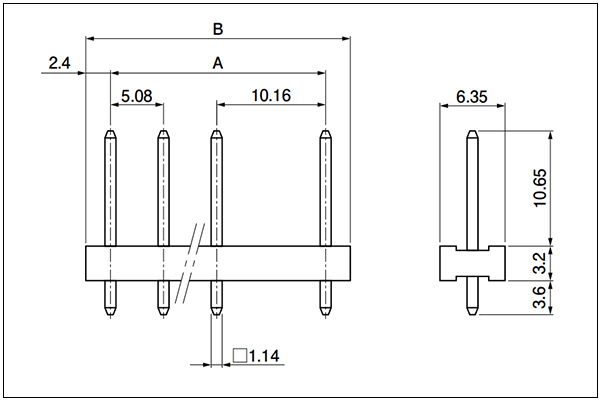

Top entry type of PA

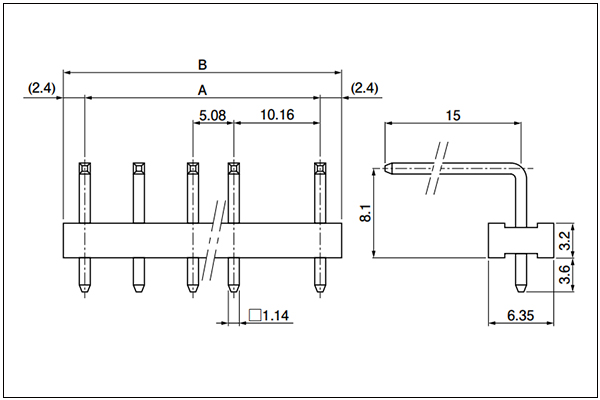

Side entry type of PA
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |||
| Top entry type | Side entry type | A | B | Top entry type | Side entry type | |
| 2 | B2P-VB | B2PS-VB | 5.08 | 9.88 | 1000 | 1000 |
| 2 | B2P3-VB | - | 10.16 | 14.96 | 500 | 一 |
| 3 | B3P4-VB | B3P4S-VB | 15.24 | 20.04 | 500 | 250 |
| 4 | B4P5-VB | B4P5S-VB | 20.32 | 25.12 | 250 | 200 |
| 5 | B5P6-VB | B5P6S-VB | 25.40 | 30.20 | 250 | 200 |
| 6 | B6P7-VB | B6P7S-VB | 30.48 | 35.28 | 200 | 100 |
| 7 | B7P8-VB | B7P8S-VB | 35.56 | 40.36 | 200 | 100 |
| 8 | B8P9-VB | B8P9S-VB | 40.64 | 45.44 | 200 | 100 |
| 9 | B9P10-VB | B9P10S-VB | 45.72 | 50.52 | 100 | 100 |
| 12 | B12P13-VB | B12P13S-VB | 60.96 | 65.76 | 100 | 100 |
Material and Finish
- Post: Brass, copper-undercoated, tin-plated (reflow treatment)
- Wafer: PA 66, UL94V-0, natural (white)

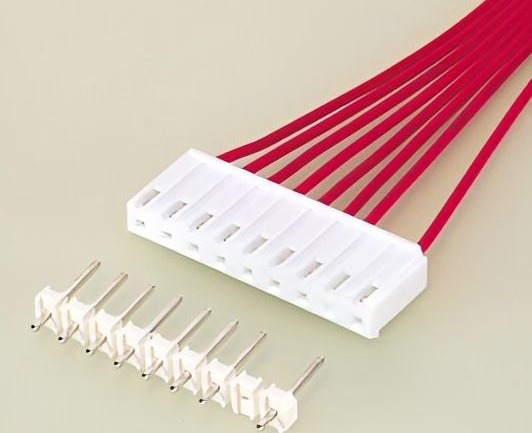

Support Custom Wiring Harness Assembly
- Connector: 2 - 12pin
- Wire gauge: 18 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
