JST VH Connector, High Box Type, Custom Wire Assembly

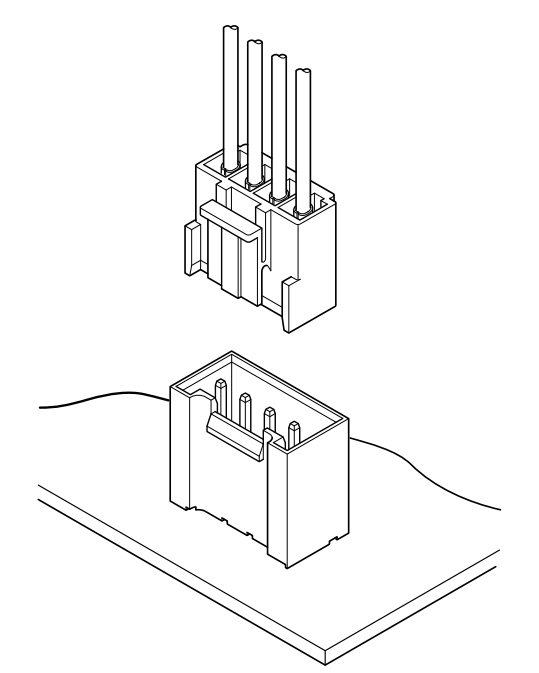

JST VH Connector, High Box Type
The JST VH Connector, High Box Type, is a robust and versatile connector designed for reliable performance in demanding conditions. Featuring a mounting height of 21.3 mm (18.6 mm for single-circuit variants) and a compact thickness of 9.2 mm (8 mm for single circuits), this connector ensures stable electrical connections even in challenging environments involving vibration, prying, or sensitive micro-current and micro-voltage circuits. It includes a specialized header for use with resin-coated ("potted") printed circuit boards, enhancing durability and environmental resistance. The design also ensures interchangeability, making it a dependable choice for various applications requiring consistent and secure electrical connections.
Specifications
- Connector type: Wire to Board, High Box Type, Disconnectable Crimp style
- Connector pitch: 3.96mm
- Current rating: 7 A AC/DC (AWG #18), 10 A AC/DC (AWG #16)/ 1 circuit only
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #22 to #16
- Applicable PC board thickness: 1.6 mm
Housing

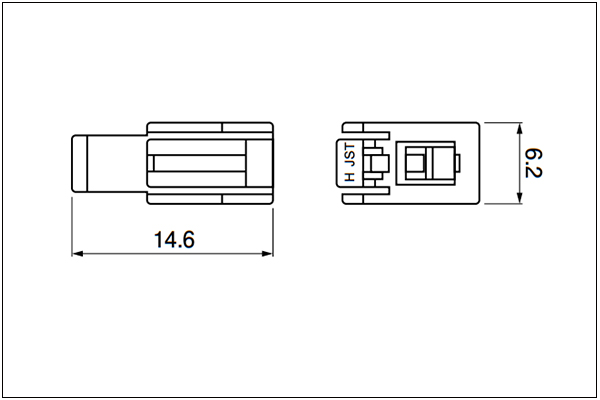

N Type - Single Circuit
N Type - 2 to 8 Circuits

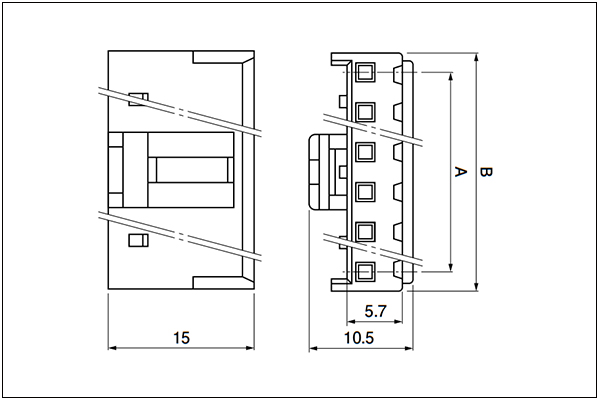

Retainer Mountable type
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | ||
| N type | Retainer mountable type | A | B | ||
| 1 | VHR-1N | 一 | 一 | 一 | 1000 |
| 2 | VHR-2N | 一 | 3.96 | 7.86 | 1000 |
| 3 | VHR-3N | VHRR-3N | 7.92 | 11.82 | ★ |
| 4 | VHR-4N | 一 | 11.88 | 15.78 | 1000 |
| 5 | VHR-5N | VHRR-5N | 15.84 | 19.74 | ★ |
| 6 | VHR-6N | 一 | 19.8 | 23.7 | 500 |
| 7 | VHR-7N | VHRR-7N | 23.76 | 27.66 | 500 |
| 8 | VHR-8N | VHRR-8N | 27.72 | 31.62 | 500 |
Note:
- Material and Finish: PA 6, UL94V-0, natural (white)
- * N type: 1000; Retainer mountable type: 500
- RoHS2 compliance

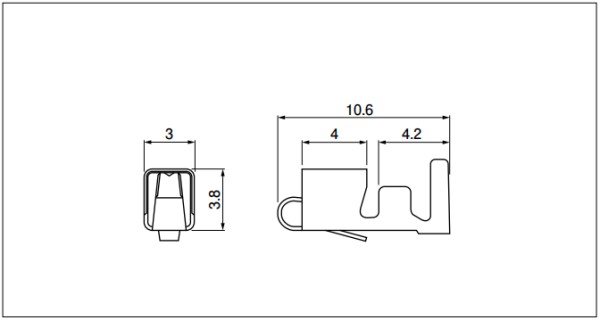

Terminal
| Model No. | Applicable wire | Insulation O.D(mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SVH-21T-P1.1 | 0.33 to 0.83 | 22 to 18 | 1.7 to 3 | 4500 |
| *SVH-41T-P1.1 | 0.5 to 1.25 | 20 to 16 | 1.7 to 3 | 3500 |
Note:
- Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
- *The current rating when combining with single circuit is 10 A AC/DC (AWG #16.)
- When using retainer mountable type housing, applicable wire's insulation O. D. shall be 1.7 to 2.2 mm.
- RoHS2 compliance

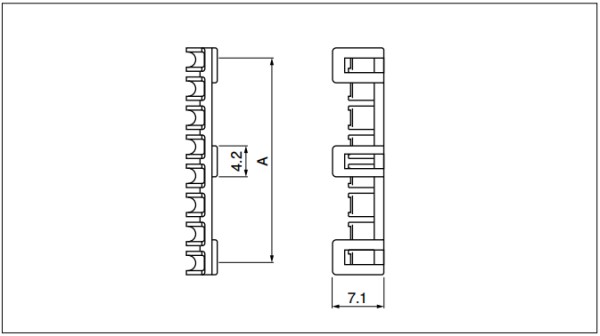

Retainer
| No.of circuits | Model No. | A | Q'ty/bag |
| 3 | VHS-3V | 7.52 | 1000 |
| 5 | VHS-5V | 15.44 | 1000 |
| 7 | VHS-7V | 23.36 | 1000 |
| 8 | VHS-8V | 27.32 | 1000 |
Header
With a boss - Single Circuit

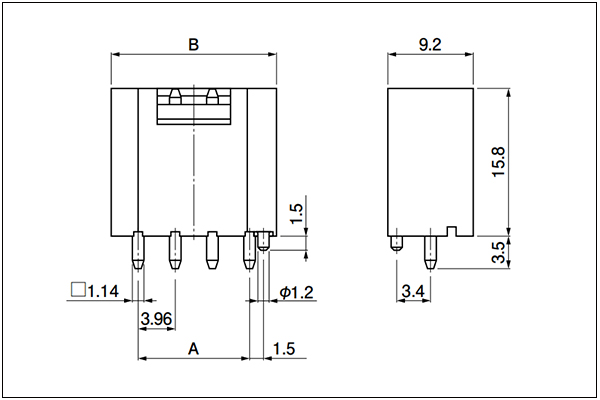

With a boss - 2 to 8 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| With a boss | A | B | ||
| 1 | BH1P-VH-1 | - | - | 500 |
| 2 | BH2P-VH-1 | 3.96 | 9.8 | 250 |
| 3 | BH3P-VH-1 | 7.92 | 13.76 | 200 |
| 4 | BH4P-VH-1 | 11.88 | 17.72 | 150 |
| 5 | BH5P-VH-1 | 15.84 | 21.68 | 100 |
| 6 | BH6P-VH-1 | 19.8 | 25.64 | 100 |
| 7 | BH7P-VH-1 | 23.76 | 29.6 | 100 |
| 8 | BH8P-VH-1 | 27.72 | 33.56 | 100 |
Material and Finish
- Post: Brass, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL-94V-0, natural (ivory)
- BH1P-VH-1 Wafer: PA 66, UL-94V-0, natural (white)

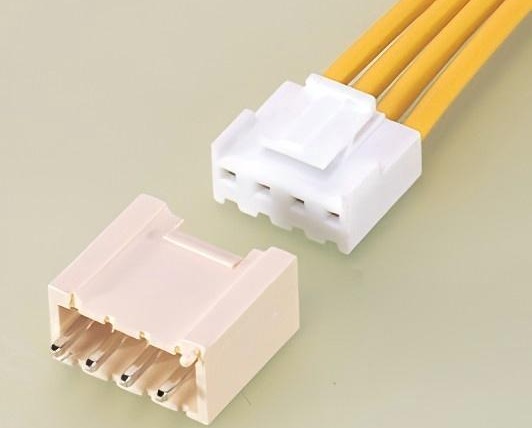

Support Custom Wiring Harness Assembly
- Connector: 1 - 8pin
- Wire gauge: 22 - 16AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
