JST VH Connector, Wire to Board, Custom Wire Assembly

JST VH Connector, Wire to Board Type

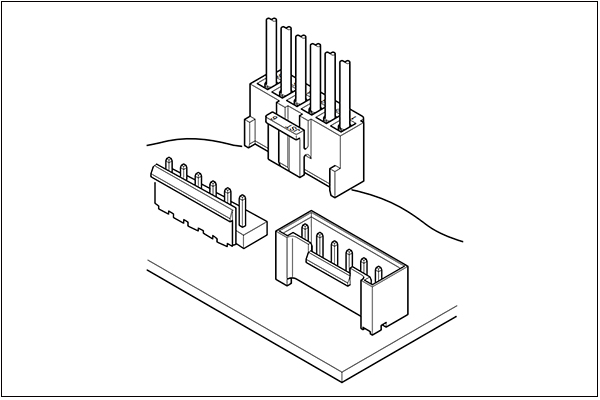

The JST VH Connector is a compact yet robust solution for printed circuit boards, offering a high current-carrying capacity that makes it ideal for a wide range of applications. Designed with a proven box contact system, this connector ensures reliable and secure electrical connections, even under demanding conditions. Its versatile design allows it to seamlessly integrate with various signal, power supply, and output circuits commonly found in consumer electronics. The VH Connector's compact form factor, combined with its high performance and secure mounting, makes it a trusted choice for manufacturers seeking efficiency and reliability in their PCB designs.

Specifications

• Connector type: Wire to Board, Disconnectable Crimp style
• Connector pitch: 3.96mm
• Current rating: 10 A AC/DC (AWG #16)
• Voltage rating: 250 V AC/DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,500 VAC/minute
• Applicable wire: AWG #22 to #16
• Applicable PC board thickness: 1.6 mm

Housing

Note:

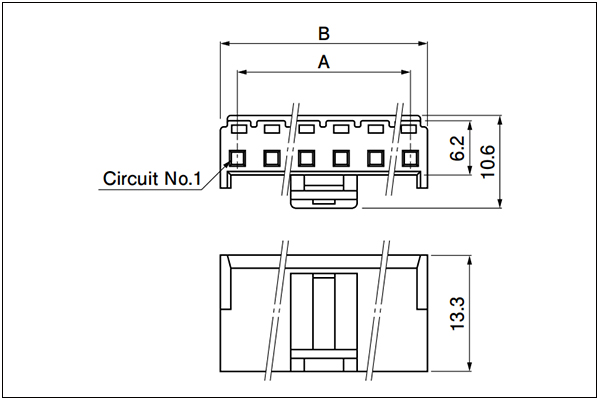

1. Material and Finish: PA 6, UL94V-0, natural (white)
2. Models identified as VHR-( ) M incorporate measures to prevent electric shock and are thus safer in regard to high voltages.
3. The applicable housing for 2 circuits shrouded header is "VHR-2N" only. "VHRR-2N" is not applicable.
4. (*) N / M type: 1000; Retainer mountable type: 500

Terminal

Note:

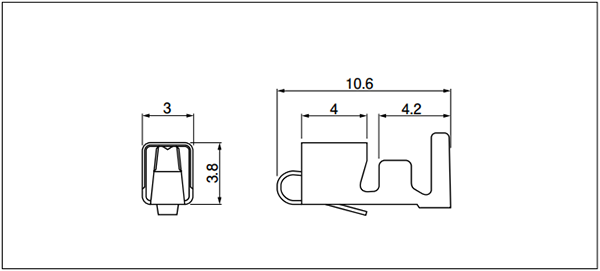

• Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
• When using retainer mountable type housing, applicable wire's insulation O. D. shall be 1.7 to 2.2 mm.
• RoHS2 compliance

Retainer

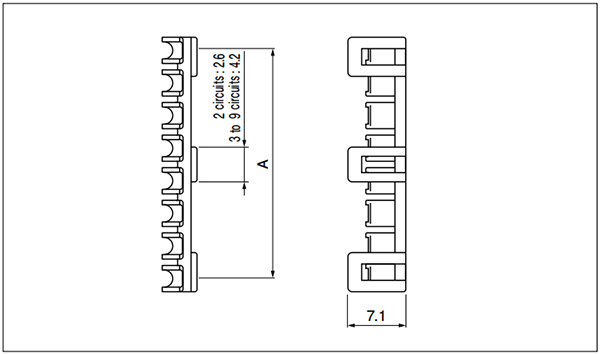

Material and Finish: Glass-filled PA 66, UL94V-0, natural (ivory)

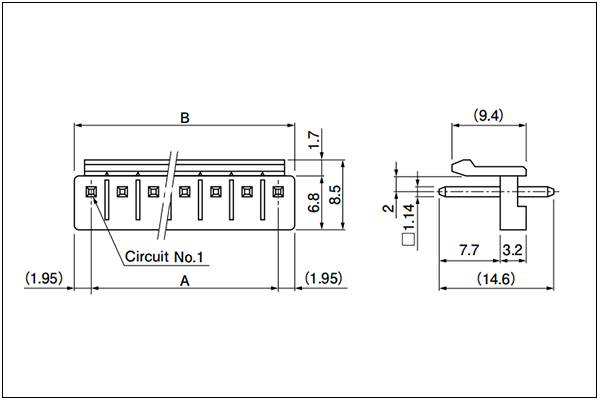

Locking header

Material and Finish

• Post: Brass, copper-undercoated, tin-plated (reflow treatment)
• Wafer: PA 66, UL94V-0, natural (white)

Material and Finish

• Post: Brass, copper-undercoated, tin-plated (reflow treatment)
• Wafer:

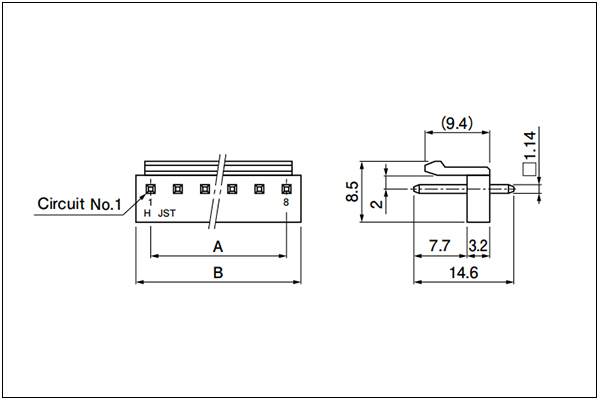

  • Top entry type of PBT: Glass-filled PBT, UL94V-0, natural (white)

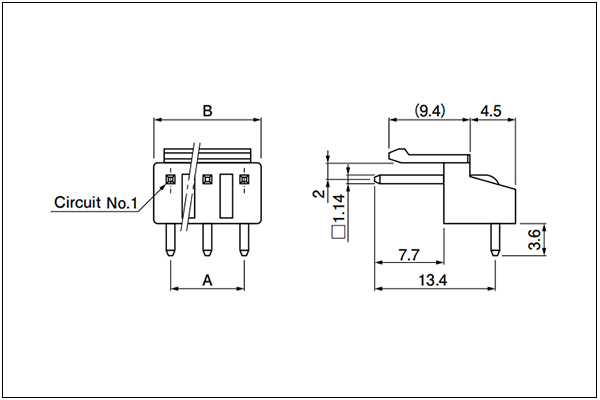

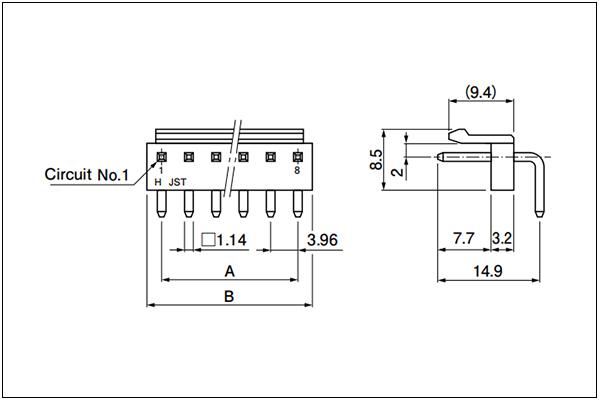

  • Side entry type with PCB stabilizer: PA 66, UL94V-0, natural (white)

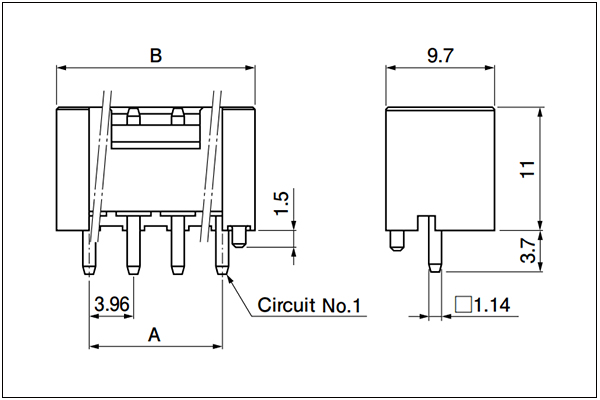

Shrouded Header

Note:

• Material and Finish
  • Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)

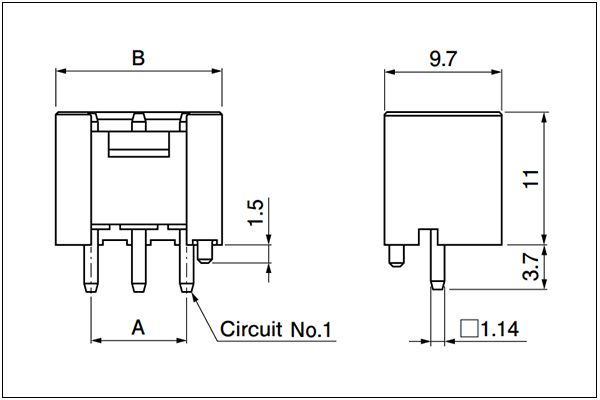

  • Wafer: Glass-filled PBT, UL94V-0, natural (white)
• The applicable housing for 2 circuits shrouded header is "VHR-2N" only.
• "VHRR-2N" is not applicable.

Support Custom Wiring Harness Assembly

• Connector: 2 - 11pin
• Wire gauge: 22 - 16AWG
• Wire length: as long as your needs
• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
• Custom type:
  • wire to wire
  • wire to tinned end
  • wire to open end
  • wire to any suitable connectors
• Minimum Order: 100 pieces per order.
