JST VL Connector, High Current Type, Custom Wire Assembly

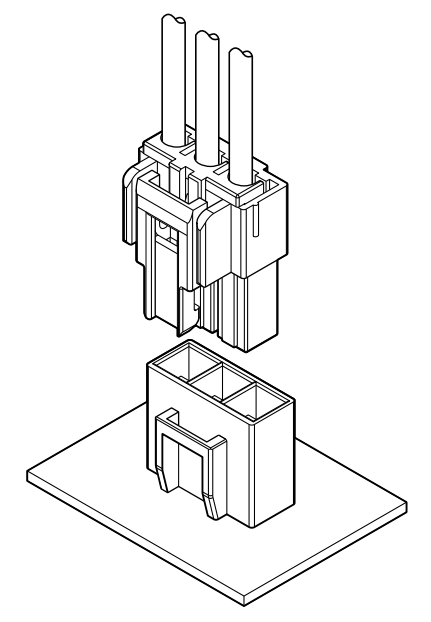

JST VL Connector, High Current Type
This JST VL Connector is a high-current, wire-to-board connector with a 6.2mm pitch, designed to handle demanding electrical applications. Its robust performance is achieved through the use of highly conductive materials, allowing it to support currents of up to 23 amperes. Featuring a secure housing lance, the connector ensures seamless and reliable insertion of contacts into the housing. Additionally, a lineup of retainers enhances mechanical reliability, making it suitable for applications requiring durable connections. The connector’s design is versatile, as its contact and housing components are compatible with wire-to-wire connections, further expanding its utility in various electronic systems.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 6.2mm
- Voltage rating: 600 V AC/DC
- Temperature range: -25℃ to +90℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 7 mΩ max, After environmental tests/ 10 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 2,000 VAC/minute
- Applicable wire: AWG #20 to #12
- Applicable PC board thickness: 1.6 mm
- Current rating: 23 A AC/DC (2 circuits/ AWG #12)
Current unit: A
| No. of circuits | Wire size(AWG) | ||||
| #12 | #14 | #16 | #18 | #20 | |
| 2 | 23 | 18 | 15 | 11 | 9 |
| 3 | 22 | 17 | 14 | 10 | 8 |
| 4 | 21 | 16 | 13 | 9 | 8 |
Note:
- The above table shows the rated current when applying current for all circuits in each combination of the number of circuits and the wire to be used.
- Applicable range of rated current: The rated current mentioned above is applied only in the combination of contact and header for high current specified in this catalogue. When either is a normal type product, please be careful because the rated current of the normal type product is applied.
- Notes on parallel branching current: Do not branch to the multiple circuits in parallel current which is exceeds the rated current, as it may cause problems such as imbalance when applying current. If it is unavoidable that branch in parallel is necessary, design the circuits while suppressing the unbalanced current and proving the sufficient margin to the rated current
Housing

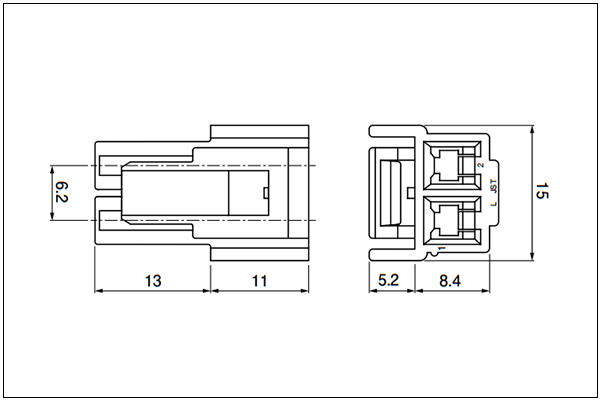

2 Circuits

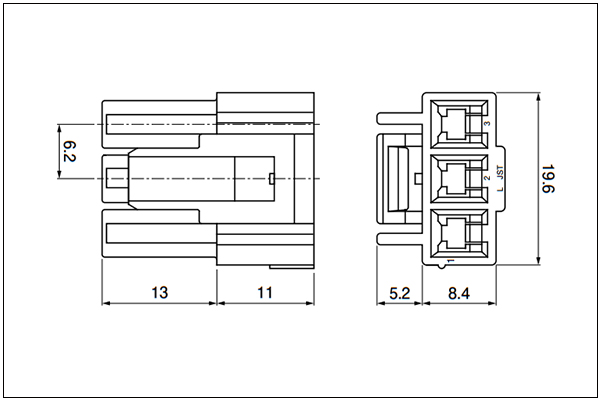

3 Circuits

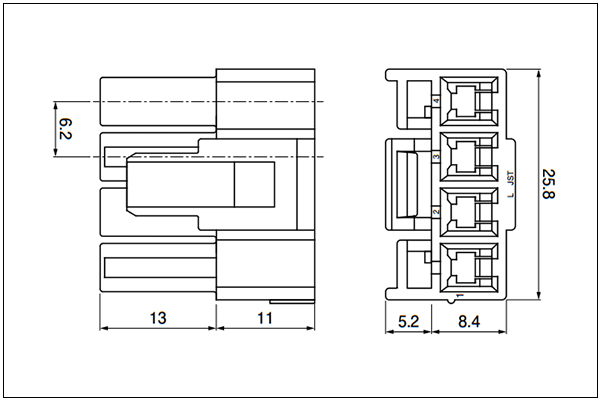

4 Circuits(Single-row)

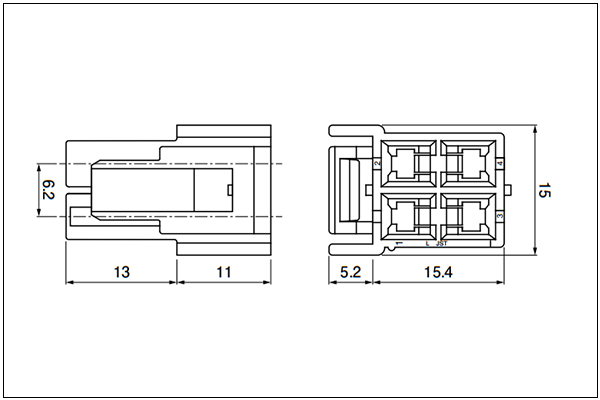

4 Circuits
| No.of circuits | Model No. | Q'ty/bag |
| 2 | VLP-02V-1 | 500 |
| 3 | VLP-03V-1 | 500 |
| 4 | VLP-04V-1 | 500 |
| 4(Single-row) | VLP-04VN-1 | 500 |
Material and Finish: PA 66, UL94V-0, natural (white)

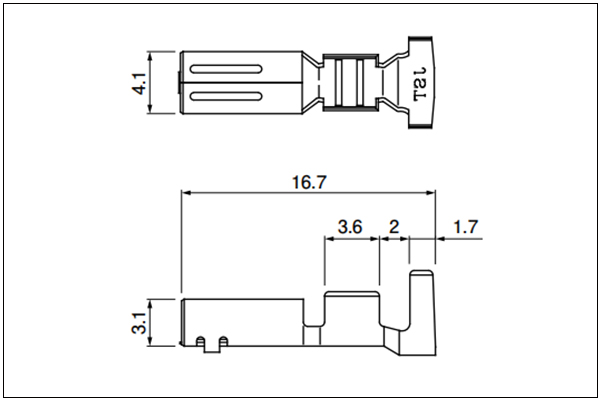

Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SVSF-61T-P2.0 | 0.5~2.0 | 20~14 | 1.9~3.4 | 2000 |
| SVSF-81T-P2.0 | 3.5 | 12 | 4.1 | 2000 |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
Retainer

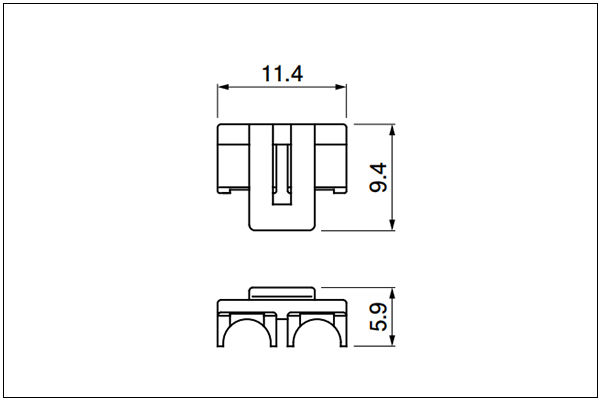

2, 4 Circuits

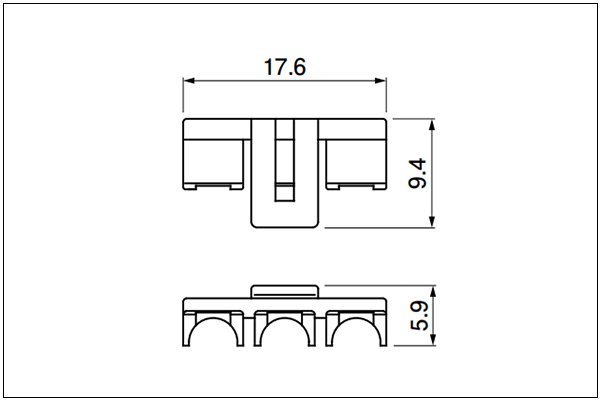

3 Circuits

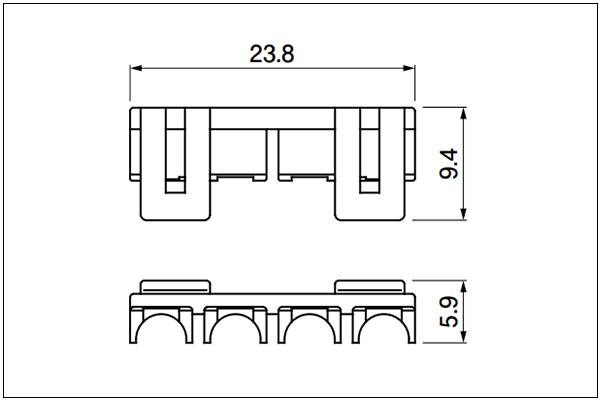

4 Circuits(Single-row)
| No.of circuits | Model No. | Q'ty/bag |
| 2 | VLS-02V | 1000 |
| 3 | VLP-03V | 1000 |
| 4 | VLS-02V | 1000 |
| 4(Single-row) | VLP-08V | 1000 |
Material and Finish: Glass-filled PA 66, UL94V-0, natural (ivory)
Header

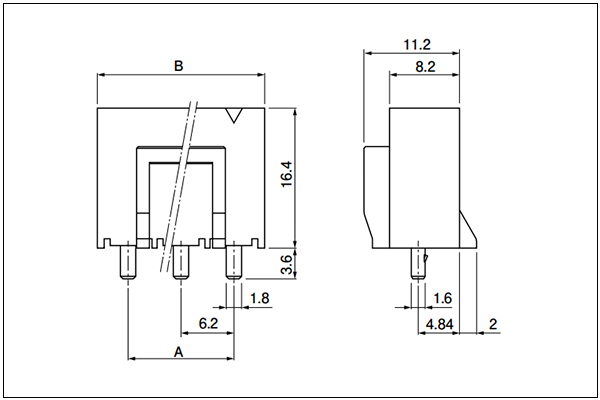

2, 3 Circuits

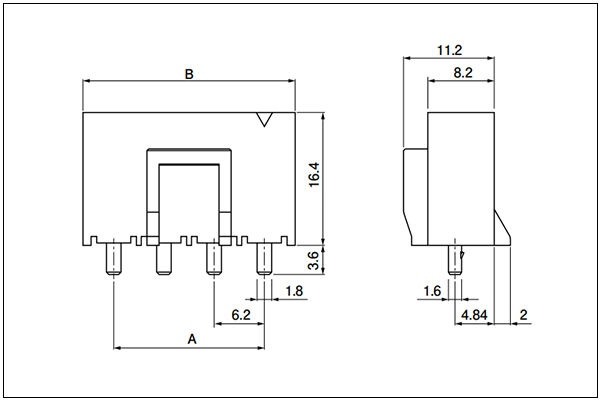

4 Circuits(Single-row)

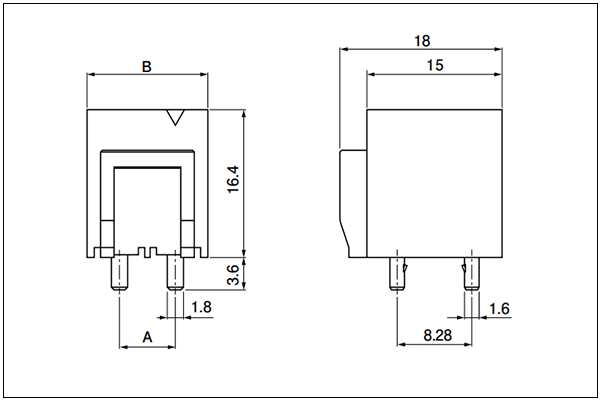

4 Circuits
| No.of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||
| 2 | B02P-VL-1 | 6.2 | 13.4 | 100 |
| 3 | B03P-VL-1 | 12.4 | 19.6 | 100 |
| 4 | B04P-VL-1 | 6.2 | 13.4 | 100 |
| 4(Single-row) | B04P-VL-VN-1 | 18.6 | 26.2 | 100 |
Material and Finish
- Post: Copper-alloy, tin-plated (reflow treatment)
- Wafer: PA 66, UL94V-0, natural (white)

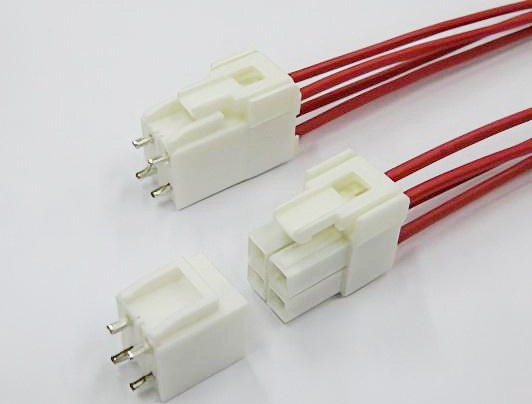

Support Custom Wiring Harness Assembly
- Connector: 2, 3, 4pin
- Wire gauge: 12 - 20AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
