JST VL Connector, Wire to Board, Custom Wire Assembly
JST VL Connector, Wire to Board Type
The JST VL Connector is a robust 6.2 mm pitch wire-to-wire and wire-to-board connector specifically engineered for high-current applications. This versatile connector ensures secure and reliable performance through its secondary retainer, which effectively prevents insufficient contact insertion and accidental disconnection, enhancing both safety and reliability. Key features include housing lances that provide additional stability, a retainer mechanism for secure mating, and a design optimized to handle large current loads with ease. Its compatibility with both wire-to-wire and wire-to-board connections makes it an excellent choice for a variety of demanding electrical applications.
Speficications
- Connector type: Wire to Board, disconnectable crimp style
- Connector pitch: 6.2mm
- Current rating: 20 A AC, DC (Refer to the following table.)
- Voltage rating: 600 V AC, DC
- Temperature range: -25˚C to +90˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 7 mΩ max, After environmental tests/ 10 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 2,000 VAC/minute
- Applicable wire: AWG #22 to #12
- Applicable PC board thickness: 1.6 mm
Current unit: A
| No. of circuits | Wiresize (AWG) | |||||
| #12 | #14 | #16 | #18 | #20 | #22 | |
| 2 | 20 | 15 | 10 | 8 | 6 | 4 |
| 3 | 17 | 14 | 9 | 8 | 6 | 4 |
| 4 | 16 | 13 | 9 | 7 | 6 | 4 |
| 6 | 15 | 12 | 8 | 7 | 5 | 3 |
| 8 | 14 | 11 | 7 | 6 | 5 | 3 |
| 12 | 13 | 10 | 7 | 6 | 4 | 3 |
Note:
- The current rating differs depending on the number of circuits and the wire size used in each connector. The table above lists the current rating as a function of the number of circuits and the wire size.
- Do not branch in parallel current which exceeds the rated current (e.g. more than 17A in the case of 3 circuits with AWG #12). If branched in parallel, current imbalance or other problems may develop. If it is absolutely necessary to branch such a large current in parallel, design the circuits without causing any imbalance and provide an extra margin for each circuit.
Housing (Inner-housing lock)
2 Circuits
3 Circuits
4 Circuits
6 Circuits
8 Circuits

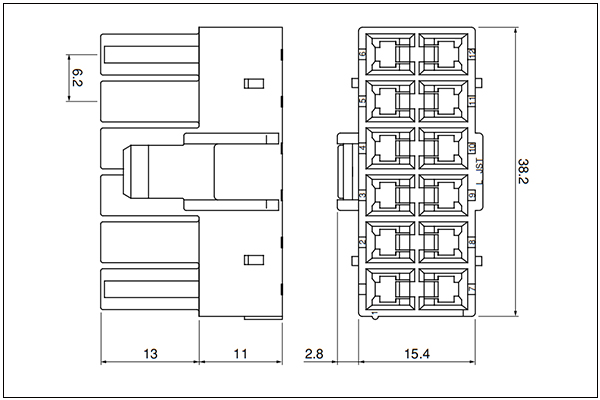

12 Circuits
| No.of circuits | Model No. | Q'ty/bag |
| 2 | VLP-02V | 500 |
| 3 | VLP-03V | 500 |
| 4 | VLP-04V | 500 |
| 6 | VLP-06V | 500 |
| 8 | VLP-08V | 200 |
| 12 | VLP-12V | 100 |
Material: PA 66, UL94V-0, natural (white)
Housing (Outer-housing lock)
2 Circuits

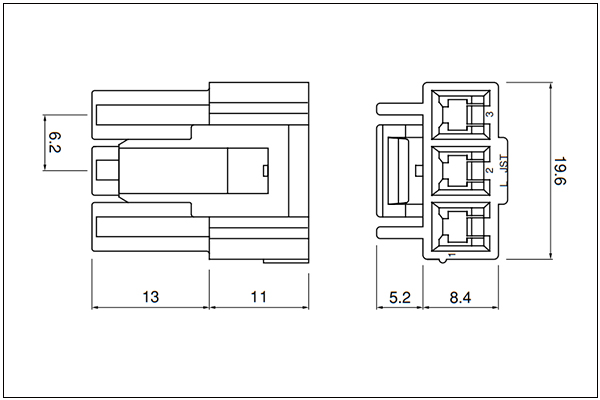

3 Circuits

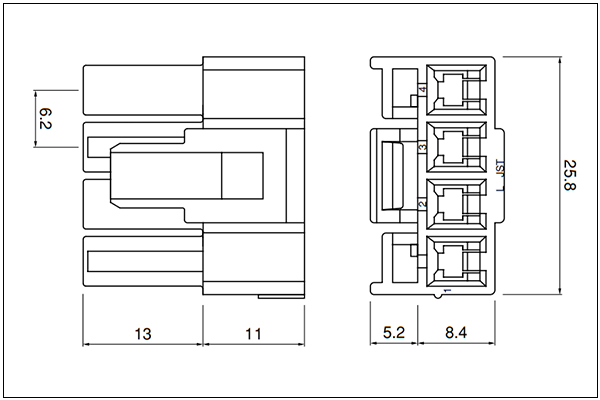

4 Circuits （single-row）

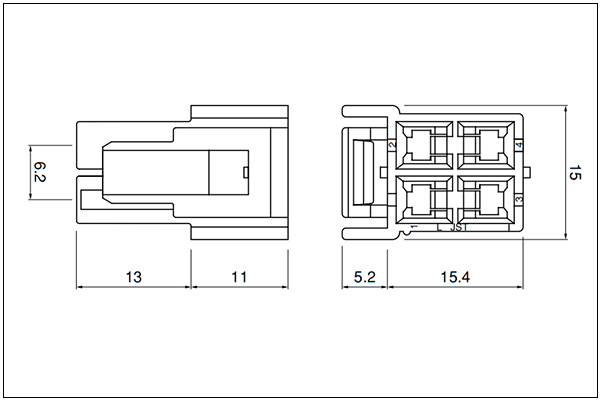

4 Circuits

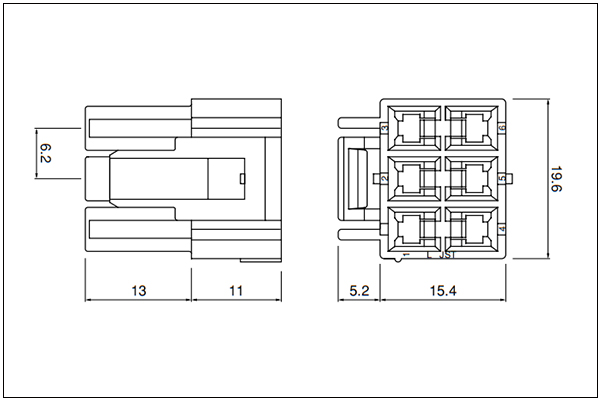

6 Circuits

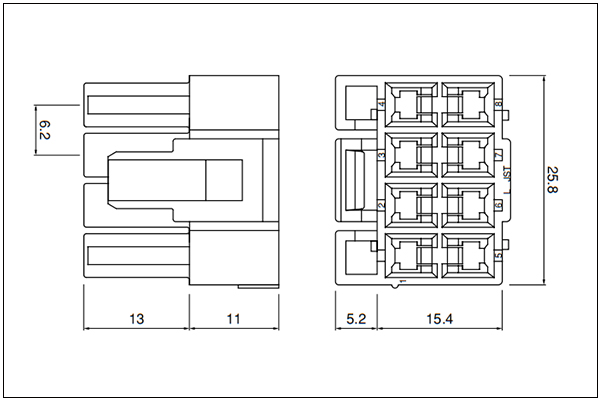

8 Circuits

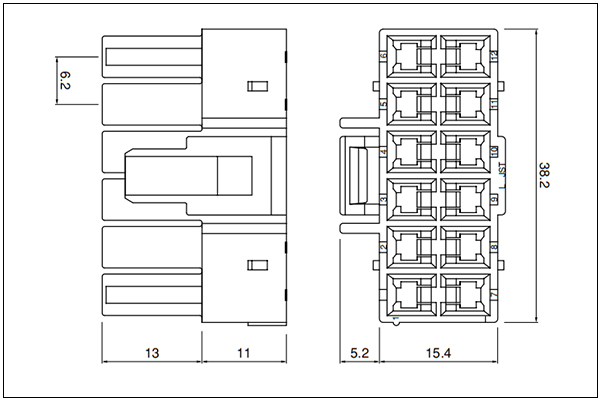

12 Circuits
| No. of circuits | Model No. | Q'ty/bag |
| 2 | VLP-02V-1 | 500 |
| 3 | VLP-03V-1 | 500 |
| 4 | VLP-04V-1 | 500 |
| 4 (Single-row) | VLP-04VN-1 | 500 |
| 6 | VLP-06V-1 | 500 |
| 8 | VLP-08V-1 | 500 |
| 12 | VLP-12V-1 | 500 |
Material: PA 66, UL94V-0, natural (white)
Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SVF-42T-P2.0 | 0.3~1.25 | 22~16 | 1.7～3.2 | 2000 |
| SVF-61T-P2.0 | 0.5～2.0 | 20~14 | 1.9~3.4 | 2000 |
| SVF-81T-P2.0 | 3.5 | 12 | 4.1 | 2000 |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
Retainer
2, 4 Circuits

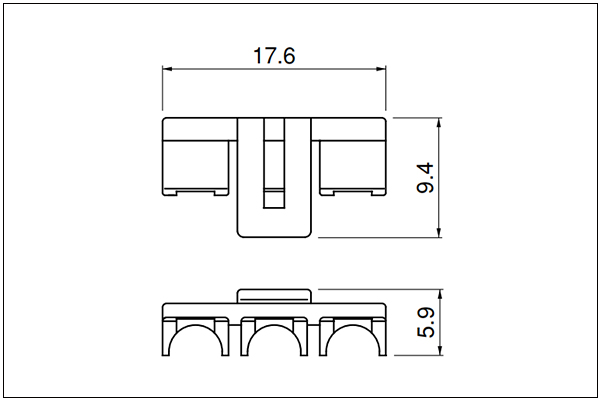

3, 6 Circuits
4 Circuits(Single-row), 8 Circuits

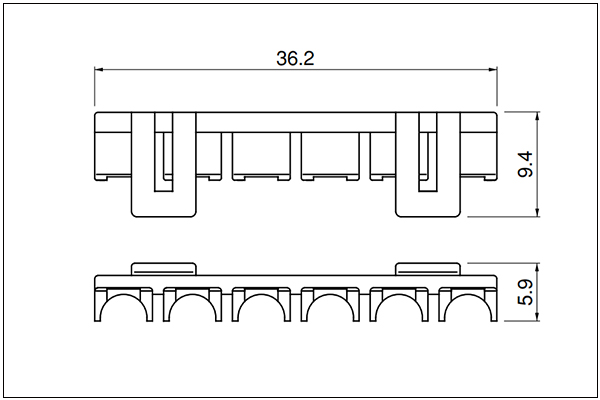

12 Circuits
| No.of circuits | Model No. | Q'ty/bag |
| 24 | VLS-02V | 1000 |
| 36 | VLS-03V | 1000 |
| 4 (Single-row), 8 | VLS-08V | 1000 |
| 12 | VLS-12V | 1000 |
Material: Glass-filled PA 66, UL94V-0, natural (ivory)
Header

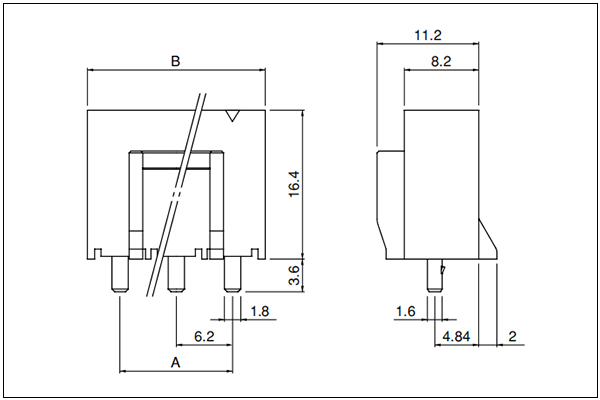

2, 3 Circuits

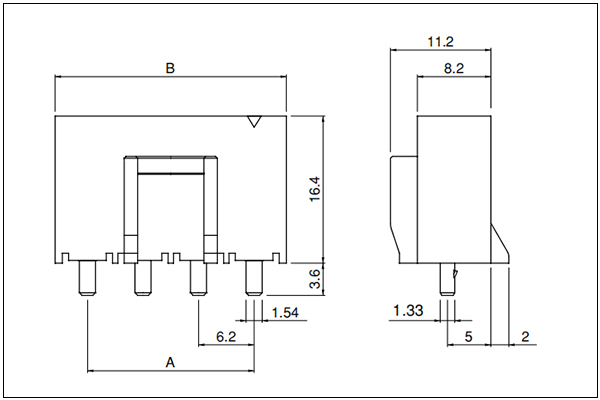

4 Circuits（Single-row）

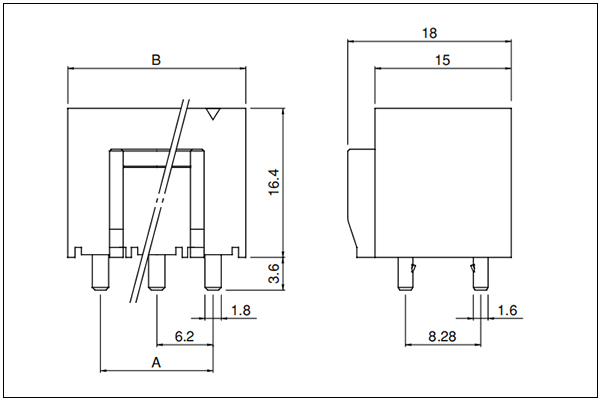

4, 6 Circuits

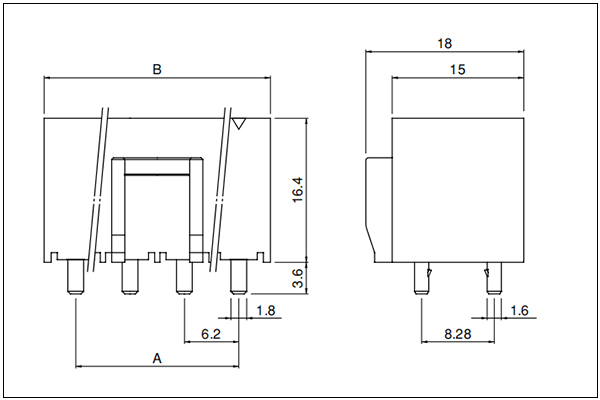

8, 12 Circuits
| No.of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||
| 2 | B02P-VL | 6.2 | 13.4 | 100 |
| 3 | B03P-VL | 12.4 | 19.6 | 100 |
| 4 | B04P-VL | 6.2 | 13.4 | 100 |
| 4 (Single-row) | B04P-VL-VN-1.8 | 18.6 | 26.2 | 100 |
| 6 | B06P-VL | 12.4 | 19.6 | 50 |
| 8 | B08P-VL | 18.6 | 26.2 | 50 |
| 12 | B12P-VL | 31.0 | 38.6 | 35 |
Material and Finish
- Post: Copper-alloy, tin-plated (reflow treatment)
- Wafer: PA 66, UL94V-0, natural (white)

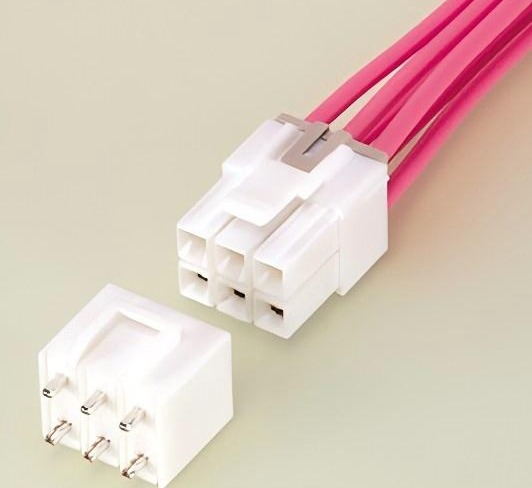

Support Custom Wiring Harness Assembly
- Connector: 2, 3, 4, 6, 8, 12pin
- Wire gauge: 12 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
