JST VL Connector, Wire to Wire, Custom Wire Assembly

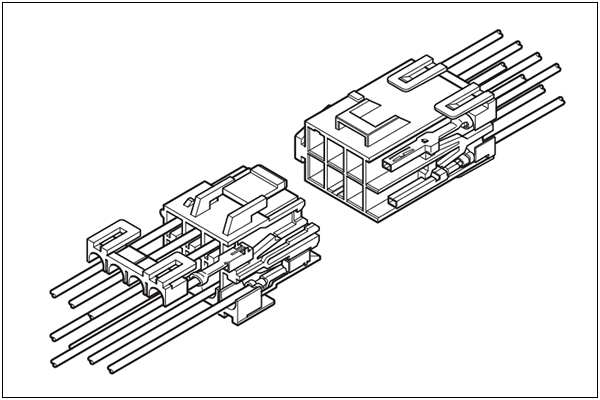

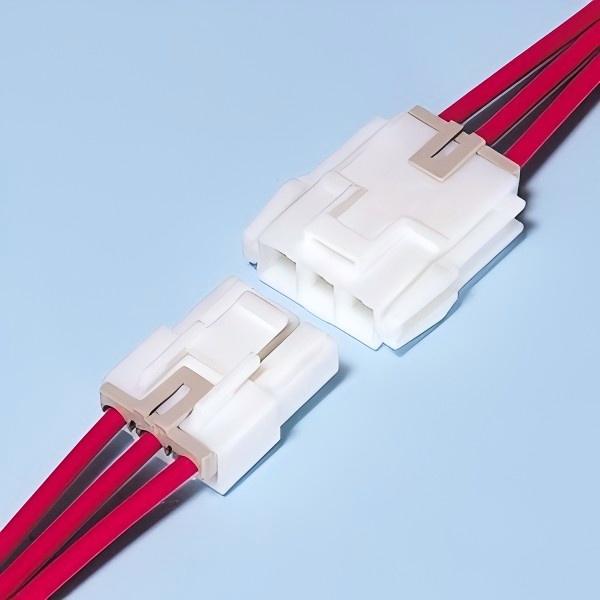

JST VL Connector, Wire to Wire Type
This JST VL Connector is a 6.2 mm pitch wire-to-wire connector, engineered for high-current applications with a maximum current rating of 20 A per circuit using AWG #12 wire. Its robust housing lock ensures secure connections in demanding environments, while the integrated retainer mechanism prevents incomplete insertion and contact backout, significantly enhancing reliability. The housing lance mechanism provides a stable and clear contact insertion feel, unaffected by external forces, ensuring consistent retention force. Additionally, a panel lock on the receptacle housing simplifies panel mounting and minimizes wire entanglement, with options for free-hanging applications also available. For added flexibility, the connector supports board-to-wire configurations, using the same socket contacts and plug housings for streamlined standardization in internal power circuits across various electrical devices.
Features
- High current capability
- Both 1 and 2 circuits versions can carry a maximum current of 20 A per circuit when used with AWG #12.
- Housing lance mechanism
- The housing features an integrated lance mechanism that is not affected by external forces, providing a clear contact insertion feel and stable contact retention force.
- Retainer compatible
- Retainers are available. The retainer prevents incomplete insertion and secures the contact in the housing while improving the mechanical reliability of the connection.
- Panel lock compatible
- The receptacle housing features a compact and innovative panel lock design that prevents wire entanglement, making it easy and secure for panel mounting.
- Board-to-Wire connectors are also available.
- We offer a lineup of connectors for Board-to-Wire connections that share the same socket contacts and plug housings, allowing for standardization of connectors used in internal power circuits on electrical equipment
Specifications
- Connector type: Wire-to-Wire connectors, Crimp style and Mating style
- Connector pitch: 6.2mm
- Current rating: 20 A AC/DC（1 and 2 circuits/ AWG #12）
- Voltage rating: 600 V AC/DC
- Temperature range: -25℃ to +90℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 7 mΩ max, After environmental tests/ 10 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: There shall be no breakdown or flashover while applying 2,000 VAC for one minute.
- Applicable wire range: Conductor size/ AWG #22 to AWG #12, Insulation O.D./ φ 1.7 mm to φ 4.1 mm
- Applicable PC board thickness: 0.5 mm to 2.0 mm
Unit: A
| No. of circuits | Wire size(AWG) | |||||
| #12 | #14 | #16 | #18 | #20 | #22 | |
| 1 | 20 | 15 | 10 | 8 | 6 | 4 |
| 2 | 20 | 15 | 10 | 8 | 6 | 4 |
| 3 | 19 | 14 | 9 | 8 | 6 | 4 |
| 4 | 18 | 13 | 9 | 7 | 6 | 4 |
| 6 | 16 | 12 | 8 | 7 | 5 | 3 |
| 8 | 16 | 11 | 7 | 6 | 5 | 3 |
| 12 | 15 | 10 | 7 | 6 | 4 | 3 |
Note:
- The current rating differs depending on the number of circuits and the wire size used in each connector as shown in the table above.
- Do not branch in parallel current which exceeds the rated current. If branched in parallel, current imbalance or other problems may occur. If it is absolutely necessary to branch such a large current in parallel, design the circuits without causing any imbalance and provide extra margin for each circuit.
Housing

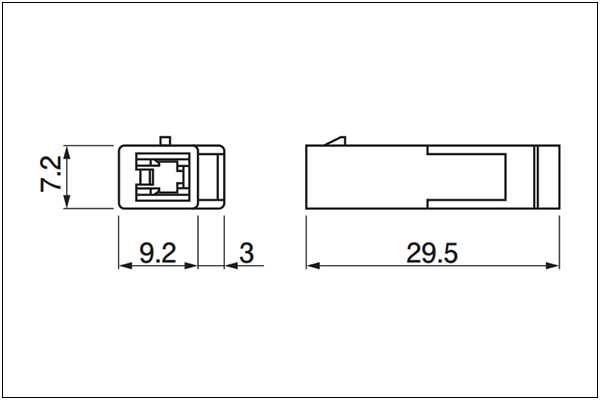

VLR-01VF (without panel lock)

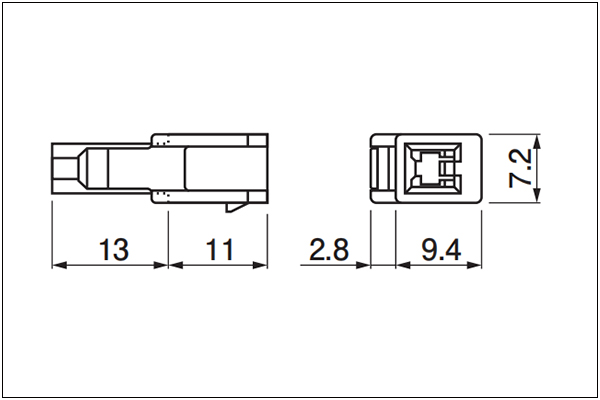

VLP-01V（inner lock）

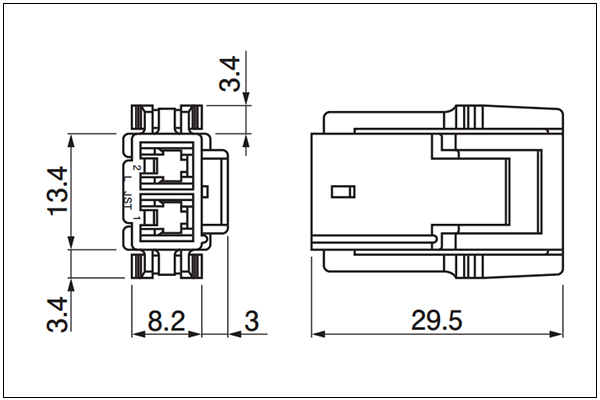

VLR-02V （With panel lock type）

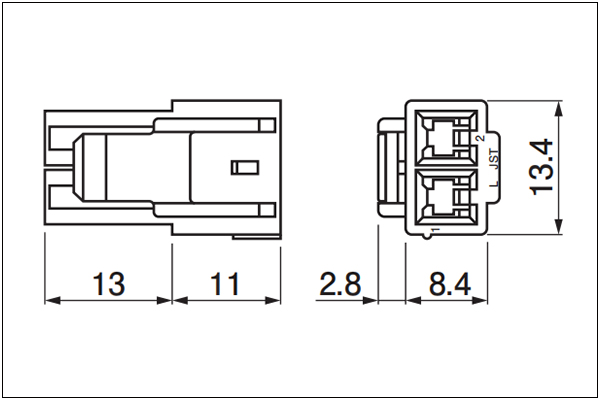

VLP-02V （inner lock type）

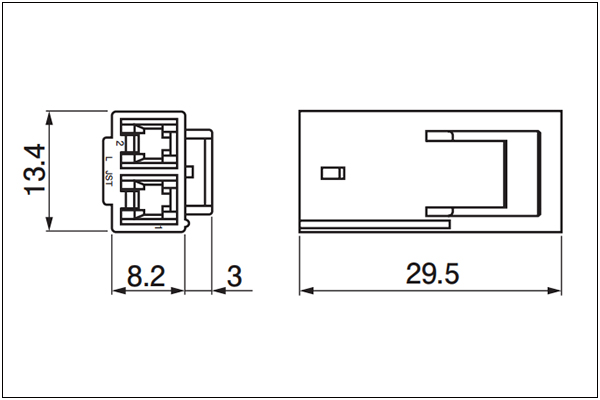

VLR-02VF（Without panel lock type）

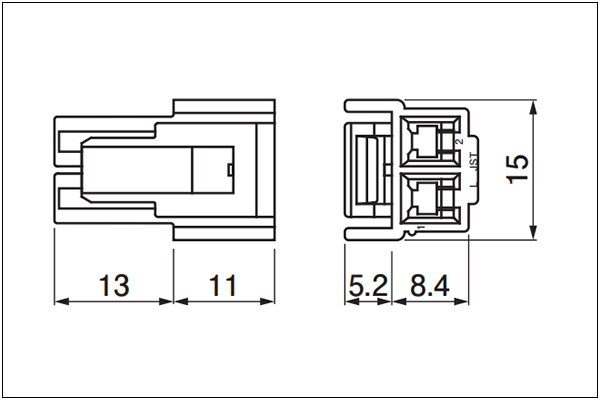

VLP-02V-1（outer lock type）

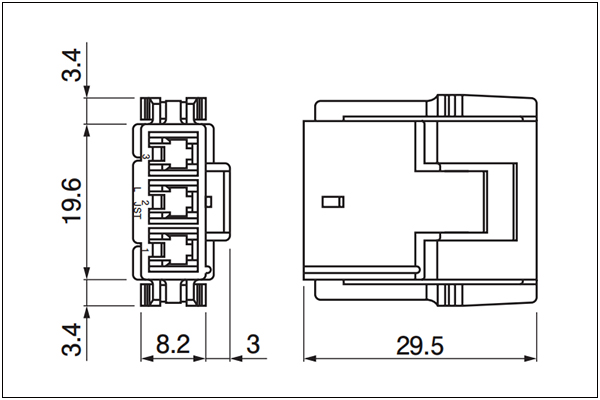

VLR-03V （with panel lock Type）

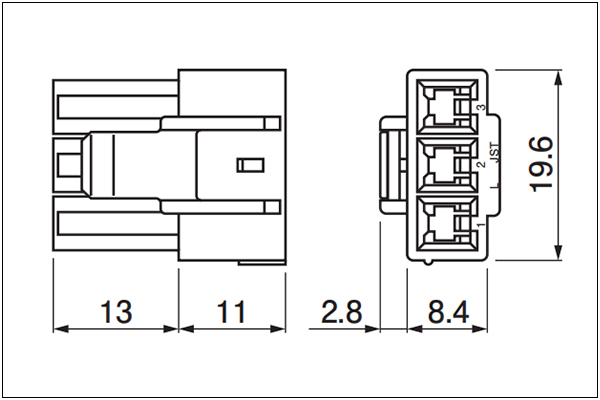

VLP-03V （Inner lock Type）

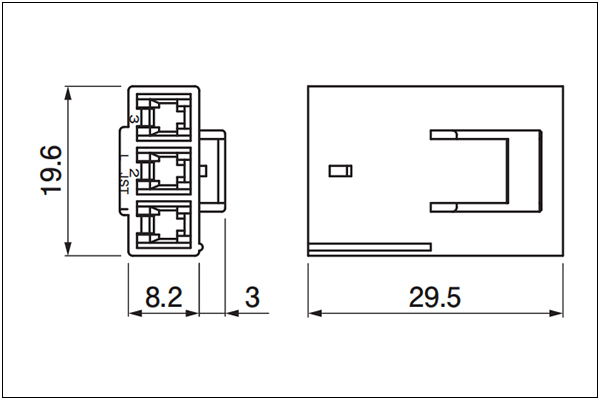

VLR-03VF （Without panel lock Type）

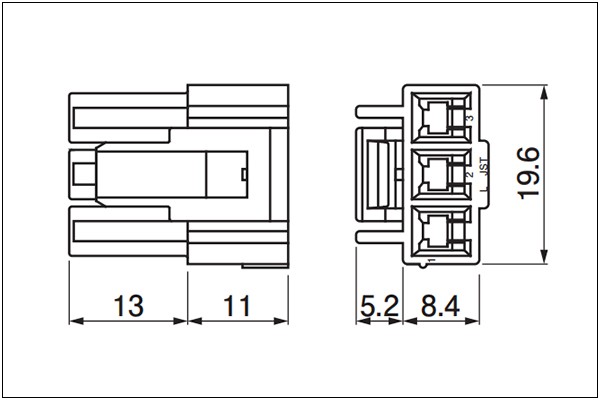

VLP-03V-1 （outer lock Type）

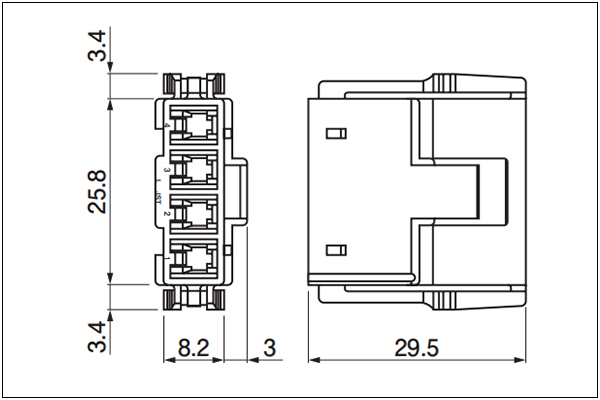

VLR-04VN （with panel lock type）

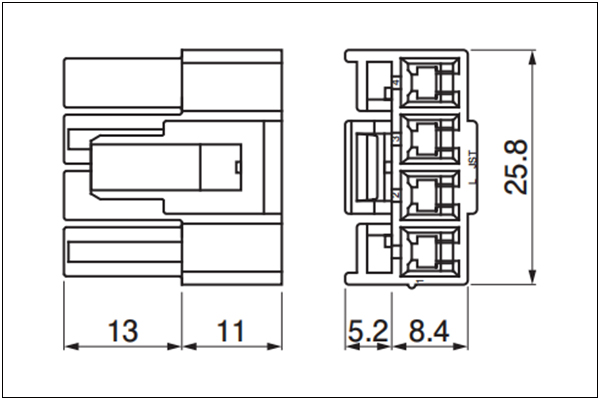

VLP-04VN-1 （Outer lock type）

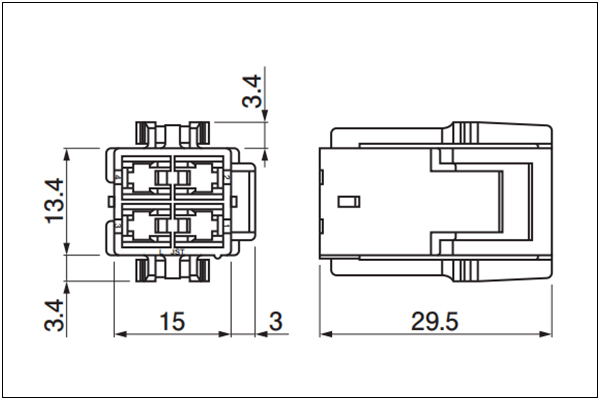

VLR-04V （with panel lock type）

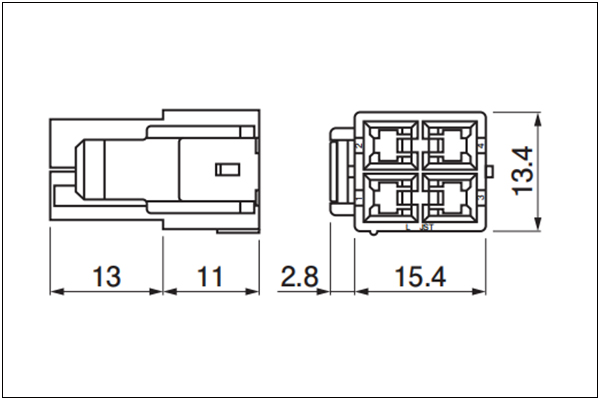

VLP-04V （Inner lock type）

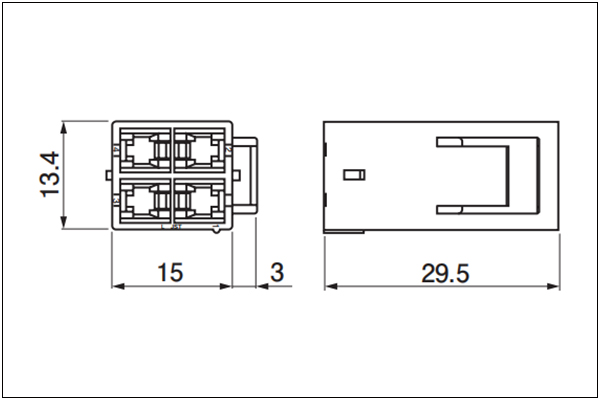

VLR-04VF （Without panel lock type）

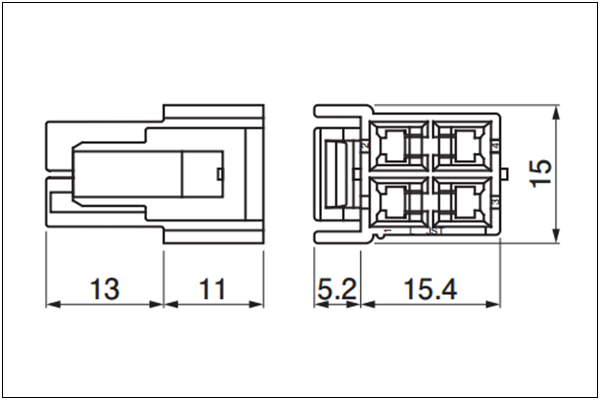

VLP-04V-1 （Outer lock type）

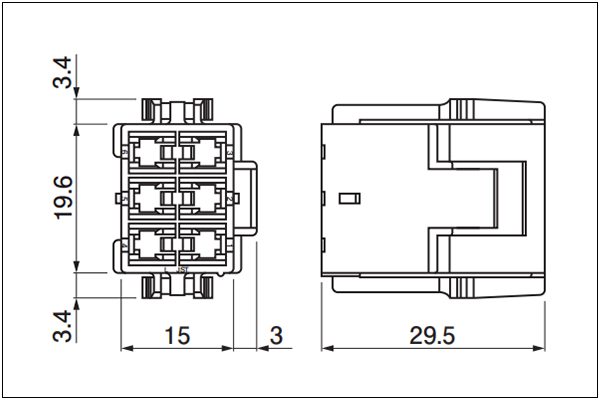

VLR-06V （With panel lock type）

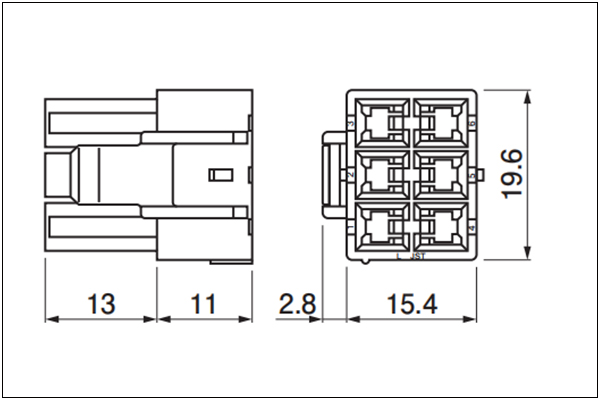

VLP-06V （Inner lock type）

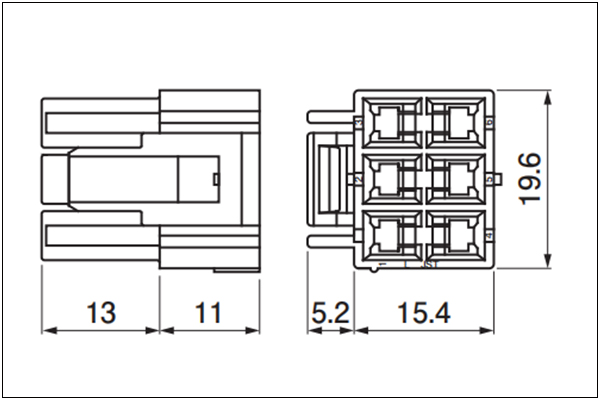

VLP-06V-1 （Outer lock type）

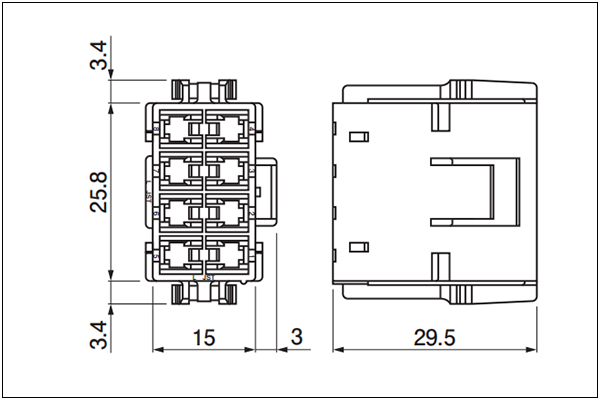

VLR-08V （With panel lock type）

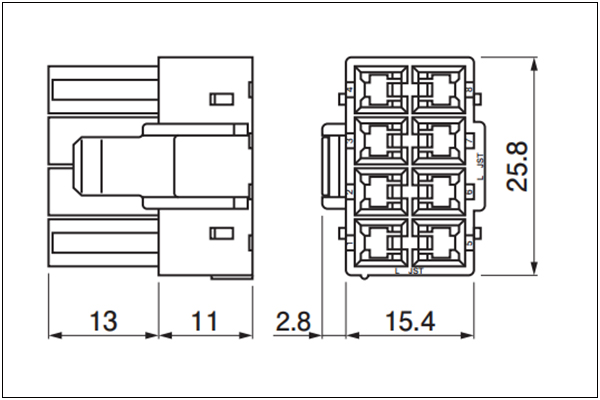

VLP-08V （Inner lock type）

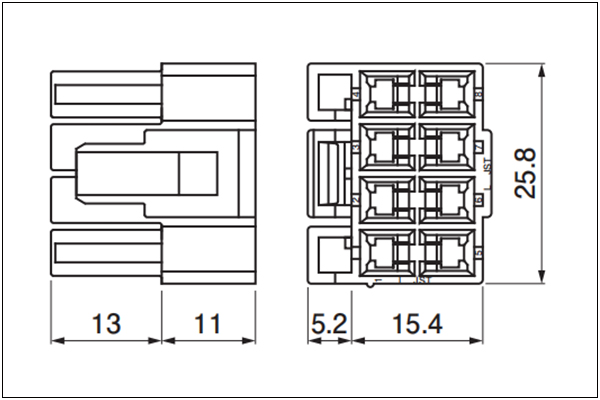

VLP-08V-1 （Outer lock type）

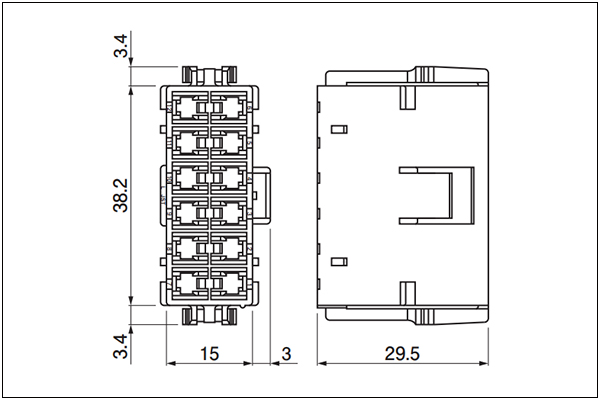

VLR-12V （With panel lock type）

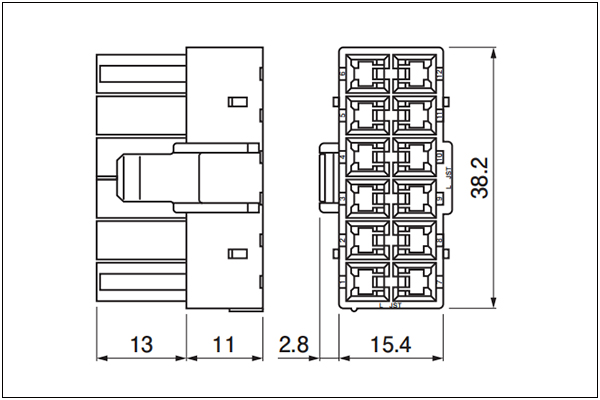

VLP-12V （Inner lock type）

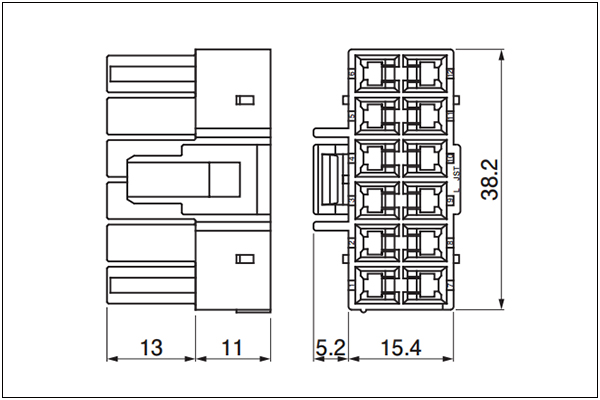

VLP-12V-1 （Outer lock type）
Treminal

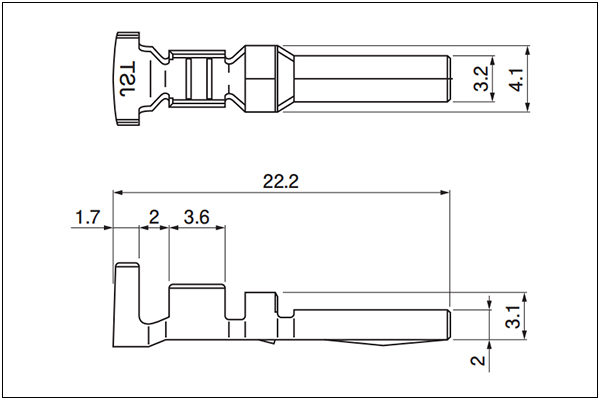

Pin Contact

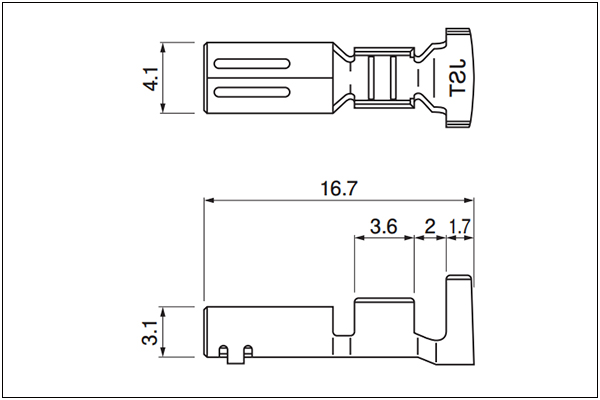

Socket Contact
| Gender | Model No. | Applicable wire range | Insulation O.D. (mm) |
Q'ty/ reel |
| Conductor size AWG(mm²) | ||||
| Pin Terminal | SVM-42T-P2.0 | #22 to #16 (0.3 to 1.25) | 1.7 to 3.2 | 2000 |
| #22+#22 to #20+#18 (0.3+0.3 to 0.5+0.75) |
1.7+1.7 to 2.5+2.7 | |||
| SVM-61T-P2.0 | #20 to #14 (0.5 to 2.0) | 1.9 to 3.4 | ||
| #20+#20 to #18+#16 (0.5+0.5 to 0.75+1.25) |
1.9+1.9 to 2.1+2.7 | |||
| SVM-81T-P2.0 | #12(3.5) | 4.1 | ||
| Socket Terminal | SVF-42T-P2.0 | #22 to #16 (0.3 to 1.25) | 1.7 to 3.2 | 2000 |
| #22+#22 to #20+#18 (0.3+0.3 to 0.5+0.75) |
1.7+1.7 to 2.5+2.7 | |||
| SVF-61T-P2.0 | #20 to #14 (0.5 to 2.0) | 1.9 to 3.4 | ||
| #20+#20 to #18+#16 (0.5+0.5 to 0.75+1.25) |
1.9+1.9 to 2.1+2.7 | |||
| SVF-81T-P2.0 | #12 (3.5) | 4.1 |
Support Custom Wiring Harness Assembly
- Connector: 1, 2, 3, 4, 6, 8, 12pin
- Wire gauge: 12 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
