JST VL Connector, Wire to Wire High Current Type
The JST VL Connector is a 6.2mm pitch wire-to-wire and wire-to-board solution designed specifically to handle high-current applications efficiently. Engineered for reliability and performance, this connector is constructed using highly conductive materials to support large electric currents while maintaining a stable and secure connection. Its robust design ensures durability and optimal conductivity, making it suitable for a wide range of applications where high-current circuits are required. The VL Connector is an ideal choice for industries demanding dependable connections in power-intensive environments, providing seamless integration for both wire-to-wire and wire-to-board configurations.
Specifications
- Connector Type: Disconnectable Crimp style connectors Wire-to-wire connector (Combined use for both wire-to-wire and wire-to-board connections)
- Connector pitch: 6.2mm
- Current rating: 23 A AC, DC (Refer to the following table.)
- Voltage rating: 600 V AC, DC
- Temperature range: -25℃ to +90℃ ( including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 7 mΩ max, After environmental tests/ 10 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 2,000 VAC/minute
- Applicable wire: AWG #20 to #12, 0.5 to 3.5 mm²
- Applicable panel thickness: 0.5 to 2.0 mm
Current unit: A
| No. of circuits | Wire size(AWG) | ||||
| #12 | #14 | #16 | #18 | #20 | |
| 1 | 23 | 18 | 15 | 11 | 9 |
| 2 | 23 | 18 | 15 | 11 | 9 |
| 3 | 22 | 17 | 14 | 10 | 8 |
| 4 | 21 | 16 | 13 | 9 | 8 |
Note: The current rating mentioned above is applied only in the combination of socket contact and pin contact for high current. When either is a normal product, please be careful because the current rating of the normal product is applied.
Housing
VLP-01V

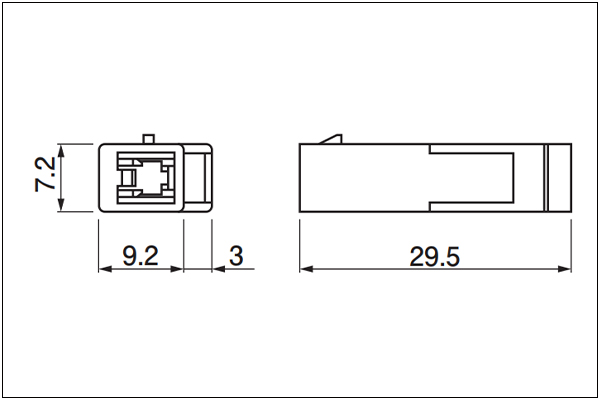

VLR-01VF (Without panel lock product)
VLP-02V
VLR-02V
VLP-02V-1

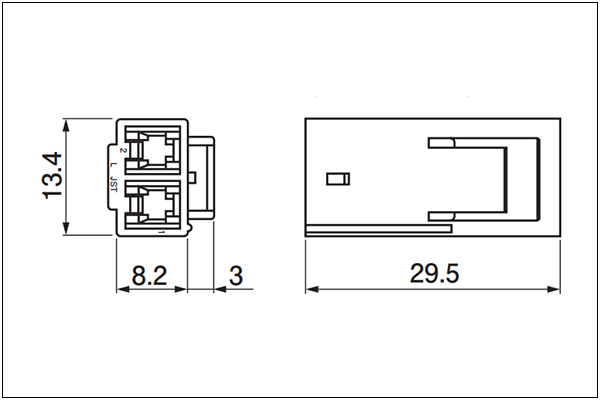

VLR-02VF (without panel lock)
VLP-03V

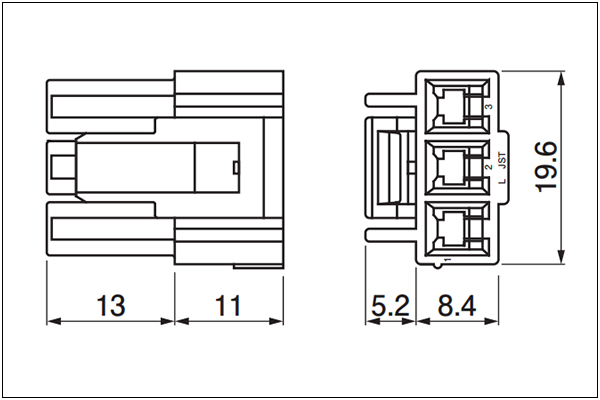

VLP-03V-1
VLR-03V
VLP-04V
VLR-04V
VLP-04V-1

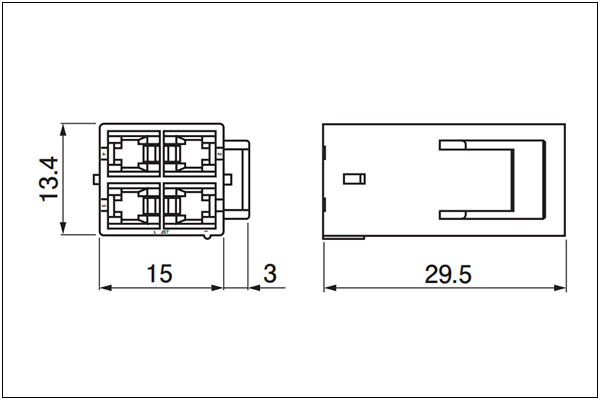

VLR-04VF (without panel lock)

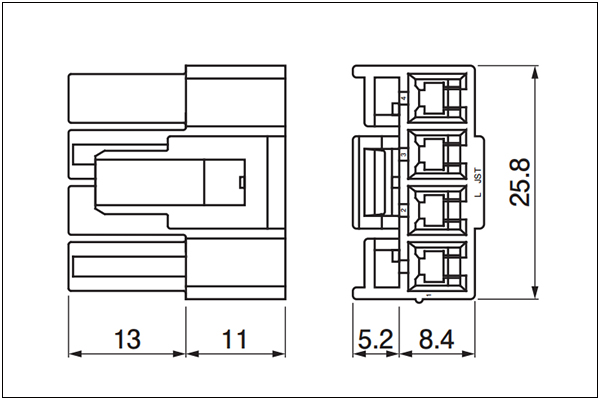

VLP-04VN-1

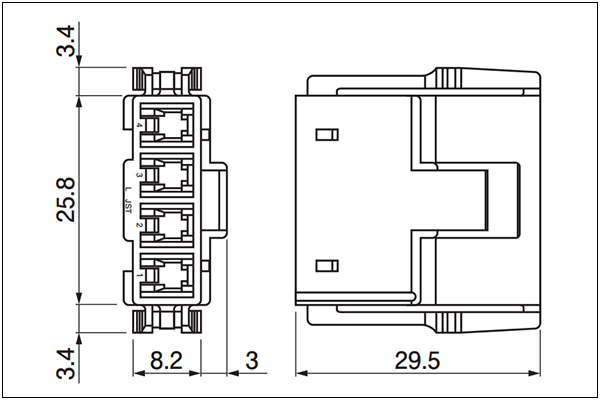

VLR-04VN
Terminal

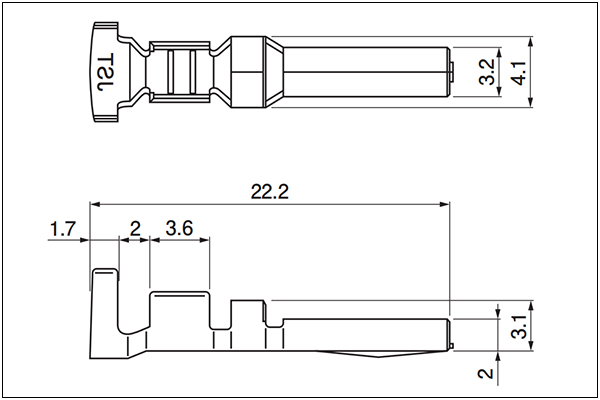

Pin Contact
Socket Contact
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | ||
| Pin contact | Socket contact | mm² | AWG# | ||
| SVSM-61T-S2.0 | SVSF-61T-S2.0 | 0.5~2.0 | 20~14 | 1.9~3.4 | 2000 |
| 0.5+0.5 ~ 0.75+1.25 | 20+20 ~ 18+16 | 1.9+1.9 ~ 2.1+2.7 | |||
| SVSM-81T-S2.0 | SVSF-81T-S2.0 | 3.5 | 12 | 4.1 | |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
Support Custom Wiring Harness Assembly
- Connector: 1, 2, 3, 4pin
- Wire gauge: 12 - 20AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
