JST VT Connector, Wire to Board, Custom Wire Assembly

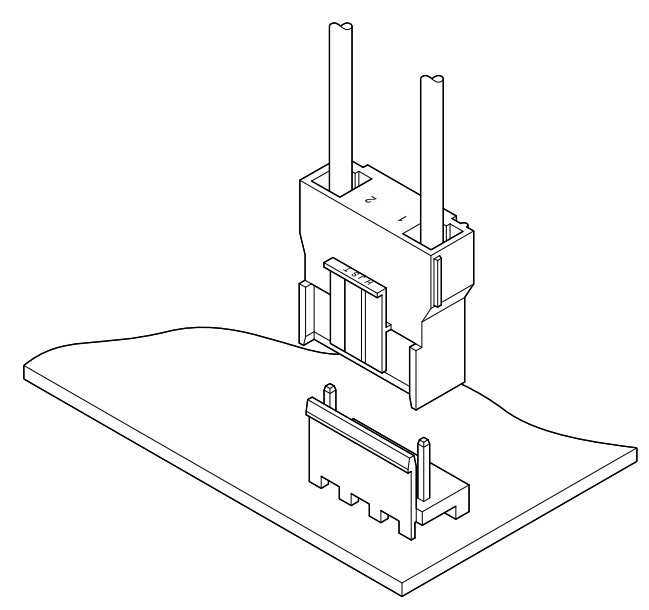

JST VT Connector, Wire to Board Type
The JST VT Connector is a robust, 11.88 mm pitch disconnectable crimp-style connector designed for high-performance applications, offering a current rating of up to 12 amps. This connector features an innovative arm-lock mechanism that ensures reliable and secure mating, along with a misinsertion preventive construction to avoid connection errors. The inclusion of a PC board locking device enhances stability by securely anchoring the connector to reinforced PC boards with eyelets, making it ideal for demanding environments. Additionally, the VT Connector supports connections to vinyl-insulated flat cables, offering versatility and dependability for various wiring configurations.
Specifications
- Connector type: Wire to Board, disconnectable crimp style
- Connector pitch: 11.88mm
- Current rating: 12 A AC/DC (AWG #16)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #20 to #16
- Applicable PC board thickness: 1.6 mm

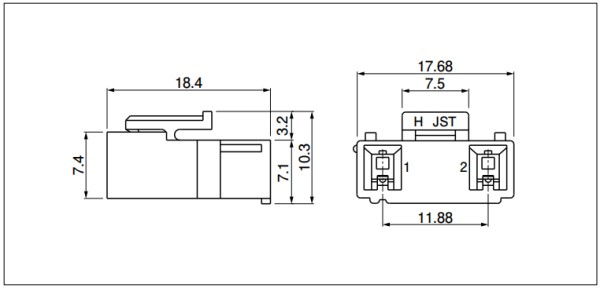

Housing
Specs:
- No. of Circuits: 2
- Model No.: VTR-02
- Q'ty/reel: 500pcs
- Materials and Finish: PA 66, UL94V-0, natural (white)
- RoHS2 Compliance

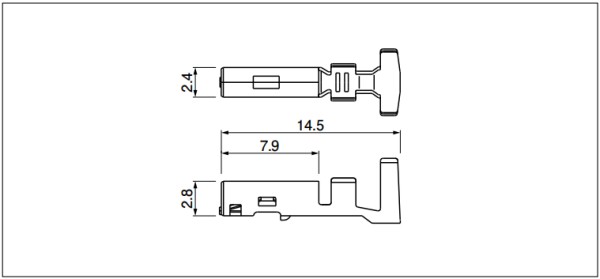

Terminal
Spcs:
- Model No.: SVT-41T-P1.1
- Applicable Wire: 20 - 16AWG
- Insolations O.D. (mm): 2.7 - 3.9
- Q'ty/reel: 2500pcs
- Materials and Finish: Alloy (phosphor bronze system), tin-plated (reflow treatment)
- RoHS2 compliance
Locking Header

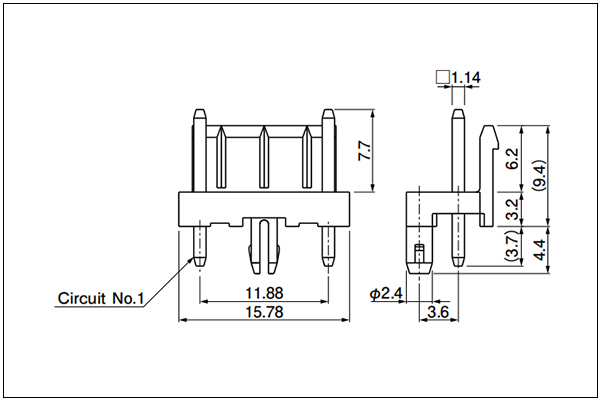

Top entry type

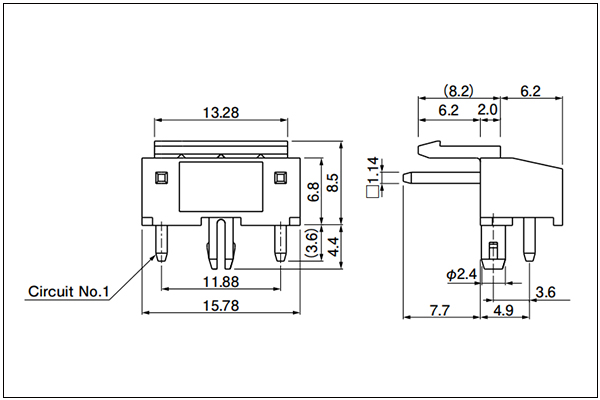

Side entry type
Specs:
- No. of Circuits: 2
- Model No.: B02B-VT(Top entry type), S02B-VT(Side entry type)
- Q'ty/reel: 500(Top entry type), 250(Side entry type)
- Materials and Finish:
- Post: Copper, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural (ivory)
- This product displays (LF)(SN) on a label.
- RoHS2 Compliance

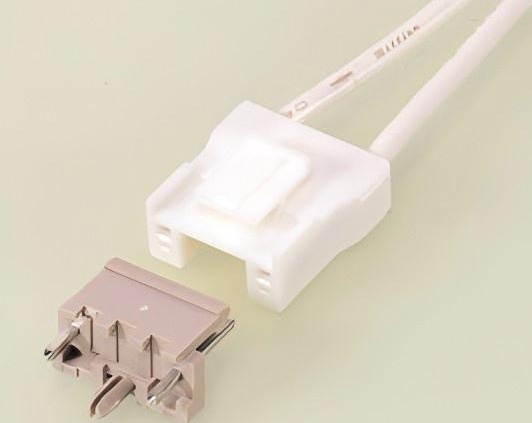

Support Custom Wiring Harness Assembly
- Connector: 2pin
- Wire gauge: 16 - 20AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
