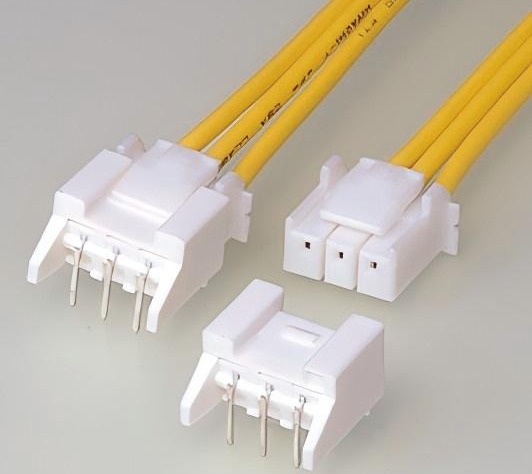

JST VU Connector, Wire to Board, Custom Wire Assembly

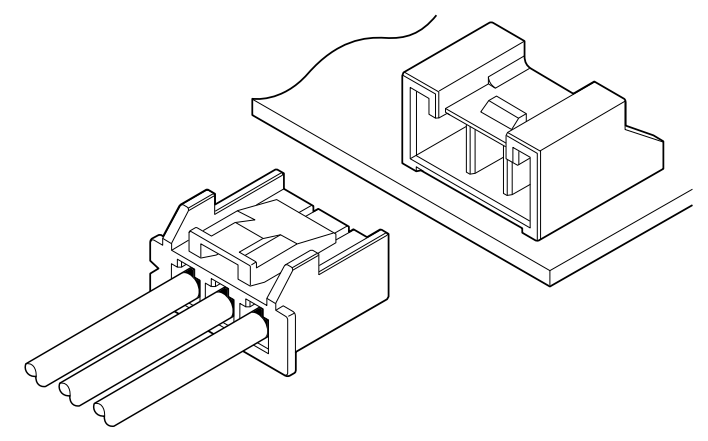

JST VU Connector, Wire to Board Type
The JST VU Connector is a compact 3.96 mm pitch PCB connector specifically designed to handle high-current applications with exceptional reliability, making it an ideal choice for power supply circuits. Its robust construction incorporates a fully shrouded connector header, effectively protecting against common issues such as "vibrating connectors" and "distorted extraction." This innovative design ensures stable and secure connections, even under challenging conditions, enhancing performance and reducing the risk of electrical failures. The VU Connector's thoughtful engineering supports demanding requirements while maintaining compactness, making it suitable for various industrial and commercial applications.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 3.96mm
- Current rating: 5 A AC/DC (AWG #18)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #22 to #18
- Applicable PC board thickness: 1.6 mm
Features
- Secure locking device
- The housing has a locking device to securely hold the header, preventing accidental disconnection, because of external force that might result from the routing of wires or of vibration, inverse insertion and mating with incorrect circuit.
- Header
- Header provides the longer creepage distance and countermeasure for distorted extraction of connector.
- Flanged press pin
- Header pin is the flanged press pin, preventing accidental removal of the pins due to distorted extraction ofconnector.

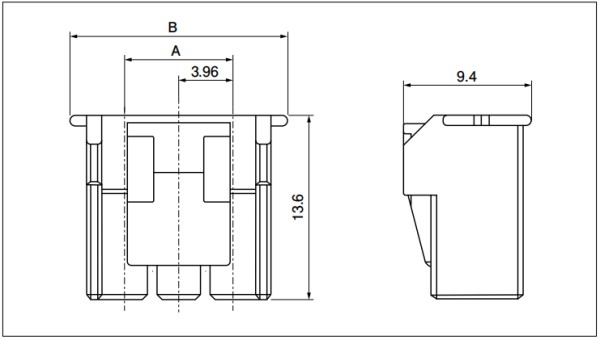

Housing
Specs:
- No. of Circuits: 3
- Model No.: VURP-03V-S
- Dimension: 7.92 (A), 15.84 (B)
- Q'ty/reel: 500pcs
- Materials and Finish: PA 66, UL94V-0, natural (white)
- RoHS2 Compliance
Terminal
Spcs:
- Model No.: SVU-21T-P0.6
- Applicable Wire: 0.33 - 0.83mm² (22 - 18AWG)
- Insolations O.D. (mm): 1.7 - 3.0
- Q'ty/reel: 4000pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS2 compliance
Header

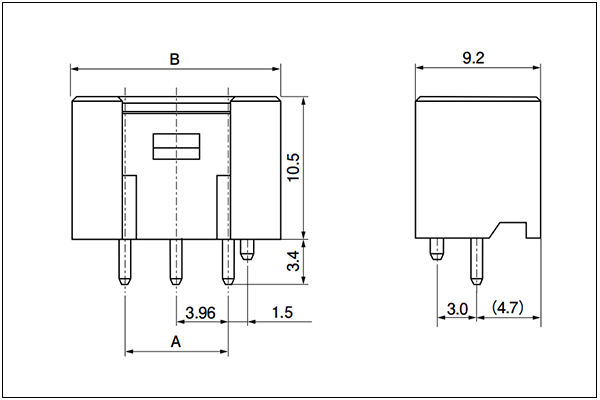

Top entry type

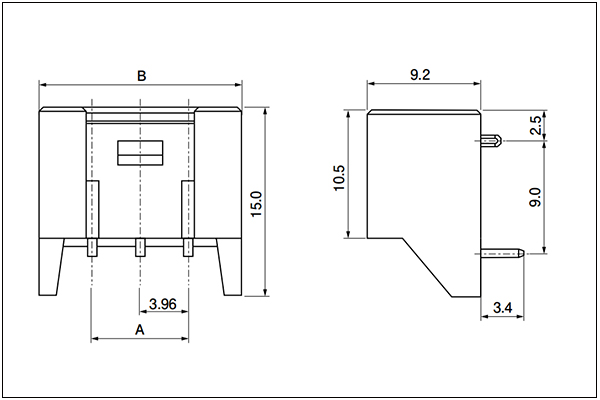

Side entry type
Specs:
- No. of Circuits: 3
- Model No.:
- Tope entry type: B03B-VUSS-1
- Side entry type: S03B-VUSS-1
- Dimension (mm): 7.92 (A), 15.84 (B)
- Q'ty/Box: Top entry type/Side entry type: 200
- Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PBT, UL94V-0, natural (white)
- RoHS2 compliance
Support Custom Wiring Harness Assembly
- Connector: 3pin
- Wire gauge: 18 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
