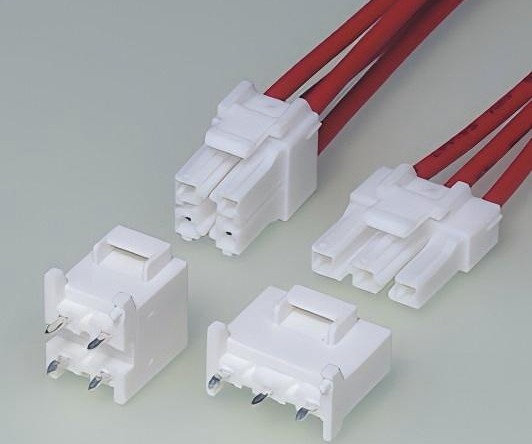

JST VYH Connector, Wire to Board, Custom Wire Assembly

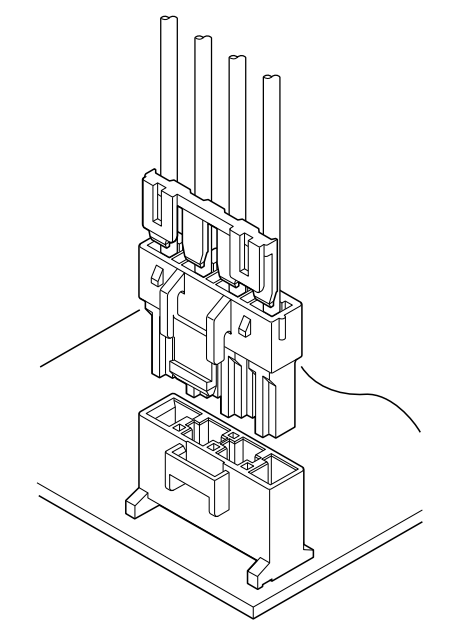

JST VYH Connector, Wire to Board Type
The JST VYH Connector is a wire-to-board connector designed with a 6.5 mm pitch, tailored for applications requiring reliable large-current transmission. Its thoughtful engineering includes a retainer mechanism that prevents insufficient contact insertion and secures the connection, ensuring safety and dependability. With its ability to handle high-current circuits, the VYH connector incorporates features such as a housing lance for contact retention and mechanisms to prevent misinsertion, offering enhanced reliability during assembly. The retainer not only improves connection stability but also ensures secure contact in demanding applications, making it an ideal choice for high-power electronic systems.
Specifications
- Connector type: Wire to Board, disconnectable crimp style
- Connector pitchL 6.5mm
- Current rating: 15 A AC/DC (2 circuits/ AWG #14)
- Voltage rating: 300 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #26 to #14
- Applicable PC board thickness: 1.6 mm
Current unit: A
| No.of circuits | Wire size(AWG) | ||||||
| #14 | #16 | #18 | #20 | #22 | #24 | #26 | |
| 2 | 15 | 10 | 7 | 5 | 4 | 3 | 2 |
| 3 | 14 | 9 | 6 | 4 | 4 | 3 | 2 |
| 4 | 13 | 9 | 6 | 4 | 4 | 3 | 2 |
| 6 | 12 | 8 | 5 | 3 | 3 | 2 | 2 |
Note:
- The above table shows the rated current when applying current for all circuits in each combination of the number of circuits and the wire to be used.
- Do not branch to the multiple circuits in parallel current which is exceeds the rated current, as it may cause problems such as imbalance when applying current.
- If it is unavoidable that branch in parallel is necessary, design the circuits while suppressing the unbalanced current and proving the sufficient margin to the rated current.
Housing

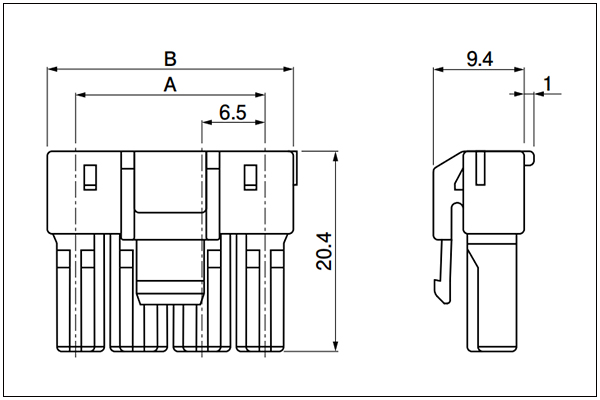

Single-row Type

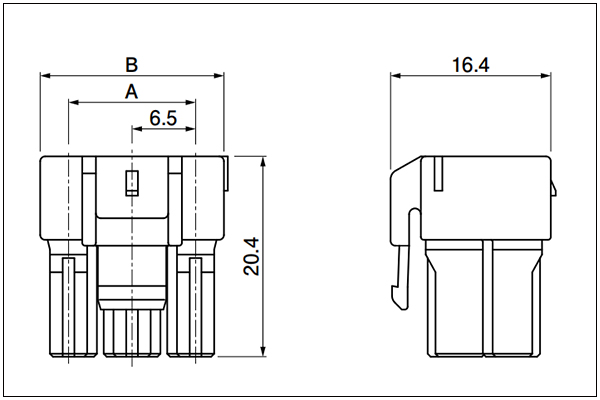

Dual-row Type
| Type | No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | ||||
| Single-row type | 2 | VYHP-02V | 6.5 | 12.3 | 400 |
| 3 | VYHP-03V | 13 | 18.8 | 300 | |
| 4 | VYHP-04V | 19.5 | 25.3 | 200 | |
| Dual-row type | 4 | VYHP-04VD | 6.5 | 12.3 | 200 |
| 6 | VYHP-06VD | 13 | 18.8 | 150 | |
Material and Finish: PA 66, UL94V-0, natural (white)

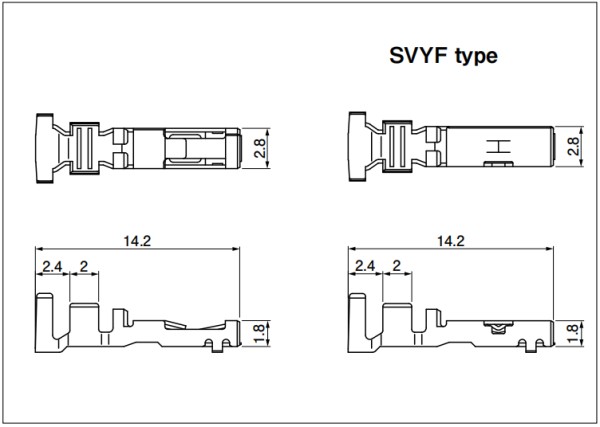

Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) |
Q'ty/reel | |
| mm² | AWG# | |||
| SYF-01T-P0.5A | 0.13 to 0.5 | 26 to 22 | 1.3 to 2.5 | 4000 |
| SYF-41T-P0.5A | 0.5 to 1.25 | 20 to 16 | 2.0 to 3.4 | 4000 |
| SYF-61T-P0.5A | 0.75 to 2.0 | 18 to 14 | 2.1 to 3.4 | 2000 |
| *SVYF-41T-P0.5A-13.5 | 0.5 to 1.25 | 20 to 16 | 2.0 to 3.4 | 3000 |
| *SVYF-61T-P0.5A | 0.75 to 2.0 | 18 to 14 | 2.1 to 3.6 | 2000 |
Note:
- Material and Finish: Copper alloy, tin-plated (reflow treatment)
- *Marked product: Unlisted in TÜV.
- SVYF type contact was developed only for VYH connector in order to improve the prevention of prying.
- Retainer cannot be used when using 41 type contact AWG#16 and 61 type contact.
Header

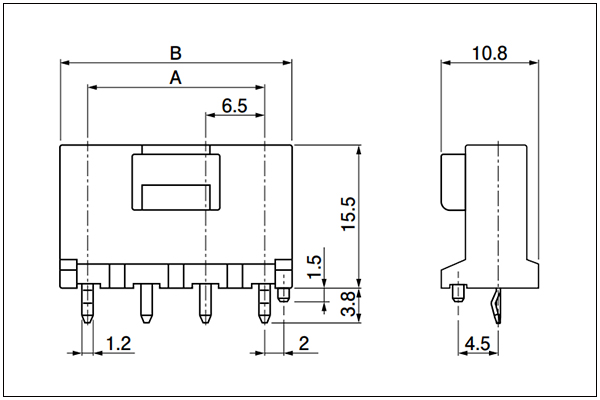

Single-row Type

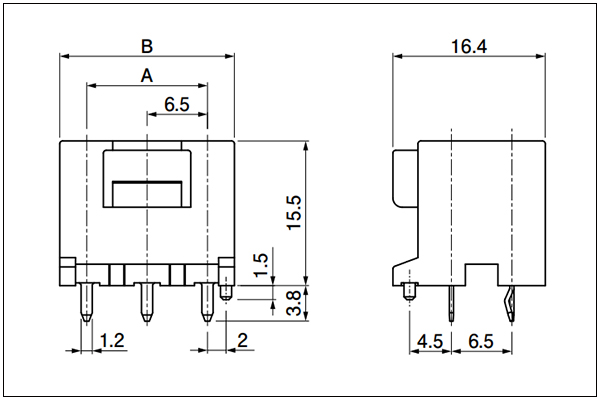

Dual-row Type
| Wafer | Type | No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | |
| A | B | |||||
| Glass-filled PBT, UL94V-0, natural (white) | Single-row type | 2 | B02B-VYHSK-1 | 6.5 | 12.3 | 600 |
| 3 | B03B-VYHSK-1 | 13 | 18.8 | 360 | ||
| 4 | B04B-VYHSK-1 | 19.5 | 25.3 | 300 | ||
| Dual-row type | 4 | B04B-VYHSK-D-1 | 6.5 | 12.3 | 300 | |
| 6 | B06B-VYHSK-D-1 | 13 | 18.8 | 180 | ||
| Glass-filled PA 66, UL94V-0, natural (ivory) | Single-row type | 2 | B02B-VYHSK-M-1 | 6.5 | 12.3 | 600 |
| 3 | B03B-VYHSK-M-1 | 13 | 18.8 | 360 | ||
| 4 | B04B-VYHSK-M-1 | 19.5 | 25.3 | 300 | ||
| Dual-row type | 4 | B04B-VYHSK-DM-1 | 6.5 | 12.3 | 300 | |
| 6 | B06B-VYHSK-DM-1 | 13 | 18.8 | 180 | ||
Material and Finish: Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)

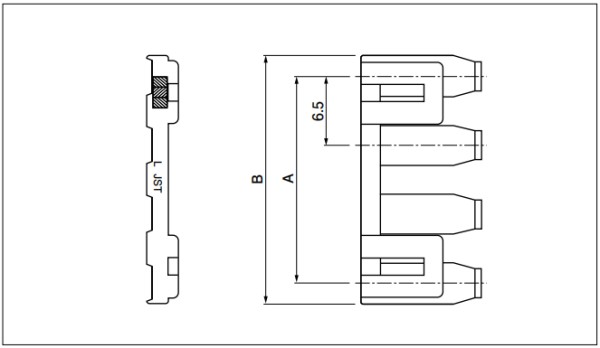

Retainer
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 2 | VYHS-02V-S | 6.5 | 10.3 | 4000 |
| 3 | VYHS-03V-S | 13 | 16.8 | 3000 |
| 4 | VYHS-04V-S | 19.5 | 23.3 | 2000 |
Material and Finish: Glass-filled PA 66, UL94V-0, natural (ivory)
Support Custom Wiring Harness Assembly
- Connector: 2, 3, 4, 6pin
- Wire gauge: 26 - 14AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
