JST WPJ Connector, Wire to Board, Custom Wire Assembly

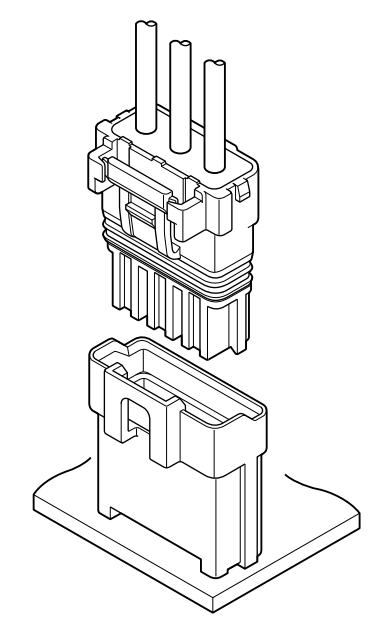

JST WPJ Connector, Wire to Board Type
The JST WPJ Connector is a versatile and reliable 5.0 mm pitch disconnectable crimp-style connector designed for compact and durable electrical connections. Its adaptable design allows it to function in both waterproof and non-waterproof conditions by simply adding a rubber component, enabling seamless transitions between different applications. The connector features a shared header for both configurations, ensuring compatibility and ease of use. Its waterproof performance meets Grade 7 ingress protection standards (JIS C 0920 and IPX7 of IEC 60529), making it ideal for demanding environments. Additional highlights include a control key system for secure connections, an inner locking mechanism, a deformation-resistant contact design, and a compact form factor for space efficiency.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 5.0mm
- Current rating: 7 A AC, DC (AWG #18)
- Voltage rating: 300 V AC, DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: Conductor size/ AWG #22 to #18, Insulation O.D./ 2.32 to 2.83 mm,1.52 to 2.03 mm
- Waterproof grade: Grade 7 ingress protection of JIS C 0920 (IPX7 of IEC 60529)
Housing

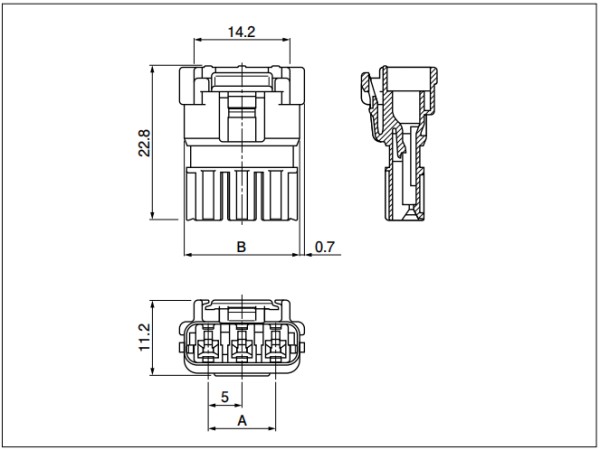

Regular type

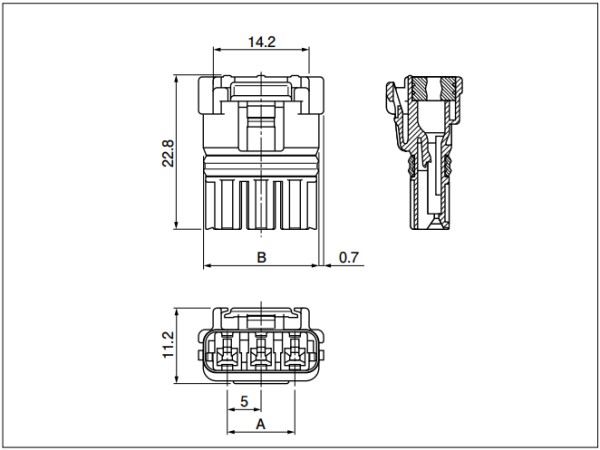

Waterproof Type
| Type | No.of circuits | Model No. | A | B | Q'ty/box |
| Regular | 2 | WPJR-02V-1-S | - | 12.1 | 1000 |
| 3 | WPJR-03V-1-S | 10.0 | 17.1 | 1000 | |
| Waterproof | 2 | 02R-WPJV-1-SMM | - | 12.1 | 720 |
| 3 | 03R-WPJV-1-SMM | 10.0 | 17.1 | 576 |
Material:
- Regular type: Glass-filled PBT, UL94V-0, natural (white)
- Waterproof type:
- Receptacle housing: Glass-filled PBT, UL94V-0, natural (white)
- Seal ring: Silicon, green
- Seal rubber plate: Silicon, green

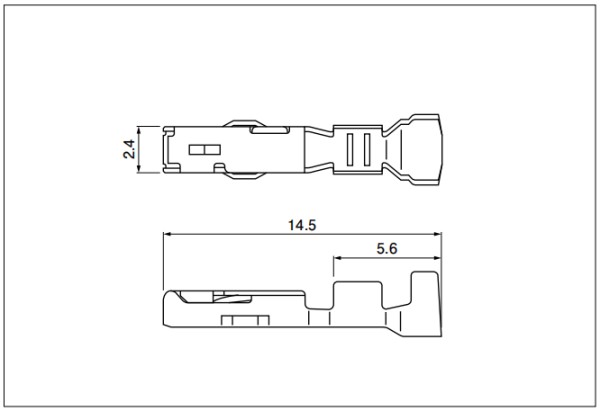

Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SWPJR-21T-M0.5 | 0.33 to 0.83 | 22 to 18 | 2.32 to 2.83 | 4500 |
| SWPJR-21T-M0.5A | 0.33 to 0.83 | 22 to 18 | 1.52 to 2.03 | 4500 |
Material and Finish: Copper alloy, tin-plated (reflow treatment)

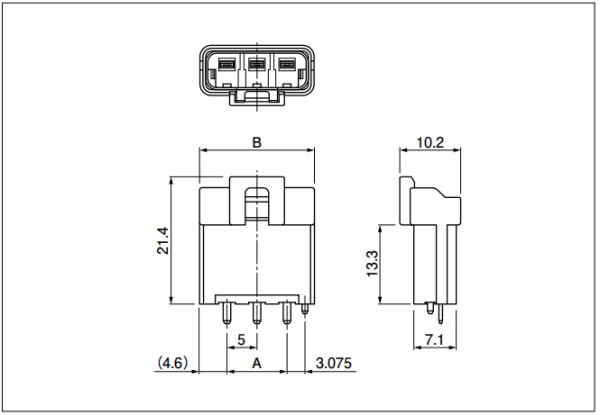

Header
| No. of circuits | Model No. | A | B | Q'ty/bag |
| 2 | B02B-WPJSS-1 | - | 14.2 | 600 |
| 3 | B03B-WPJSS-1 | 10 | 19.2 | 390 |
Material and Finish
- Wafer: Glass-filled PBT, UL94V-0
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)

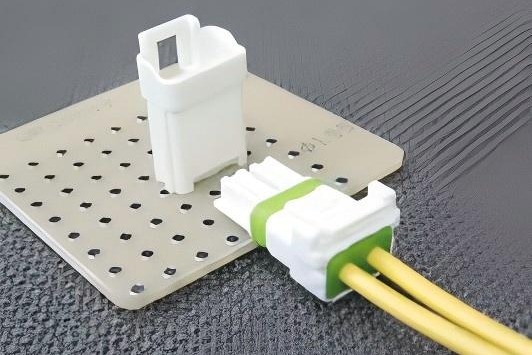

Support Custom Wiring Harness Assembly
- Connector: 2, 3pin
- Wire gauge: 18 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
