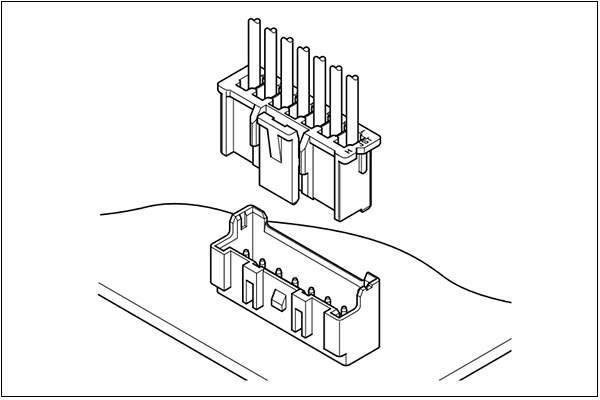

JST XA Connector, Wire to Board Type
This JST XA Connector is a reliable wire-to-board interconnect solution designed for various applications where secure and efficient connections are critical. It features a robust locking device that ensures a stable and secure fit, preventing accidental disconnection during operation. Constructed with solder crack preventive material, it enhances durability and maintains electrical integrity, even under thermal stress. The low insertion force design reduces wear and tear while facilitating easy assembly. An insertion guide mechanism further streamlines the connection process, minimizing the risk of misalignment. Additionally, the connector supports compatibility with automatic board mounting machines, optimizing production efficiency. The inclusion of a polarizing boss ensures proper orientation during assembly, adding an extra layer of precision and reliability.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 2.5mm
- Current rating: 3 A AC/DC (AWG #22, #20)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #28 to #20
- Applicable PC board thickness: 1.6 mm
Housing

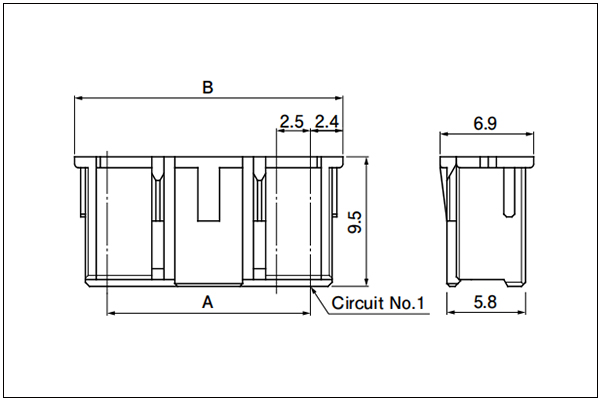

Standard Type

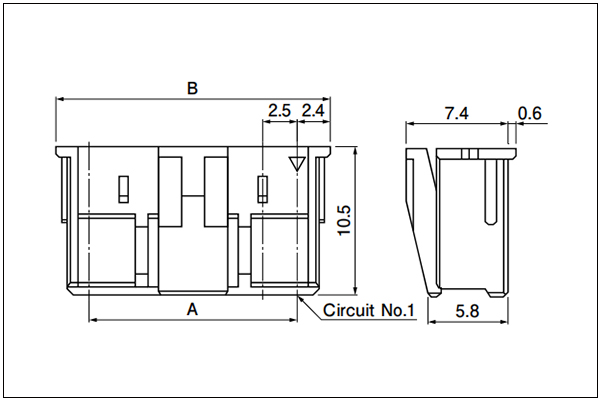

Retainer Mountable Type
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |||
| Standard type | Retainer mountable type | A | B | Standard type | Retainer mountable type | |
| 2 | XAP-02V-1 | XARP-02V | 2.5 | 7.3 | 1000 | 1000 |
| 3 | XAP-03V-1 | XARP-03V | 5.0 | 9.8 | 1000 | 1000 |
| 4 | XAP-04V-1 | XARP-04V | 7.5 | 12.3 | 1000 | 1000 |
| 5 | XAP-05V-1 | XARP-05V | 10.0 | 14.8 | 1000 | 1000 |
| 6 | XAP-06V-1 | XARP-06V | 12.5 | 17.3 | 1000 | 1000 |
| 7 | XAP-07V-1 | XARP-07V | 15.0 | 19.8 | 1000 | 1000 |
| 8 | XAP-08V-1 | XARP-08V | 17.5 | 22.3 | 1000 | 1000 |
| 9 | XAP-09V-1 | XARP-09V | 20.0 | 24.8 | 1000 | 1000 |
| 10 | XAP-10V-1 | XARP-10V | 22.5 | 27.3 | 1000 | 1000 |
| 11 | XAP-11V-1 | XARP-11V | 25.0 | 29.8 | 1000 | 1000 |
| 12 | XAP-12V-1 | XARP-12V | 27.5 | 32.3 | 1000 | 1000 |
| 13 | XAP-13V-1 | XARP-13V | 30.0 | 34.8 | 1000 | 1000 |
| 14 | XAP-14V-1 | XARP-14V | 32.5 | 37.3 | 500 | 1000 |
| 15 | XAP-15V-1 | XARP-15V | 35.0 | 39.8 | 500 | 1000 |
| 18 | 一 | XARP-18V | 42.5 | 47.3 | 一 | 500 |
| 20 | XAP-20V-1 | 一 | 47.5 | 52.3 | 500 | 一 |
Material and Finish: PA 66, UL94V-0, natural (white)

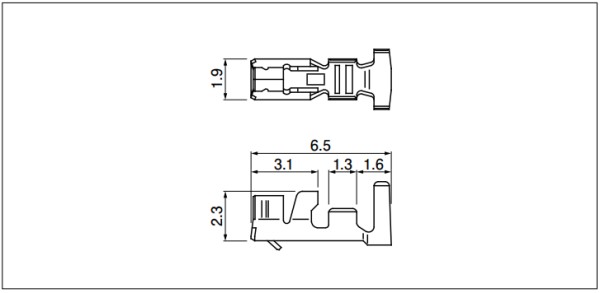

Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SXA-001T-P0.6 | 0.08～0.33 | 28~22 | 0.8~1.9 | 8000 |
| SXA-01T-P0.6 | 0.22~0.5 | 24～20 | 1.5~1.9 | 8000 |
| SXA-001T-P0.6L | 0.13~0.33 | 26~22 | 1.3~1.7 | 8000 |
Notes:
- Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
- SXA-001T-P0.6L is low-insertion force type contact, for easier insertion/withdrawal, which would be less resistant to the vibration. The crimp height is different from the standard contact.

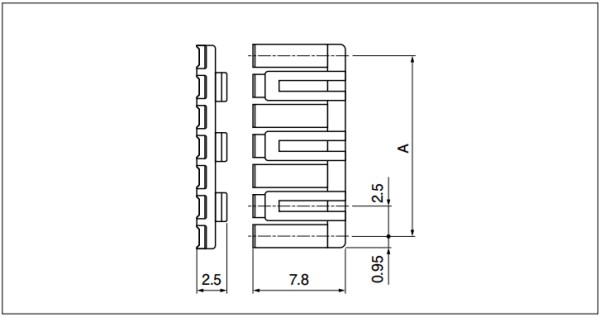

Retainer
| No. of circuits | Model No. | A | Q'ty/bag |
| 2 | XMS-02V | 2.5 | 1000 |
| 3 | XMS-03V | 5.0 | 1000 |
| 4 | XMS-04V | 7.5 | 1000 |
| 5 | XMS-05V | 10.0 | 1000 |
| 6 | XMS-06V | 12.5 | 1000 |
| 7 | XMS-07V | 15.0 | 1000 |
| 8 | XMS-08V | 17.5 | 1000 |
| 9 | XMS-09V | 20.0 | 1000 |
| 10 | XMS-10V | 22.5 | 1000 |
| 11 | XMS-11V | 25.0 | 1000 |
| 12 | XMS-12V | 27.5 | 1000 |
| 13 | XMS-13V | 30.0 | 1000 |
| 14 | XMS-14V | 32.5 | 1000 |
| 15 | XMS-15V | 35.0 | 1000 |
Material and Finish: Glass-filled PA 66, UL94V-0, natural (ivory)

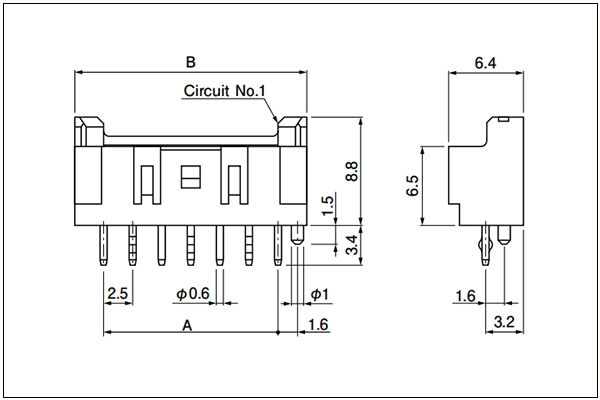

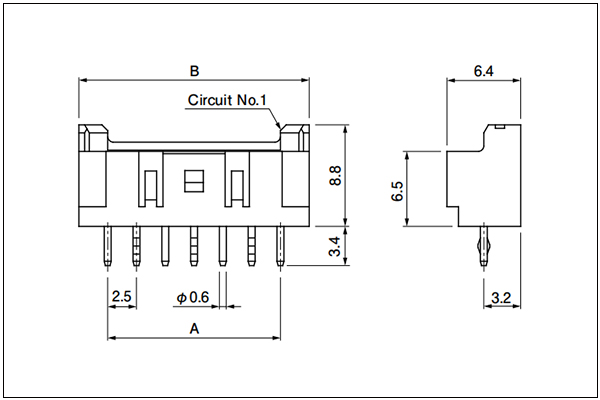

Through-hole type shrouded header
Top Entry Type
Without a boss
With a boss
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | ||
| Top entry type | A | B | |||
| Without a bosS | With a bosS | ||||
| 2 | B02B-XASK-1 | B02B-XASK-1-A | 2.5 | 7.5 | 1000 |
| 3 | B03B-XASK-1 | B03B-XASK-1-A | 5.0 | 10.0 | 400 |
| 4 | B04B-XASK-1 | B04B-XASK-1-A | 7.5 | 12.5 | 400 |
| 5 | B05B-XASK-1 | B05B-XASK-1-A | 10.0 | 15.0 | 400 |
| 6 | B06B-XASK-1 | B06B-XASK-1-A | 12.5 | 17.5 | 400 |
| 7 | B07B-XASK-1 | B07B-XASK-1-A | 15.0 | 20.0 | 250 |
| 8 | B08B-XASK-1 | B08B-XASK-1-A | 17.5 | 22.5 | 250 |
| 9 | B09B-XASK-1 | B09B-XASK-1-A | 20.0 | 25.0 | 250 |
| 10 | B10B-XASK-1 | B10B-XASK-1-A | 22.5 | 27.5 | 250 |
| 11 | B11B-XASK-1 | B11B-XASK-1-A | 25.0 | 30.0 | 200 |
| 12 | B12B-XASK-1 | B12B-XASK-1-A | 27.5 | 32.5 | 200 |
| 13 | B13B-XASK-1 | B13B-XASK-1-A | 30.0 | 35.0 | 100 |
| 14 | B14B-XASK-1 | B14B-XASK-1-A | 32.5 | 37.5 | 100 |
| 15 | B15B-XASK-1 | B15B-XASK-1-A | 35.0 | 40.0 | 100 |
| 20 | B20B-XASK-1 | B20B-XASK-1-A | 47.5 | 52.5 | 100 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural (ivory)

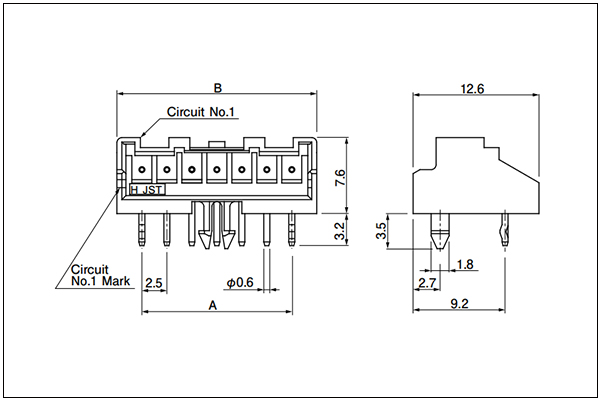

Side Entry Type - With a Hook
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | ||
| Side entry type with a hook | A | B | D | ||
| 2 | S02B-XASS-1 | 2.5 | 7.5 | 1.3 | 250 |
| 3 | S03B-XASK-1 | 5.0 | 10.0 | 2.5 | 250 |
| 4 | S04B-XASK-1 | 7.5 | 12.5 | 3.8 | 200 |
| 5 | S05B-XASK-1 | 10.0 | 15.0 | 5.0 | 200 |
| 6 | S06B-XASK-1 | 12.5 | 17.5 | 6.3 | 200 |
| 7 | S07B-XASK-1 | 15.0 | 20.0 | 7.5 | 200 |
| 8 | S08B-XASK-1 | 17.5 | 22.5 | 8.8 | 100 |
| 9 | S09B-XASK-1 | 20.0 | 25.0 | 10.0 | 100 |
| 10 | S10B-XASK-1 | 22.5 | 27.5 | 11.3 | 100 |
| 11 | S11B-XASK-1 | 25.0 | 30.0 | 12.5 | 100 |
| 12 | S12B-XASK-1 | 27.5 | 32.5 | 13.8 | 100 |
| 13 | S13B-XASK-1 | 30.0 | 35.0 | 15.0 | 100 |
| 14 | S14B-XASK-1 | 32.5 | 37.5 | 16.3 | 100 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural (ivory)

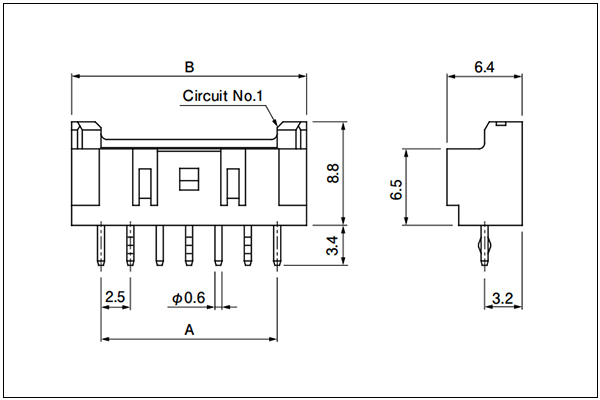

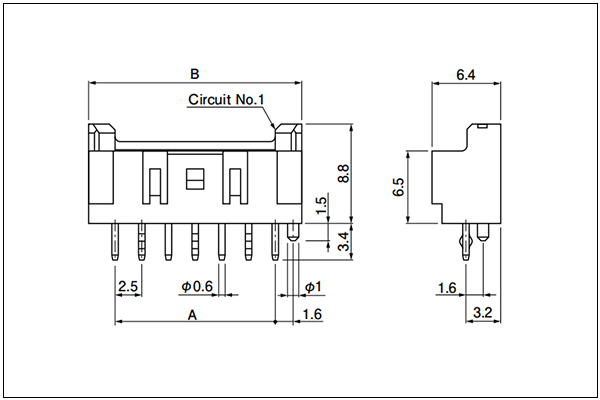

Through-hole type shrouded header - N type
Top Entry Type
Without a boss
With a boss
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | ||
| Top entry type | A | B | |||
| Without a boss | With a boss | ||||
| 2 | B02B-XASK-1N | B02B-XASK-1N-A | 2.5 | 7.5 | 1000 |
| 3 | B03B-XASK-1N | B03B-XASK-1N-A | 5 | 10 | 400 |
| 4 | B04B-XASK-1N | B04B-XASK-1N-A | 7.5 | 12.5 | 400 |
| 5 | B05B-XASK-1N | B05B-XASK-1N-A | 10 | 15 | 400 |
| 6 | B06B-XASK-1N | B06B-XASK-1N-A | 12.5 | 17.5 | 400 |
| 7 | B07B-XASK-1N | B07B-XASK-1N-A | 15 | 20 | 250 |
| 8 | B08B-XASK-1N | B08B-XASK-1N-A | 17.5 | 22.5 | 250 |
| 9 | B09B-XASK-1N | B09B-XASK-1N-A | 20 | 25 | 250 |
| 10 | B10B-XASK-1N | B10B-XASK-1N-A | 22.5 | 27.5 | 250 |
| 11 | B11B-XASK-1N | B11B-XASK-1N-A | 25 | 30 | 200 |
| 12 | B12B-XASK-1N | B12B-XASK-1N-A | 27.5 | 32.5 | 200 |
| 13 | B13B-XASK-1N | B13B-XASK-1N-A | 30 | 35 | 100 |
| 14 | B14B-XASK-1N | B14B-XASK-1N-A | 32.5 | 37.5 | 100 |
| 15 | B15B-XASK-1N | B15B-XASK-1N-A | 35 | 40 | 100 |
| 18 | B18B-XASK-1N | 一 | 42.5 | 47.5 | 100 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural (white)

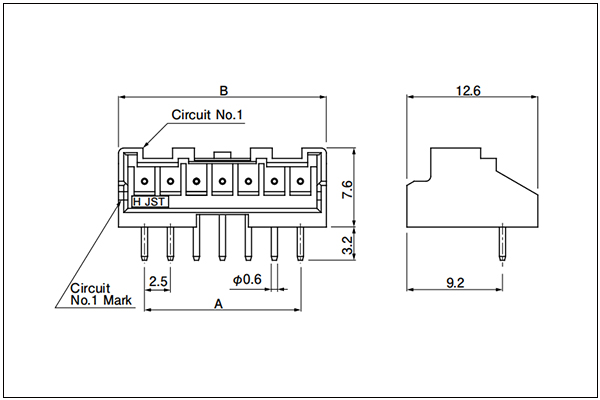

Side Entry Type - Without a Hook
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| Side entry type without a hook | A | B | ||
| 2 | S02B-XASS-1N-BN | 2.5 | 7.5 | 250 |
| 3 | S03B-XASS-1N-BN | 5.0 | 10.0 | 250 |
| 4 | S04B-XASS-1N-BN | 7.5 | 12.5 | 200 |
| 5 | S05B-XASS-1N-BN | 10.0 | 15.0 | 200 |
| 6 | S06B-XASS-1N-BN | 12.5 | 17.5 | 200 |
| 7 | S07B-XASS-1N-BN | 15.0 | 20.0 | 200 |
| 8 | S08B-XASS-1N-BN | 17.5 | 22.5 | 100 |
| 9 | S09B-XASS-1N-BN | 20.0 | 25.0 | 100 |
| 10 | S10B-XASS-1N-BN | 22.5 | 27.5 | 100 |
| 11 | S11B-XASS-1N-BN | 25.0 | 30.0 | 100 |
| 12 | S12B-XASS-1N-BN | 27.5 | 32.5 | 100 |
| 13 | S13B-XASS-1N-BN | 30.0 | 35.0 | 100 |
| 14 | S14B-XASS-1N-BN | 32.5 | 37.5 | 100 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural (white)
Note: As for side entry type, we recommend to use a product with a boss (hook) because stress is applied directly to fillet part when handling the wire. When using the side entry type product without a boss (hook), please handle the wire with care.

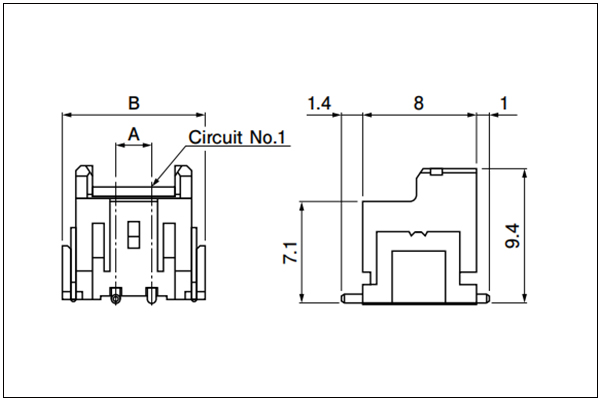

SMT type shrouded header
2 Circuits

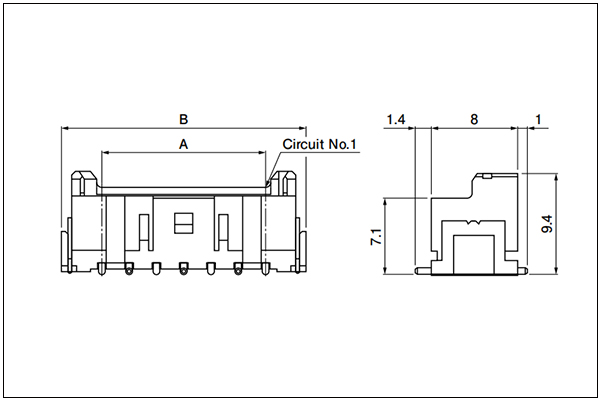

3 to 9, 12, 13, 15 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| Top entry type | A | B | ||
| 2 | BM02B-XASS-TF | 2.5 | 10.0 | 500 |
| 3 | BM03B-XASS-TF | 5.0 | 12.5 | 500 |
| 4 | BM04B-XASS-TF | 7.5 | 15.0 | 500 |
| 5 | BM05B-XASS-TF | 10.0 | 17.5 | 500 |
| 6 | BM06B-XASS-TF | 12.5 | 20.0 | 500 |
| 7 | BM07B-XASS-TF | 15.0 | 22.5 | 500 |
| 8 | BM08B-XASS-TF | 17.5 | 25.0 | 500 |
| 9 | BM09B-XASS-TF | 20.0 | 27.5 | 500 |
| 12 | BM12B-XASS-TF | 27.5 | 35.0 | 500 |
| 13 | BM13B-XASS-TF | 30.0 | 37.5 | 500 |
| 15 | BM15B-XASS-TF | 35.0 | 42.5 | 500 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: PA, UL94V-0, natural
- Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)

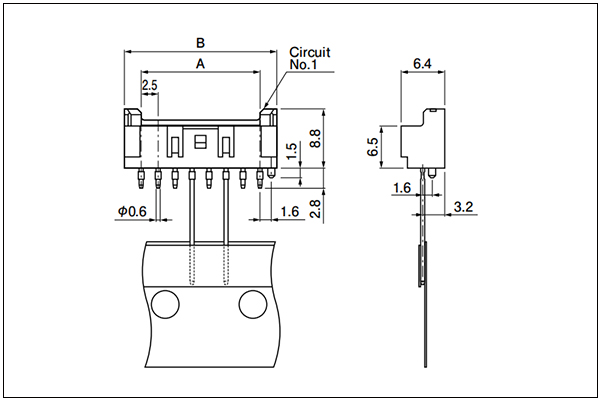

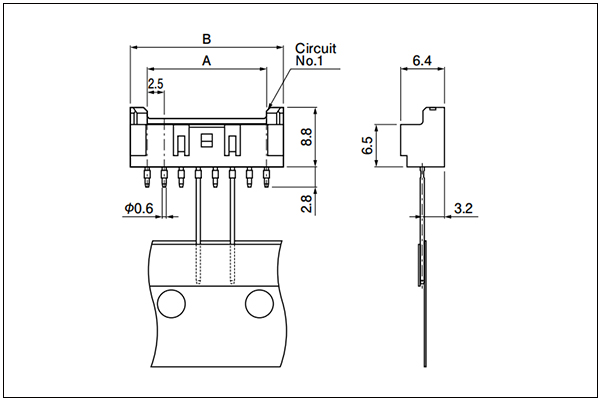

Through-hole type shrouded header on radial-tape
Without a boss
With a boss
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | ||
| Top entry type without a boss | Top entry type with a boss | A | B | ||
| 2 | B02B-XASS-1-T | 一 | 2.5 | 7.5 | 1000 |
| 3 | B03B-XASS-1-T | B03B-XASS-1-A-T | 5.0 | 10.0 | 1000 |
| 4 | B04B-XASS-1-T | B04B-XASS-1-A-T | 7.5 | 12.5 | 500 |
| 5 | B05B-XASS-1-T | B05B-XASS-1-A-T | 10.0 | 15.0 | 500 |
| 6 | B06B-XASS-1-T | B06B-XASS-1-A-T | 12.5 | 17.5 | 500 |
| 7 | B07B-XASS-1-T | B07B-XASS-1-A-T | 15.0 | 20.0 | 500 |
| 8 | B08B-XASS-1-T | B08B-XASS-1-A-T | 17.5 | 22.5 | 500 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural (ivory)

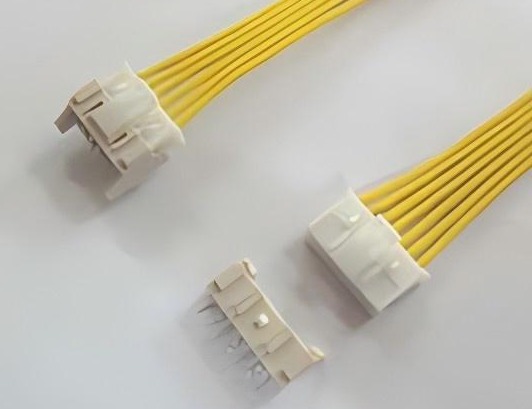

Support Custom Wiring Harness Assembly
- Connector: 2 - 20pin
- Wire gauge: 20 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
