JST XA Connector, Wire to Wire Type

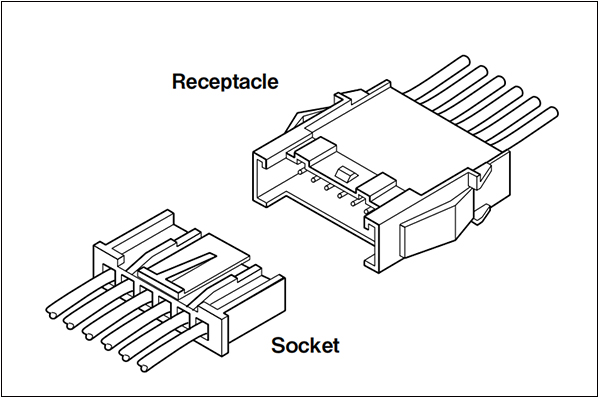

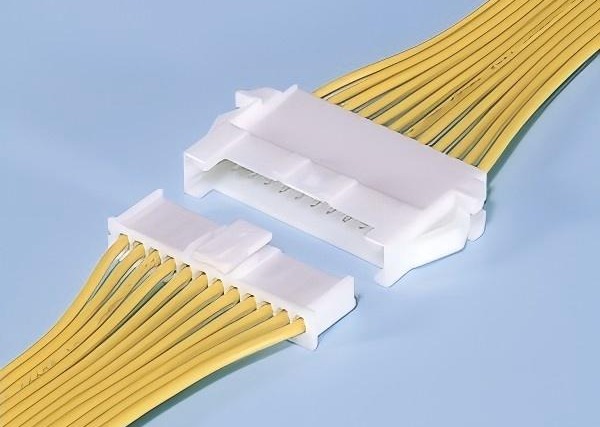

This JST XA Wire-to-Wire Connector is a versatile and reliable solution designed with a 2.5 mm pitch, offering compatibility with XA connectors for printed circuit boards. This connector features an inner-type contact lance for enhanced connection stability and durability. It is available in two configurations—free-hanging and panel-mount—to accommodate various application needs. Additionally, a retainer-mountable version is available, providing added security and preventing accidental disconnection. With a secure locking mechanism to ensure robust engagement, the JST XA Wire-to-Wire Connector is a dependable choice for applications requiring durability, adaptability, and compatibility with existing XA connector systems.
Specifications
- Connector type: Disconnectable Crimp style wire-to-wire
- Connector Pitch: 2.5mm
- Current rating: 3 A AC/DC (AWG #22, 20)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 m Ω max, After environmental tests/ 20 m Ω max.
- Insulation resistance: 500 M Ω min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #28 to #20
Receptacle housing (for pin contact)

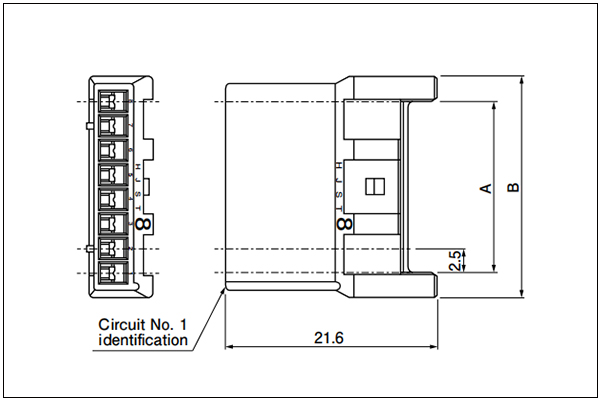

Without Panel Locks

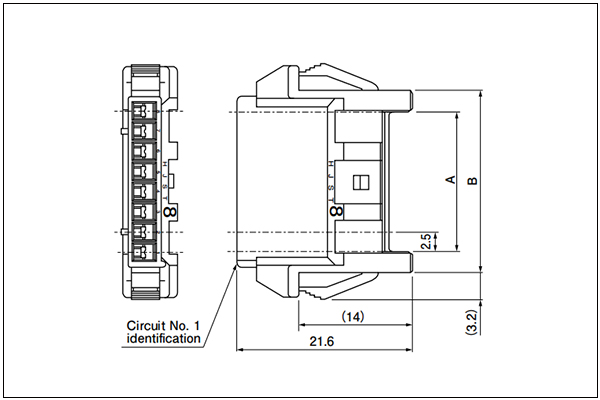

With Panel Locks
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | ||||
| Without panel locks | With panel locks | A | B | C | D | ||
| 2 | XARR-02VF | XARR-02V | 2.5 | 7.5 | 7.9 | 11.2 | 1000 |
| 3 | XARR-03VF | XARR-03V | 5.0 | 10.0 | 10.4 | 13.7 | 1000 |
| 4 | XARR-04VF | XARR-04V | 7.5 | 12.5 | 12.9 | 16.2 | 1000 |
| 5 | XARR-05VF | XARR-05V | 10.0 | 15.0 | 15.4 | 18.7 | 1000 |
| 6 | XARR-06VF | XARR-06V | 12.5 | 17.5 | 17.9 | 21.2 | 500 |
| 7 | - | XARR-07V | 15.0 | 20.0 | 20.4 | 23.7 | 500 |
| 8 | XARR-08VF | XARR-08V | 17.5 | 22.5 | 22.9 | 26.2 | 500 |
| 9 | XARR-09VF | XARR-09V | 20.0 | 25.0 | 25.4 | 28.7 | 500 |
| 10 | XARR-10VF | XARR-10V | 22.5 | 27.5 | 27.9 | 31.2 | 500 |
| 11 | - | XARR-11V | 25.0 | 30.0 | 30.4 | 33.7 | 500 |
| 12 | XARR-12VF | XARR-12V | 27.5 | 32.5 | 32.9 | 36.2 | 500 |
| 13 | - | XARR-13V | 30.0 | 35.0 | 35.4 | 38.7 | 500 |
| 14 | - | XARR-14V | 32.5 | 37.5 | 37.9 | 41.2 | 500 |
| 15 | - | XARR-15V | 35.0 | 40.0 | 40.4 | 43.7 | 500 |
Note:
- Material and Finish: PA 66, UL94V-0, natural (white)
- C and D dimensions: Panel layout dimensions
- RoHS2 compliance
Socket housing (for socket contact)

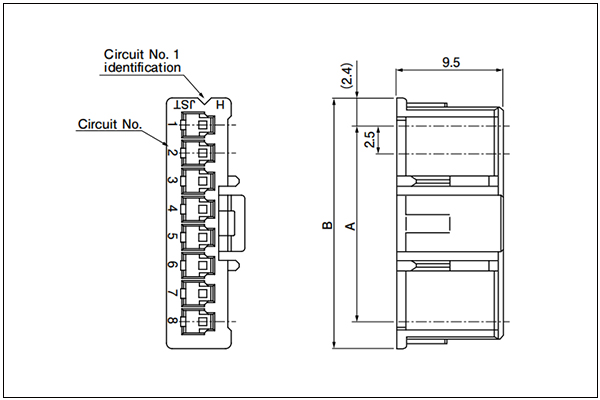

Normal Type

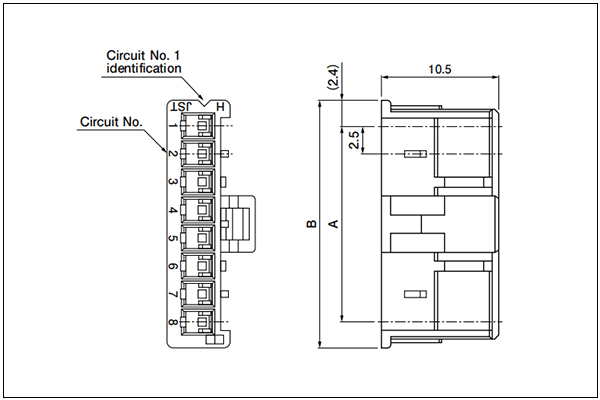

Retainer Mountable Type
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |||
| Normal type | Retainer mountable type | A | B | Normal type | Retainer mountable type | |
| 2 | XAP-02V-1 | XARP-02V | 2.5 | 7.3 | 1000 | 1000 |
| 3 | XAP-03V-1 | XARP-03V | 5.0 | 9.8 | 1000 | 1000 |
| 4 | XAP-04V-1 | XARP-04V | 7.5 | 12.3 | 1000 | 1000 |
| 5 | XAP-05V-1 | XARP-05V | 10.0 | 14.8 | 1000 | 1000 |
| 6 | XAP-06V-1 | XARP-06V | 12.5 | 17.3 | 1000 | 1000 |
| 7 | XAP-07V-1 | XARP-07V | 15.0 | 19.8 | 1000 | 1000 |
| 8 | XAP-08V-1 | XARP-08V | 17.5 | 22.3 | 1000 | 1000 |
| 9 | XAP-09V-1 | XARP-09V | 20.0 | 24.8 | 1000 | 1000 |
| 10 | XAP-10V-1 | XARP-10V | 22.5 | 27.3 | 1000 | 1000 |
| 11 | XAP-11V-1 | XARP-11V | 25.0 | 29.8 | 1000 | 1000 |
| 12 | XAP-12V-1 | XARP-12V | 27.5 | 32.3 | 1000 | 1000 |
| 13 | XAP-13V-1 | XARP-13V | 30.0 | 34.8 | 1000 | 1000 |
| 14 | XAP-14V-1 | XARP-14V | 32.5 | 37.3 | 500 | 1000 |
| 15 | XAP-15V-1 | XARP-15V | 35.0 | 39.8 | 500 | 1000 |
Material and Finish: PA 66, UL94V-0, natural (white)
Terminal

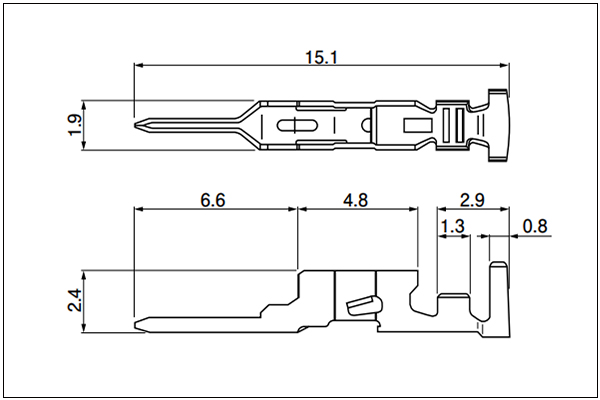

Pin Terminal

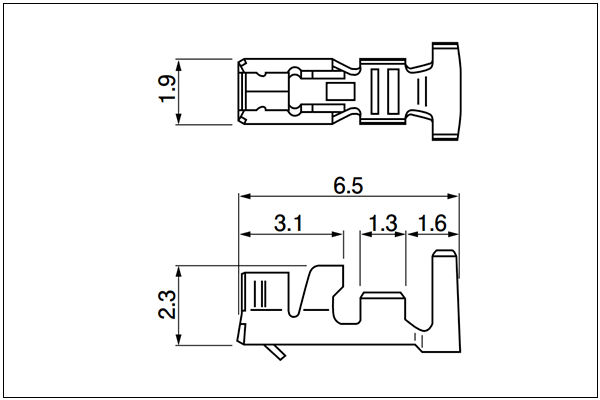

Socket Terminal
| Model No. | Applicable wire | InsulationO.D. (mm) |
Q'ty/reel | |||
| Pin contact | Socket contact | mm² | AWG# | Pin contact | Socket contact | |
| SXAM-001T-P0.6 | SXA-001T-P0.6 | 0.08~0.33 | 28~22 | 0.8~1.9 | 7000 | 8000 |
| SXAM-01T-P0.6 | SXA-01T-P0.6 | 0.22~0.5 | 24~20 | 1.5～1.9 | 7000 | 8000 |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)

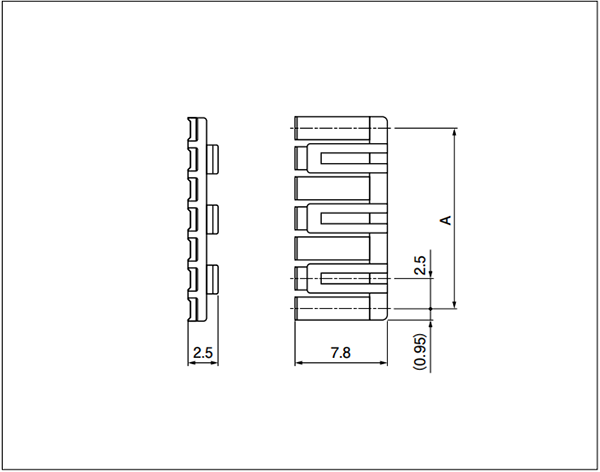

Retainer
| No. of circuits | Model No. | A | Q'ty/bag |
| 2 | XMS-02V | 2.5 | 1000 |
| 3 | XMS-03V | 5.0 | 1000 |
| 4 | XMS-04V | 7.5 | 1000 |
| 5 | XMS-05V | 10.0 | 1000 |
| 6 | XMS-06V | 12.5 | 1000 |
| 7 | XMS-07V | 15.0 | 1000 |
| 8 | XMS-08V | 17.5 | 1000 |
| 9 | XMS-09V | 20.0 | 1000 |
| 10 | XMS-10V | 22.5 | 1000 |
| 11 | XMS-11V | 25.0 | 1000 |
| 12 | XMS-12V | 27.5 | 1000 |
| 13 | XMS-13V | 30.0 | 1000 |
| 14 | XMS-14V | 32.5 | 1000 |
| 15 | XMS-15V | 35.0 | 1000 |
Material and Finish: Glass-filled PA 66, UL94V-0, natural (ivory)
Support Custom Wiring Harness Assembly
- Connector: 2 - 15pin
- Wire gauge: 20 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
