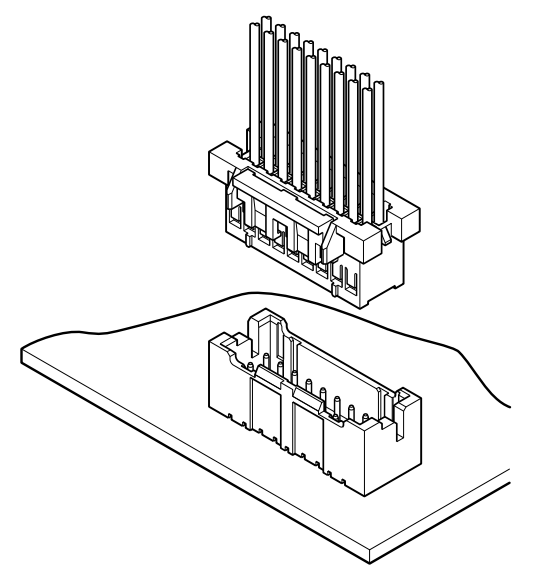

The JST XAD Connector is a versatile and reliable wire-to-board solution designed with a robust dual-row construction and advanced features for secure and efficient connections. This connector is equipped with a secure locking device, ensuring a stable and firm connection even in demanding applications. Its solder crack preventive material enhances durability and reliability, making it ideal for long-term use. The inclusion of a polarizing boss aids in precise alignment during assembly, while the mis-insertion preventive design minimizes the risk of incorrect connections. These features make the XAD Connector an excellent choice for applications requiring dependable performance and easy installation.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 2.5mm
- Current rating: 3 A AC/DC (AWG #20)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #28 to #20
- Applicable PC board thickness: 1.6 mm
Housing

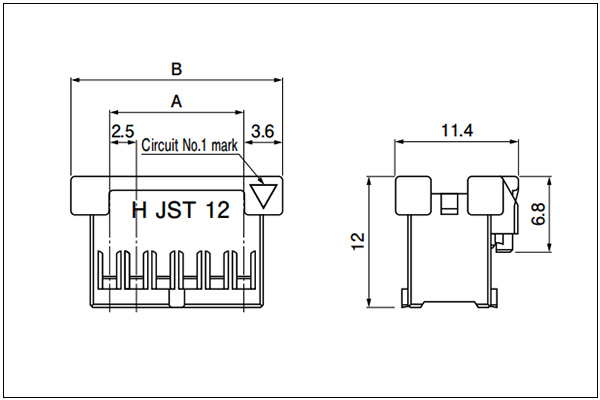

8 to 16 Circuits

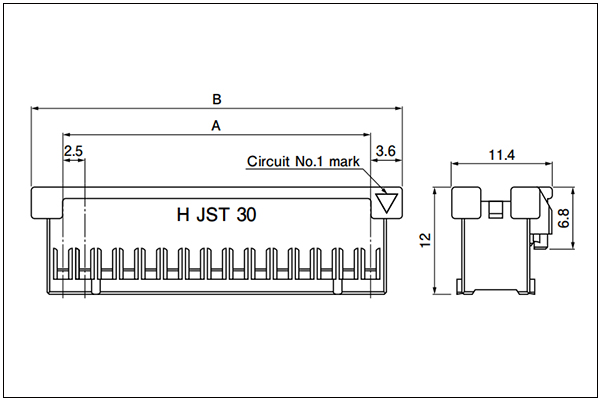

18 to 40 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 8 | XADRP-08V | 7.5 | 14.7 | 1000 |
| 10 | XADRP-10V | 10.0 | 17.2 | 1000 |
| 12 | XADRP-12V | 12.5 | 19.7 | 1000 |
| 14 | XADRP-14V | 15.0 | 22.2 | 1000 |
| 16 | XADRP-16V | 17.5 | 24.7 | 1000 |
| 18 | XADRP-18V | 20.0 | 27.2 | 1000 |
| 20 | XADRP-20V | 22.5 | 29.7 | 500 |
| 22 | XADRP-22V | 25.0 | 32.2 | 500 |
| 24 | XADRP-24V | 27.5 | 34.7 | 500 |
| 26 | XADRP-26V | 30.0 | 37.2 | 500 |
| 28 | XADRP-28V | 32.5 | 39.7 | 500 |
| 30 | XADRP-30V | 35.0 | 42.2 | 500 |
| 32 | XADRP-32V | 37.5 | 44.7 | 500 |
| 34 | XADRP-34V | 40.0 | 47.2 | 500 |
| 36 | XADRP-36V | 42.5 | 49.7 | 250 |
| 40 | XADRP-40V | 47.5 | 54.7 | 250 |
Material and Finish: PA 66, UL94V-0, natural (white)

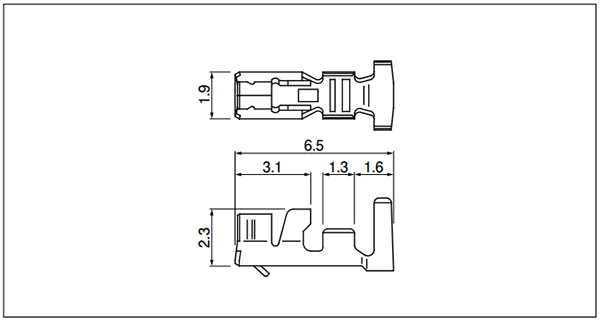

Terminal
| Model No. | Applicable wire | Insulation O.D.(mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SXA-01T-P0.6 | 0.22～0.5 | 24~20 | 1.5~1.9 | 8000 |
| SXA-001T-P0.6 | 0.08～0.33 | 28~22 | 0.8~1.9 | 8000 |
| SXA-001T-P0.6L | 0.13～0.33 | 26~22 | 1.3~1.7 | 8000 |
Note:
- Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
- SXA-001T-P0.6L is low-insertion force type contact, for easier insertion/withdrawal, which would be less resistant to the vibration. The crimp height is different from the standard contact.
- RoHS2 compliance
Header
Top entry side

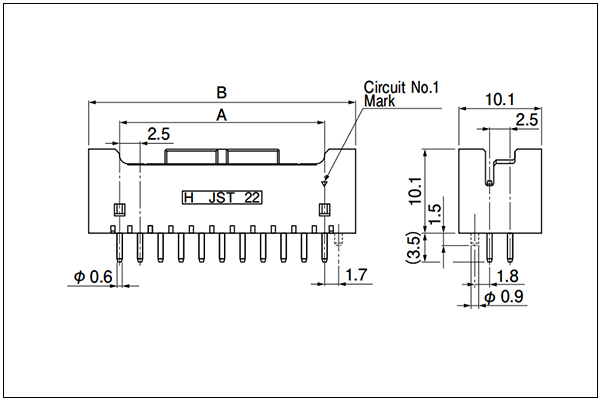

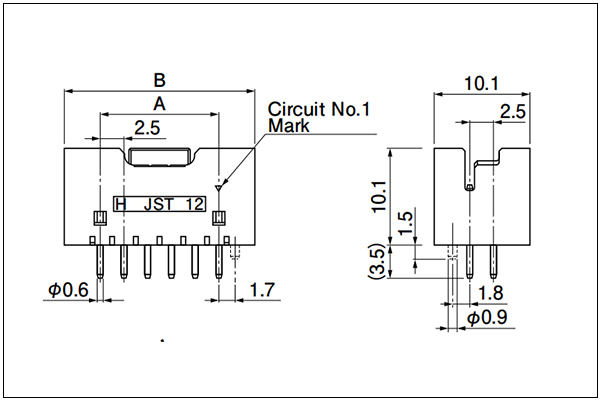

8 to 16 Circuits
18 to 40 Circuits
Side entry side

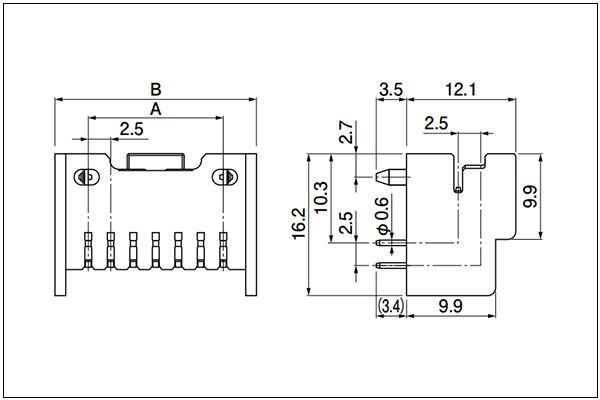

8 to 16 Circuits

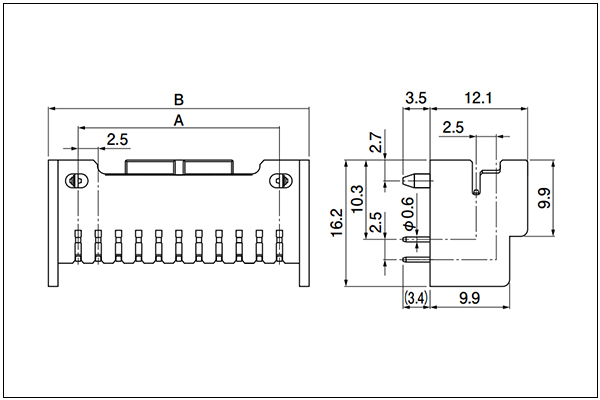

18, 20, 26 Circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/box | ||||
| Top entry type | Side entry type | A | B | Top entry type | Side entry type | ||
| Without a bosS | With a boss | ||||||
| 8 | B08B-XADSS-N | B08B-XADSS-N-A | S08B-XADSS-N | 7.5 | 15.0 | 200 | 270 |
| 10 | B10B-XADSS-N | B10B-XADSS-N-A | S10B-XADSS-N | 10.0 | 17.5 | 200 | 234 |
| 12 | B12B-XADSS-N | B12B-XADSS-N-A | S12B-XADSS-N | 12.5 | 20.0 | 200 | 198 |
| 14 | B14B-XADSS-N | B14B-XADSS-N-A | S14B-XADSS-N | 15.0 | 22.5 | 150 | 180 |
| 16 | B16B-XADSS-N | B16B-XADSS-N-A | S16B-XADSS-N | 17.5 | 25.0 | 150 | 162 |
| 18 | B18B-XADSS-N | B18B-XADSS-N-A | S18B-XADSS-N | 20.0 | 27.5 | 150 | 144 |
| 20 | B20B-XADSS-N | B20B-XADSS-N-A | S20B-XADSS-N | 22.5 | 30.0 | 100 | 126 |
| 22 | B22B-XADSS-N | B22B-XADSS-N-A | 一 | 25.0 | 32.5 | 100 | 一 |
| 24 | B24B-XADSS-N | B24B-XADSS-N-A | 一 | 27.5 | 35.0 | 100 | 一 |
| 26 | B26B-XADSS-N | B26B-XADSS-N-A | S26B-XADSS-N | 30.0 | 37.5 | 100 | 108 |
| 28 | B28B-XADSS-N | B28B-XADSS-N-A | 一 | 32.5 | 40.0 | 100 | 一 |
| 30 | B30B-XADSS-N | B30B-XADSS-N-A | 一 | 35.0 | 42.5 | 50 | 一 |
| 32 | B32B-XADSS-N | B32B-XADSS-N-A | 一 | 37.5 | 45.0 | 50 | 一 |
| 34 | B34B-XADSS-N | B34B-XADSS-N-A | 一 | 40.0 | 47.5 | 50 | 一 |
| 36 | B36B-XADSS-N | B36B-XADSS-N-A | 一 | 42.5 | 50.0 | 50 | 一 |
| 40 | B40B-XADSS-N | B40B-XADSS-N-A | 一 | 47.5 | 55.0 | 50 | 一 |
Material and Finish
- Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural (white)

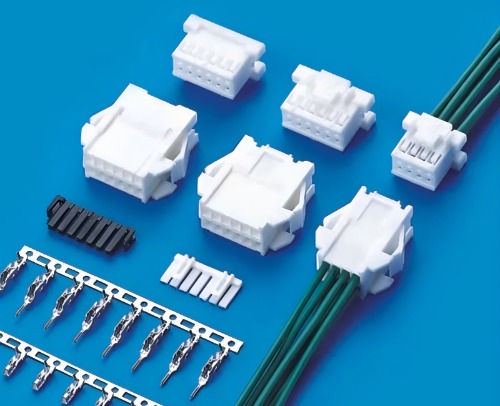

Support Custom Wiring Harness Assembly
- Connector: 8 - 40pin
- Wire gauge: 20 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
