JST XAD Connector, Wire to Wire, Custom Wire Assembly

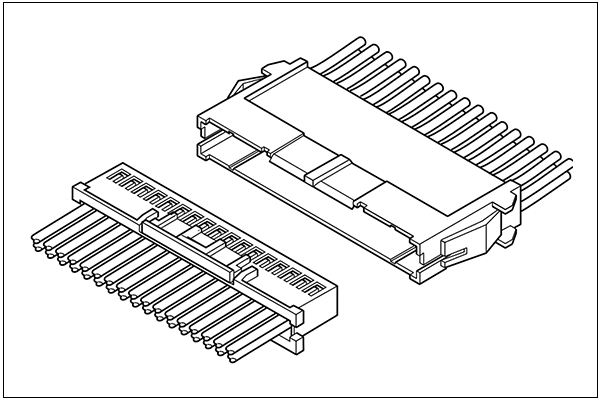

JST XAD Connector, Wire to Wire Type

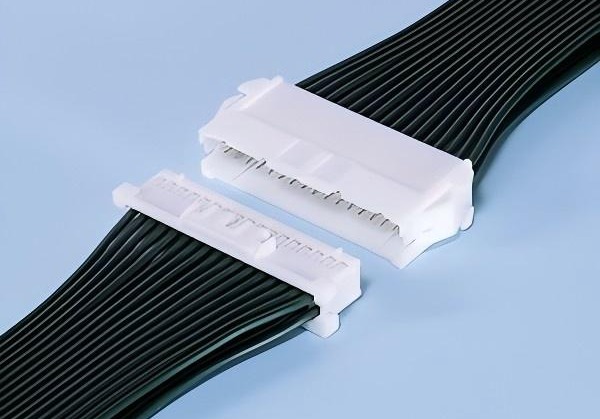

The JST XAD Wire-to-Wire Connector is a versatile and reliable dual-row connector system designed for seamless integration with XAD connectors used on printed circuit boards (wire side). Engineered for efficiency, it features an inner-type contact lance that ensures a secure and stable electrical connection. The panel-mountable design provides flexibility in installation, making it suitable for a variety of applications requiring robust and precise connectivity. Additionally, its secure locking structure enhances durability and prevents accidental disconnection, offering peace of mind in demanding environments. This connector is an excellent choice for applications requiring dependable and efficient wire-to-wire connections.
Specifications
- Connector type: Disconnectable Crimp style wire-to-wire
- Connector pitch: 2.5mm
- Current rating: 3 A AC/DC (AWG #20)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #28 to #20

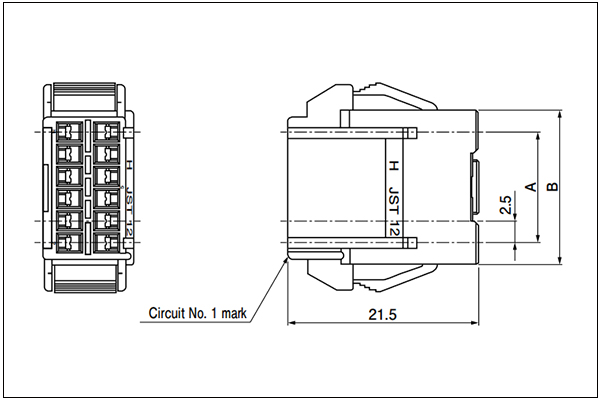

Receptacle housing (for pin contact)

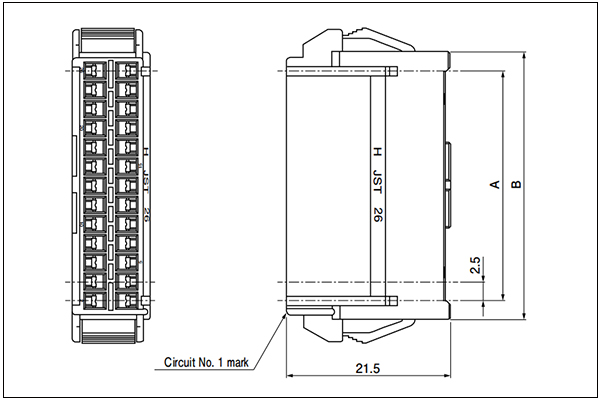

Incompatible with retainer
8 to 16 Circuits
18 to 40 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |||
| A | B | C | D | |||
| 8 | XADR-08V | 7.5 | 12.5 | 12.9 | 16.2 | 1000 |
| 10 | XADR-10V | 10.0 | 15.0 | 15.4 | 18.7 | 500 |
| 12 | XADR-12V | 12.5 | 17.5 | 17.9 | 21.2 | 500 |
| 14 | XADR-14V | 15.0 | 20.0 | 20.4 | 23.7 | 500 |
| 16 | XADR-16V | 17.5 | 22.5 | 22.9 | 26.2 | 300 |
| 18 | XADR-18V | 20.0 | 25.0 | 25.4 | 28.7 | 300 |
| 20 | XADR-20V | 22.5 | 27.5 | 27.9 | 31.2 | 300 |
| 22 | XADR-22V | 25.0 | 30.0 | 30.4 | 33.7 | 300 |
| 24 | XADR-24V | 27.5 | 32.5 | 32.9 | 36.2 | 300 |
| 26 | XADR-26V | 30.0 | 35.0 | 35.4 | 38.7 | 300 |
| 28 | XADR-28V | 32.5 | 37.5 | 37.9 | 41.2 | 300 |
| 30 | XADR-30V | 35.0 | 40.0 | 40.4 | 43.7 | 300 |
| 32 | XADR-32V | 37.5 | 42.5 | 42.9 | 46.2 | 300 |
| 34 | XADR-34V | 40.0 | 45.0 | 45.4 | 48.7 | 200 |
| 36 | XADR-36V | 42.5 | 47.5 | 47.9 | 51.2 | 200 |
| 40 | XADR-40V | 47.5 | 52.5 | 52.9 | 56.2 | 200 |
Material and Finish: PA 66, UL94V-0, natural (white)

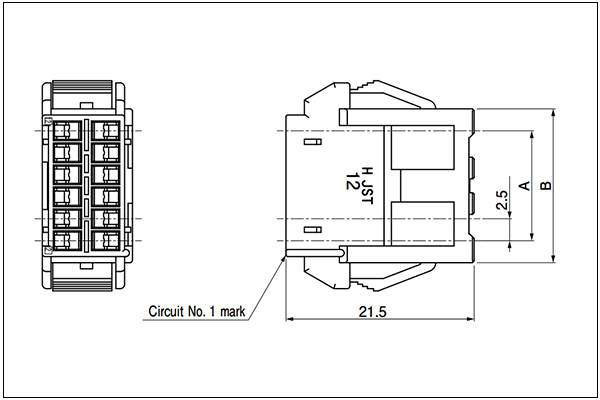

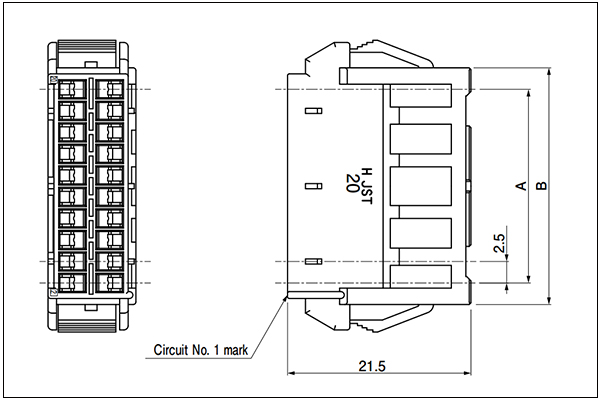

Compatible with retainer
8 to 16 Circuits
18 to 40 Circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |||
| A | B | C | D | |||
| 8 | XADRR-08V | 7.5 | 12.5 | 12.9 | 16.2 | 1000 |
| 10 | XADRR-10V | 10 | 15 | 15.4 | 18.7 | 500 |
| 12 | XADRR-12V | 12.5 | 17.5 | 17.9 | 21.2 | 500 |
| 16 | XADRR-16V | 17.5 | 22.5 | 22.9 | 26.2 | 300 |
| 18 | XADRR-18V | 20 | 25 | 25.4 | 28.7 | 300 |
| 20 | XADRR-20V | 22.5 | 27.5 | 27.9 | 31.2 | 300 |
| 22 | XADRR-22V | 25 | 30 | 30.4 | 33.7 | 300 |
| 24 | XADRR-24V | 27.5 | 32.5 | 32.9 | 36.2 | 300 |
Note:
- Material and Finish: PA 66, UL94V-0, natural (white)
- C and D dimensions: Panel layout dimensions
- RoHS2 compliance
- Unlisted in UL/CSA/TÜV.

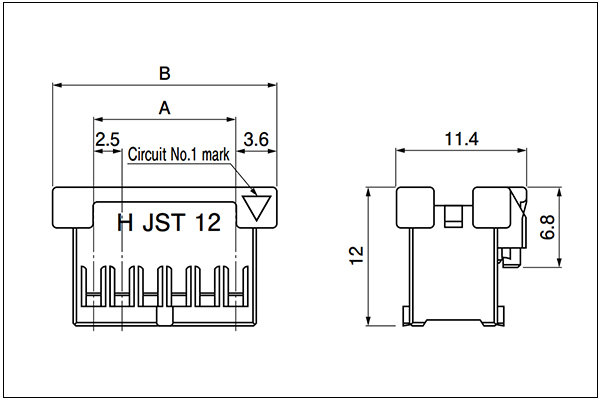

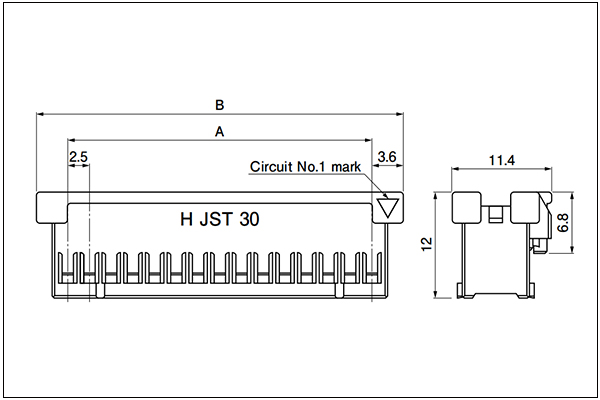

Plug housing (for socket contact)
8 to 16 Circuits
18 to 40 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 8 | XADRP-08V | 7.5 | 14.7 | 1000 |
| 10 | XADRP-10V | 10.0 | 17.2 | 1000 |
| 12 | XADRP-12V | 12.5 | 19.7 | 1000 |
| 14 | XADRP-14V | 15.0 | 22.2 | 1000 |
| 16 | XADRP-16V | 17.5 | 24.7 | 1000 |
| 18 | XADRP-18V | 20.0 | 27.2 | 1000 |
| 20 | XADRP-20V | 22.5 | 29.7 | 500 |
| 22 | XADRP-22V | 25.0 | 32.2 | 500 |
| 24 | XADRP-24V | 27.5 | 34.7 | 500 |
| 26 | XADRP-26V | 30.0 | 37.2 | 500 |
| 28 | XADRP-28V | 32.5 | 39.7 | 500 |
| 30 | XADRP-30V | 35.0 | 42.2 | 500 |
| 32 | XADRP-32V | 37.5 | 44.7 | 500 |
| 34 | XADRP-34V | 40.0 | 47.2 | 500 |
| 36 | XADRP-36V | 42.5 | 49.7 | 250 |
| 40 | XADRP-40V | 47.5 | 54.7 | 250 |
Material and Finish: PA 66, UL94V-0, natural (white)
Terminal

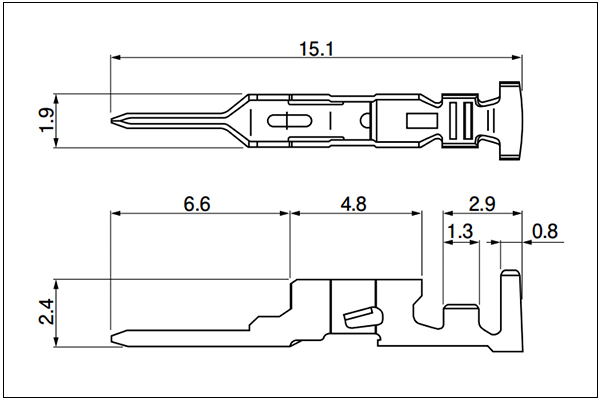

Pin Terminal

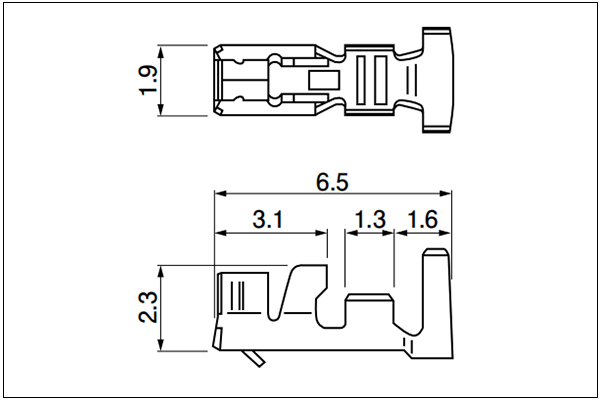

Socket Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |||
| Pin contact | Socket contact | mm² | AWG# | Pin contact | Socket contact | |
| SXAM-001T-P0.6 | SXA-001T-P0.6 | 0.08～0.33 | 28~22 | 0.8~1.9 | 7000 | 8000 |
| SXAM-01T-P0.6 | SXA-01T-P0.6 | 0.22~0.5 | 24~20 | 1.5~1.9 | 7000 | 8000 |
| 一 | SXA-001T-P0.6L | 0.13～0.33 | 26~22 | 1.3~1.7 | — | 8000 |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
Retainer

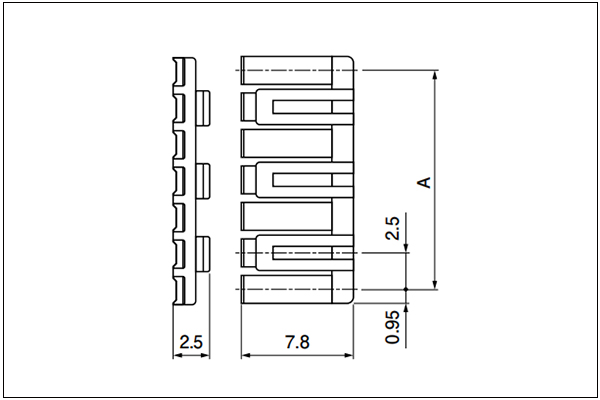

For receptacle housing
| No.of circuits | Model No. | A(mm) | Q'ty/bag | Ref.: Applicable housing model No. |
| 4 | XMS-04V | 7.5 | 1000 | XADRR-08V |
| 5 | XMS-05V | 10 | 1000 | XADRR-10V |
| 6 | XMS-06V | 12.5 | 1000 | XADRR-12V |
| 8 | XMS-08V | 17.5 | 1000 | XADRR-16V |
| 9 | XMS-09V | 20 | 1000 | XADRR-18V |
| 10 | XMS-10V | 22.5 | 1000 | XADRR-20V |
| 11 | XMS-11V | 25 | 1000 | XADRR-22V |
| 12 | XMS-12V | 27.5 | 1000 | XADRR-24V |

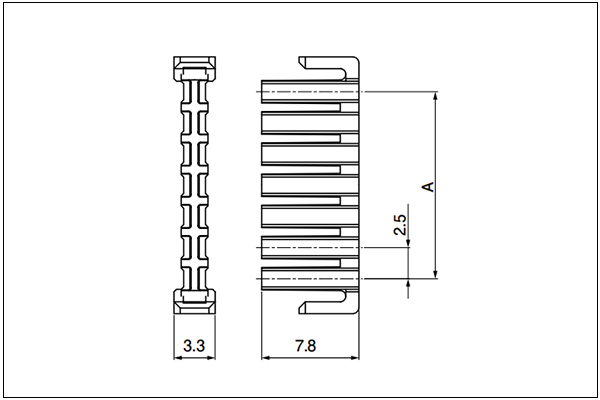

For plug housing
| No.of circuits | Model No. | A(mm) | Q'ty/bag | Ref:Applicable housing model No. |
| 8 | XADS-08V-K | 7.5 | 1000 | XADRP-08V |
| 10 | XADS-10V-K | 10 | 1000 | XADRP-10V |
| 12 | XADS-12V-K | 12.5 | 1000 | XADRP-12V |
| 14 | XADS-14V-K | 15 | 1000 | XADRP-14V |
| 16 | XADS-16V-K | 17.5 | 1000 | XADRP-16V |
| 18 | XADS-18V-K | 20 | 1000 | XADRP-18V |
| 20 | XADS-20V-K | 22.5 | 1000 | XADRP-20V |
| 22 | XADS-22V-K | 25 | 1000 | XADRP-22V |
| 24 | XADS-24V-K | 27.5 | 1000 | XADRP-24V |
| 26 | XADS-26V-K | 30 | 1000 | XADRP-26V |
| 28 | XADS-28V-K | 32.5 | 1000 | XADRP-28V |
| 30 | XADS-30V-K | 35 | 1000 | XADRP-30V |
| 32 | XADS-32V-K | 37.5 | 1000 | XADRP-32V |
| 34 | XADS-34V-K | 40 | 1000 | XADRP-34V |
| 36 | XADS-36V-K | 42.5 | 1000 | XADRP-36V |
| 40 | XADS-40V-K | 47.5 | 1000 | XADRP-40V |
Support Custom Wiring Harness Assembly
- Connector: 8 - 40pin
- Wire gauge: 28 - 20AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
