JST XAG Connector, Wire to Board Type

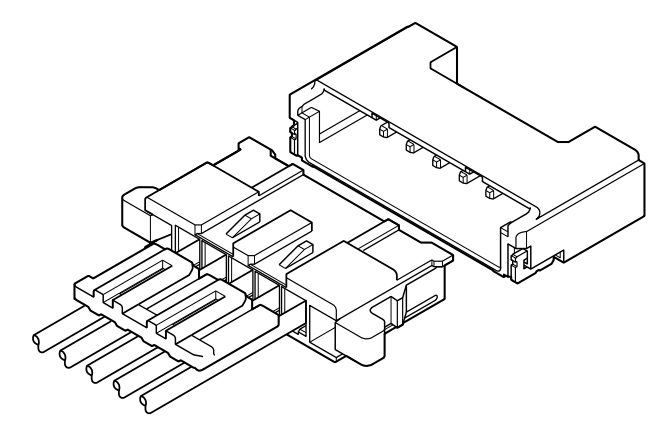

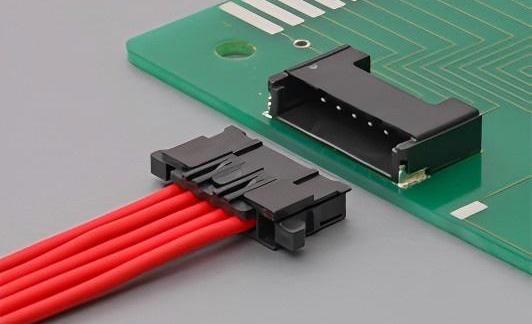

The JST XAG Connector is a high-performance, 2.5 mm pitch, crimp-style wire-to-wire connector designed to meet the demands of modern electronic applications. Engineered with a secure locking mechanism, it ensures stable and reliable connections even in environments with vibration or movement. Its low-profile design makes it ideal for applications where space-saving is critical, while its compatibility with retainer mountable configurations enhances assembly flexibility and safety. The XAG series combines robust performance with user-friendly features, offering a practical solution for various industrial, automotive, and consumer electronics needs.

Specifications

• Connector type: Wire to Board, Disconnectable Crimp style
• Connector pitch: 2.5mm
• Current rating: 3 A AC/DC (AWG #20)
• Voltage rating: 250 V AC/DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/10 mΩ max, After environmental tests/20 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Withstanding voltage: 1,000 VAC/minute
• Applicable wire: AWG #24 to #20

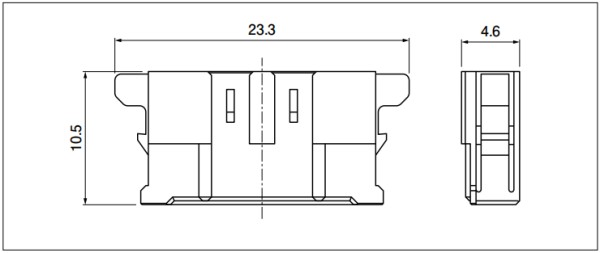

Housing

Specs:

• No. of Circuits: 5
• Model No.: XAGRP-051-K
• Q'ty/reel: 2000pcs
• Materials and Finish: PBT, UL94V-0, Black
• RoHS2 Compliance

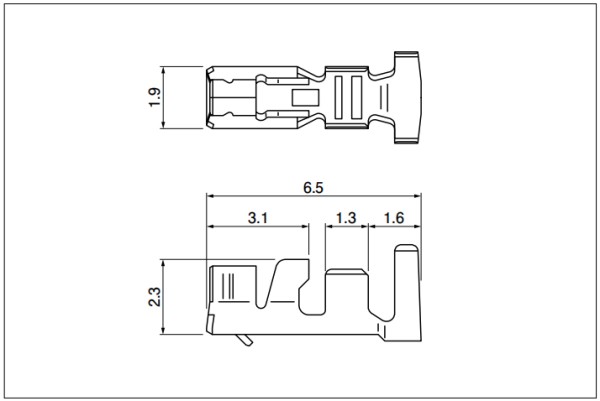

Terminal

Spcs:

• Model No.: SXA-01T-P0.6
• Applicable Wire: 0.22 - 0.5mm² (24 - 20AWG)
• Insolations O.D. (mm): 1.5 - 1.9
• Q'ty/reel: 8000pcs
• Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
• RoHS2 compliance

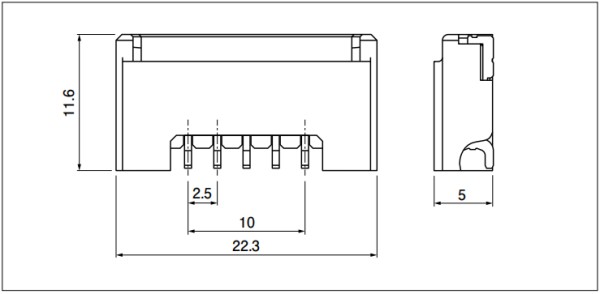

Header

Specs:

• No. of Circuits: 5
• Model No.: SM05B-XAGKS-BN-TB
• Q'ty/reel: 1000pcs
• Materials and Finish:
  • Pin: Copper alloy, copper-undercoated, tin-plated(reflow treatment)
  • Wafer: PA 6T, UL94V-0, black
  • Reinforcing tab: Copper alloy, copper-undercoated, tin-plated(reflow treatment)
• RoHS2 Compliance
• This product displays (LF)(SN) on a label.
• This products listed above are supplied on embossed-tape.

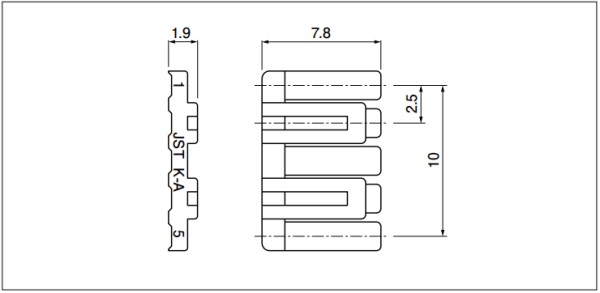

Retainer

Specs:

• No. of Circuits: 5
• Model No.: XAGS-053-K
• Q'ty/reel: 5000pcs
• Materials and Finish: PA 66, UL94V-0, Black
• RoHS2 Compliance

Support Custom Wiring Harness Assembly

• Connector: 5pin
• Wire gauge: 20 - 24AWG
• Wire length: as long as your needs
• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
• Custom type:
  • wire to wire
  • wire to tinned end
  • wire to open end
  • wire to any suitable connectors
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness
