JST XH Connector, High Box Type, Custom Wire Assembly Manufacturer
JST XH Connector, High Box Type

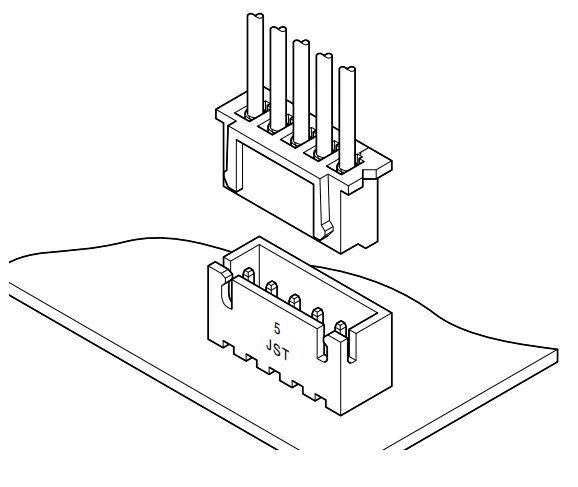

The JST XH Connector High Box type is designed for applications requiring a compact yet robust connection solution. Featuring a mounting height of 17.0 mm and a slim 5.8 mm thickness, this connector provides a reliable interface for 2.5 mm pitch configurations. It is specifically engineered for compatibility with resin-coated ("potted") printed circuit boards, ensuring secure connections even in challenging environments. The high box design enhances usability by facilitating precise alignment and easy handling. Additionally, its interchangeability feature allows seamless integration into a variety of systems, making it an ideal choice for diverse electronic applications requiring efficient and durable connectivity.
Specifications
- Connector type: Wire to Board, High Box Type, Disconnectable Crimp style
- Connector pitch: 2.5mm
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #30 to #22
- Applicable PC board thickness: 1.6 mm

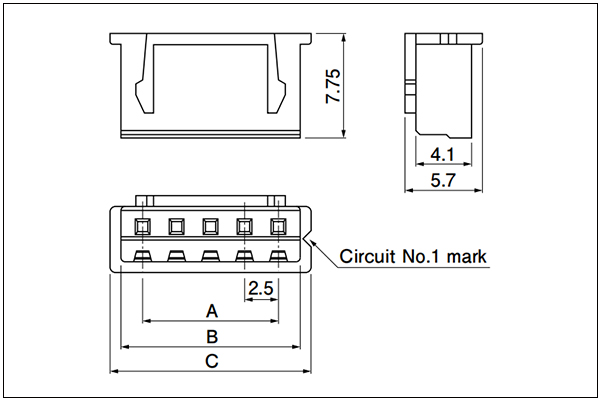

Housing
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | ||
| A | B | C | |||
| 2 | XHP-2 | 2.5 | 5.7 | 7.3 | 1000 |
| 3 | XHP-3 | 5.0 | 8.2 | 9.8 | 1000 |
| 4 | XHP-4 | 7.5 | 10.7 | 12.3 | 1000 |
| 5 | XHP-5 | 10.0 | 13.2 | 14.8 | 1000 |
| 6 | XHP-6 | 12.5 | 15.7 | 17.3 | 1000 |
| 7 | XHP-7 | 15.0 | 18.2 | 19.8 | 1000 |
| 8 | XHP-8 | 17.5 | 20.7 | 22.3 | 1000 |
| 9 | XHP-9 | 20.0 | 23.2 | 24.8 | 1000 |
| 10 | XHP-10 | 22.5 | 25.7 | 27.3 | 1000 |
Material and Finish: PA 6, UL94V-0, natural (white)

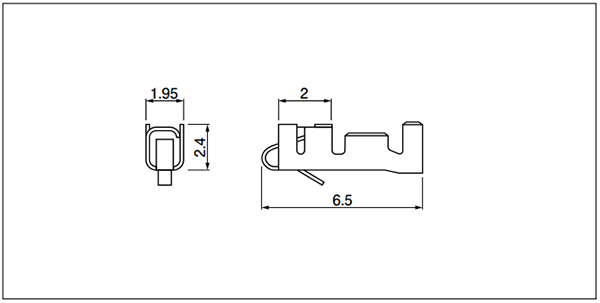

Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/ reel |
|
| mm² | AWG# | |||
| SXH-001T-P0.6 | 0.08 to 0.33 | 28 to 22 | 0.9 to 1.9 | 8000 |
| SXH-002T-P0.6 | 0.05 to 0.13 | 30 to 26 | 0.9 to 1.3 | |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)

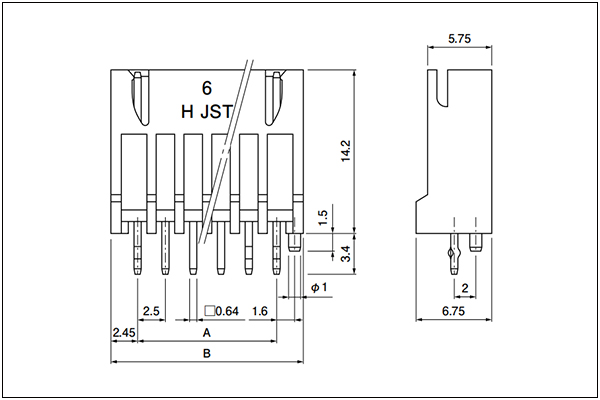

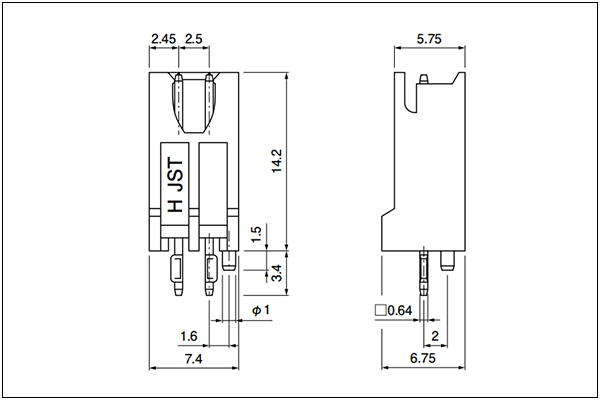

Header
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||
| 2 | BH2B-XH-2 | 2.5 | 7.4 | 700 |
| 3 | BH3B-XH-2 | 5.0 | 9.9 | 500 |
| 4 | BH4B-XH-2 | 7.5 | 12.4 | 300 |
| 5 | BH5B-XH-2 | 10.0 | 14.9 | 300 |
| 6 | BH6B-XH-2 | 12.5 | 17.4 | 250 |
| 7 | BH7B-XH-2 | 15.0 | 19.9 | 200 |
| 8 | BH8B-XH-2 | 17.5 | 22.4 | 150 |
| 9 | BH9B-XH-2 | 20.0 | 24.9 | 150 |
| 10 | BH10B-XH-2 | 22.5 | 27.4 | 150 |
Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural (ivory)

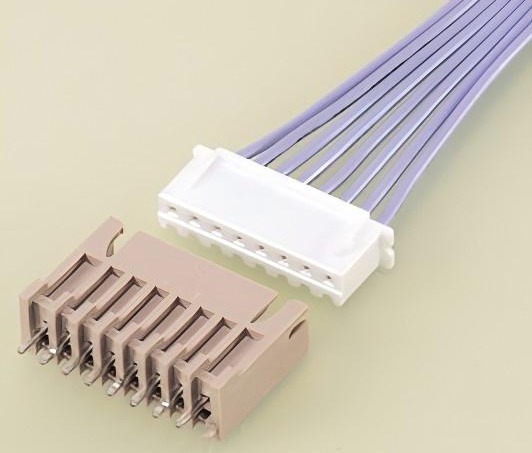

Support Custom Wiring Harness Assembly
- Connector: 2 - 10pin
- Wire gauge: 22 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
