JST XH connector pitch is 2.54mm or 2.5mm?
JST XH connector introduction
The XH connector was developed based on the high reliability and versatility of our NH series connectors. The connector is very small with a mounting height of 9.8 mm.
- Original folded beam contact
- Box-shaped shrouded header
- Header with a boss
- Interchangeability
- Conforming to the HA terminal
Specifications
- Current rating: 3 A AC/DC (AWG #22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to+85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/10 mΩ max. After environmental tests/ 20 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,000 VAC/minute
- Applicable wire: AWG #30 to #22
- Applicable PC board thickness: 1.6 mm
So, what series of JST connectors are 2.5mm pitch?
2.5mm Pitch Series connectors including: JST SM, EH, NH, XA, XAD, XH, SCN, RCY, HR, NR, XAF, JFA J2000, LEX, PXA, XAD, XAG, XM, XMA, XNI, DB, HM, THR, etc.
What series of JST connectors are 2.54mm pitch?
2.54mm Pitch Series connectors including: JST RA, RF, RE, AIT, ATLF, ATSS, HCH, HCM, etc.
Apart from JST connectors, what brand and connectors are 2.54mm (0.1inch)?
- Dupont 2.54 Series
- Molex KK 254 Series
- TE Connectivity AMP MTA-100 Series
- Samtec TSW and CES Series
- Sullins Connector Solutions PRPC Series
- Harwin M20 Series
- Amphenol BergStik and FCI BergCon Series
- Raspberry Pi GPIO Headers
- Arduino Headers
- Fujitsu FCN-361 Series
- Würth Elektronik WR-PHD Series
According to the JST official document display, the JST XH series connector pitch is 2.5mm. but when I surveyed Google Words that so many people search JST XH connector by using 2.54mm, why?
| Keyword | Avg. monthly searches |
| xh2 54 connector | 590 |
| jst xh 2.54 | 590 |
| jst xh2 54 | 480 |
| jst xh 2.54 mm | 210 |
| xh2 54 2p | 390 |
| xh 2.54 | 590 |
| jst 2.54 | 320 |
| xh2 54 4p | 170 |
| jst 2.54 mm 2 pin connector | 70 |
| xh 2.54 connector | 210 |
| jst 2.54 mm | 170 |
| xh2 54 2pin | 260 |
| jst xh 2.54 2 pin connector | 70 |
| xh2 54 5p | 70 |
| jst 2.54 mm pitch connector | 40 |
| jst 2.54 mm connector | 90 |
| xh 2.54 mm connector | 40 |
| 2 pin xh2 54 | 50 |
| 2.54 jst | 20 |
| 2.54 mm jst xh | 10 |
| 2.54 xh | 10 |
| 5 pin jst xh 2.54 mm | 10 |
| 5 pin jst xh2 54 | 10 |
| connector xh2 54 | 40 |
| jst 2.54 connector | 90 |
| jst connector 2.54 | 90 |
| jst connector 2.54 mm | 90 |
| jst ph 2.54 | 40 |
| jst xh 2 54 | 50 |
| jst xh 2.54 2 pin | 40 |
| jst xh 2.54 3 pin | 40 |
| jst xh 2.54 4 pin | 50 |
| jst xh 2.54 6 pin | 10 |
| jst xh 2.54 connector | 30 |
| jst xh 2.54 mm 2 pin | 10 |
| jst xh 2.54 mm 4 pin | 20 |
| jst xh2 54 connector | 50 |
| jst xh2 54mm | 30 |
| xh 2.54 2 pin | 50 |
| xh 2.54 2p | 30 |
| xh 2.54 mm | 90 |
| xh2 54 2 pin connector | 50 |
| xh2 54 2p connector | 40 |
| xh2 54 2p plug | 10 |
| xh2 54 3pin | 90 |
| xh2 54 4 pin | 110 |
| xh2 54 6 pin | 20 |
| xh2 54 6p | 70 |
| xh2 54 female | 30 |
| xh2 54 jst | 20 |
One reason is that people wanna find a 2.54mm pitch connector, but they don't really know which one is a 2.54mm pitch connector. Secondly, people often search for JST XH connectors, but are not aware that the XH series connectors have a 2.5mm pitch. The third reason is that the market does have a replacement connector similar to the XH connector, but it is a 2.54mm pitch type.
If you want to find a correct JST XH connector, then search JST's official website and download the specifications. You will get the correct info.

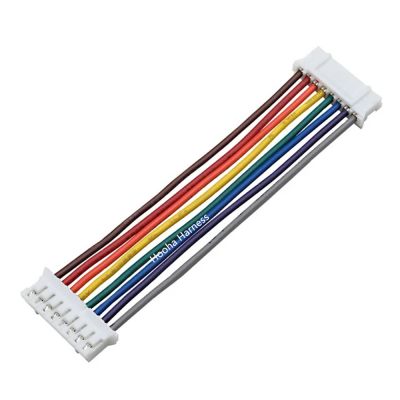

If you wanna buy JST XH connectors, why not buy connectors with wires? We provide wire and connector assembly services. Contact us to get a free quote.
JST XH 2 Pin Connector Wiring
JST XH 3 Pin Connector Wiring
JST XH 4 Pin Connector Wiring

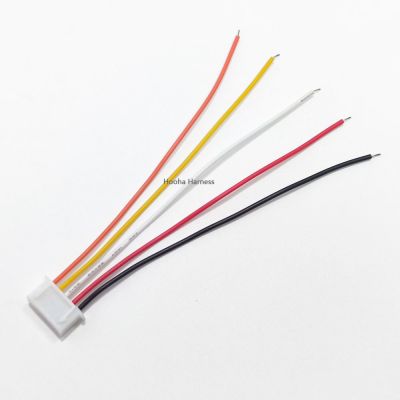

JST XH 5 Pin Connector Wiring

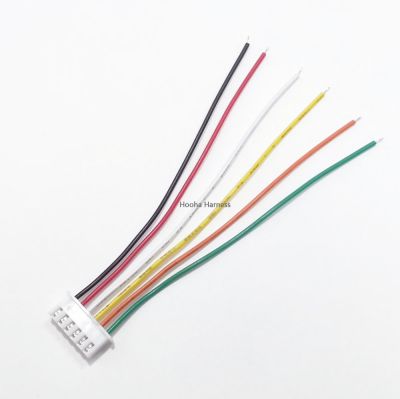

JST XH 6 Pin Connector Wiring

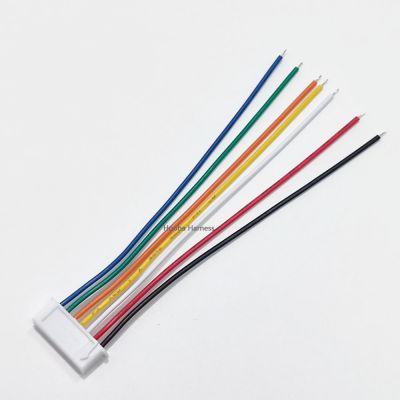

JST XH 7 Pin Connector Wiring

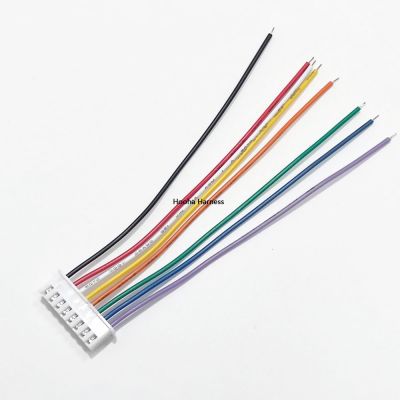

JST XH 8 Pin Connector Wiring

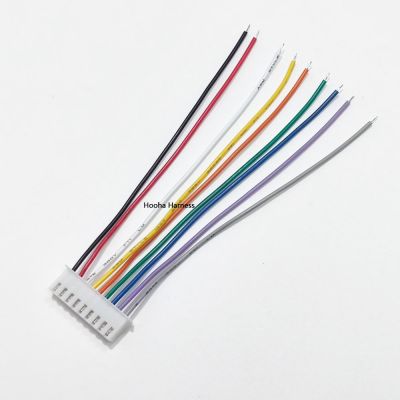

JST XH 9 Pin Connector Wiring

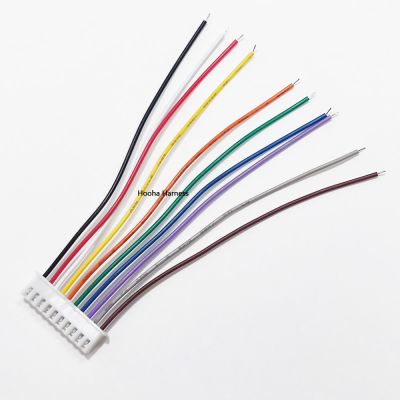

JST XH 10 Pin Connector Wiring

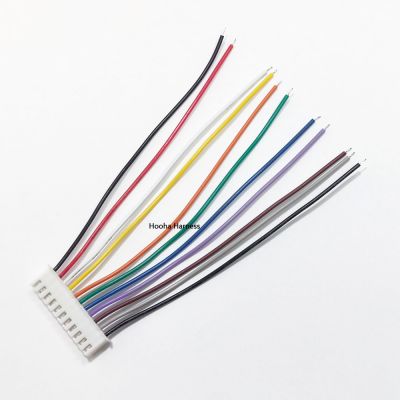

JST XH 11 Pin Connector Wiring

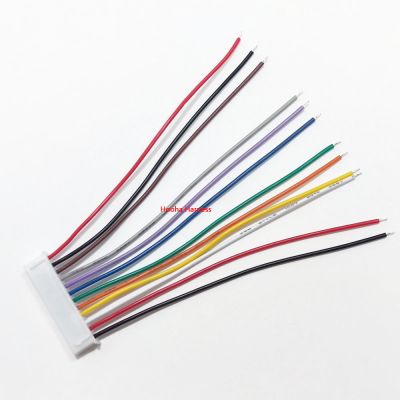

JST XH 12 Pin Connector Wiring
