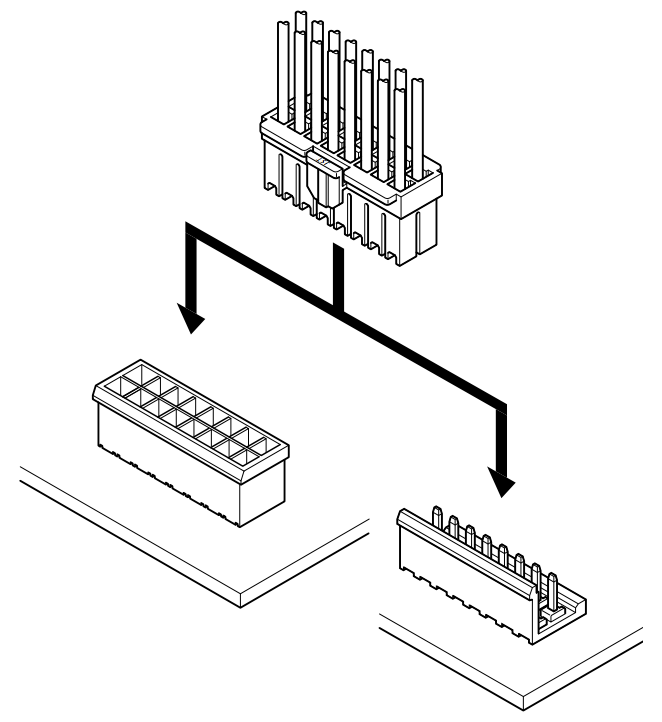

JST XL Connector, Wire to Board Type
The JST XL connectors are a robust and versatile solution, designed by leveraging the proven technology of JST's VH and SM connector series. Known for their reliability and durability, XL connectors are widely employed in various applications, including electric appliances, vending machines, and office automation equipment. These connectors feature a dependable housing construction that ensures secure connections, simplifying the assembly process with easy contact insertion. Their box-shaped contacts provide consistent and stable performance, while the availability of two connection types enhances their adaptability across diverse systems. These features make XL connectors an excellent choice for demanding industrial and commercial environments.
Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector pitch: 5.0mm
- Current rating: 10 A AC, DC (Refer to the table below.)
- Voltage rating: 150 V AC, DC
- Temperature range: -25℃ to +90℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 7 mΩ max, After environmental testing/ 10 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
Current unit: A
| No. of circuits | Wire size(AWG) | |||||
| #16 | #18 | #20 | #22 | #24 | #26 | |
| 2 | 10 | 6 | 5 | 4 | 3 | 3 |
| 3 | 9 | 5 | 4 | 3 | 3 | 2 |
| 4 | 9 | 5 | 4 | 3 | 3 | 2 |
| 8 | 6 | 4 | 3 | 3 | 2 | 2 |
| 12 | 6 | 4 | 3 | 3 | 2 | 2 |
| 16 | 5 | 3 | 2 | 2 | 1 | 1 |
Note:
- The rated current varies depending on the number of circuits and the size of the wire to be connected by crimping.
- Do not branch in parallel current which exceeds the rated current per circuit listed below. (Example: more than 10A in the case of a 2-circuit connector using AWG #16 wires.) If branched in parallel, current imbalance or other problems may develop.
Housing
2 Circuits
3 Circuits
4, 8, 12, 16 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | XLP-02V | 一 | 一 | 500 |
| 3 | XLP-03V | 一 | 一 | 500 |
| 4 | XLP-04V | 5 | 11.2 | 500 |
| 8 | XLP-08V | 15 | 21.2 | 500 |
| 12 | XLP-12V | 25 | 31.2 | 200 |
| 16 | XLP-16V | 35 | 41.2 | 200 |
Material: PA 66, UL94V-0, natural (white)
Terminal
| Model No. | Applicable wire | lnsulation O.D (mm) |
Q'ty/ reel |
|
| mm² | AWG# | |||
| SXF-01T-P0.7 | 0.13 to 0.5 | 26 to 20 | 1.3 to 2.7 | 3000 |
| SXF-41T-P0.7 | 0.5 to 1.25 | 20 to 16 | 1.9 to 3.1 | |
| 0.3×2 to 0.5×2 | 22×2 to 20×2 | 1.7×2 to 2.0x2 | ||
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)

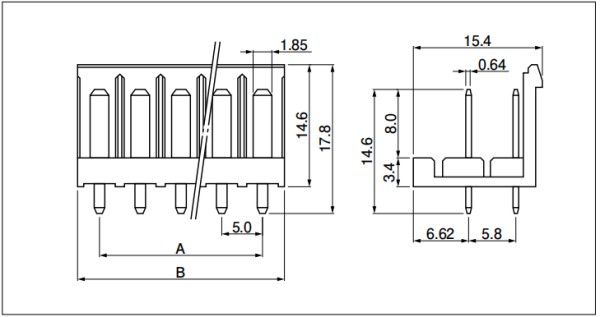

Header
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||
| 2 | B02P-XL | — | 5 | 250 |
| 4 | B04P-XL | 5 | 10 | 200 |
| 8 | B08P-XL | 15 | 20 | 100 |
| 12 | B12P-XL | 25 | 30 | 50 |
| 16 | B16P-XL | 35 | 40 | 50 |
Material and Finish
- Post: Brass, copper-undercoated, tin-plated (reflow treatment)
- Wafer: PA 66, UL94V-0, natural (white)
Header - HDB type
Top entry type

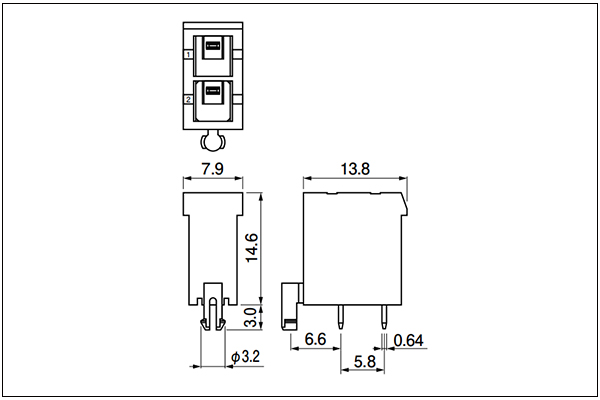

2 Circuits

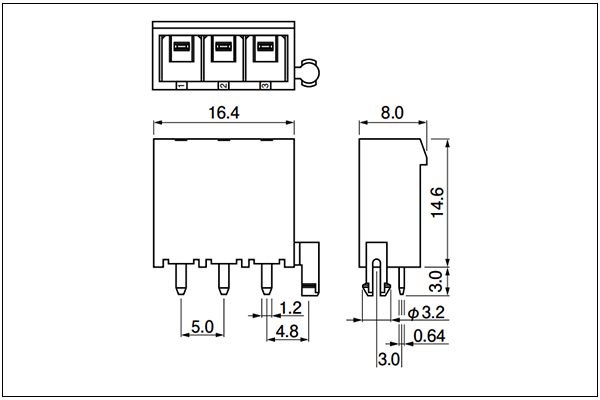

3 Circuits

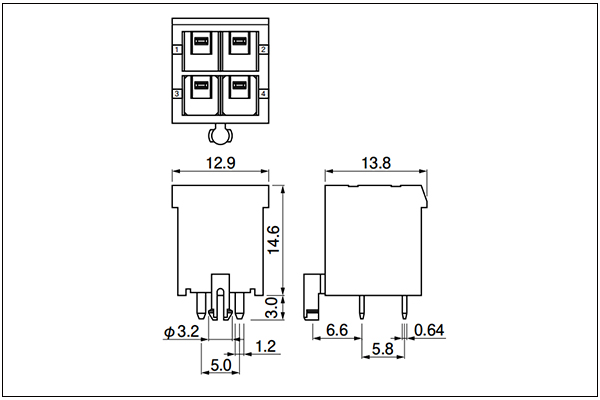

4 Circuits

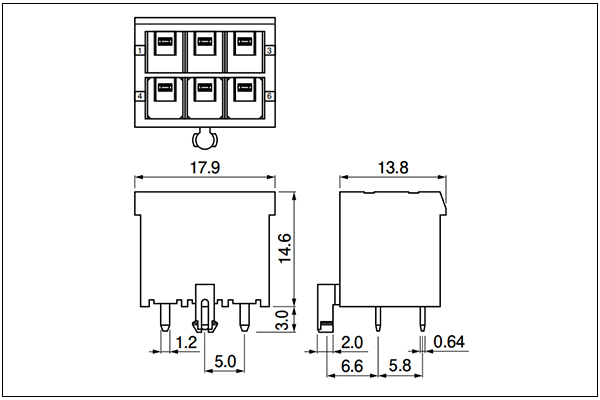

6 Circuits
Side entry type

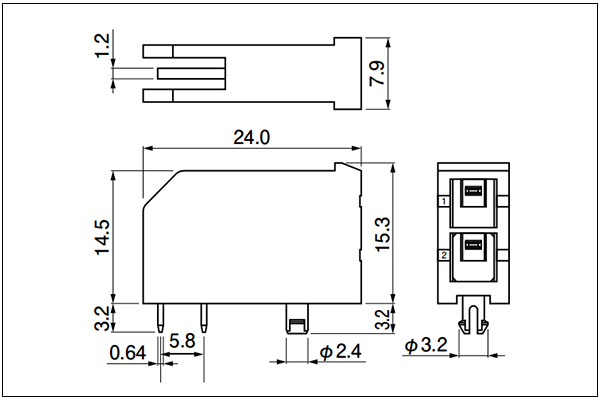

2 Circuits

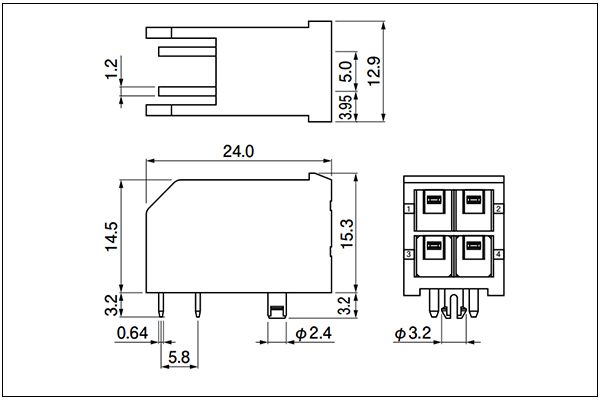

4 Circuits
| No. of circuits | Model No. | Q'ty/box | ||
| Top entry type | Side entry type | Top entry type | Side entry type | |
| 2 | B02P-XL-HDB | S02P-XL-HDB | 200 | 100 |
| 3 | B03P-XL-HDB | 一 | 200 | 一 |
| 4 | B04P-XL-HDB | S04P-XL-HDB | 200 | 100 |
| 6 | B06P-XL-HDB | 一 | 100 | 一 |
Material and Finish
- Post: Brass, copper-undercoated, tin-plated (reflow treatment)
- Wafer: PA 66, UL94V-0, natural (white)
Header - HDS type
Top entry type
Side entry type
| No. of circuits | Model No. | Dimensions(mm) | Q'ty | |||
| Top entry type | Side entry type | A | B | Top/bag | Side/box | |
| 2 | B02P-XL-HDS | 一 | 一 | 7.9 | 200 | 一 |
| 4 | B04P-XL-HDS | 一 | 5.0 | 12.9 | 200 | 一 |
| 8 | B08P-XL-HDS | S08P-XL-HDS | 15.0 | 22.9 | 100 | 40 |
| 12 | B12P-XL-HDS | S12P-XL-HDS | 25.0 | 32.9 | 50 | 30 |
| 16 | B16P-XL-HDS | S16P-XL-HDS | 35.0 | 42.9 | 40 | 20 |
Material and Finish
- Post: Brass, copper-undercoated, tin-plated (reflow treatment)
- Wafer: PA 66, UL94V-0, natural (white)

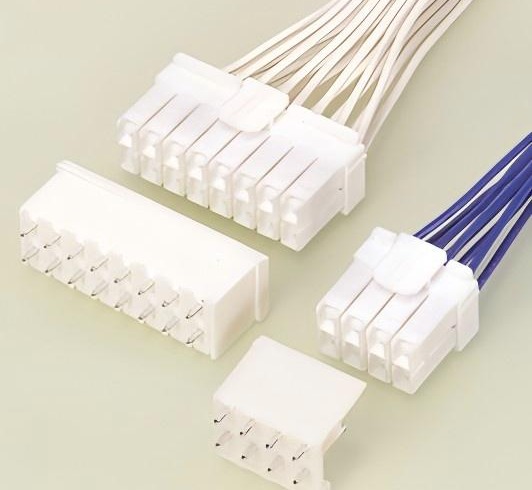

Support Custom Wiring Harness Assembly
- Connector: 2, 3, 4, 8, 12, 16pin
- Wire gauge: 16 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
