JST XL Connector, Wire to Wire, Custom Wire Assembly

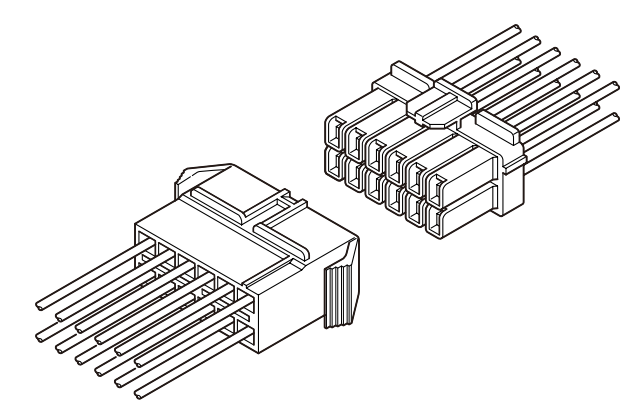

JST XL Connector, Wire to Wire Type
The JST XL wire-to-wire connectors are designed to provide exceptional reliability and efficiency in electrical and electronic applications. Commonly used in home appliances, vending machines, and office equipment, these connectors ensure stable performance and secure connections. Featuring a robust housing construction, the XL series guarantees durability and dependability even in demanding environments. The connectors are designed for easy contact insertion, simplifying assembly processes and reducing installation time. With box-shaped contacts, they enhance connection stability and minimize the risk of contact damage or misalignment. The XL series offers two types of connection options to cater to diverse wiring needs, making them a versatile choice for a wide range of applications.
Specifications
- Connector type: Wire to Wire, Disconnectable Crimp style
- Connector pitch: 5.0mm
- Current rating: 10A AC, DC max.
- Voltage rating: 300V AC, DC max.
- Temperature range: -25˚C to +90˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/7m Ω max, After environmental testing/10m Ω max.
- Insulation resistance: 1,000M Ω min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #26 to #16, 0.13 to 1.25mm²
- Applicable panel thickness: 0.7 to 2.4mm
Current unit: A
| Circuits | Wire size(AWG) | |||||
| #16 | #18 | #20 | #22 | #24 | #26 | |
| 2 | 10 | 6 | 5 | 4 | 3 | 3 |
| 4 | 9 | 5 | 4 | 3 | 3 | 2 |
| 8 | 6 | 4 | 3 | 3 | 2 | 2 |
| 12 | 6 | 4 | 3 | 3 | 2 | 2 |
| 16 | 5 | 3 | 2 | 2 | 1 | 1 |
Note:
- The current rating varies depending on the number of circuits and the wire size used in each connector.
- The table above lists the current rating as a function of the number of circuits and wire size.
Housing
XLP-02V

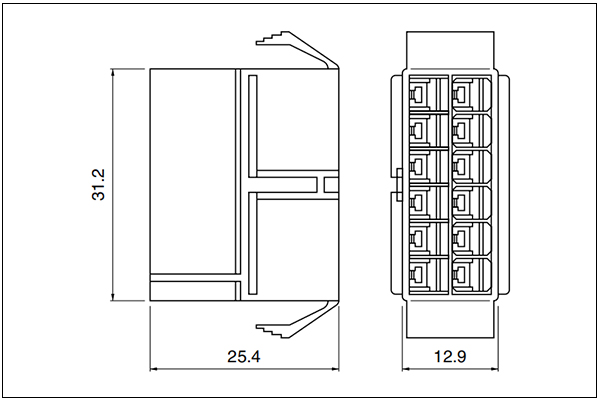

XLR-02V
XLP-04V
XLR-04V
XLP-08V
XLR-08V
XLP-12V
XLR-12V

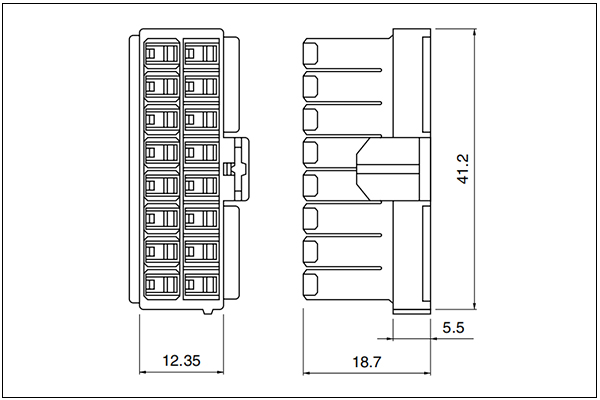

XLP-16V
XLR-16V
Terminal
Male Terminal
Female Terminal
| Model No. | Applicable wire | Insulation O.D (mm) | Q'ty /reel | ||
| Pin contact | Socket contact | mm² | AWG# | ||
| SYM-01T-P0.7 | SXF-01T-P0.7 | 0.13～0.5 | 26~20 | 1.3~2.7 | Pin contact SYM-01T-P0.7: 6000 SYM-41T-P0.7: 4000 Socket contact: 3000 |
| SYM-41T-P0.7 | SXF-41T-P0.7 | 0.5～1.25 | 20~16 | 1.9~3.1 | |
| 0.3+0.3 ~ 0.5+0.5 | 22+22 ~ 20+20 | 1.7+1.7 ~ 2.0+2.0 | |||
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)

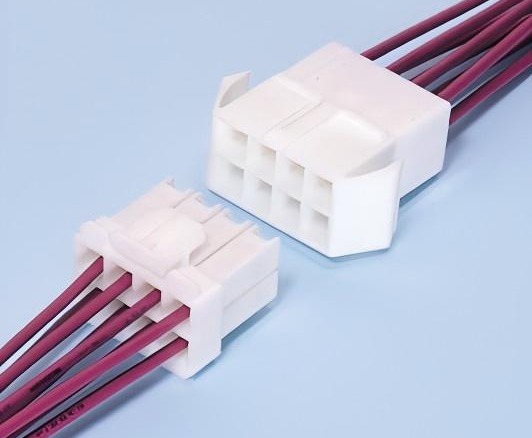

Support Custom Wiring Harness Assembly
- Connector: 2, 4, 8, 12, 16pin
- Wire gauge: 16 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
