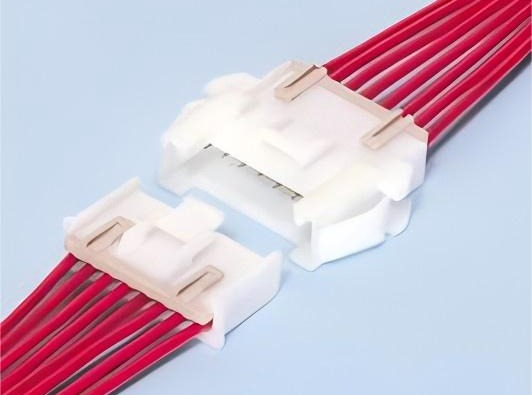

JST XM Connector, Wire to Wire, Custom Wire Assembly

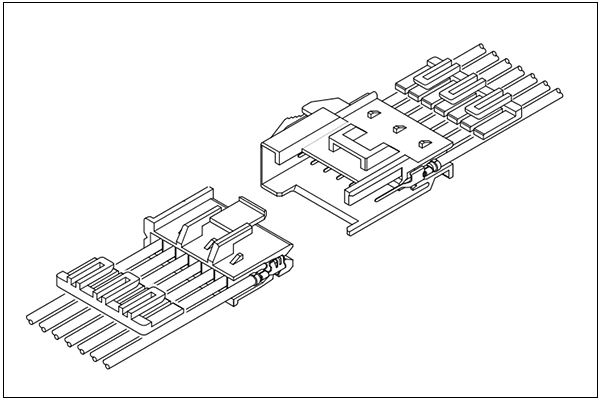

JST XM Connector, Wire to Wire Type
The JST XM Connector series is designed with enhanced features to ensure secure and reliable connections for a wide range of applications. The connectors include a retainer mechanism that offers additional protection against non-insertion or accidental disconnection, providing extra safety and stability. Key design elements, such as the inner-housing lock, secondary retainers, and housing lance, work together to secure the terminals firmly in place. These connectors are versatile, allowing easy mounting on various panel types, making them suitable for diverse installation requirements. Additionally, the contacts are engineered to insert smoothly into the housing without colliding with internal obstacles, ensuring quick and efficient assembly.
Specifications
- Connector type: Crimp style wire-to-wire
- Connector: 2.5mm
- Current rating: 3 A AC/DC
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #28 to #20, 0.08 to 0.50 mm²
- Applicable panel thickness: 0.5 to 1.8 mm

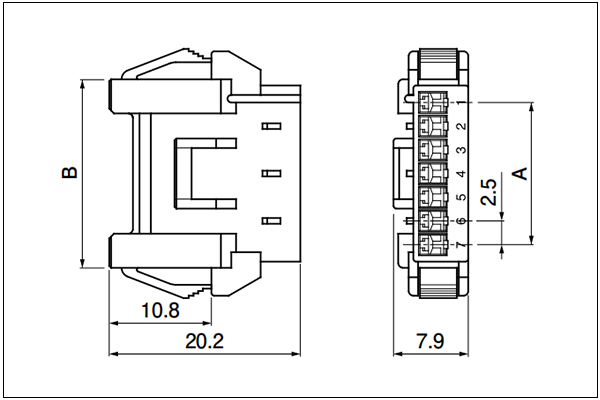

Receptacle housing (for Pin contact)
2 to 12 Circuits

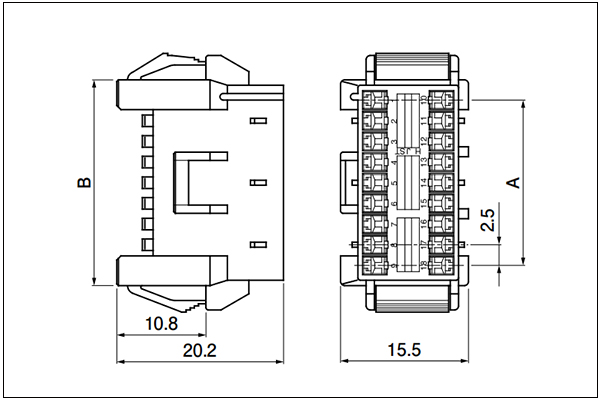

18 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | XMR-02V | 2.5 | 8.9 | 1000 |
| 3 | XMR-03V | 5 | 9.9 | 1000 |
| 4 | XMR-04V | 7.5 | 12.4 | 500 |
| 5 | XMR-05V | 10 | 14.9 | 500 |
| 6 | XMR-06V | 12.5 | 17.4 | 500 |
| 7 | XMR-07V | 15 | 19.9 | 500 |
| 8 | XMR-08V | 17.5 | 22.4 | 500 |
| 9 | XMR-09V | 20 | 24.9 | 500 |
| 10 | XMR-10V | 22.5 | 27.4 | 500 |
| 11 | XMR-11V | 25 | 29.9 | 500 |
| 12 | XMR-12V | 27.5 | 32.4 | 500 |
| 18 | XMR-18V | 20 | 24.9 | 500 |
Note:
- Material and Finish: PA 66, UL94V-0
- Receptacle housings without panel lock device are also available for 2, 3, 4, 6, 7, 8 and 9 circuits.
- RoHS2 compliance

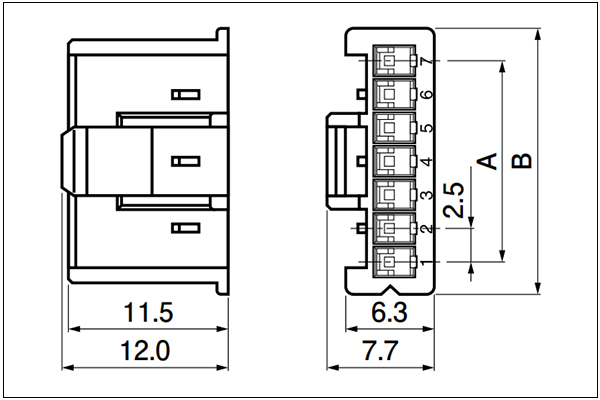

Plug housing (for Socket contact)
2 to 12 Circuits

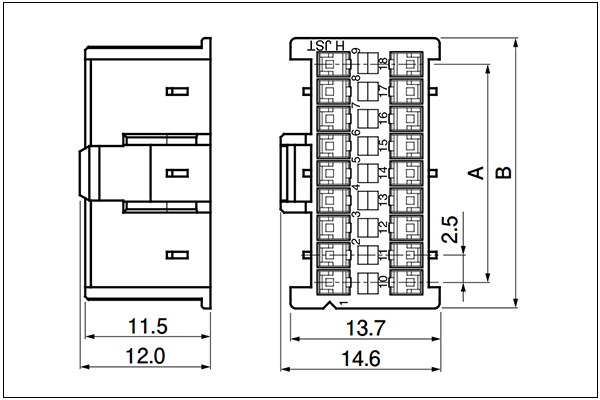

18 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | XMP-02V | 2.5 | 8.8 | 1000 |
| 3 | XMP-03V | 5.0 | 9.8 | 1000 |
| 4 | XMP-04V | 7.5 | 12.3 | 1000 |
| 5 | XMP-05V | 10.0 | 14.8 | 500 |
| 6 | XMP-06V | 12.5 | 17.3 | 500 |
| 7 | XMP-07V | 15.0 | 19.8 | 500 |
| 8 | XMP-08V | 17.5 | 22.3 | 500 |
| 9 | XMP-09V | 20.0 | 24.8 | 500 |
| 10 | XMP-10V | 22.5 | 27.3 | 500 |
| 11 | XMP-11V | 25.0 | 29.8 | 500 |
| 12 | XMP-12V | 27.5 | 32.3 | 500 |
| 13 | XMP-18V | 20.0 | 24.8 | 500 |
Material and Finish: PA 66, UL94V-0

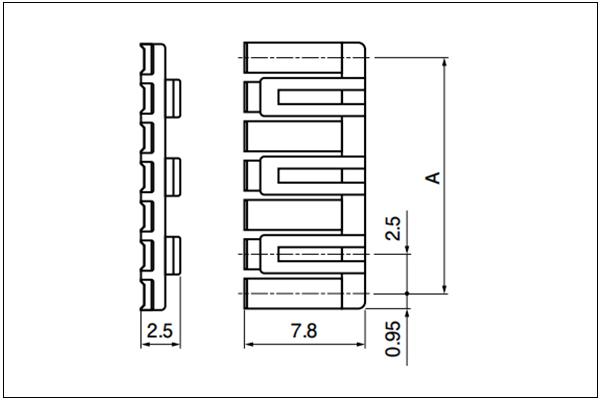

Retainer
| No.of circuits | Model No. | Dimensions A(mm) | Q'ty/bag |
| 2 | XMS-02V | 2.5 | 1000 |
| 3 | XMS-03V | 5 | 1000 |
| 4 | XMS-04V | 7.5 | 1000 |
| 5 | XMS-05V | 10 | 1000 |
| 6 | XMS-06V | 12.5 | 1000 |
| 7 | XMS-07V | 15 | 1000 |
| 8 | XMS-08V | 17.5 | 1000 |
| 9 ·18 | XMS-09V | 20 | 1000 |
| 10 | XMS-10V | 22.5 | 1000 |
| 11 | XMS-11V | 25 | 1000 |
| 12 | XMS-12V | 27.5 | 1000 |
Note:
- Material and Finish: Glass-filled PA 66, UL94V-0
- Commonly used for 9-circuit and 18-circuit housings.
- RoHS2 compliance
Terminal

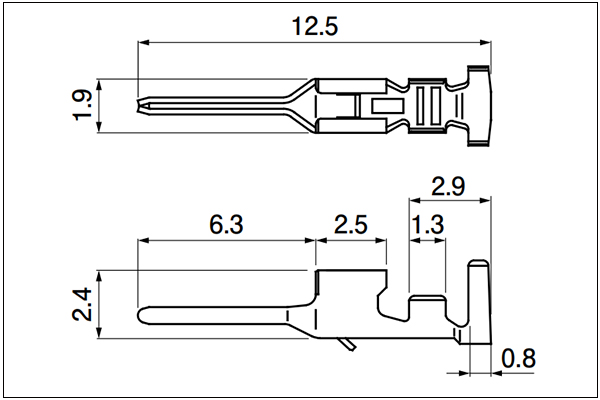

Pin Terminal

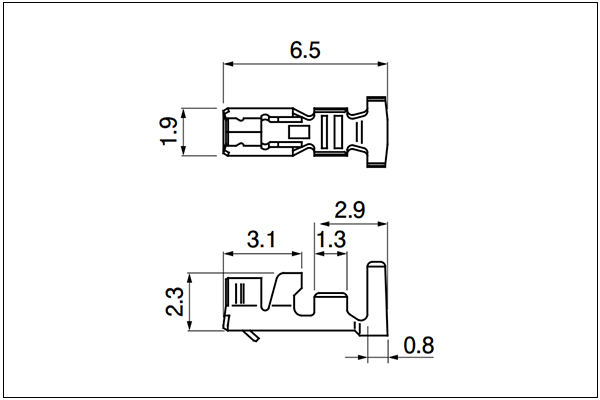

Socket Terminal
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |||
| Pin contact | Socket contact | mm2 | AWG# | Pin contact | Socket contact | |
| SXM-001T-P0.6 | SXA-001T-P0.6 | 0.08～0.33 | 28~22 | 0.8~1.9 | 7000 | 8000 |
| *SXM-01T-P0.6 | SXA-01T-P0.6 | 0.22～0.50 | 24～20 | 1.5~1.9 | 7000 | 8000 |
| 一 | SXA-001T-P0.6L | 0.13～0.33 | 26~22 | 1.3~1.9 | — | 8000 |
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)
Support Custom Wiring Harness Assembly
- Connector: 2 - 12, and 18pin
- Wire gauge: 20 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
