JST XM Connector, Wire to Board, Custom Wire Assembly

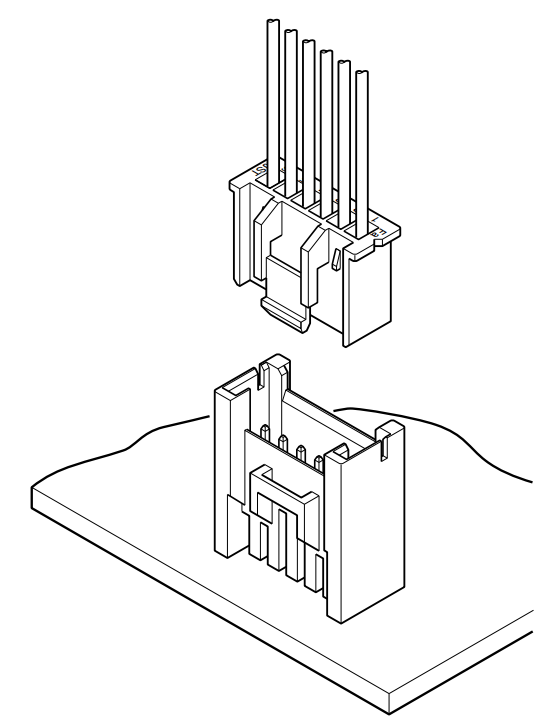

JST XM Connector, Wire to Board Type

The JST XM Connector is a high box type connector designed with a mounting height of 20.0 mm and a thickness of 8.9 mm, making it a compact yet robust solution for various applications. Engineered for reliability, this connector ensures a stable electrical connection even under challenging conditions, such as exposure to vibration, prying forces, and in circuits with micro-current or micro-voltage requirements. Its durable design makes it ideal for applications where maintaining consistent performance in demanding environments is critical.

Features

• Interchangeability
  • The housing is interchangeable with these of the XM receptacle housing.
• Inner-housing lock
  • This inner-housing lock secures the plug to the receptacle and prevents accidental disconnection. The lock is protected and is not affected by external forces that might result from the routing of wires.
• Retainer
  • Retainers enhance safety in case of partial insertion or accidental release of the contact. Even if a contact is inserted incompletely, the retainer guides the contact to the proper position and securely locks it in place.
• Header suitable for potting process
  • This header is tall and fully shrouded so as to prevent the resin used to coat the PC board from coming into contact with the mating pins.

Specifications

• Connector type: Wire to Board, Disconnectable Crimp style
• Connector pitch: 2.5mm
• Current rating: 3 A AC/DC (AWG #22, #20)
• Voltage rating: 250 V AC/DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
• Insulation resistance: 500 MΩ min.
• Withstanding voltage: 1,000 VAC/minute
• Applicable wire: AWG #28 to #20
• Applicable PC board thickness: 1.6 mm

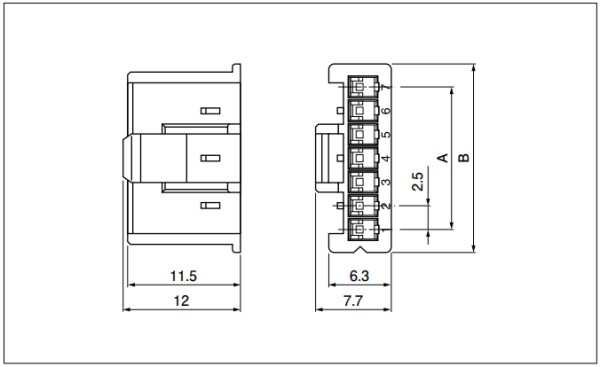

Housing

Material and Finish: PA 66, UL94V-0

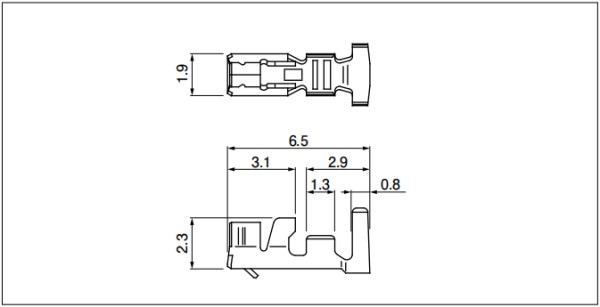

Terminal

Material and Finish: Phosphor bronze, tin-plated (reflow treatment)

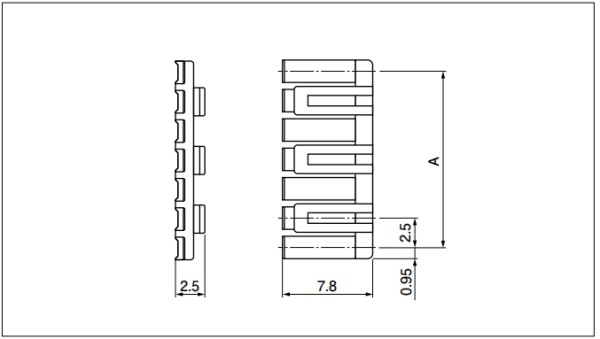

Retainer

Material and Finish: Glass-filled PA 66, UL94V-0

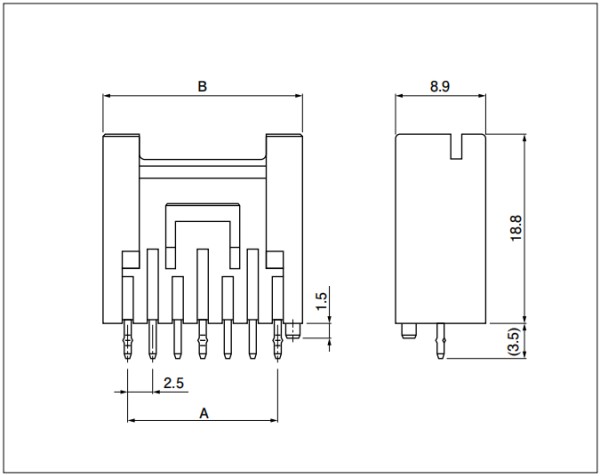

Header

Material and Finish

• Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
• Wafer: Glass-filled PA 66, UL94V-0

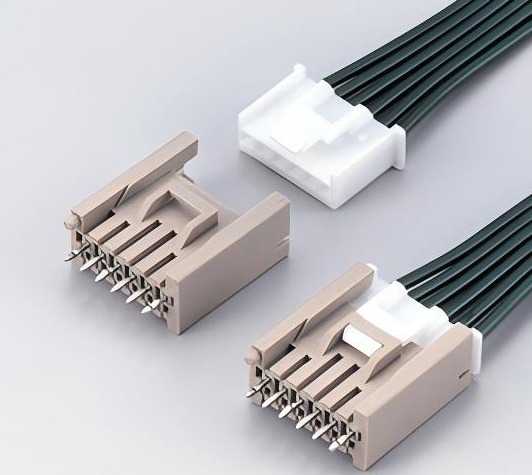

Support Custom Wiring Harness Assembly

• Connector: 2 - 10pin
• Wire gauge: 28 - 20AWG
• Wire length: as long as your needs
• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
• Custom type:
  • wire to wire
  • wire to tinned end
  • wire to open end
  • wire to any suitable connectors
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness
