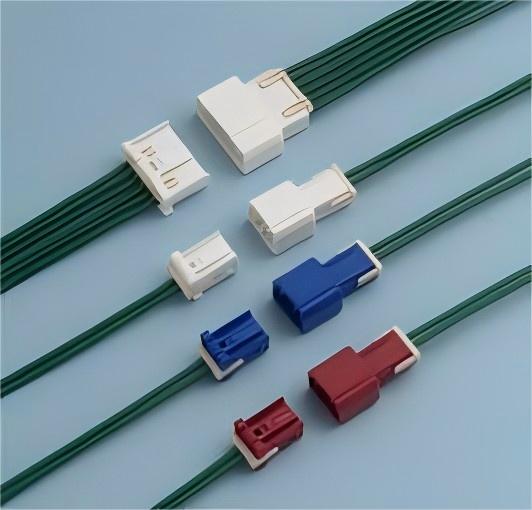

JST XMA Connector, Wire to Wire, Custom Wire Assembly

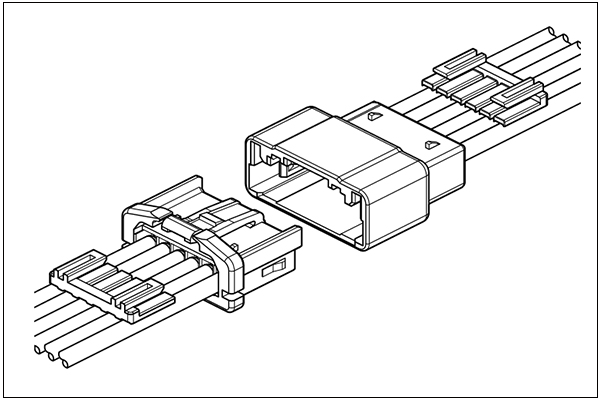

JST XMA Connector, Wire to Wire Type
The JST XMA Connector is a reliable 2.5 mm pitch wire-to-wire connector designed with a range of innovative features to ensure secure and efficient operation. It includes an incomplete mating prevention mechanism, reducing the risk of improper connections during assembly. For added versatility, the 2-circuit and 3-circuit connectors are equipped with a control key system, which prevents incorrect circuit pairings, enabling multiple connectors of the same type to be used without error. Its inertial lock structure, combined with a side lock mechanism, ensures a strong and stable connection under various conditions. Additionally, the connector offers five control key combinations for one type of circuit, enhancing its adaptability for diverse applications. With a secure locking structure and a finger-friendly design for easy handling, the JST XMA Connector is both user-friendly and dependable, ideal for modern wiring systems.
Specifications
- Connector type: Disconnectable Crimp style Wire-to-wire
- Connector pitch: 2.5mm
- Current rating: 3 A AC/DC (AWG#22)
- Voltage rating: 250 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG#26 to #22 0.13, mm² to 0.33 mm²
Receptacle housing (for pin contact)

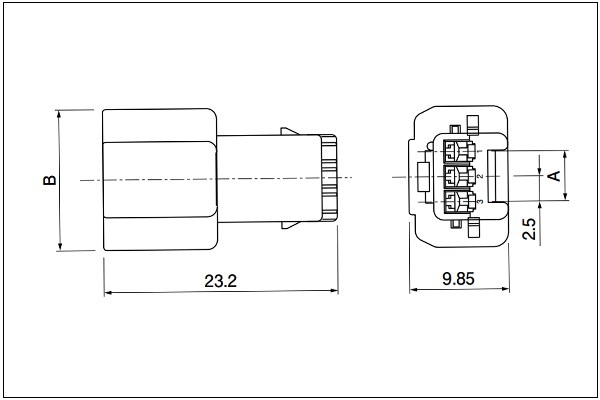

2, 3 Circuits

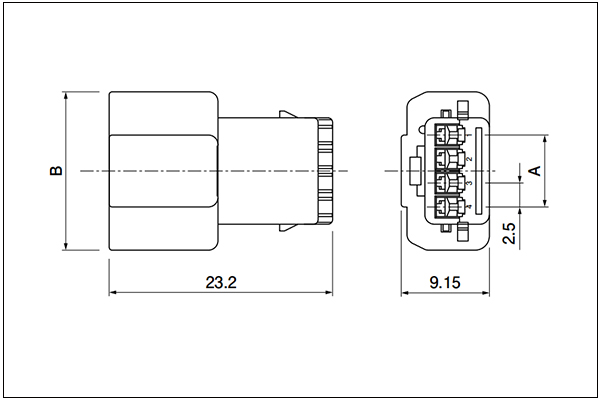

4, 5 Circuits

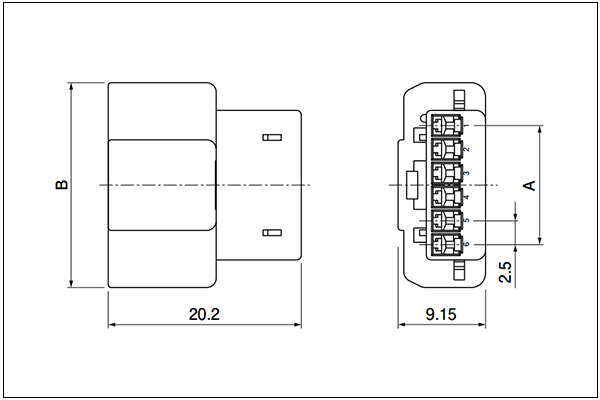

6 Circuits
| No. of circuits | Model No. | Color | Dimensions (mm) | Q'ty/bag | |
| A | B | ||||
| 2 | XMAR-02VF-1-S | Natural(white) | 2.5 | 12.5 | 1000 |
| XMAR-02VF-2-R | Red | ||||
| XMAR-02VF-3-E | Blue | ||||
| XMAR-02VF-4-Y | Yellow | ||||
| XMAR-02VF-5-PK | Pink | ||||
| 3 | XMAR-03VF-1-S | Natural(white) | 5 | 14 | 1000 |
| XMAR-03VF-2-R | Red | ||||
| XMAR-03VF-3-E | Blue | ||||
| XMAR-03VF-4-Y | Yellow | ||||
| 4 | XMAR-04VF-S | Natural (white) | 7.5 | 16.5 | 500 |
| 5 | XMAR-05VF-S | Natural (white) | 10 | 19 | 500 |
| 6 | XMAR-06VF-S | Natural (white) | 12.5 | 21.5 | 500 |
Material and Finish: Glass-filled PBT, UL94V-0
Plug housing (for socket contact)

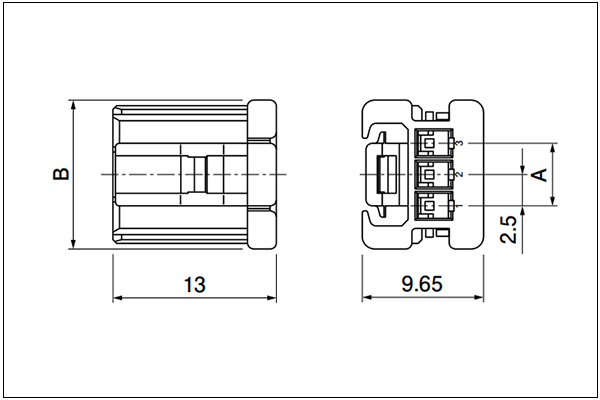

2, 3 Circuits

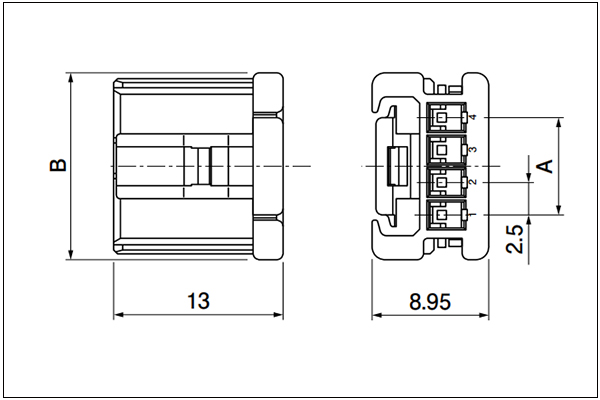

4, 5 Circuits

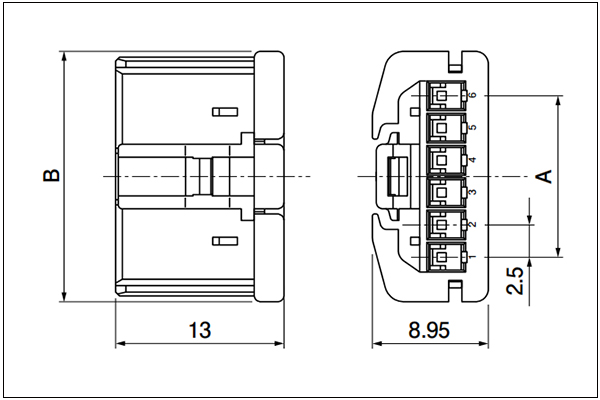

6 Circuits
| No. of circuits | Model No. | Color | Dimensions (mm) | Q'ty/bag | |
| A | B | ||||
| 2 | XMAP-02V-1-S | Natural (white) | 2.5 | 9.4 | 1000 |
| XMAP-02V-2-R | Red | ||||
| XMAP-02V-3-E | Blue | ||||
| XMAP-02V-4-Y | Yellow | ||||
| XMAP-02V-5-PK | Pink | ||||
| 3 | XMAP-03V-1-S | Natural(white) | 5.0 | 11.9 | 1000 |
| XMAP-03V-2-R | Red | ||||
| XMAP-03V-3-E | Blue | ||||
| XMAP-03V-4-Y | Yellow | ||||
| 4 | XMAP-04V-S | Natural(white) | 7.5 | 14.4 | 1000 |
| 5 | XMAP-05V-S | Natural(white) | 10.0 | 16.9 | 500 |
| 6 | XMAP-06V-S | Natural(white) | 12.5 | 19.4 | 500 |
Material and Finish: Glass-filled PBT, UL94V-0
Retainer

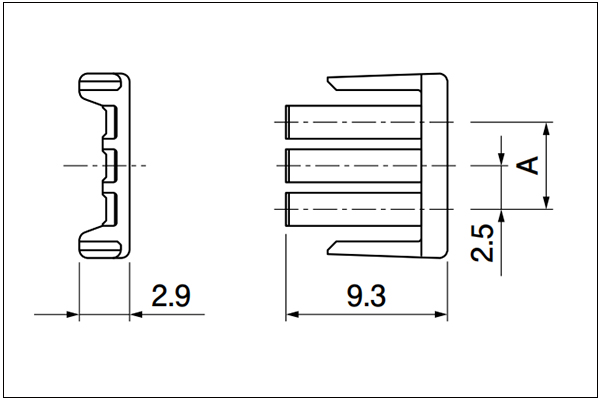

2 to 5 Circuits

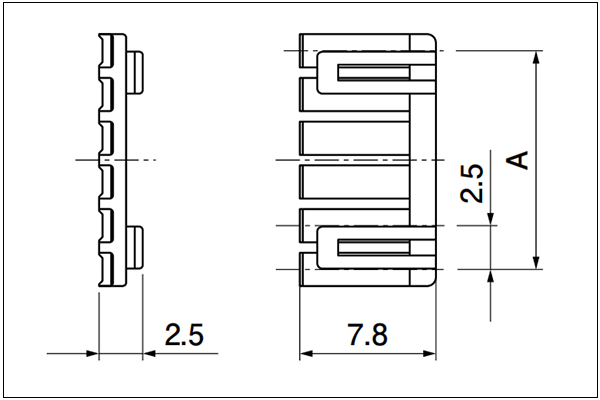

6 Circuits
| No. of circuits | Model No. | Color | Dimensions (mm) | Q'ty/bag |
| A | ||||
| 2 | XMAS-02V-S | Natural (ivory) | 2.5 | 1000 |
| 3 | XMAS-03V-S | Natural (ivory) | 5.0 | 1000 |
| 4 | XMAS-04V-S | Natural (ivory) | 7.5 | 1000 |
| 5 | XMAS-05V-S | Natural (ivory) | 10.0 | 1000 |
| 6 | XMS-06V | Natural (ivory) | 12.5 | 1000 |
Note:
- 6 circuits of retainer is interchangeable with those of the XM and XA connectors.
- Material and Finish: Glass-filled PA 66, UL94V-0
- RoHS2 compliance
Terminal

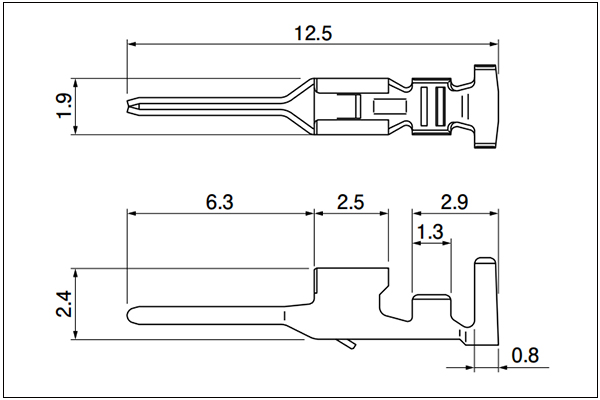

Pin Terminal

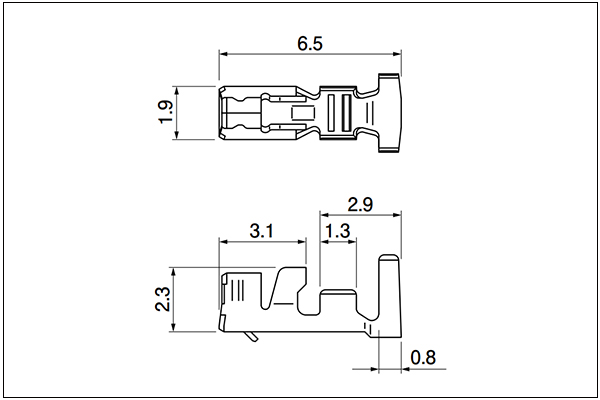

Socket Terminal
Specs:
- Model No.: SXA-001T-P0.6L(Socket), SXM-001T-P0.6(Pin)
- Applicable Wire: 26 to 22AWG（0.13 to 0.33mm²）
- Insolations O.D. (mm): 1.3 to 1.9mm
- Q'ty/reel: 8000pcs(Socket terminal), 7000pcs(Pin Terminal)
- Materials and Finish: Copper alloy, tin-plated(reflow treatment)
- RoHS2 compliance
Support Custom Wiring Harness Assembly
- Connector: 2, 3, 4, 5, 6pin
- Wire gauge: 26 - 22AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
