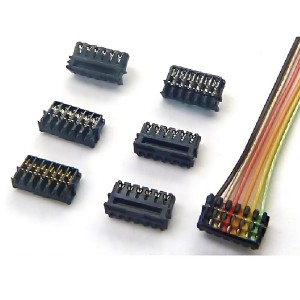

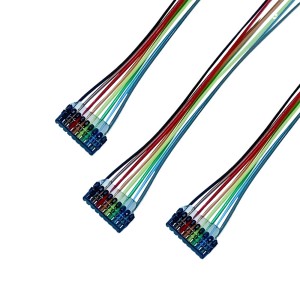

JST 0.6mm Pitch XSR Connector

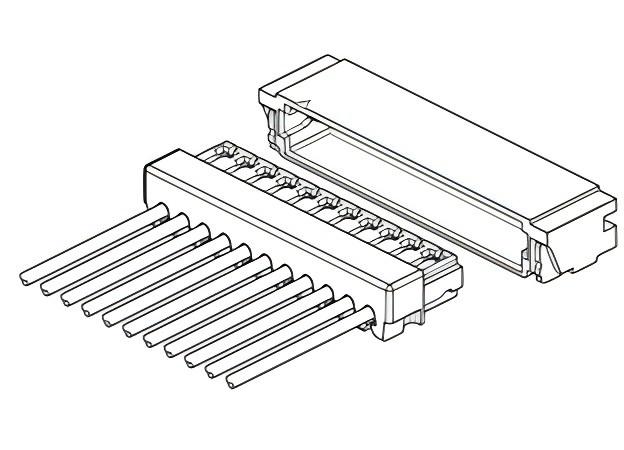

The JST XSR Connector represents the pinnacle of compact and efficient wire-to-board connection technology, boasting the distinction of being the world's smallest connector with a 0.6 mm pitch designed specifically for discrete wires. Engineered for miniaturization, it features a remarkably low mounting height of just 1.45 mm and a depth of only 3.0 mm, making it an ideal choice for applications where space is at a premium. This innovative connector incorporates a twin U-slot insulation displacement structure, ensuring reliable and secure wire termination while simplifying assembly processes. The new strain relief design enhances durability and extends the connector’s lifespan by mitigating mechanical stress on the wire connection. Optimized for use with thin wires, the XSR Connector is well-suited for intricate and compact electronic assemblies. Additionally, its compatibility with automatic insulation displacement machines streamlines production, offering an efficient solution for high-volume manufacturing environments. Whether for consumer electronics, medical devices, or other high-density applications, the XSR Connector delivers unparalleled performance and versatility.

JST XSR Connector Specifications

• Connector Type: Wire to Board
• Connector Pitch: 0.6mm
• Current rating: 0.2 A AC, DC
• Voltage rating: 30 V AC, DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 30 mΩ max, After environmental testing/ 50 m Ω max.
• Insulation resistance: 100 M Ω min.
• Withstanding voltage: 200 VAC/minute
• Applicable wire: Conductor size/ AWG #36, Conductor/ 7 strands, tin-coated copper alloy, Insulation O.D./ 0.29 mm

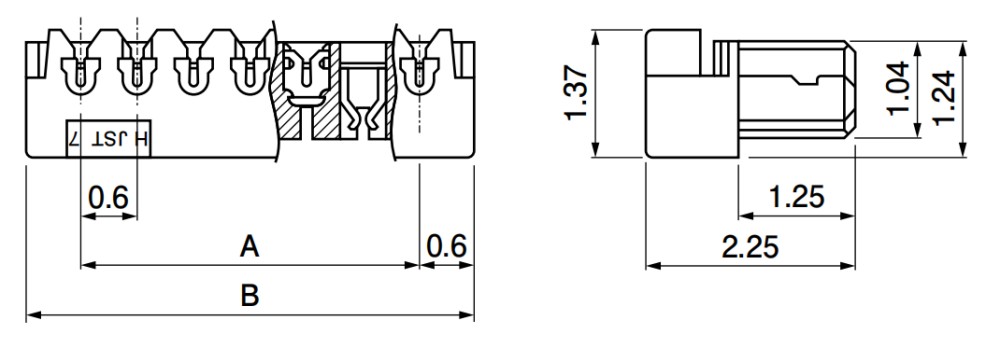

XSR Socket Size and P/N

Note:

• RoHS compliance
• *Marked product is unlisted in the UL/CSA standards.
• Material and Finish
  • Contact: Copper alloy, tin-plated (reflow treatment)
  • Housing: PA, UL94V-0, natural

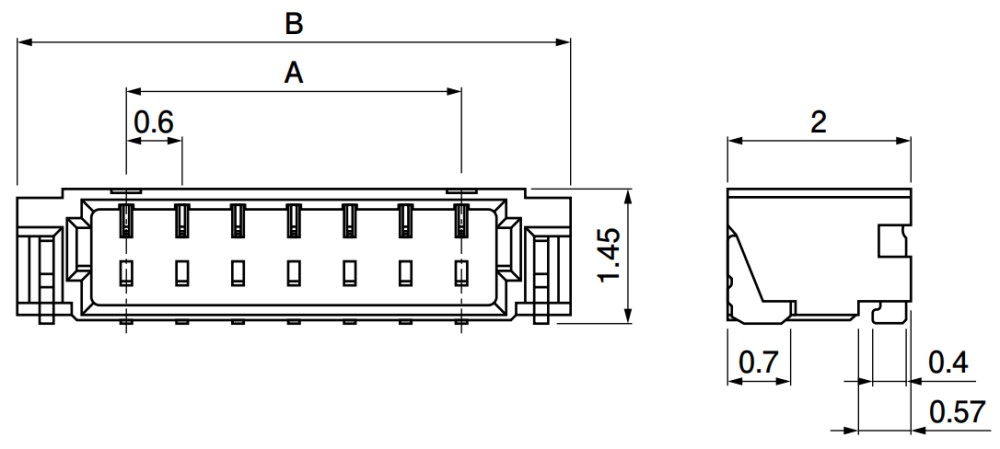

XSR Header Size and P/N

Note:

1. This products listed above are supplied on embossed-tape.
2. *Marked product is unlisted in the UL/CSA standards.
3. RoHS compliance
4. Material and Finish
   • Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
   • Housing: PA, UL94V-0, natural
   • Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)

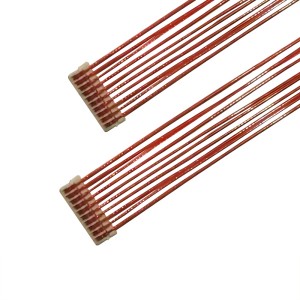

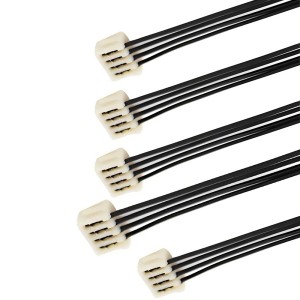

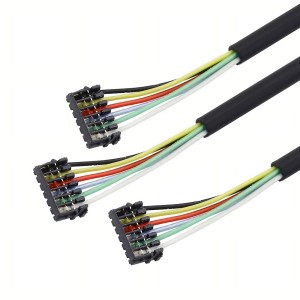

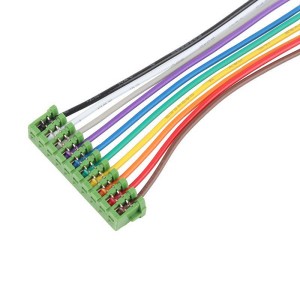

Support Custom Wiring Assembly

• Connector: 2 - 22pin
• Wire gauge: 34 - 36AWG
• Wire length: as long as your needs
• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
• Custom type:
  • wire to wire
  • wire to tinned end
  • wire to open end
  • wire to any suitable connectors
• Minimum Order: 100 pieces per order.
