JST YLN Connector, Wire to Wire, Custom Wire Assembly
JST YLN Connector, Wire to Wire Type

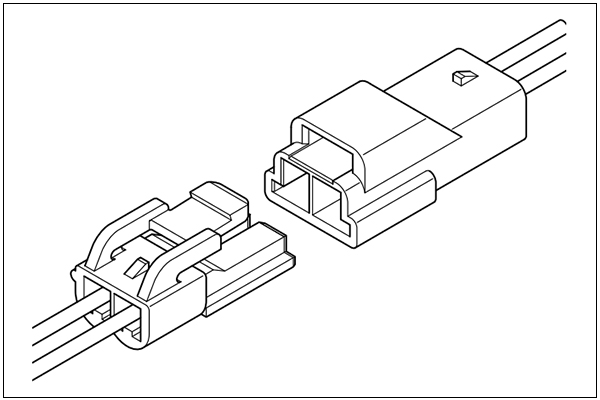

The JST YLN connector expands upon the existing YL connector series by introducing a variety of shape options in addition to its color variations, enhancing the ease of identifying connectors in complex systems. It features an innovative inertial force mechanism that ensures complete mating by harnessing the natural force generated when the plug and receptacle are connected, effectively preventing incomplete connections. Designed with user convenience in mind, the YLN connector incorporates a finger-friendly design, offers interchangeability for flexible integration, and is engineered to prevent accidental mating with YL connectors. These enhancements make it a reliable and user-centric solution for diverse applications.
Specifications
- Connector type: Disconnectable Crimp style Wire-to-wire
- Connector pitch: 4.5mm
- Current rating: 10 A AC/DC (7 A when retainers are mounted)
- Voltage rating: 300 V AC/DC
- Temperature range: -25℃ to +90℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 7 mΩ max, After environmental tests/ 10 mΩ max.
- Insulation resistance: 1,000 MΩ min.
- Withstanding voltage: 1,500 VAC/minute
- Applicable wire: AWG #26 to #16, 0.13 to 1.25 mm²
Current unit: A
| No.of circuits | Wire size(AWG) | |||||
| #16 | #18 | #20 | #22 | #24 | #26 | |
| 2 | 10 | 7 | 5 | 4 | 3 | 2 |
| 3 | 9 | 6 | 4 | 4 | 3 | 2 |
| 4 | 9 | 6 | 4 | 4 | 3 | 2 |
| 6 | 8 | 5 | 3 | 3 | 2 | 2 |
Note:
- The current rating differs depending on the number of circuits and the wire size used in each connector.
- The table above lists the current rating as a function of the number of circuits and the wire size.
- Secondary retainers cannot be used with AWG #16 wires.
Housing

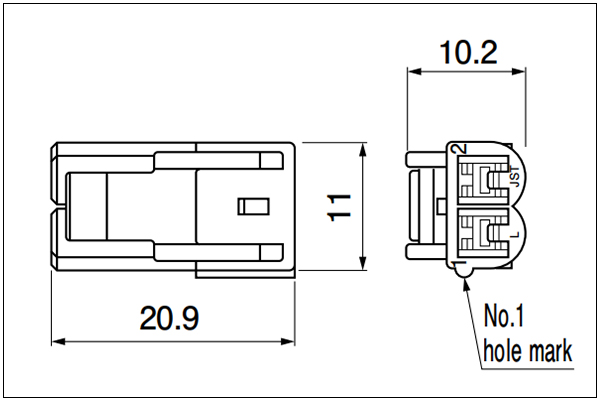

YLNP-02V

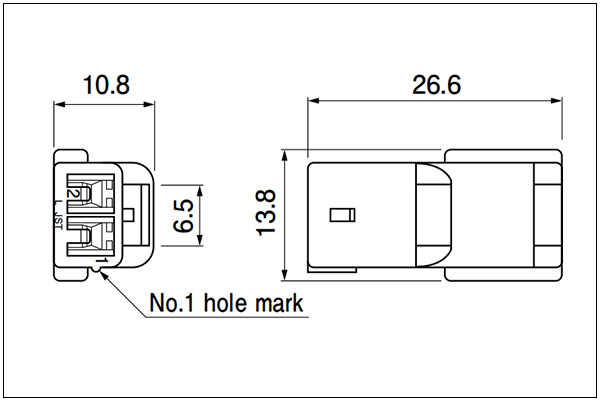

YLNR-02VF

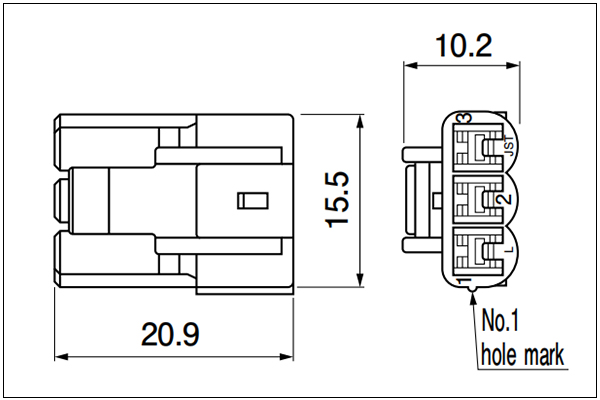

YLNP-03V

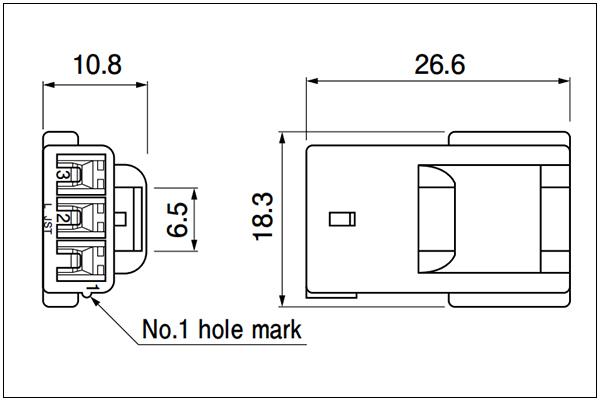

YLNR-03VF

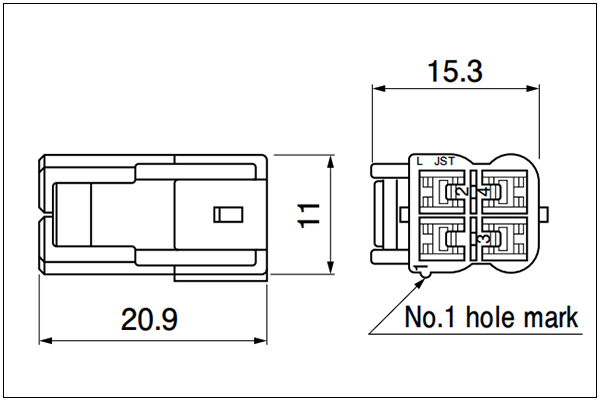

YLNP-04V

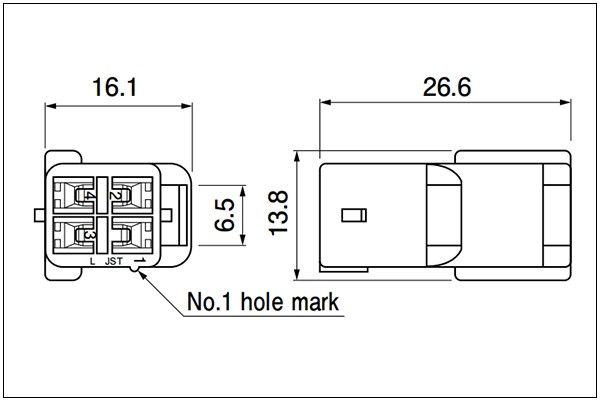

YLNR-04VF

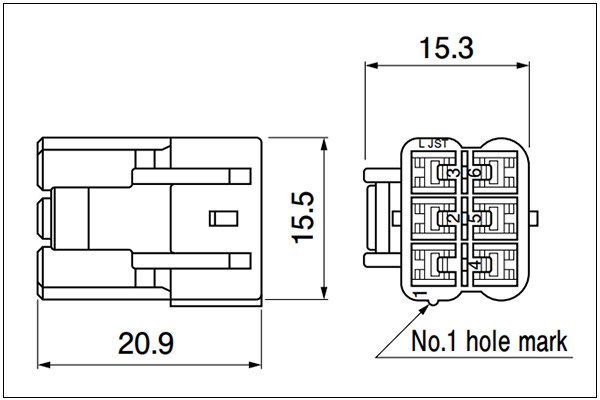

YLNP-06V

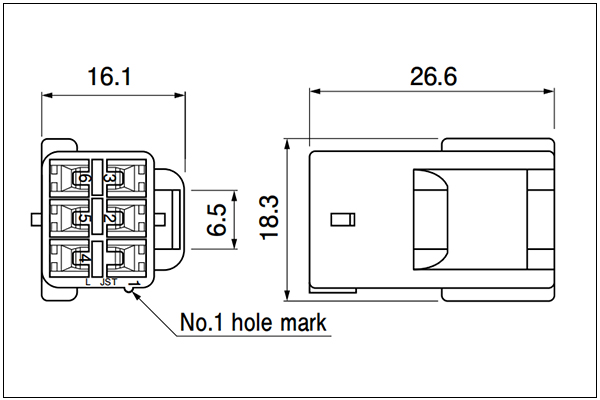

YLNR-06VF
Terminal

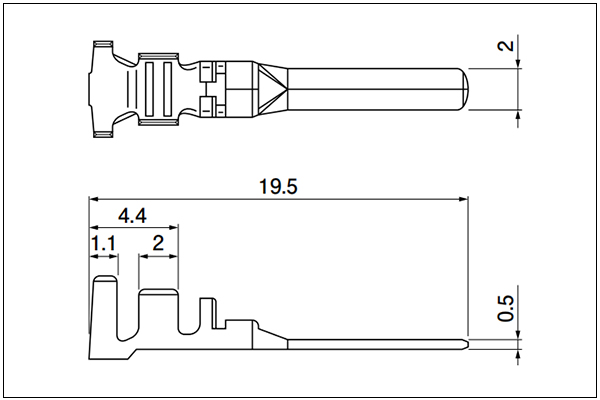

Pin Terminal

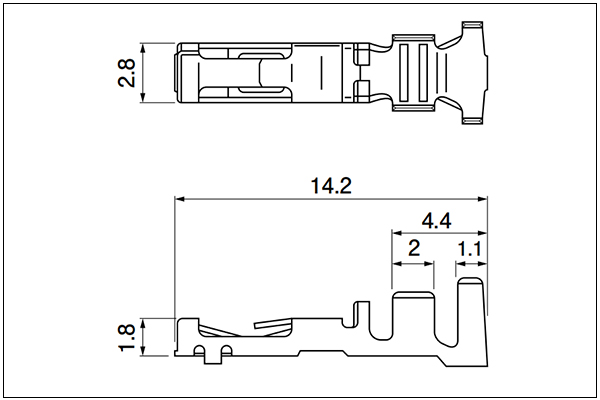

Socket Terminal
| Model No. | Applicable wire | Insulation O.D (mm) | Q'ty/reel | ||
| Pin contact | Socket contact | mm² | AWG # | ||
| SYM-01T-P0.5A | SYF-01T-P0.5A | 0.13～0.5 | 26~20 | 1.3～2.5 | 4,000 SYM-01T-P0.5A (5,000) |
| SYM-41T-P0.5A | SYF-41T-P0.5A | 0.5～1.25 | 20～16 | 2.0～3.4 | |
| 0.3+0.3 ~ 0.5+0.5 | 22+22 ~ 20+20 | 1.5+1.5 ~ 2.0+2.0 | |||

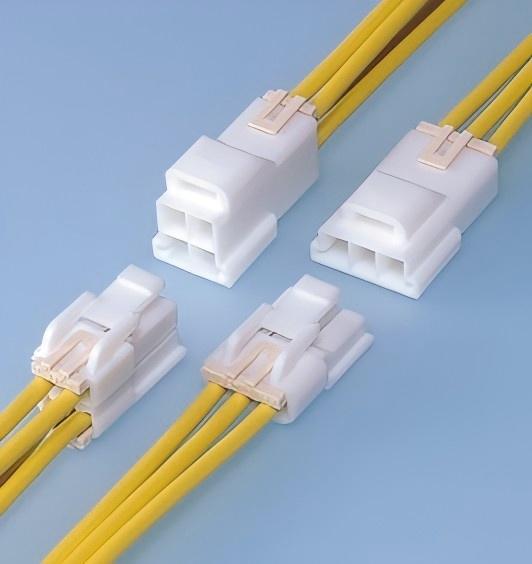

Support Custom Wiring Harness Assembly
- Connector: 2, 3, 4, 6pin
- Wire gauge: 16 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
