JST ZE Connector

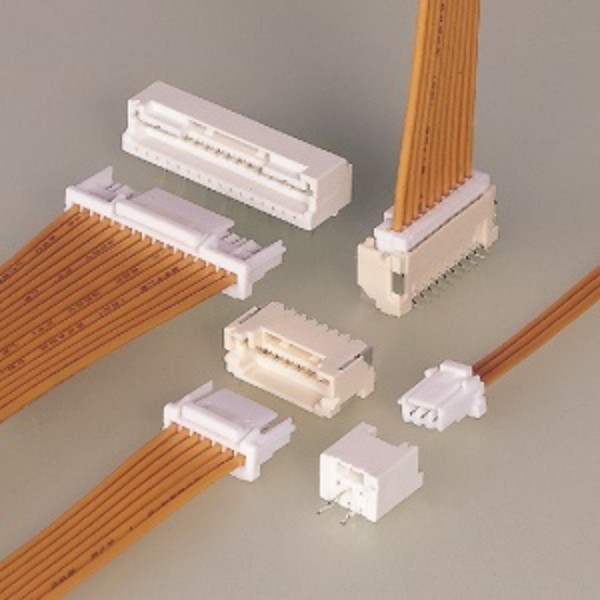

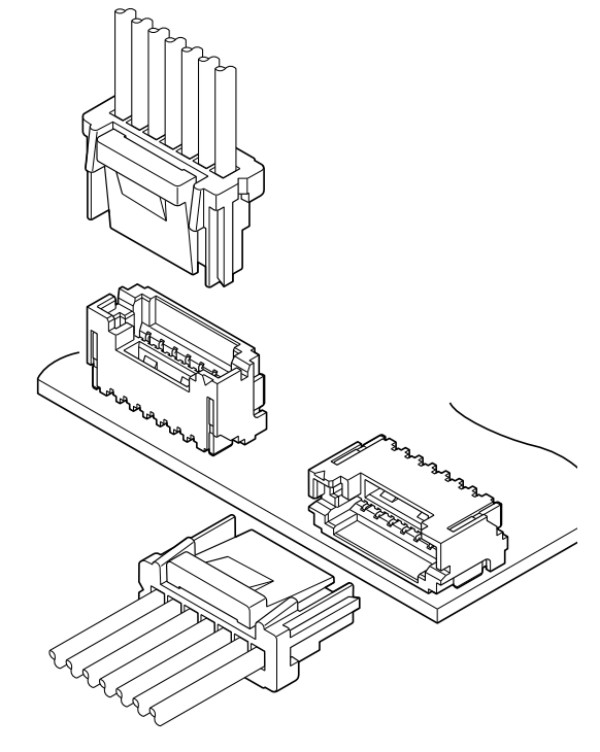

The JST ZE Connector is a high-performance, 1.5mm pitch, secure-lock type connector designed to ensure reliable and stable connections. It features a unique fork-shaped header contact, which enhances the tactile mating feel while providing a secure and precise mating operation. This connector is built with a robust secure locking structure that prevents accidental disconnection, making it ideal for applications requiring high vibration resistance. Additionally, its contact locking structure ensures that individual contacts remain firmly in place, further boosting connection stability. These features make the JST ZE Connector a dependable choice for automotive, industrial, and consumer electronic applications where reliability and safety are paramount.
ZE Connector Specifications
- Connector type: Wire to Board, Disconnectable Crimp style
- Connector Pitch: 1.5mm
- Current rating: 2 A AC/DC (AWG #24)
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20 mΩ max, After environmental tests/ 40 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #30 to #24, Insulation O.D./ 0.76 to 1.2 mm
Housing Size

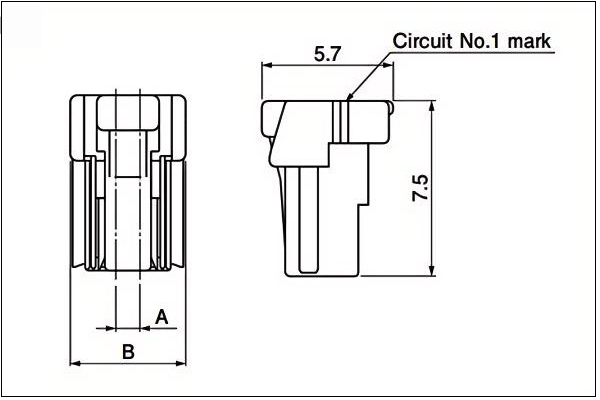

2 circuits

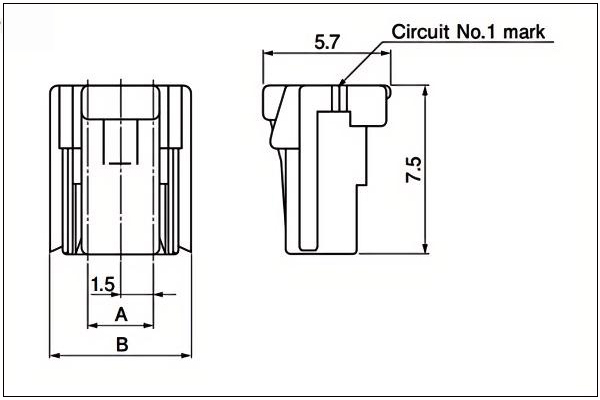

3-4 circuits
5-9 circuits

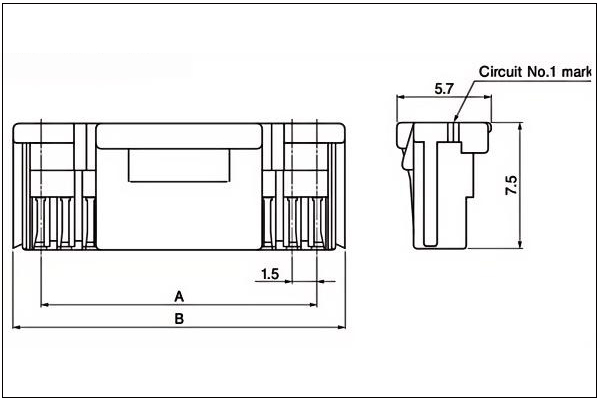

10-16 circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 2 | ZER-02V-S | 1.5 | 5.0 | 6000 |
| 3 | ZER-03V-S | 3.0 | 6.3 | 6000 |
| 4 | ZER-04V-S | 4.5 | 7.8 | 5000 |
| 5 | ZER-05V-S | 6.0 | 9.3 | 3000 |
| 6 | ZER-06V-S | 7.5 | 10.8 | 3000 |
| 7 | ZER-07V-S | 9.0 | 12.3 | 2000 |
| 8 | ZER-08V-S | 10.5 | 13.8 | 2000 |
| 9 | ZER-09V-S | 12.0 | 15.3 | 2000 |
| 10 | ZER-10V-S | 13.5 | 16.8 | 2000 |
| 11 | ZER-11V-S | 15.0 | 18.3 | 2000 |
| 12 | ZER-12V-S | 16.5 | 19.8 | 2000 |
| 13 | ZER-13V-S | 18.0 | 21.3 | 2000 |
| 14 | ZER-14V-S | 19.5 | 22.8 | 2000 |
| 15 | ZER-15V-S | 21.0 | 24.3 | 1500 |
| 16 | ZER-16V-S | 22.5 | 25.8 | 1500 |
Material and Finish: PBT, UL94V-0, natural

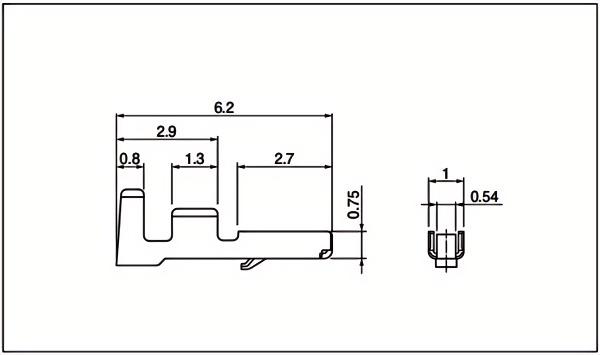

ZE Cnnector Terminal Size
| Model No. | Applicable wire | Insulation O.D. (mm) | Q'ty/reel | |
| mm² | AWG# | |||
| SZE-002T-P0.3 | 0.08 to 0.21 | 28 to 24 | 0.76 to 1.2 | 16000 |
| SZE-003T-P0.3 | 0.05 to 0.13 | 30 to 26 | 0.76 to 1.0 | 16000 |
Material and Finish: Copper alloy, tin-plated (reflow treatment)
ZE Header (DIP type)
Top entry type

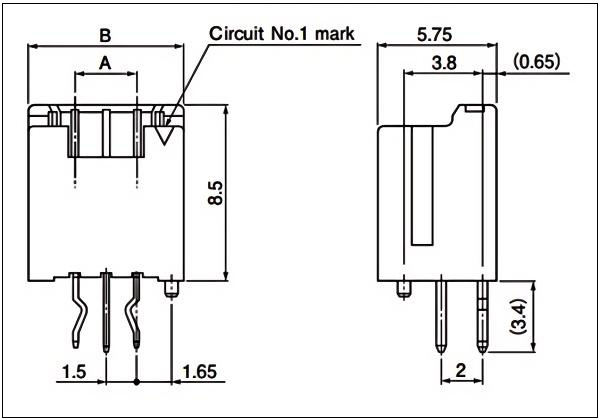

2-5 circuits

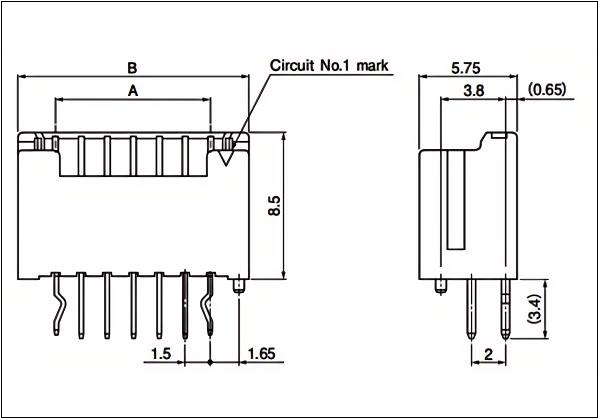

6-9 circuits

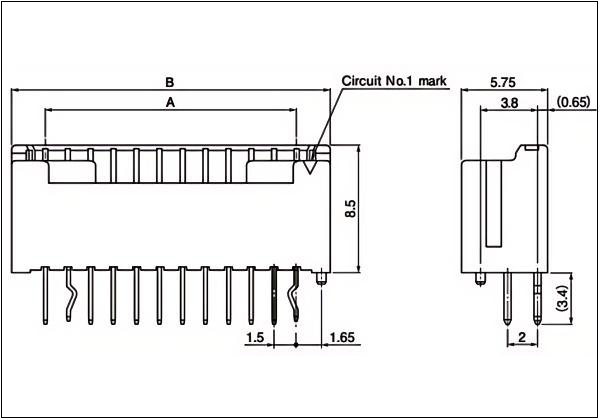

10-16 circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty /box | ||
| Without bosS | With bosS | A | B | ||
| 2 | 一 | B02B-ZESK-1D | 1.5 | 6.0 | 2496 |
| 3 | B03B-ZESK-D | B03B-ZESK-1D | 3.0 | 7.5 | 1984 |
| 4 | B04B-ZESK-D | B04B-ZESK-1D | 4.5 | 9.0 | 1664 |
| 5 | B05B-ZESK-D | B05B-ZESK-1D | 6.0 | 10.5 | 1408 |
| 6 | B06B-ZESK-D | B06B-ZESK-1D | 7.5 | 12.0 | 1216 |
| 7 | B07B-ZESK-D | B07B-ZESK-1D | 9.0 | 13.5 | 1088 |
| 8 | B08B-ZESK-D | B08B-ZESK-1D | 10.5 | 15.0 | 960 |
| 9 | B09B-ZESK-D | B09B-ZESK-1D | 12.0 | 16.5 | 896 |
| 10 | B10B-ZESK-D | B10B-ZESK-1D | 13.5 | 18.0 | 832 |
| 11 | B11B-ZESK-D | B11B-ZESK-1D | 15.0 | 19.5 | 768 |
| 12 | B12B-ZESK-D | B12B-ZESK-1D | 16.5 | 21.0 | 704 |
| 13 | B13B-ZESK-D | B13B-ZESK-1D | 18.0 | 22.5 | 640 |
| 14 | B14B-ZESK-D | B14B-ZESK-1D | 19.5 | 24.0 | 576 |
| 15 | B15B-ZESK-D | B15B-ZESK-1D | 21.0 | 25.5 | 576 |
| 16 | B16B-ZESK-D | B16B-ZESK-1D | 22.5 | 27.0 | 512 |
Material and Finish
- Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural
- Top entry type 2 circuits is only header with boss.
Side entry type

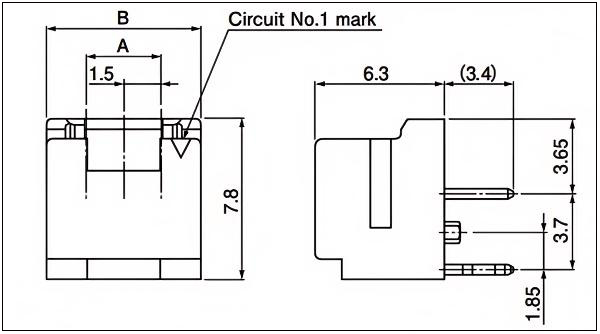

2-5 circuits

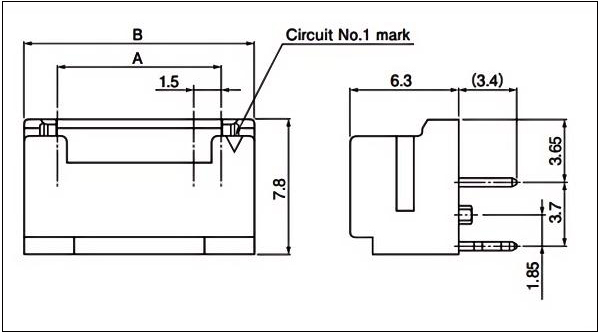

6-9 circuits

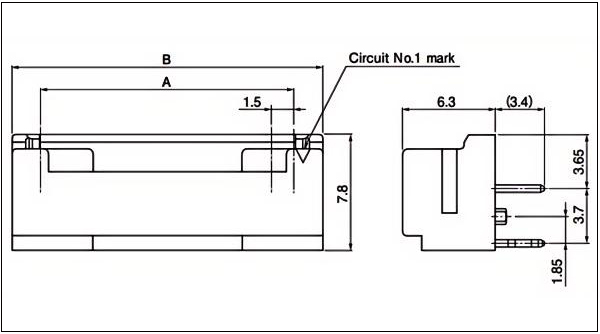

10-16 circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/box | |
| A | B | |||
| 2 | SO2B-ZESK-2D | 1.5 | 6.0 | 1872 |
| 3 | S03B-ZESK-2D | 3.0 | 7.5 | 1488 |
| 4 | S04B-ZESK-2D | 4.5 | 9.0 | 1248 |
| 5 | S05B-ZESK-2D | 6.0 | 10.5 | 1056 |
| 6 | S06B-ZESK-2D | 7.5 | 12.0 | 912 |
| 7 | S07B-ZESK-2D | 9.0 | 13.5 | 816 |
| 8 | S08B-ZESK-2D | 10.5 | 15.0 | 720 |
| 9 | S09B-ZESK-2D | 12.0 | 16.5 | 672 |
| 10 | S10B-ZESK-2D | 13.5 | 18.0 | 624 |
| 11 | S11B-ZESK-2D | 15.0 | 19.5 | 576 |
| 12 | S12B-ZESK-2D | 16.5 | 21.0 | 528 |
| 13 | S13B-ZESK-2D | 18.0 | 22.5 | 480 |
| 14 | S14B-ZESK-2D | 19.5 | 24.0 | 432 |
| 15 | S15B-ZESK-2D | 21.0 | 25.5 | 432 |
| 16 | S16B-ZESK-2D | 22.5 | 27.0 | 384 |
Material and Finish
- Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Glass-filled PA 66, UL94V-0, natural
ZE Connector Header (SMT type)
Top entry type

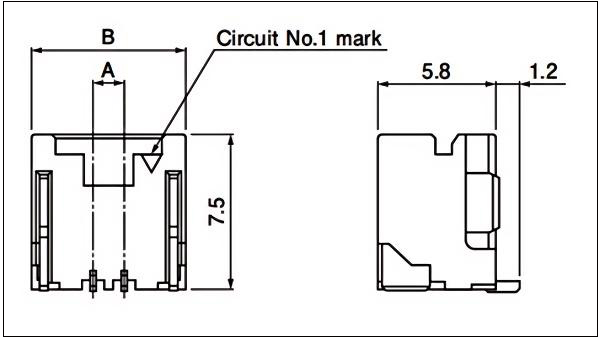

2 Circuits
3-5 Circuits

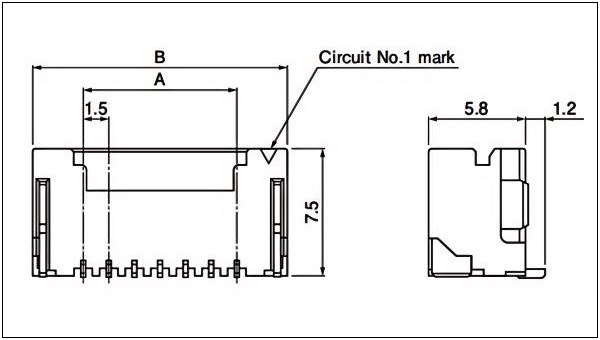

6-9 Circuits

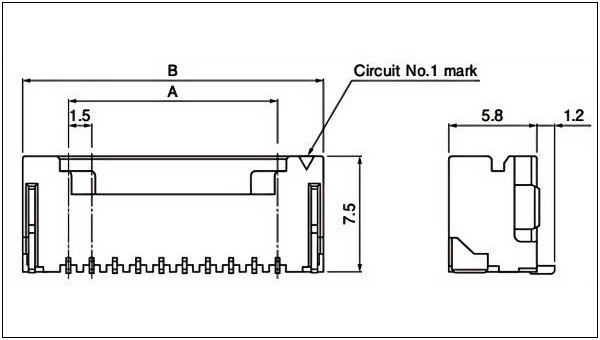

10-16 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | |||
| 2 | BM02B-ZESS-TBT | 1.5 | 7.5 | 800 |
| 3 | BM03B-ZESS-TBT | 3.0 | 9.0 | 800 |
| 4 | BM04B-ZESS-TBT | 4.5 | 10.5 | 800 |
| 5 | BM05B-ZESS-TBT | 6.0 | 12.0 | 800 |
| 6 | BM06B-ZESS-TBT | 7.5 | 13.5 | 800 |
| 7 | BM07B-ZESS-TBT | 9.0 | 15.0 | 800 |
| 8 | BM08B-ZESS-TBT | 10.5 | 16.5 | 800 |
| 9 | BM09B-ZESS-TBT | 12.0 | 18.0 | 800 |
| 10 | BM10B-ZESS-TBT | 13.5 | 19.5 | 800 |
| 11 | BM11B-ZESS-TBT | 15.0 | 21.0 | 800 |
| 12 | BM12B-ZESS-TBT | 16.5 | 22.5 | 800 |
| 13 | BM13B-ZESS-TBT | 18.0 | 24.0 | 800 |
| 14 | BM14B-ZESS-TBT | 19.5 | 25.5 | 800 |
| 15 | BM15B-ZESS-TBT | 21.0 | 27.0 | 800 |
| 16 | BM16B-ZESS-TBT | 22.5 | 28.5 | 800 |
Material and Finish
- Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Polyamide, UL94V-0, natural
- Reinforcement: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- The products listed above are supplied on embossed-tape/with suction tape.
Side entry type

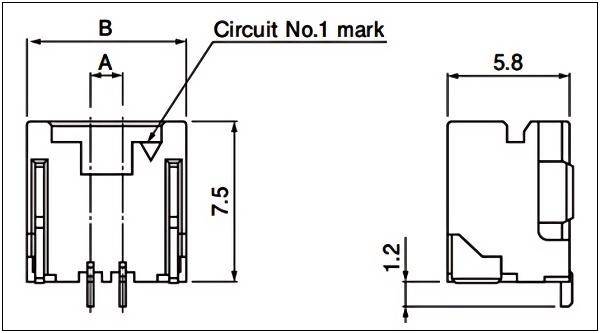

2 Circuits

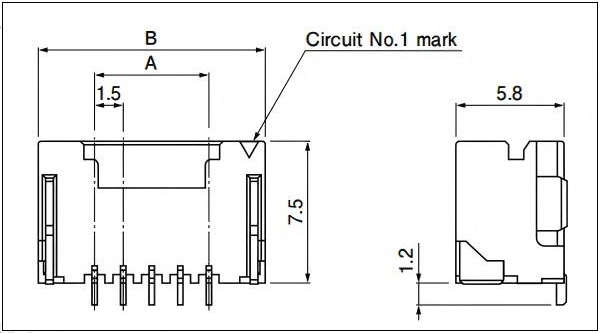

3-5 Circuits

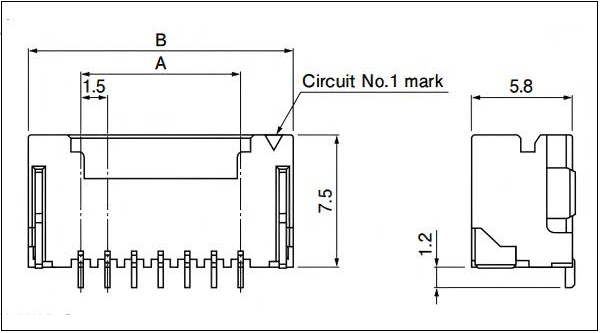

6-9 Circuits
10-16 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | |||
| 2 | SM02B-ZESS-TB | 1.5 | 7.5 | 1000 |
| 3 | SM03B-ZESS-TB | 3.0 | 9.0 | 1000 |
| 4 | SM04B-ZESS-TB | 4.5 | 10.5 | 1000 |
| 5 | SM05B-ZESS-TB | 6.0 | 12.0 | 1000 |
| 6 | SM06B-ZESS-TB | 7.5 | 13.5 | 1000 |
| 7 | SM07B-ZESS-TB | 9.0 | 15.0 | 1000 |
| 8 | SM08B-ZESS-TB | 10.5 | 16.5 | 1000 |
| 9 | SM09B-ZESS-TB | 12.0 | 18.0 | 1000 |
| 10 | SM10B-ZESS-TB | 13.5 | 19.5 | 1000 |
| 11 | SM11B-ZESS-TB | 15.0 | 21.0 | 1000 |
| 12 | SM12B-ZESS-TB | 16.5 | 22.5 | 1000 |
| 13 | SM13B-ZESS-TB | 18.0 | 24.0 | 1000 |
| 14 | SM14B-ZESS-TB | 19.5 | 25.5 | 1000 |
| 15 | SM15B-ZESS-TB | 21.0 | 27.0 | 1000 |
| 16 | SM16B-ZESS-TB | 22.5 | 28.5 | 1000 |
- Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Polyamide, UL94V-0, natural
- Reinforcement: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- The products listed above are supplied on embossed-tape/without suction tape.
Support Custom Wiring Harness Assembly
- Connector: 2 - 16pin
- Wire gauge: 24 - 30AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
