JST ZH Connector



The JST ZH Connector is a compact, low-profile wire-to-board connector with a 1.5mm pitch, designed to save space and improve assembly efficiency. When paired with a top-entry through-hole header, it achieves a mounting height of just 5.9mm and a depth of 3.5mm, making it ideal for applications with limited space. Its housing lance system enhances contact insertion workability, reducing assembly time and the chance of errors. With a high-contact force and round pin design, it ensures stable and reliable electrical performance, even in demanding environments. The fully shrouded header enhances durability by providing a secure connection, minimizing the risk of misalignment or stress-related damage. Additionally, the ZH connector is socket-compatible with the IDC-type ZR connector, offering greater design flexibility and interchangeability.







Specifications



• Connector type: Wire-to-Board connectors / Crimp style and Mating style
• Connector Pitch: 1.5mm
• Current rating: 1.0 A　AC/DC (AWG #26)
• Voltage rating: 50 V　AC/DC
• Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
• Contact resistance: Initial value/ 20 mΩ max, After environmental tests/ 30 mΩ max.
• Insulation resistance: 500 MΩ min.
• Withstanding voltage: There shall be no breakdown or flashover while applying 500 VAC for one minute.
• Applicable wire range: Conductor size/ AWG #32 to AWG #26, Insulation O.D. / φ 0.5 mm to φ 1.1 mm
• Applicable PC board thickness: 0.6 mm to 1.2 mm, 1.6 mm

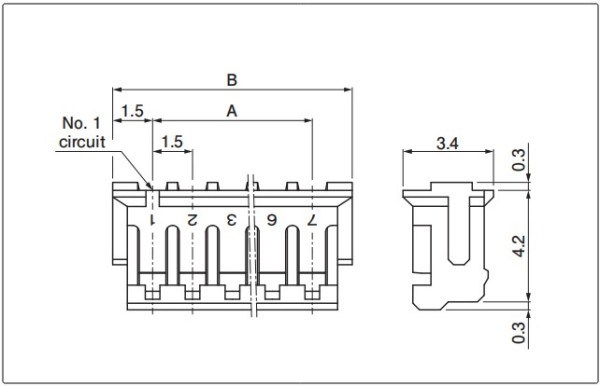

Housing



Note:

• Material and Surface finish: PA 66, natural (white)
• For flame retardant grade of resin material used, please refer to the "List of Registered Overseas Standards" on JST website (listed in the "Technical Documents" column on the Product Information page).

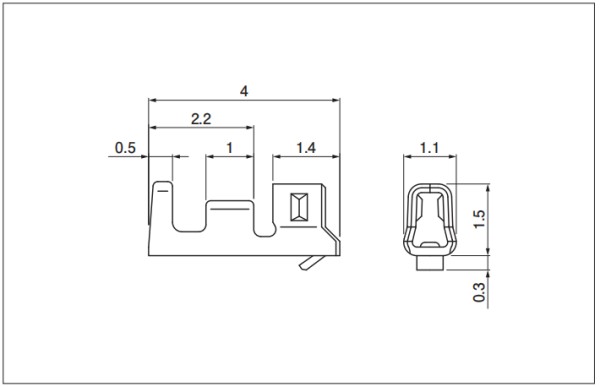

Terminal



Material and Surface finish: Phosphor bronze, tin-plated





Header/ Through-hole type

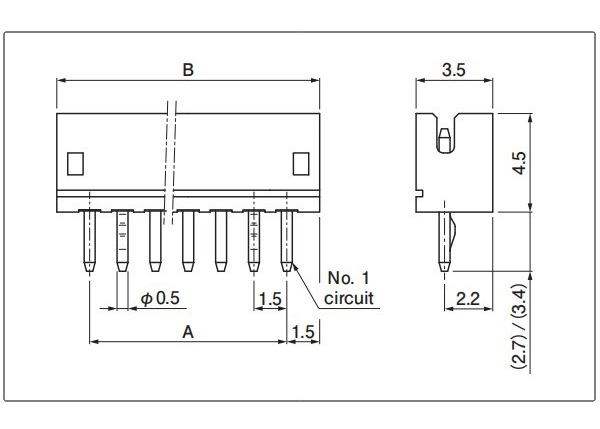

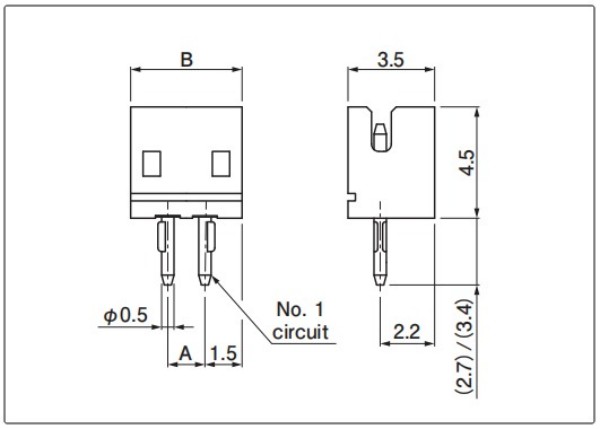

Top entry type





Notes:

1. Material and Surface finish:
   • Pin: Brass, copper-undercoated, tin-plated
   • Wafer: PA 66(Glass-filled),natural (ivory)
2. This product displays (LF)(SN) on a label.
3. 2.7 mm soldering length is suitable for 0.6 mm to 1.2 mm board thickness.
4. 3.4 mm soldering length is suitable for 1.6 mm board thickness
5. For flame retardant grade of resin material used, please refer to the "List of Registered Overseas Standards" on JST website (listed in the "Technical Documents" column on the Product Infommation page)

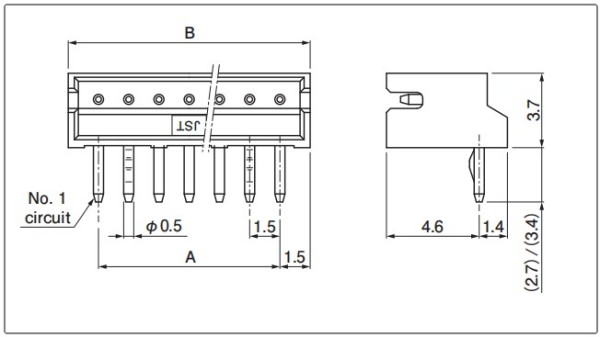

Side entry type



Note:

1. Material and Surface finish, etc.
   • Pin: Brass, copper-undercoated, tin-plated
   • Wafer: PA 66(Glass-filled), natural (ivory)
2. This product displays (LF)(SN) on a label.
3. 2.7 mm soldering length is suitable for 0.6 mm to 1.2 mm board thickness.
4. 3.4 mm soldering length is suitable for 1.6 mm board thickness.
5. For flame retardant grade of resin material used, please refer to the "List of Registered Overseas Standards"on JST website (listed in the "Technical Documents" column on the Product Information page).

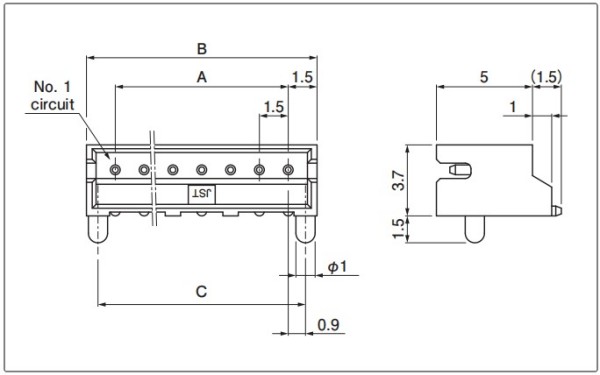

Header/ SMT type/ SM2 type (with boss)



Side entry type



Note:

1. Material and Surface finish:
   • Pin: Brass, copper-undercoated, tin-plated
   • Wafer: PA 46(Glass-filled), natural (ivory
2. This product displays (LF)(SN) on a label.
3. For flame retardant grade of resin material used, please refer to the "List of Registered Overseas Standards" on JST website listed in the "Technical Documents"column on the Product Information page)

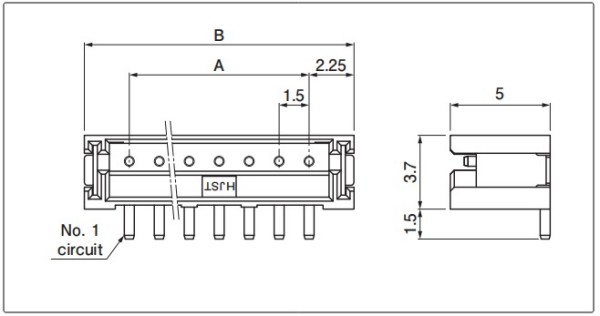

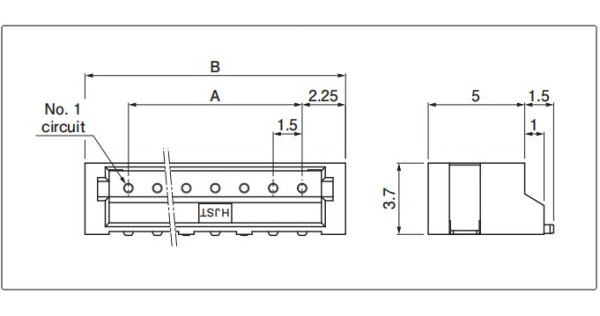

Header/ SMT type/ SM4 type (with reinforcement)





Note:

1. Material and Surface finish:
   • Pin: Brass, copper-undercoated, tin-plated
   • Wafer: PA 6T, natural (ivory)
   • Reinforcement: Brass, copper-undercoated, tin-plated
2. This product displays (LF)(SN) on a label.
3. PA 9T is used for some colored products.
4. This product is supplied on embossed tape and reel packaging.
5. The top entry type is available with suction tape.
6. For flame retardant grade of resin material used, please refer to the "List of Registered Overseas Standards" on JST website (listed in the "Technical Documents" column on the Product Information page)

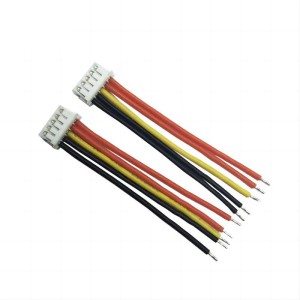

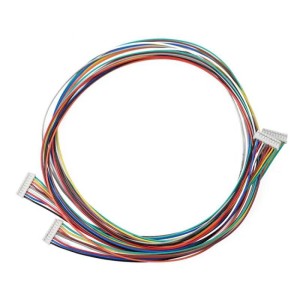

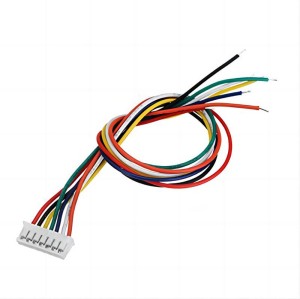

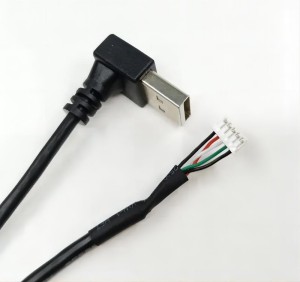

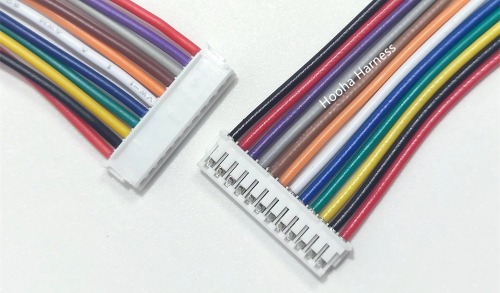

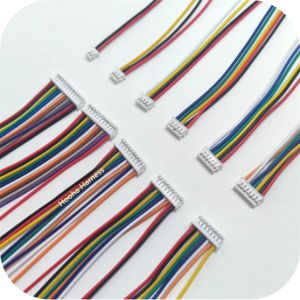

Support Custom Wiring Harness Assembly



• Connector: 2 - 13pin
• Wire gauge: 26 - 32AWG
• Wire length: as long as your needs
• Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
• Custom type:

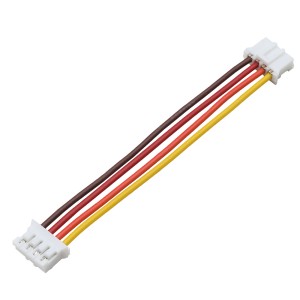

  • wire to wire
  • wire to tinned end
  • wire to open end
  • wire to any suitable connectors
• Minimum Order: 100 pieces per order.
