JST ZIM Connector, Wire to Wire, Custom Wire Assembly

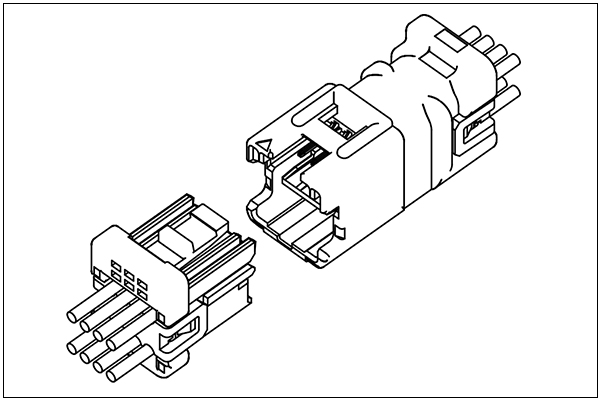

JST ZIM Connector, Wire to Wire Type
The JST ZIM Connector is a wire-to-wire connector featuring a 1.5mm pitch dual-row construction, designed to deliver reliable performance in various applications. Engineered to resist external forces, it ensures secure connections by preventing accidental disengagement of the lock mechanism. Key features include an inertia lock mechanism for enhanced safety, compatibility with retainer mounts to provide additional stability, and an improved design that simplifies insertion and assembly. Additionally, the connector boasts a strong lock-release prevention mechanism, reducing the risk of unintentional disconnection. With its support for keying development, the ZIM Connector offers excellent versatility and security for demanding electrical systems.
Specifications
- Connector type: Wire to Wire
- Connector pitch: 1.5mm
- Current rating: 2 A AC/DC (AWG #24)
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 15 mΩ max, After environmental tests/ 25 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire range: Conductor size/ AWG #28 to #24, Insulation O.D/ φ0.76 mm to φ1.3 mm upon not using a retainer, φ1.0 mm to φ1.3 mm upon using a retainer

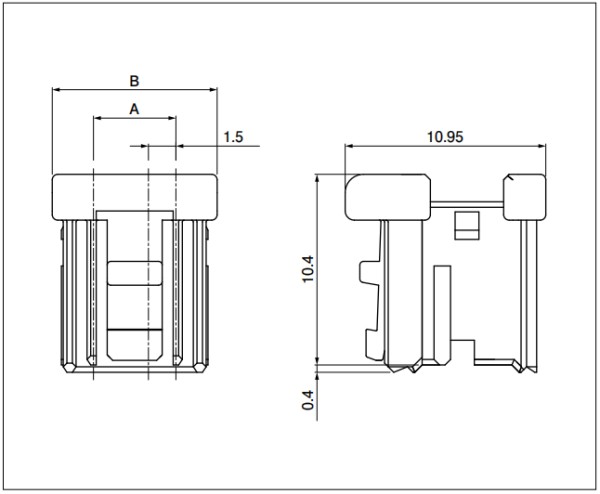

Plug housing (for socket contact)
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 8 | ZIMRP-08V-A-S | 4.5 | 9 | 1000 |
| 10 | ZIMRP-10V-A-S | 6 | 10.5 | 1000 |
Material and Finish: PBT (Glass-filled), UL94V-0, natural

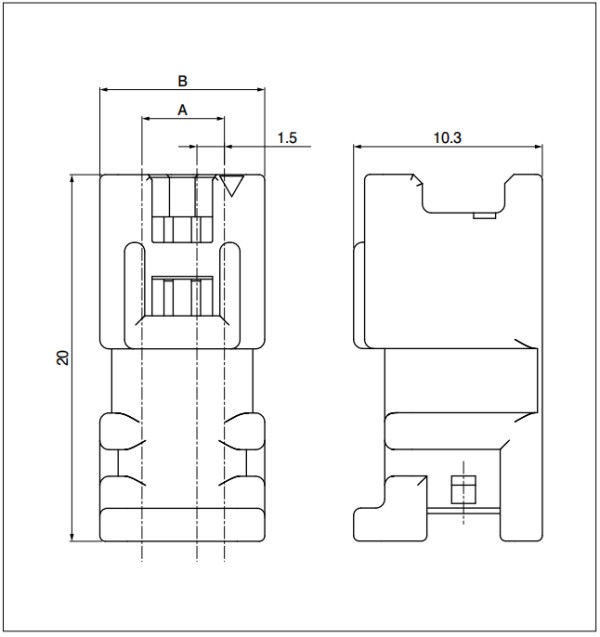

Receptacle housing (for pin contact)
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 8 | ZIMRR-08VF-A-S | 4.5 | 9 | 500 |
| 10 | ZIMRR-10VF-A-S | 6 | 10.5 | 500 |
Material and Finish: PBT (Glass-filled), UL94V-0, natural

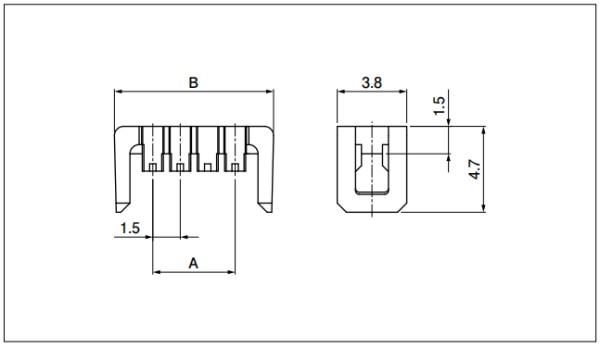

Retainer
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 8 | ZNDS-08V-K | 4.5 | 8.7 | 2000 |
| 10 | ZNDS-10V-K | 6 | 10.2 | 2000 |
Material and Finish: PA 66 (Glass-filled), UL94V-0, black
Terminal

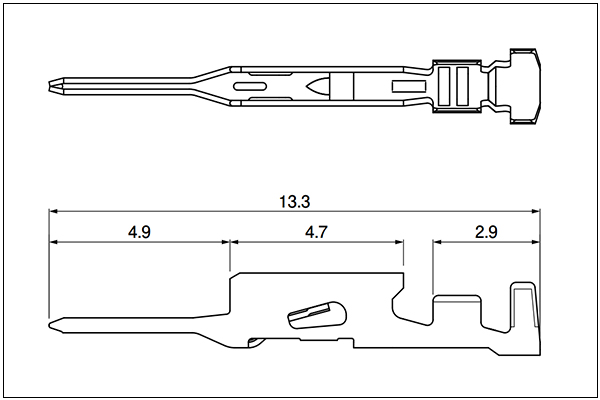

Pin Terminal

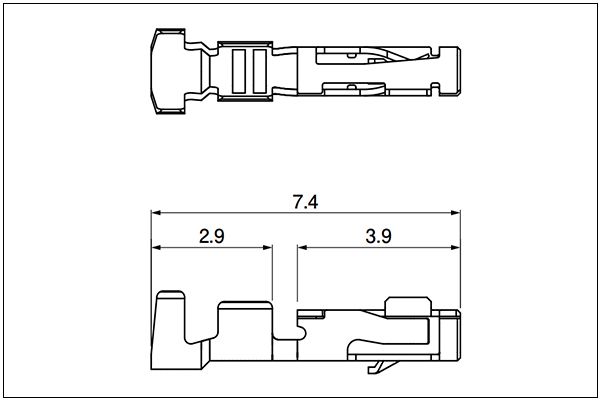

Socket Terminal
Specs
- Model No.: SZND-002T-P0.5(Socket), SZNDM-002T-P0.5(Pin)
- Applicable Wire: 28 to 24AWG（0.08 to 0.21mm²）
- Insolations O.D. (mm): 0.76 to 1.3mm
- Q'ty/reel: 23000pcs(Socket terminal), 14000pcs(Pin Terminal)
- Materials and Finish: Copper alloy, tin-plated
- The insulation O.D. is φ1.0 mm to φ1.3 mm upon using a retainer
- RoHS2 compliance

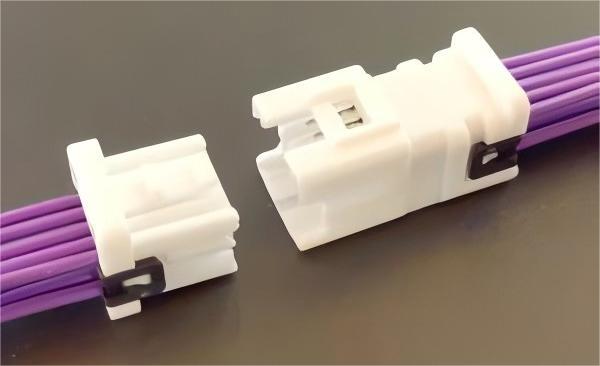

Support Custom Wiring Harness Assembly
- Connector: 8, 10pin
- Wire gauge: 28 - 24AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
