JST ZL Connector, Wire to Wire, Custom Wire Assembly
JST ZL Connector, Wire to Wire Type

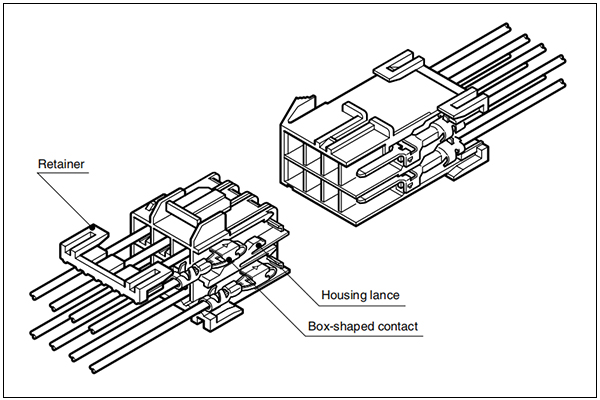

The JST ZL Series connectors are dependable, high-performance wire-to-wire solutions designed for smooth and secure mating. Featuring housing lances that ensure a firm and stable connection, these connectors also incorporate a retainer mechanism for added security and retention. The box-shaped contacts provide reliable electrical conductivity and enhance overall connection integrity. Versatile in design, the ZL connectors are suitable for mounting on a wide range of panels, making them an ideal choice for various applications where robust and reliable connectivity is required. With their ease of use and long-lasting performance, the JST ZL Series connectors are well-suited for demanding environments.
Specifications
- Connector type: Disconnectable Crimp style Wire-to-wire
- Connector pitch: 5.0mm
- Current rating: 10A AC, DC max.
- Voltage rating: 300V AC, DC max.
- Temperature range: -25˚C to +90˚C (including temperature rise in applying electrical current)
- Contact resistance: Initial value/7m Ω max, After environmental testing/10m Ω max.
- Insulation resistance: 1,000M Ω min.
- Withstanding voltage: 1,500V AC/minute
- Applicable wire: AWG #26 to #16, 0.13 to 1.25mm²
- Applicable panel thickness: 0.7 to 2.4mm
Current unit: A
| Circuits | Wire size (AWG) | |||||
| #16 | #18 | #20 | #22 | #24 | #26 | |
| 2 | 10 | 6 | 5 | 4 | 3 | 2 |
| 4 | 9 | 5 | 4 | 3 | 3 | 2 |
| 6 | 8 | 4 | 3 | 3 | 2 | 2 |
| 8 | 6 | 4 | 3 | 3 | 2 | 2 |
| 12 | 6 | 4 | 3 | 3 | 2 | 2 |
| 16 | 5 | 3 | 2 | 2 | 1 | 1 |
Note:
- The current rating varies depending on the number of circuits and the wire size used in each connector.
- The table above lists the current rating as a function of the number of circuits and wire size.
Housing

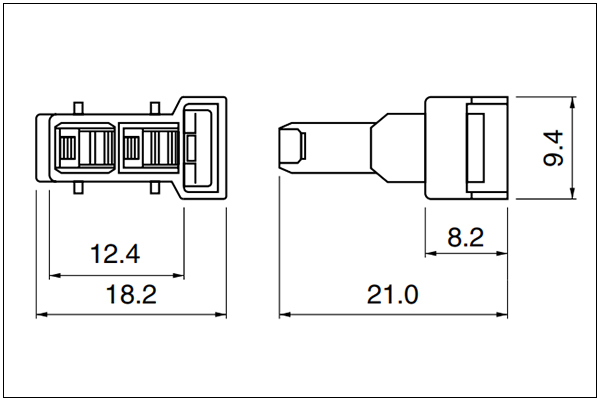

ZLP-02V

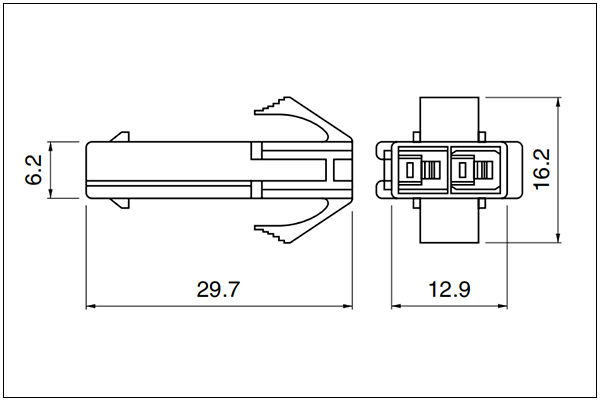

ZLR-02V

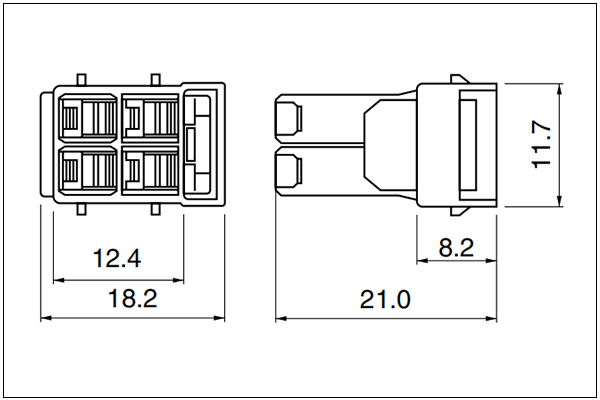

ZLP-04V

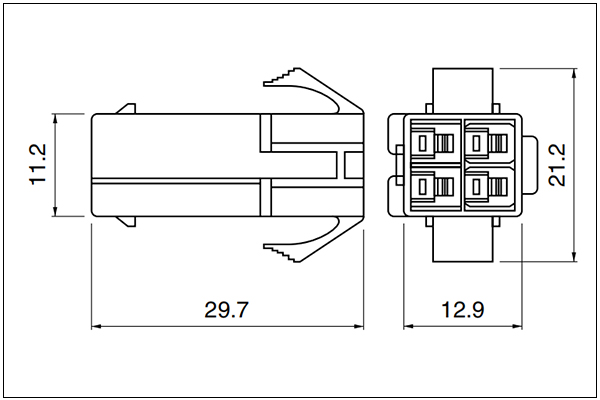

ZLR-04V

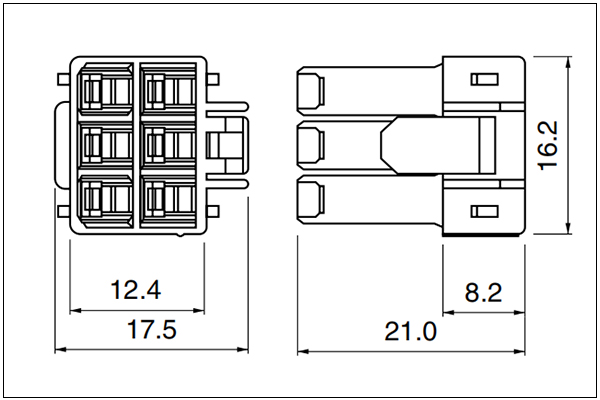

ZLP-06V

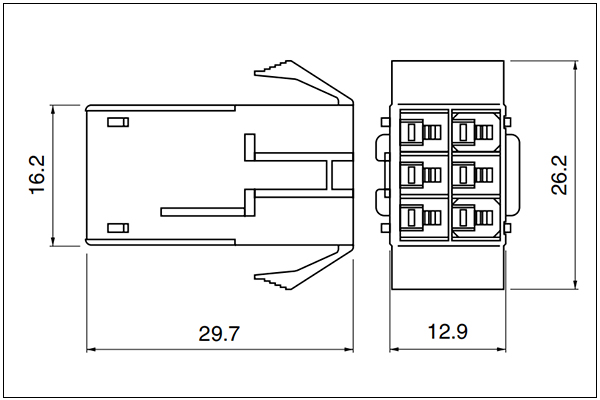

ZLR-06V

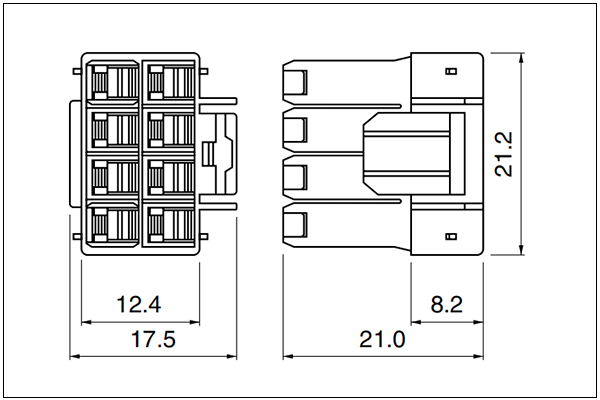

ZLP-08V

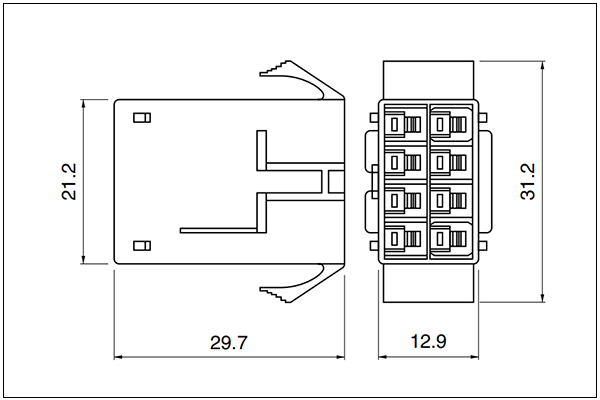

ZLR-08V

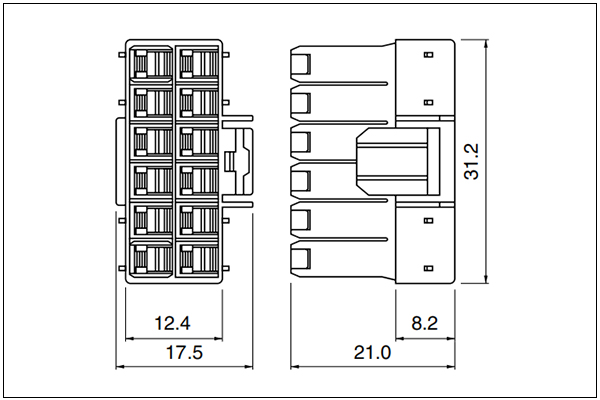

ZLP-12V

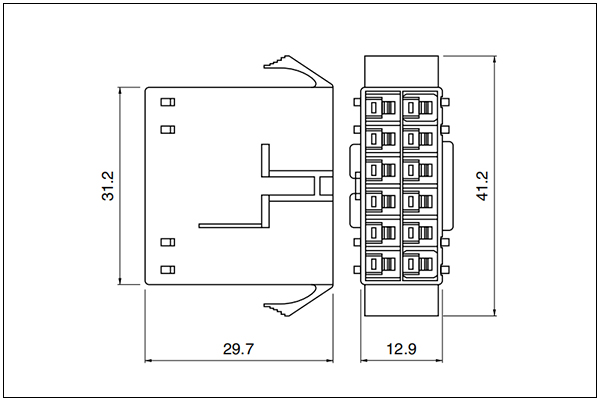

ZLR-12V

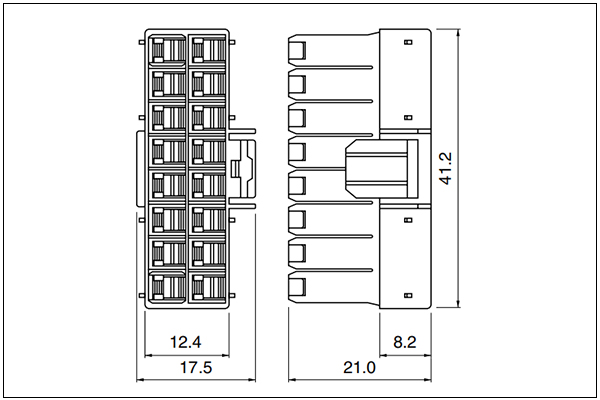

ZLP-16V

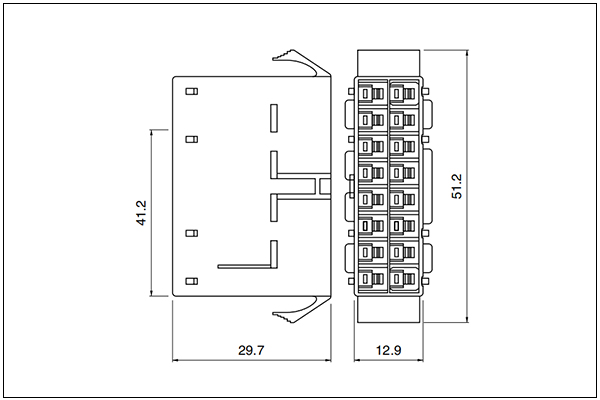

ZLR-16V
Terminal

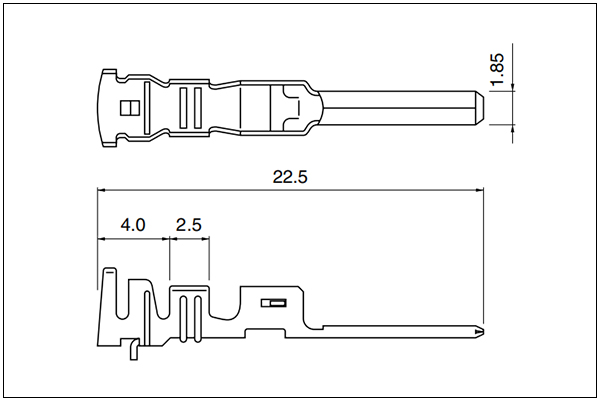

Pin Contact
Socket Contact
| Model No. | Applicable wire | Insulation O.D(mm) | Q'ty/reel | ||
| Pin contact | Socket contact | mm² | AWG# | ||
| SZM-01T-P0.7 | SZF-01T-P0.7 | 0.13～0.5 | 26~20 | 1.3～2.7 | 3000 |
| SZM-41T-P0.7 | SZF-41T-P0.7 | 0.75~1.25 | 18~16 | 1.9~3.1 | |
| 0.3+0.3 ~ 0.5+0.5 | 22+22 ~ 20+20 | 1.7+1.7 ~ 2.0+2.0 | |||
Material and Finish: Phosphor bronze, tin-plated (reflow treatment)

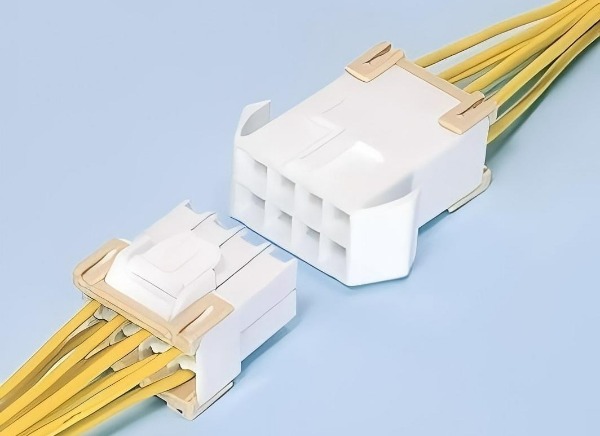

Support Custom Wiring Harness Assembly
- Connector: 2, 4, 6, 8, 12, 16pin
- Wire gauge: 16 - 26AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
