JST ZM Connector, Wire to Wire, Custom Wire Assembly
JST ZM Connector, Wire to Wire

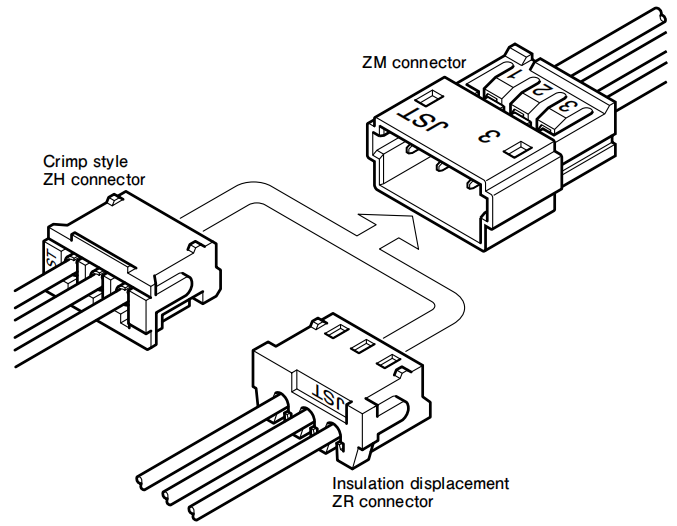

The JST ZM Connector series offers a compact and reliable solution for wire-to-wire applications, featuring a 1.5 mm pitch design that supports higher connection densities. These connectors are matable with ZH and ZR receptacles, providing compatibility and flexibility across various setups. The ZM connectors boast a streamlined design with housing-to-terminal locks, ensuring secure and stable connections. Users can choose between crimp-style and insulation displacement receptacles, catering to diverse application needs. Additionally, the fully shrouded header design resists rocking during mating, enhancing durability and alignment. This versatile connector series is ideal for space-saving, high-performance wiring solutions.
Specifications
- Connector type: Crimp style Wire-to-wire connectors Matable with ZH and ZR receptacles
- Connector pitch: 1.5mm
- Current rating: 0.7 A AC/DC max. (AWG #28)
- Voltage rating: 50 V AC/DC max. (See Note below.)
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 20 m Ω max, After environmental tests/ 30 m Ω max.
- Insulation resistance: 500 M Ω min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: AWG #30 to #28
Note: In this connector, a part of the contact is exposed at the housing lance side. When using the connector, mount it so that the exposed part does not touch the metal part of other parts.

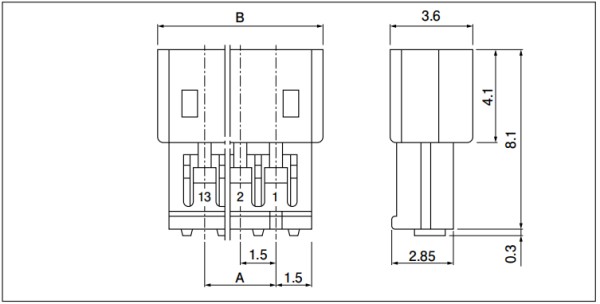

ZM Connector - Plug
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | ZMR-02 | 1.5 | 5.5 | 2000 |
| 3 | ZMR-03 | 3.0 | 7.0 | 2000 |
| 9 | ZMR-09 | 12.0 | 16.0 | 1000 |
| 13 | ZMR-13 | 18.0 | 22.0 | 1000 |
Material and Finish: Glass-filled PA 66, UL94V-0

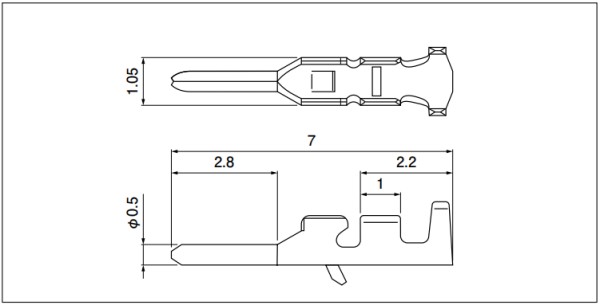

Plug Terminal
Spcs:
- Model No.: SMM-003T-P0.5
- Applicable Wire: 0.05 - 0.08mm² (32 - 28AWG)
- Insolations O.D. (mm): 0.7 - 0.9
- Q'ty/reel: 16000pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS2 compliance

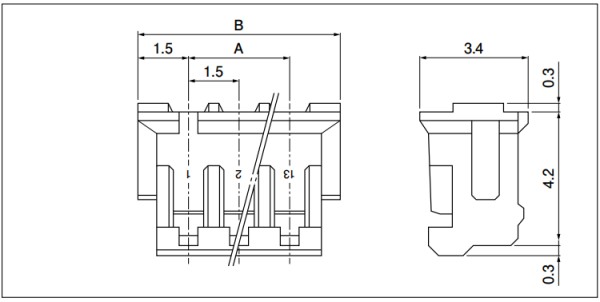

ZH Connector - Receptacle
| No.of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | ZHR-2 | 1.5 | 4.5 | 1000 |
| 3 | ZHR-3 | 3.0 | 6.0 | 1000 |
| 9 | ZHR-9 | 12.0 | 15.0 | 1000 |
| 13 | ZHR-13 | 18.0 | 21.0 | 1000 |
Material and Finish: PA 66, UL94V-0

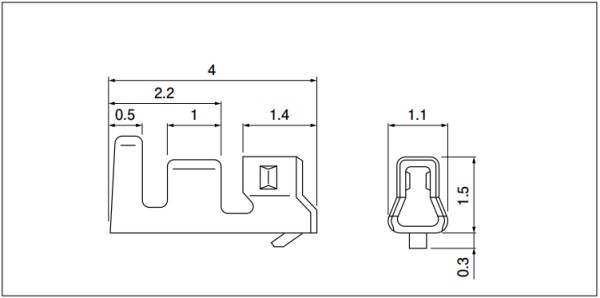

Receptacle Terminal
Spcs:
- Model No.: SZH-003T-P0.5
- Applicable Wire: 0.032 - 0.08mm² (32 - 28AWG)
- Insolations O.D. (mm): 0.5 - 0.9
- Q'ty/reel: 16000pcs
- Materials and Finish: Phosphor bronze, tin-plated (reflow treatment)
- RoHS2 compliance

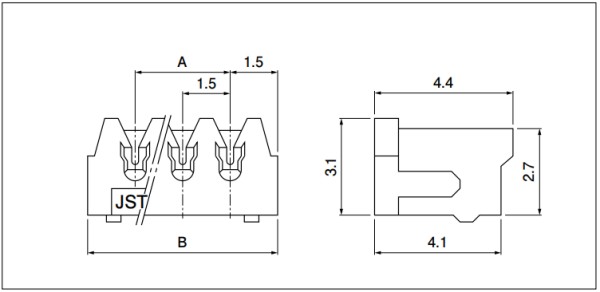

ZR Connector (IDC) - Receptacle
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | ||
| AWG#30 | AWG#28 | A | B | ||
| 2 | 02ZR-3H-P | 02ZR-8M-P | 1.5 | 4.5 | 2000 |
| 3 | 03ZR-3H-P | 03ZR-8M-P | 3.0 | 6.0 | 2000 |
| 9 | 09ZR-3H-P | 09ZR-8M-P | 12.0 | 15.0 | 2000 |
| 13 | 13ZR-3H-P | 13ZR-8M-P | 18.0 | 21.0 | 2000 |
Material and Finish
- Contact: Phosphor bronze, tin-plated (reflow treatment)
- Housing: Glass-filled PA 66, UL94V-0

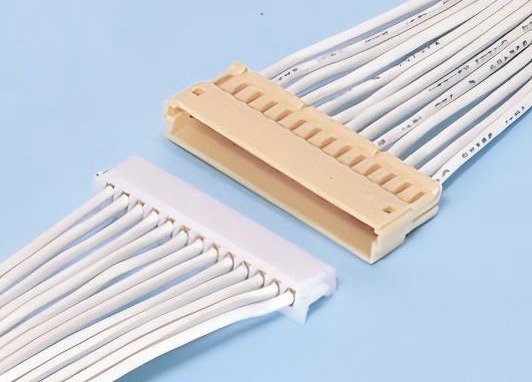

Support Custom Wiring Harness Assembly
- Connector: 2, 3, 9, 13pin
- Wire gauge: 32 - 28AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
