JST ZND Connector

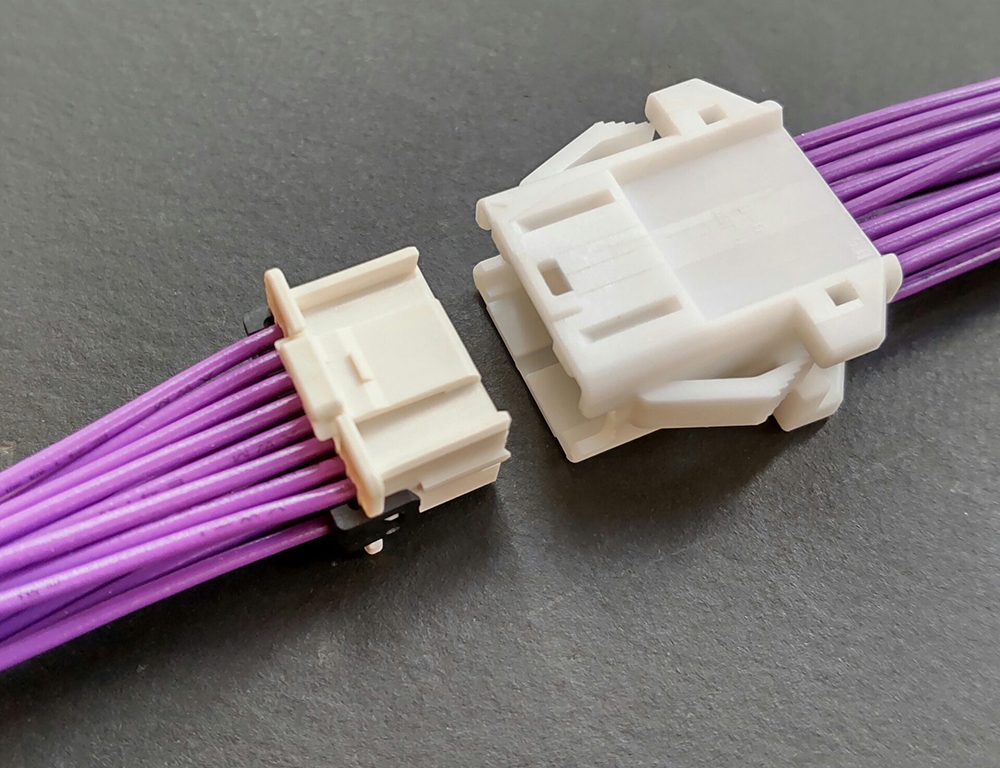

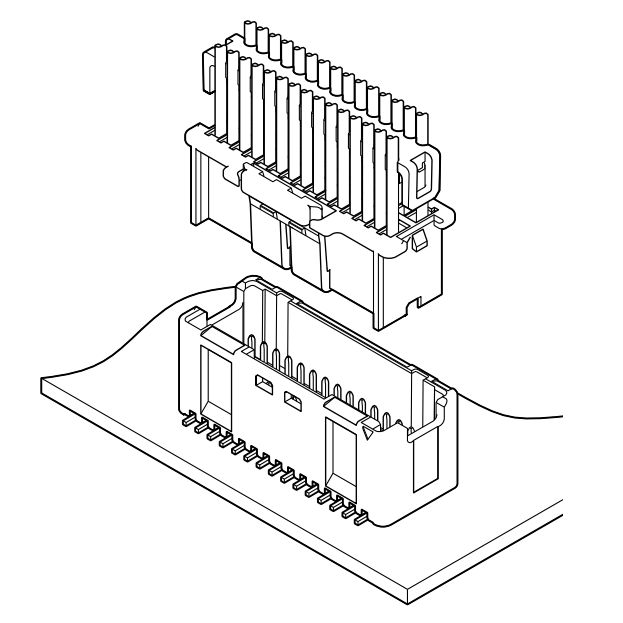

The JST ZND Connector is a 1.5mm pitch, dual-row, surface-mount (SMT) crimping connector, designed to support high-density board layouts with enhanced reliability. This connector is potting treatment compatible, making it ideal for use in applications requiring environmental protection against moisture, dust, or other contaminants. It features a robust secure locking mechanism, ensuring a stable and vibration-resistant connection. Additionally, it offers a smooth and tactile mating experience, allowing for confident and precise assembly. The ZND Connector is also retainer-mountable, providing extra security to prevent accidental disconnection, making it well-suited for automotive, industrial, and consumer electronics applications.
ZND Connector Specifications
- Connector type: Wire to Board, Disconnectable crimp style
- Connector pitch: 1.5mm
- Current rating: 2 A AC/DC (AWG #24)
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 10 mΩ max, After environmental tests/ 20 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #28 to #24, Insulation O.D./ 0.76 to 1.3 mm
Housing

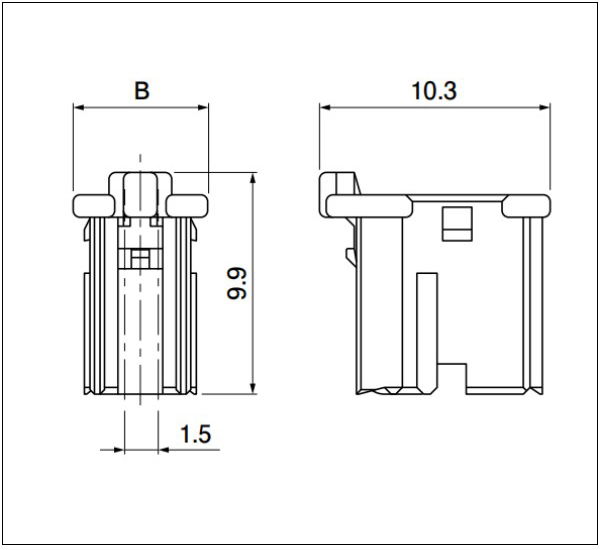

4 circuits

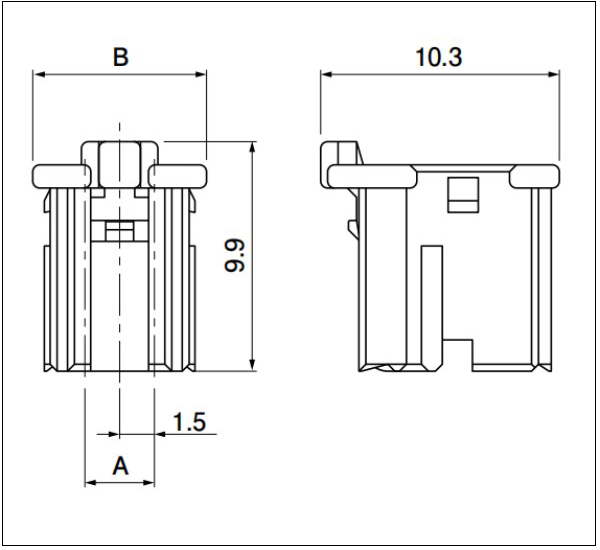

6 circuits

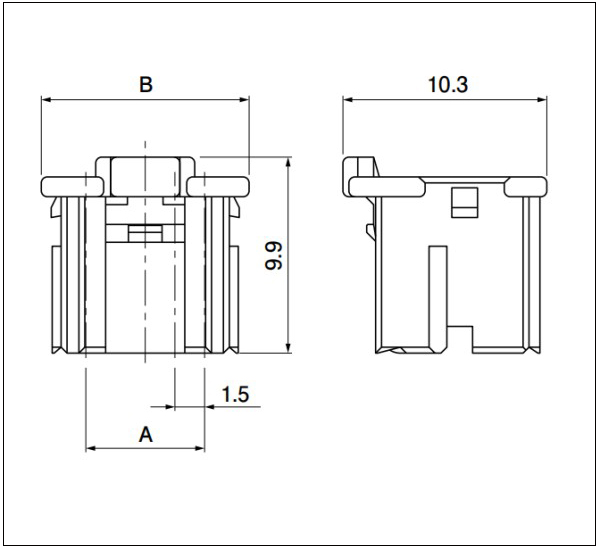

8 - 16 circuits

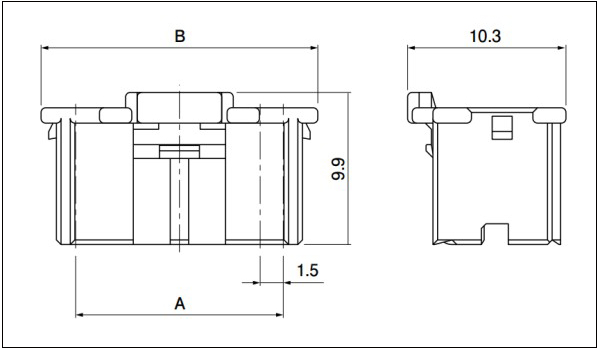

18 to 28 circuits

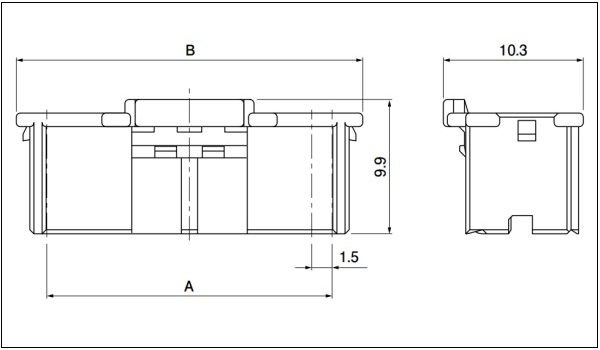

30 to 36 circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 4 | ZNDP-04V-A-S | 一 | 6.0 | 1000 |
| 6 | ZNDP-06V-A-S | 3.0 | 7.5 | 1000 |
| 8 | ZNDP-08V-A-S | 4.5 | 9.0 | 1000 |
| 10 | ZNDP-10V-A-S | 6.0 | 10.5 | 1000 |
| 12 | ZNDP-12V-A-S | 7.5 | 12.0 | 1000 |
| 14 | ZNDP-14V-A-S | 9.0 | 13.5 | 1000 |
| 16 | ZNDP-16V-A-S | 10.5 | 15.0 | 1000 |
| 18 | ZNDP-18V-A-S | 12.0 | 16.5 | 1000 |
| 20 | ZNDP-20V-A-S | 13.5 | 18.0 | 1000 |
| 22 | ZNDP-22V-A-S | 15.0 | 19.5 | 1000 |
| 24 | ZNDP-24V-A-S | 16.5 | 21.0 | 1000 |
| 26 | ZNDP-26V-A-S | 18.0 | 22.5 | 1000 |
| 28 | ZNDP-28V-A-S | 19.5 | 24.0 | 1000 |
| 30 | ZNDP-30V-A-S | 21.0 | 25.5 | 1000 |
| 32 | ZNDP-32V-A-S | 22.5 | 27.0 | 1000 |
| 34 | ZNDP-34V-A-S | 24.0 | 28.5 | 1000 |
| 36 | ZNDP-36V-A-S | 25.5 | 30.0 | 1000 |

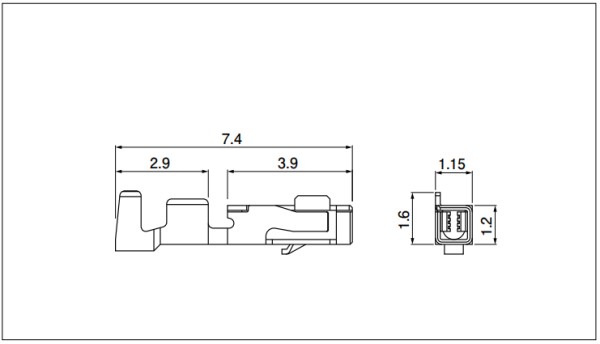

Terminal
Notes:
- Model Number: SZND-002T-P0.5
- Suitable Wire Gauge: 0.08 - 0.21mm² (28 - 24AWG)
- Insulation O.D. (mm): 0.76 - 1.3
- Qty/Reel: 23000pcs
- Material and Finish: Copper alloy, tin-plated (reflow treatment)
- RoHS2 compliance

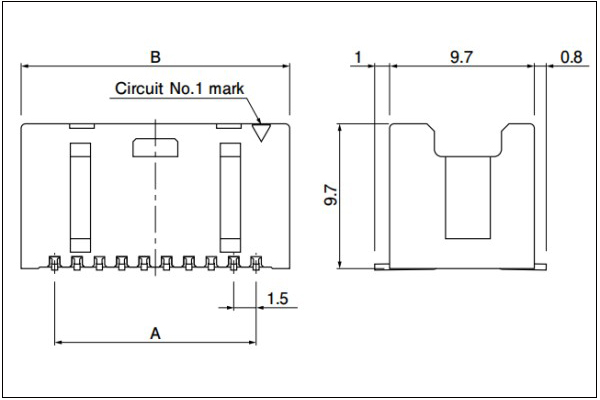

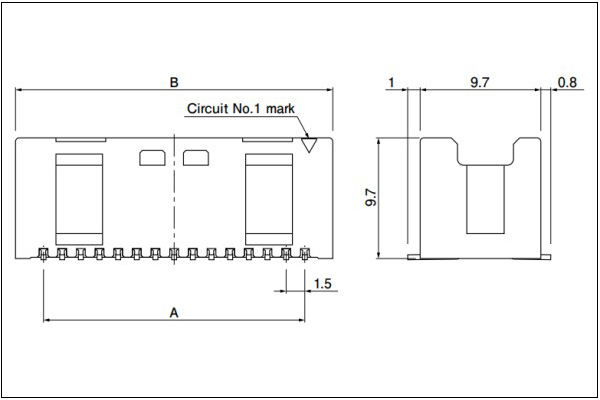

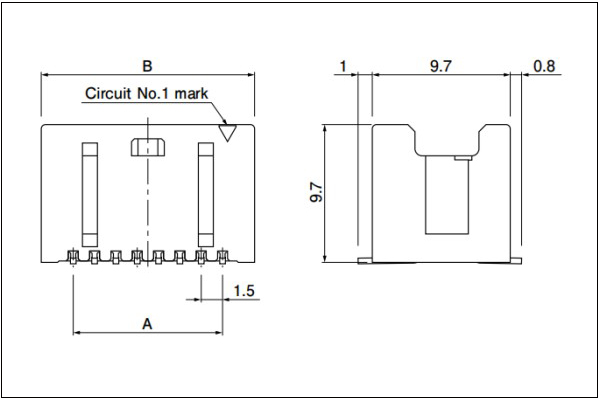

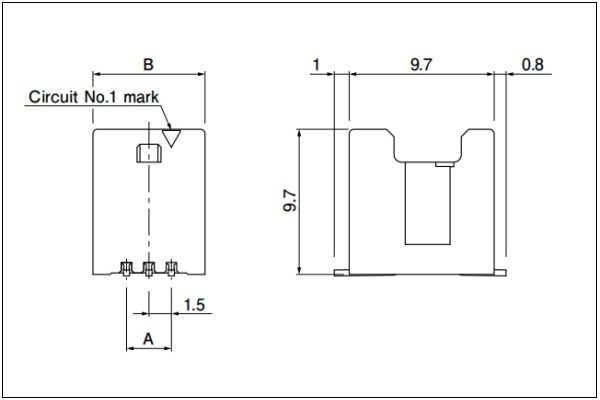

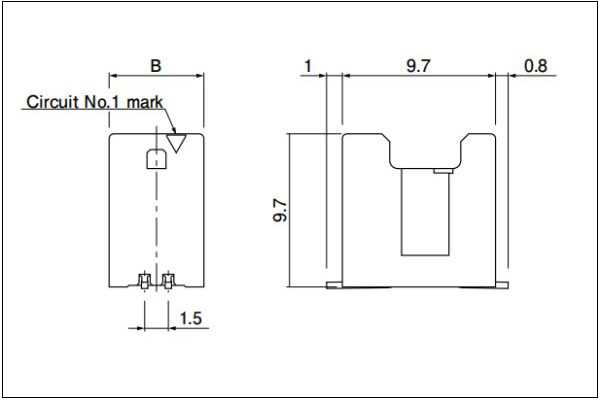

Header
4 Circuits
6 Circuits

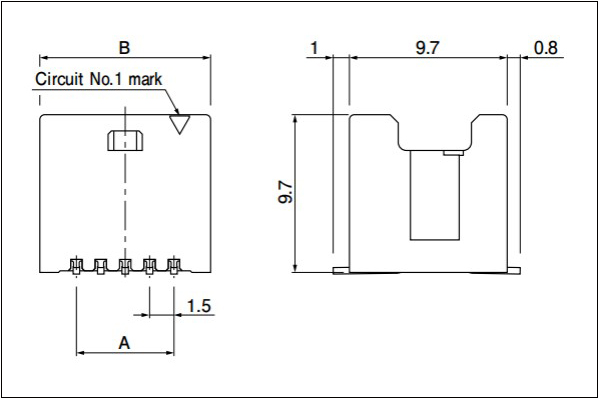

8-14 Circuits
16 Circuits
18-28 Circuits
30-36 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | |||
| 4 | BM-04B-ZNDSS-A-TF | 一 | 6.0 | 520 |
| 6 | BM-06B-ZNDSS-A-TF | 3.0 | 7.5 | 520 |
| 8 | BM-08B-ZNDSS-A-TF | 4.5 | 9.0 | 520 |
| 10 | BM-10B-ZNDSS-A-TF | 6.0 | 10.5 | 520 |
| 12 | BM-12B-ZNDSS-A-TF | 7.5 | 12.0 | 520 |
| 14 | BM-14B-ZNDSS-A-TF | 9.0 | 13.5 | 520 |
| 16 | BM-16B-ZNDSS-A-TF | 10.5 | 15.0 | 520 |
| 18 | BM-18B-ZNDSS-A-TF | 12.0 | 16.5 | 520 |
| 20 | BM-20B-ZNDSS-A-TF | 13.5 | 18.0 | 520 |
| 22 | BM-22B-ZNDSS-A-TF | 15.0 | 19.5 | 520 |
| 24 | BM-24B-ZNDSS-A-TF | 16.5 | 21.0 | 520 |
| 26 | BM-26B-ZNDSS-A-TF | 18.0 | 22.5 | 520 |
| 28 | BM-28B-ZNDSS-A-TF | 19.5 | 24.0 | 520 |
| 30 | BM-30B-ZNDSS-A-TF | 21.0 | 25.5 | 520 |
| 32 | BM-32B-ZNDSS-A-TF | 22.5 | 27.0 | 520 |
| 34 | BM-34B-ZNDSS-A-TF | 24.0 | 28.5 | 520 |
| 36 | BM-36B-ZNDSS-A-TF | 25.5 | 30.0 | 520 |
Material and Finish
- Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer: Polyamide, UL94V-0, natural

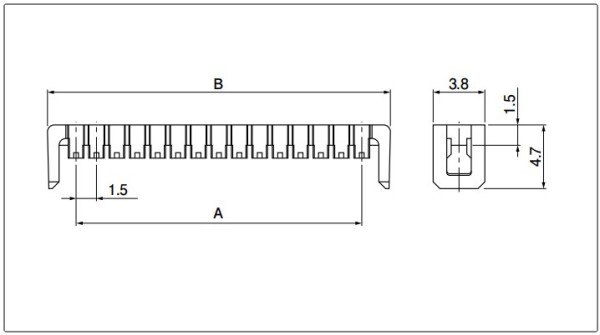

Retainer
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 4 | ZNDS-04V-K | — | 5.7 | 2000 |
| 6 | ZNDS-06V-K | 3.0 | 7.2 | 2000 |
| 8 | ZNDS-08V-K | 4.5 | 8.7 | 2000 |
| 10 | ZNDS-10V-K | 6.0 | 10.2 | 2000 |
| 12 | ZNDS-12V-K | 7.5 | 11.7 | 2000 |
| 14 | ZNDS-14V-K | 9.0 | 13.2 | 2000 |
| 16 | ZNDS-16V-K | 10.5 | 14.7 | 2000 |
| 18 | ZNDS-18V-K | 12.0 | 16.2 | 2000 |
| 20 | ZNDS-20V-K | 13.5 | 17.7 | 2000 |
| 22 | ZNDS-22V-K | 15.0 | 19.2 | 2000 |
| 24 | ZNDS-24V-K | 16.5 | 20.7 | 2000 |
| 26 | ZNDS-26V-K | 18.0 | 22.2 | 2000 |
| 28 | ZNDS-28V-K | 19.5 | 23.7 | 2000 |
| 30 | ZNDS-30V-K | 21.0 | 25.2 | 2000 |
| 32 | ZNDS-32V-K | 22.5 | 26.7 | 2000 |
| 34 | ZNDS-34V-K | 24.0 | 28.2 | 2000 |
| 36 | ZNDS-36V-K | 25.5 | 29.7 | 2000 |
Material and Finish: Glass-filled PA 66, UL94V-0, black
Support Custom Wiring Harness Assembly
- Connector: 4 - 36pin
- Wire gauge: 28 - 24AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
