JST ZND Connector, Wire to Wire, Custom Wire Assembly

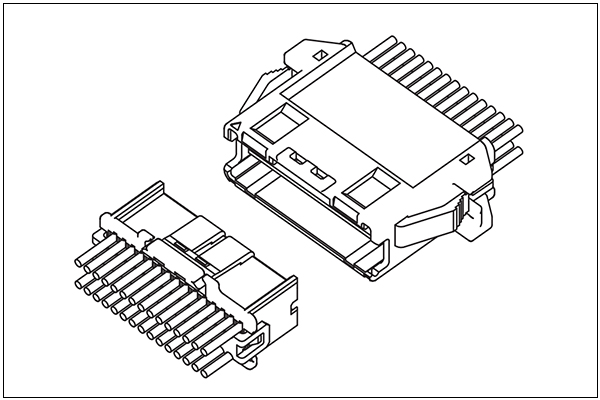

JST ZND Connector, Wire to Wire Type
This JST ZND Connector is a high-performance 1.5mm pitch, dual-row wire-to-wire connector designed to meet the needs of high-density equipment applications. It features a secure locking mechanism that ensures reliable connections and minimizes the risk of incomplete mating. The connector is equipped with a retainer-mountable type for added stability, along with a panel-locking mechanism that enhances its robustness. With superior insertion and withdrawal operability, the ZND connector is engineered for low insertion force, making installation and maintenance easier. Additionally, the connector supports keying development, allowing for customization and further improving the security and functionality of connections in complex systems.
Specifications
- Connector type: Wire to Wire
- Connector pitch: 1.5mm
- Current rating: 2 A AC/DC (AWG #24)
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 15 mΩ max, After environmental tests/ 25 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire range: Conductor size/ AWG #28 to #24, Insulation O.D/ φ0.76 mm to φ1.3 mm upon not using a retainer, φ1.0 mm to φ1.3 mm upon using a retainer
- Applicable panel thickness: 0.5 to 2.0 mm

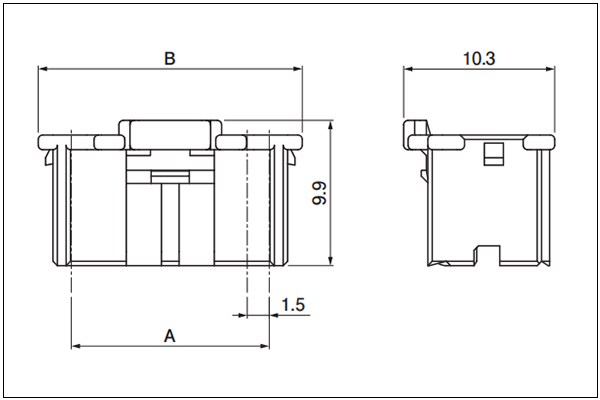

Socket housing (for socket contact)

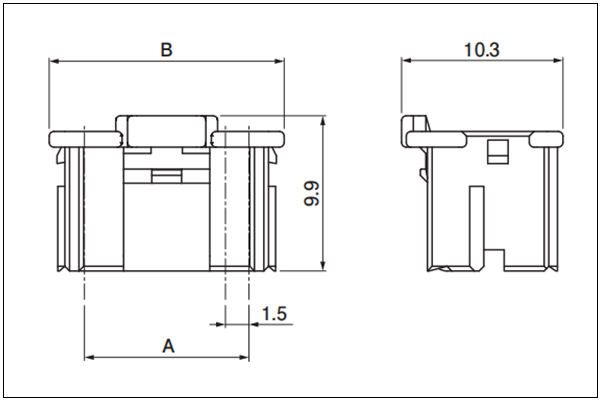

16 Circuits
24 Circuits

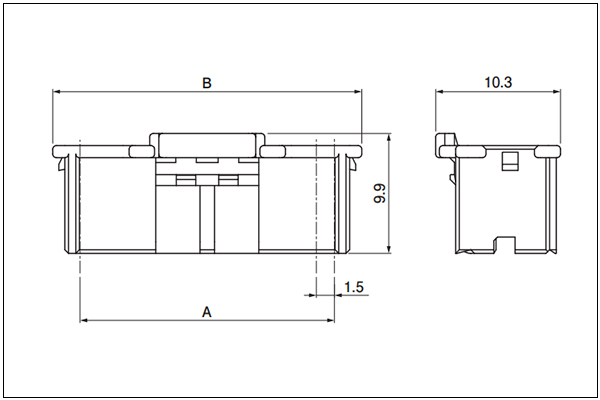

32, 40 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 16 | ZNDP-16V-A-S | 10.5 | 15.0 | 1000 |
| 24 | ZNDP-24V-A-S | 16.5 | 21.0 | 1000 |
| 32 | ZNDP-32V-A-S | 22.5 | 27.0 | 1000 |
| 40 | ZNDP-40V-A-S | 28.5 | 33.0 | 700 |
Material and Finish: PA 66 (Glass-filled), UL94V-0, natural

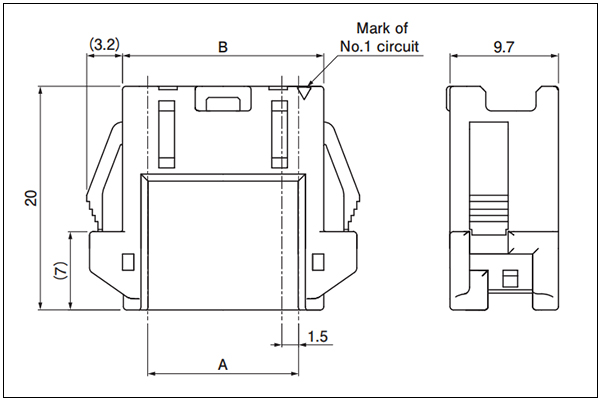

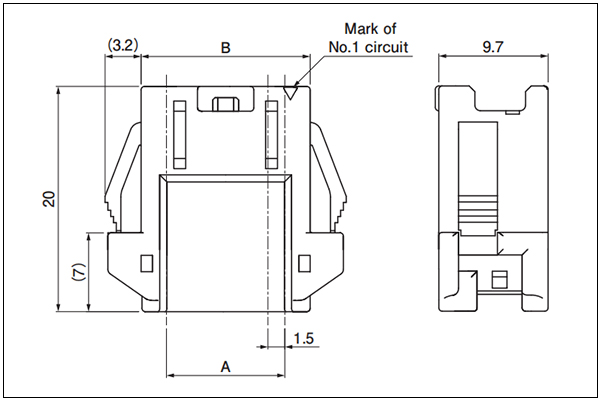

Receptacle housing (for pin contact)
16 Circuits
24 Circuits

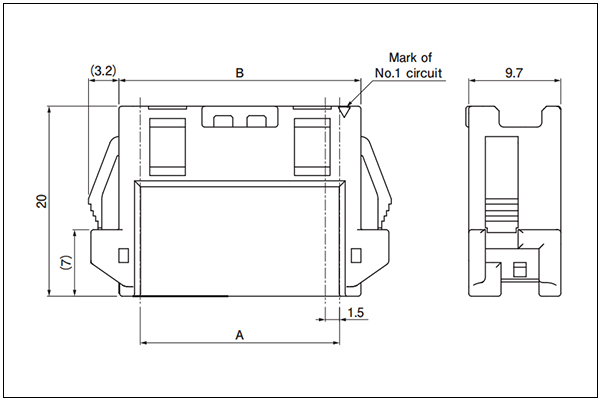

32, 40 Circuits
| No.of circuits | Model No. | Dimensions(mm) | Q'ty/bag | ||||
| A | B | C | D | E | |||
| 16 | ZNDRR-16V-A-S | 10.5 | 15.0 | 15.4 | 18.7 | 6.0 | 200 |
| 24 | ZNDRR-24V-A-S | 16.5 | 21.0 | 21.4 | 24.7 | 6.0 | 200 |
| 32 | ZNDRR-32V-A-S | 22.5 | 27.0 | 27.4 | 30.7 | 9.0 | 200 |
| 40 | ZNDRR-40V-A-S | 28.5 | 33.0 | 33.4 | 36.7 | 9.0 | 200 |
Note:
- Material and Finish: PA 66, UL94V-0, natural
- Dimensions C, D, and E: Panel layout dimensions
- RoHS2 compliance

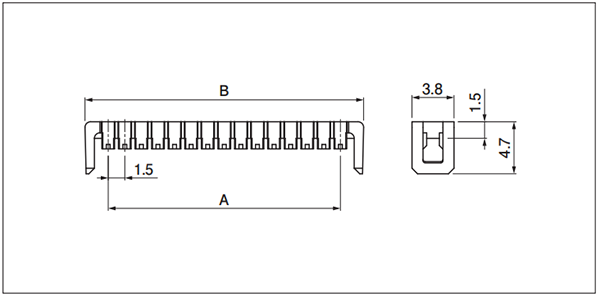

Retainer
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 16 | ZNDS-16V-K | 10.5 | 14.7 | 2000 |
| 24 | ZNDS-24V-K | 16.5 | 20.7 | 2000 |
| 32 | ZNDS-32V-K | 22.5 | 26.7 | 2000 |
| 40 | ZNDS-40V-K | 28.5 | 32.7 | 2000 |
Material and Finish: PA 66 (Glass-filled), UL94V-0, black
Terminal

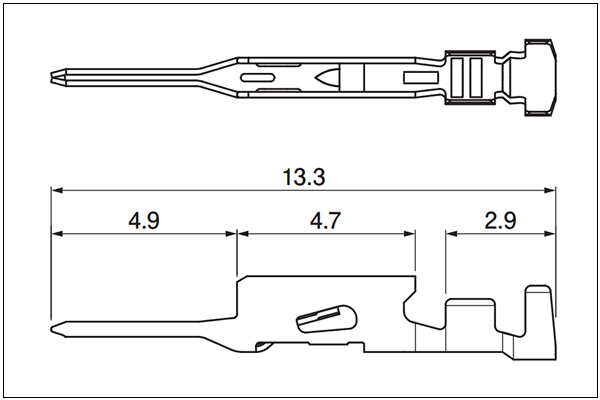

Pin Terminal

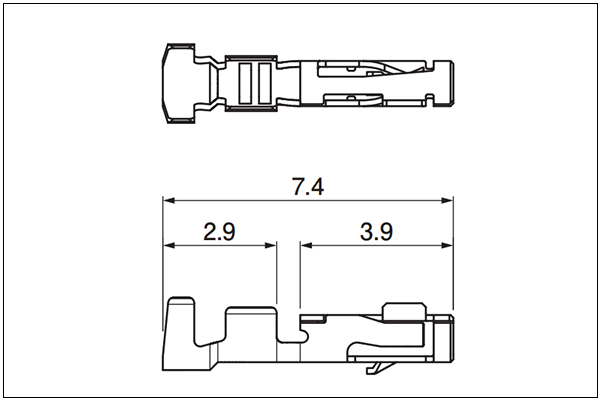

Socket Terminal
Specs:
- Model No.: SZND-002T-P0.5(Socket), SZNDM-002T-P0.5(Pin)
- Applicable Wire: 28 to 24AWG（0.08 to 0.21mm²）
- Insolations O.D. (mm): 0.76 to 1.3mm
- Q'ty/reel: 23000pcs(Socket terminal), 14000pcs(Pin Terminal)
- Materials and Finish: Copper alloy, tin-plated
- The insulation O.D. is φ1.0 mm to φ1.3 mm upon using a retainer
- RoHS2 compliance

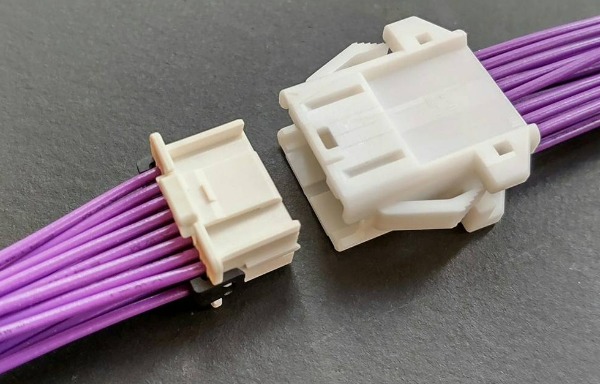

Support Custom Wiring Harness Assembly
- Connector: 16, 24, 32, 40pin
- Wire gauge: 28 - 24AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
