JST ZOM Connector, Wire to Wire, Custom Wire Assembly

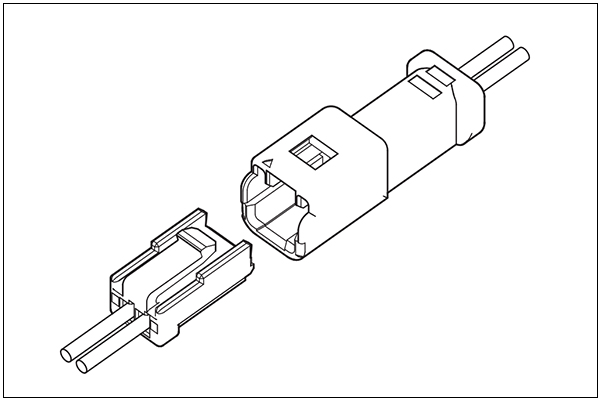

JST ZOM Connector, Wire to Wire Type
The JST ZOM Connector is a 1.5mm pitch wire-to-wire connector designed for applications where space is limited. Its small form factor allows for seamless integration into tight spaces, while the connector’s clear mating and locking sensation ensures a reliable connection. The ZOM series features low-insertion force contacts that enhance operability, making it easier to mate and unmate the connector with minimal effort. The secure locking mechanism, with an inner lock, provides a strong and stable connection. Additionally, keying options are available upon request, offering further customization for specific application needs.
Specifications
- Connector Type: Wire-to-Wire connectors/Crimp style and Mating style
- Connector pitch: 1.5mm
- Current rating: 2 A AC/DC（AWG #24）
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 15 mΩ max, After environmental tests/ 25 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: There shall be no breakdown or flashover while applying 500 VAC for one minute.
- Applicable wire range: Conductor size/ AWG #28 to AWG #24, Insulation O.D./ φ0.76 mm to φ1.3 mm
Plug housing (For socket contact)

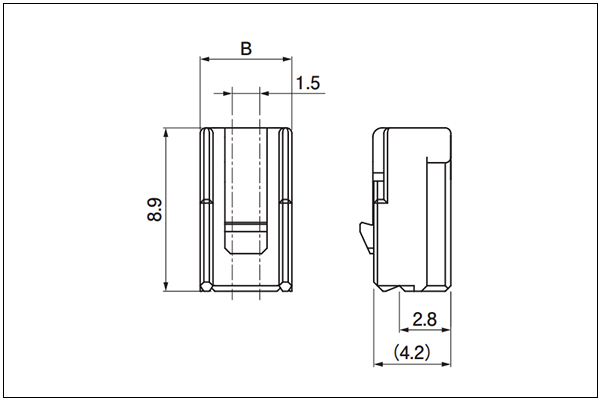

2 Circuits

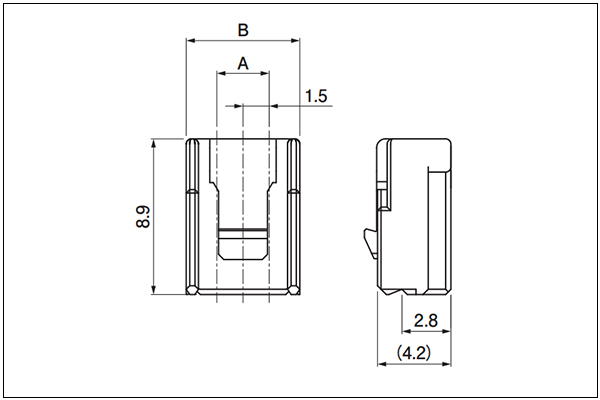

3 Circuits

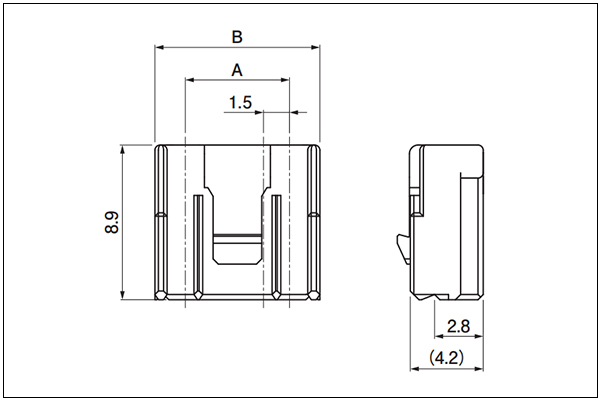

4, 5 Circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 2 | ZOMP-02V-A-S | 一 | 5.0 | 3000 |
| 3 | ZOMP-03V-A-S | 3.0 | 6.5 | 3000 |
| 4 | ZOMP-04V-A-S | 4.5 | 8.0 | 3000 |
| 5 | ZOMP-05V-A-S | 6.0 | 9.5 | 3000 |
Material and Surface finish, etc.: PBT, natural

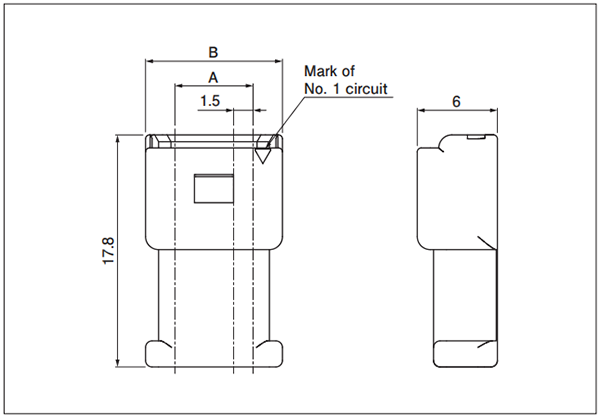

Receptacle housing (For pin contact)
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/bag | |
| A | B | |||
| 2 | ZOMR-02VF-A-S | 一 | 6.0 | 1000 |
| 3 | ZOMR-03VF-A-S | 3.0 | 7.5 | 1000 |
| 4 | ZOMR-04VF-A-S | 4.5 | 9.0 | 1000 |
| 5 | ZOMR-05VF-A-S | 6.0 | 10.5 | 1000 |
Material and Surface finish, etc.: PBT (GF), natural
Terminal

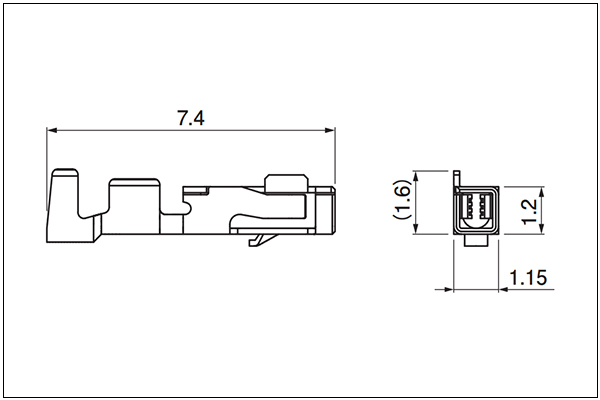

Socket Terminal

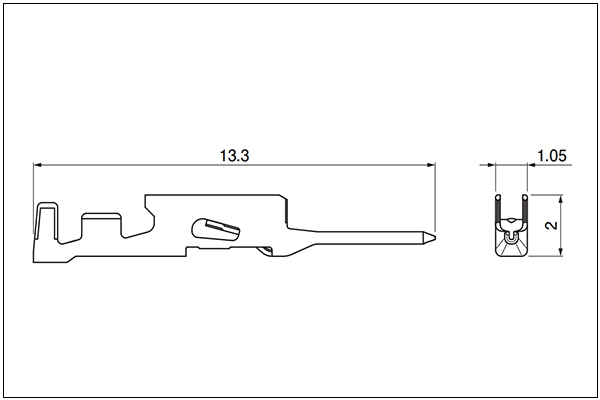

Pin Terminal
| Terminal Type | Model No. | Applicable wire range | Q'ty/reel | |
| Conductor size AWG (mm²) | Insulation O.D. (mm) | |||
| Pin | SZNDM-002T-P0.5 | #28 to #24 (0.08 to 0.21) | 0.76~1.3 | 24000 |
| Socket | SZND-002T-P0.5 | 23000 | ||
Material and Surface finish, etc.: Copper alloy, tin-plated

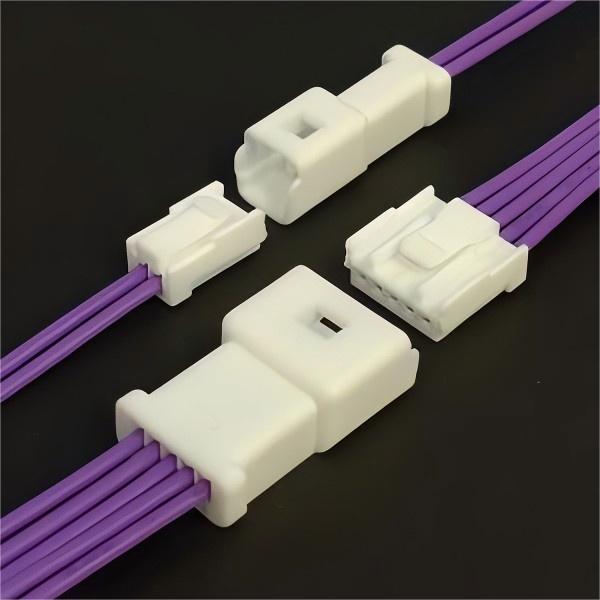

Support Custom Wiring Harness Assembly
- Connector: 2, 3, 4, 5pin
- Wire gauge: 28 - 24AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
