JST ZPD Connector

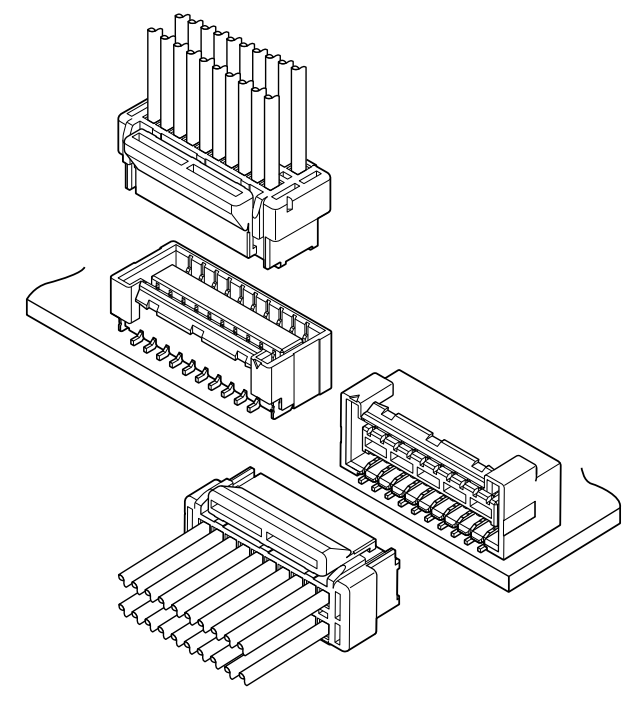

The JST ZPD Connector is a compact, high-performance interconnect solution designed to meet the demands of high-density PCB layouts. With a 1.5mm pitch dual-row configuration, it ensures efficient space utilization while providing a secure and reliable locking mechanism to prevent accidental disconnections. This connector features a low insertion force design, allowing for smooth and effortless mating, which enhances assembly efficiency and reduces wear on components. The ZPD connector also includes a designated suction area for automated pick-and-place assembly, supporting streamlined manufacturing processes. Additionally, its robust structure improves engagement stability, even under prying forces, ensuring consistent electrical performance and durability.
ZPD Connector Specifications
- Connector type: Wire to Board, /Disconnectable Crimp style
- Connector pitch: 1.5mm
- Current rating:
- 2 A/ 10 to 30 circuits AC/DC (AWG #24)
- 1.5 A/ 32 to 40 circuits AC/DC (AWG #24)
- Voltage rating: 100 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 30 mΩ max, After environmental tests/ 60 mΩ max.
- Insulation resistance: 500 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #28 to #24, Insulation O.D./ 0.76 to 1.2 mm
Housing

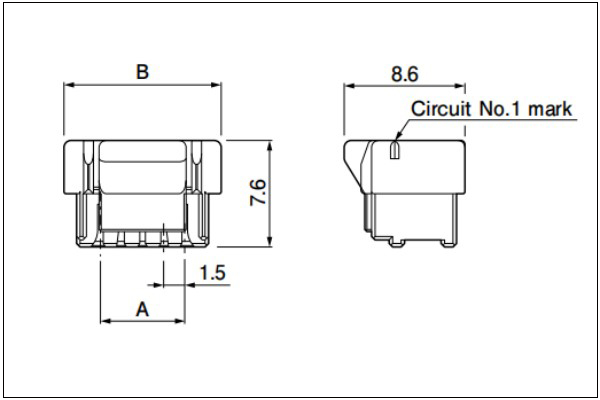

10 circuits

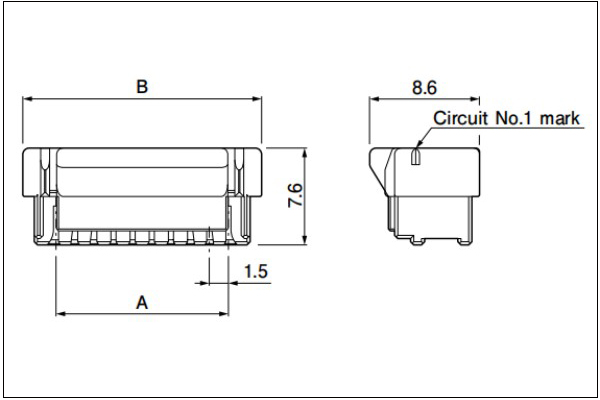

12 to 24 circuits

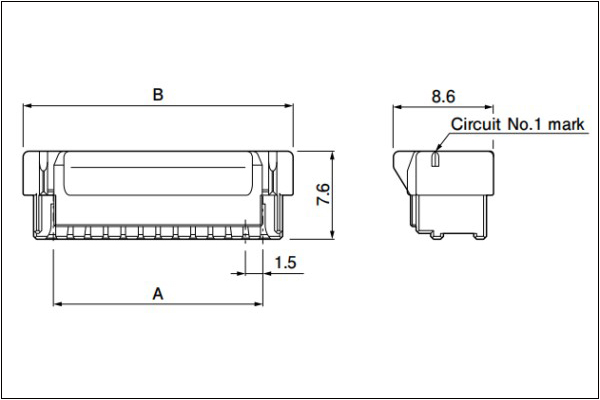

26 to 30 circuits

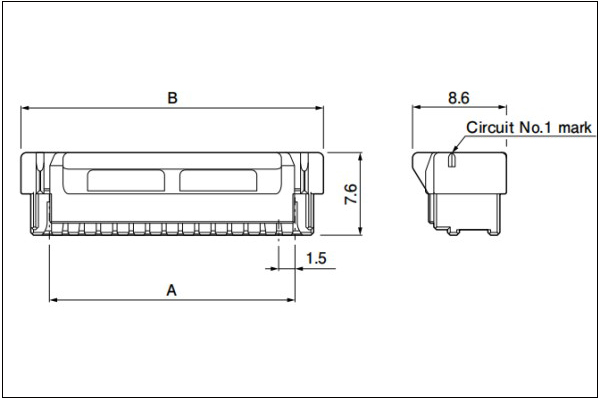

32 to 40 circuits
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | |
| A | B | |||
| 10 | ZPDR-10V-S | 6.0 | 11.2 | 1000 |
| 12 | ZPDR-12V-S | 7.5 | 12.7 | 1000 |
| 14 | ZPDR-14V-S | 9.0 | 14.2 | 1000 |
| 16 | ZPDR-16V-S | 10.5 | 15.7 | 1000 |
| 18 | ZPDR-18V-S | 12.0 | 17.2 | 1000 |
| 20 | ZPDR-20V-S | 13.5 | 18.7 | 1000 |
| 22 | ZPDR-22V-S | 15.0 | 20.2 | 1000 |
| 24 | ZPDR-24V-S | 16.5 | 21.7 | 1000 |
| 26 | ZPDR-26V-S | 18.0 | 23.2 | 1000 |
| 28 | ZPDR-28V-S | 19.5 | 24.7 | 500 |
| 30 | ZPDR-30V-S | 21.0 | 26.2 | 500 |
| 32 | ZPDR-32V-1-Z | 22.5 | 27.7 | 500 |
| 34 | ZPDR-34V-1-Z | 24.0 | 29.2 | 500 |
| 36 | ZPDR-36V-1-Z | 25.5 | 30.7 | 500 |
| 38 | ZPDR-38V-1-Z | 27.0 | 32.2 | 500 |
| 40 | ZPDR-40V-1-Z | 28.5 | 33.7 | 500 |
Material and Finish: PBT, UL94V-0, natural (10 to 30 circuits), ivory (32 to 40 circuits)

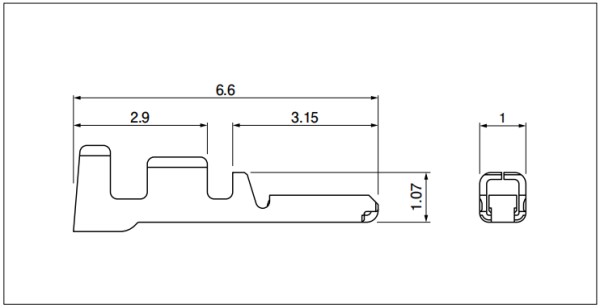

Terminal
Notes:
- Model Number: SZPD-002T-P0.3
- Suitable Wire Gauge: 0.08 - 0.21mm² (28 - 24AWG)
- Insulation O.D. (mm): 0.76 - 1.2
- Qty/Reel: 16000pcs
- Material and Finish: Copper alloy, tin-plated (reflow treatment)
- RoHS2 compliance
Header
Top entry type

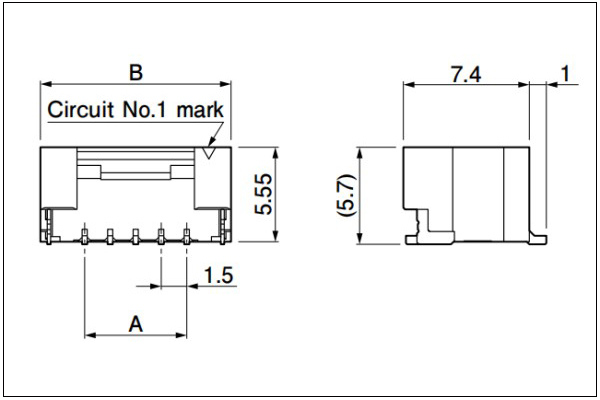

10 Circuits

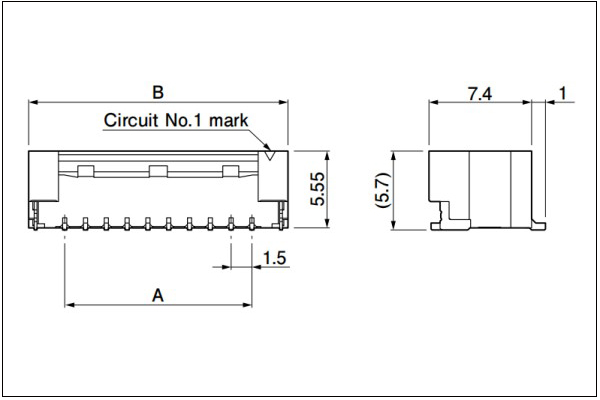

12 - 30 Circuits

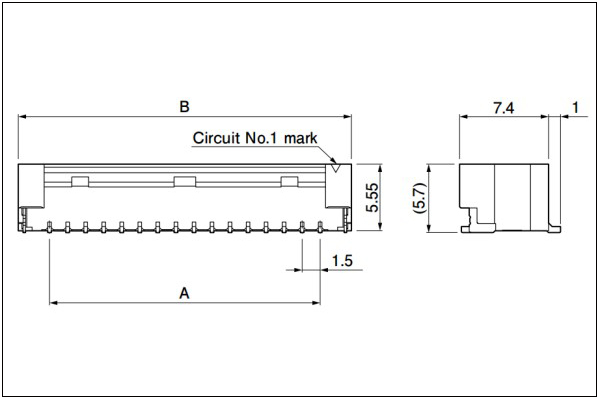

32 - 40 Circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/reel | ||
| A | B | C | |||
| 10 | BM10B-ZPDSS-TF | 6.0 | 11.2 | 9.2 | 1000 |
| 12 | BM12B-ZPDSS-TF | 7.5 | 12.7 | 10.7 | 1000 |
| 14 | BM14B-ZPDSS-TF | 9.0 | 14.2 | 12.2 | 1000 |
| 16 | BM16B-ZPDSS-TF | 10.5 | 15.7 | 13.7 | 1000 |
| 18 | BM18B-ZPDSS-TF | 12.0 | 17.2 | 15.2 | 1000 |
| 20 | BM20B-ZPDSS-TF | 13.5 | 18.7 | 16.7 | 1000 |
| 22 | BM22B-ZPDSS-TF | 15.0 | 20.2 | 18.2 | 1000 |
| 24 | BM24B-ZPDSS-TF | 16.5 | 21.7 | 19.7 | 1000 |
| 26 | BM26B-ZPDSS-TF | 18.0 | 23.2 | 21.2 | 1000 |
| 28 | BM28B-ZPDSS-TF | 19.5 | 24.7 | 22.7 | 1000 |
| 30 | BM30B-ZPDZS-TF | 21.0 | 26.2 | 24.2 | 1000 |
| 32 | BM32B-ZPDZS-TF | 22.5 | 27.7 | 25.7 | 1000 |
| 34 | BM34B-ZPDZS-TF | 24.0 | 29.2 | 27.2 | 1000 |
| 36 | BM36B-ZPDZS-TF | 25.5 | 30.7 | 28.7 | 1000 |
| 38 | BM38B-ZPDZS-TF | 27.0 | 32.2 | 30.2 | 1000 |
| 40 | BM40B-ZPDZS-TF | 28.5 | 33.7 | 31.7 | 1000 |
Material and Finish
- Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer:
- Polyamide, UL94V-0, natural (10 to 30 circuits)
- LCP, UL94V-0, ivory (32 to 40 circuits)
- Reinforcing tab: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Side entry type

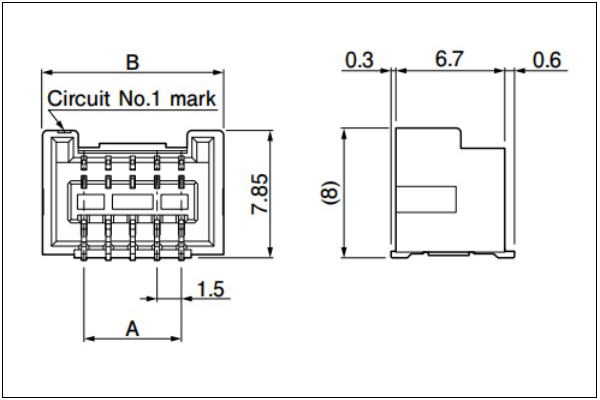

10 Circuits

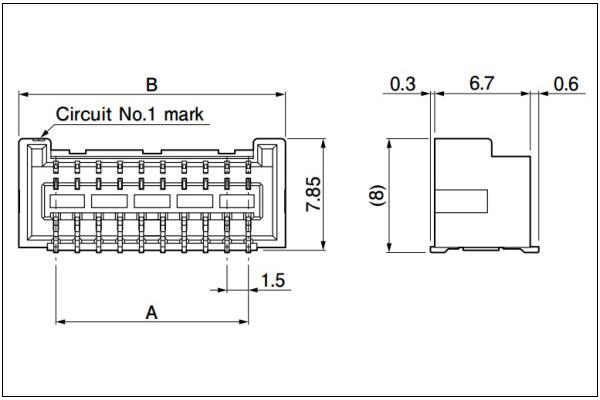

12 - 30 Circuits

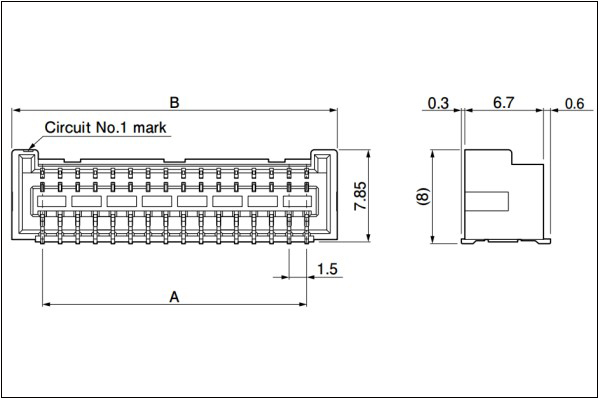

32 - 40 Circuits
| No. of circuits | Model No. | Dimensions(mm) | Q'ty/reel | |
| A | B | |||
| 10 | SM10B-ZPDSS-TF | 6.0 | 11.2 | 700 |
| 12 | SM12B-ZPDSS-TF | 7.5 | 12.7 | 700 |
| 14 | SM14B-ZPDSS-TF | 9.0 | 14.2 | 700 |
| 16 | SM16B-ZPDSS-TF | 10.5 | 15.7 | 700 |
| 18 | SM18B-ZPDSS-TF | 12.0 | 17.2 | 700 |
| 20 | SM20B-ZPDSS-TF | 13.5 | 18.7 | 700 |
| 22 | SM22B-ZPDSS-TF | 15.0 | 20.2 | 700 |
| 24 | SM24B-ZPDSS-TF | 16.5 | 21.7 | 700 |
| 26 | SM26B-ZPDSS-TF | 18.0 | 23.2 | 700 |
| 28 | SM28B-ZPDSS-TF | 19.5 | 24.7 | 700 |
| 30 | SM30B-ZPDSS-TF | 21.0 | 26.2 | 700 |
| 32 | SM32B-ZPDZS-TF | 22.5 | 27.7 | 700 |
| 34 | SM34B-ZPDZS-TF | 24.0 | 29.2 | 700 |
| 36 | SM36B-ZPDZS-TF | 25.5 | 30.7 | 700 |
| 38 | SM38B-ZPDZS-TF | 27.0 | 32.2 | 700 |
| 40 | SM40B-ZPDZS-TF | 28.5 | 33.7 | 700 |
Material and Finish
- Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
- Wafer:
- Polyamide, UL94V-0, natural (10 to 30 circuits)
- LCP, UL94V-0, ivory (32 to 40 circuits)

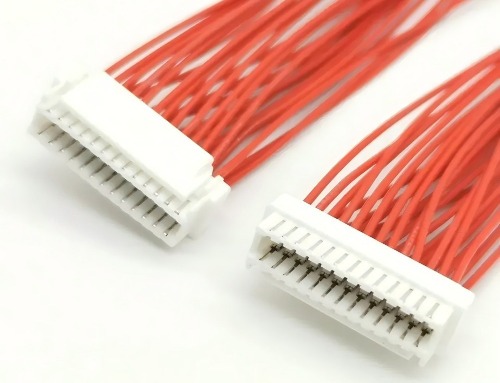

Support Custom Wiring Harness Assembly
- Connector: 10 - 40pin
- Wire gauge: 28 - 24AWG
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
